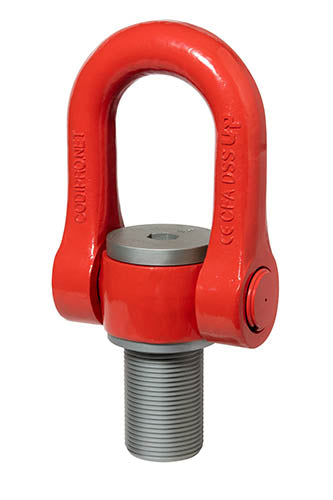

CodiPro MEGA.DSS+ — Steel Universal Double Swivel Hoist Ring (Heavy Loads)
The MEGA.DSS+ is CodiPro's heavy-capacity universal double-swivel ring on the GRADUP alloy steel body, for lifting particularly heavy loads. Rotates 360°, pivots 180°, self-aligns with the sling, and holds full rated load at any angle (0°–90°). Swivels under load.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 30–70 t (66,000–154,000 lb)
- Thread: M64–M100 metric / 2-3/4″–4″ UNC (male)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| MEGA.DSS+ M 64 UP | M64 x6 | 30.0 t | 35.0 t | 600 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 92.5942.0 |
| MEGA.DSS+ M 72 UP | M72 x6 | 35.0 t | 40.0 t | 700 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 94.843.0 |
| MEGA.DSS+ M 72x4 UP | M72 x4 | 35.0 t | 40.0 t | 700 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 94.843.0 |
| MEGA.DSS+ M 80 UP | M80 x6 | 40.0 t | 50.0 t | 800 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 98.1144.5 |
| MEGA.DSS+ M 90 UP | M90 x6 | 50.0 t | 60.0 t | 900 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 102.5146.5 |
| MEGA.DSS+ M 100 UP | M100 x6 | 60.0 t | 70.0 t | 1000 Nm | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 108.0349.0 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| MEGA.DSS+ U 275 UP | 2-3/4"-4 | 66000 lb | 77000 lb | 520 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 93.742.5 |
| MEGA.DSS+ U 300 UP | 3"-4 | 77000 lb | 88000 lb | 520 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 94.843.0 |
| MEGA.DSS+ U 325 UP | 3-1/4"-4 | 88000 lb | 110000 lb | 590 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 98.1144.5 |
| MEGA.DSS+ U 350 UP | 3-1/2"-4 | 88000 lb | 110000 lb | 665 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 101.4146.0 |
| MEGA.DSS+ U 375 UP | 3-3/4"-4 | 110000 lb | 132000 lb | 740 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 103.6247.0 |
| MEGA.DSS+ U 400 UP | 4"-4 | 132000 lb | 154000 lb | 740 ft-lb | 5"127 | 2-1/2"64 | 5-1/2"140 | 7-5/16"186 | 5-5/8"143 | 10-15/16"278 | 2-11/16"69 | 1-7/16"36 | 108.0349.0 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M64 (30.00 t) | MEGA.DSS M 64 UP | $0.00 | ✓ In Stock | ||
| M72 (35.00 t) | MEGA.DSS M 72 UP | $0.00 | ✓ In Stock | ||
| M72x4 (35.00 t) | MEGA.DSS M 72x4 UP | $0.00 | ✓ In Stock | ||
| M80 (40.00 t) | MEGA.DSS M 80 UP | $0.00 | ✓ In Stock | ||
| M90 (50.00 t) | MEGA.DSS M 90 UP | $0.00 | ✓ In Stock | ||
| M100 (60.00 t) | MEGA.DSS M 100 UP | $0.00 | ✓ In Stock | ||
| 2-3/4" UNC (66,000 lb) | MEGA.DSS U 275 UP | $0.00 | ✓ In Stock | ||
| 3" UNC (77,000 lb) | MEGA.DSS U 300 UP | $0.00 | ✓ In Stock | ||
| 3-1/4" UNC (88,000 lb) | MEGA.DSS U 325 UP | $0.00 | ✓ In Stock | ||
| 3-1/2" UNC (88,000 lb) | MEGA.DSS U 350 UP | $0.00 | ✓ In Stock | ||
| 3-3/4" UNC (110,000 lb) | MEGA.DSS U 375 UP | $0.00 | ✓ In Stock | ||
| 4" UNC (132,000 lb) | MEGA.DSS U 400 UP | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
