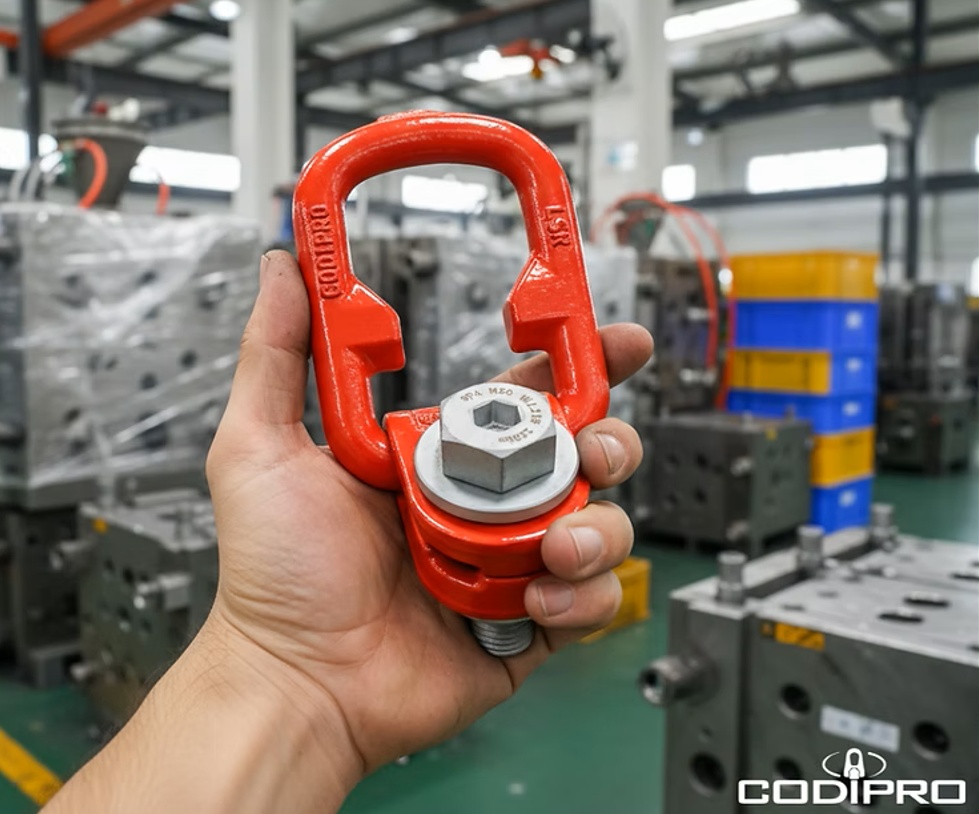

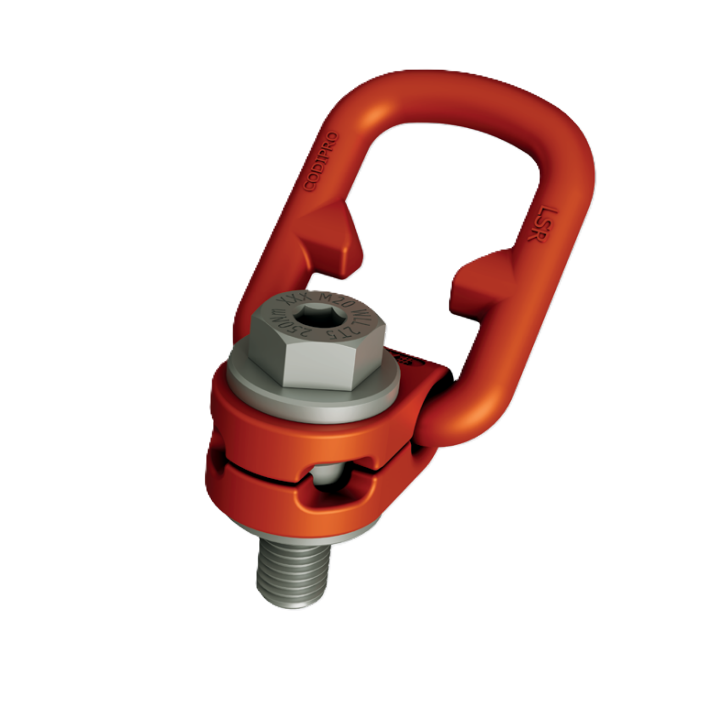

CodiPro LSR — Steel Double Swivel Lifting Ring (Lateral Loading)
The LSR is purpose-built for lifts where the load is not purely axial. Its geometry enables efficient lateral load orientation and naturally aligns with the direction of the applied force, making it ideal for complex, off-axis lifting. A patented CODIPRO integrated screwing device allows simple, quick, tool-free assembly and reduces the risk of incorrect installation.
- Material: alloy steel with anti-corrosion coating
- WLL: 0.30–2.50 t
- Thread: M8–M20 metric (male)
- Safety factor: 4:1
- Movement: double swivel — lateral lifting, flexible rotation under load
- Features: wide shackle opening for standard accessories; patented integrated screwing device
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | H1 (in)(mm) | K (in)(mm) | • | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||||||
| LSR M 8 | M8 x1.25 | — | 0.3 t | 30 Nm | 1-7/16"36 | 1-3/16"30 | 1-1/16"27 | 1-7/8"47 | 1-3/8"35 | 9/16"14 | 2-3/16"55 | 9/16"15 | 2-7/8"73 | 1-3/16"30 | 1/4"6 | 1/2"13 | 0.810.37 |
| LSR M 10 | M10 x1.5 | — | 0.63 t | 60 Nm | 1-7/16"37 | 1-3/16"30 | 1-1/16"27 | 1-7/8"47 | 1-3/8"35 | 9/16"14 | 2-3/16"55 | 9/16"15 | 2-7/8"73 | 1-3/16"30 | 1/4"6 | 11/16"17 | 0.830.38 |
| LSR M 12 | M12 x1.75 | — | 1.0 t | 100 Nm | 1-3/4"44 | 1-3/8"35 | 1-5/16"33 | 1-15/16"50 | 1-9/16"40 | 11/16"18 | 2-11/16"68 | 11/16"18 | 3-3/16"81 | 1-7/16"36 | 5/16"8 | 3/4"19 | 1.560.71 |
| LSR M 16 | M16 x2 | — | 1.5 t | 150 Nm | 1-13/16"46 | 1-3/8"35 | 1-5/16"33 | 1-15/16"50 | 1-9/16"40 | 11/16"18 | 2-11/16"68 | 11/16"18 | 3-3/16"81 | 1-7/16"36 | 3/8"10 | 15/16"24 | 1.710.78 |
| LSR M 20 | M20 x2.5 | — | 2.5 t | 250 Nm | 2-3/16"56 | 1-5/8"42 | 1-3/4"45 | 2-7/8"73 | 2-1/8"54 | 5/8"16 | 3-3/8"86 | 13/16"21 | 4-5/16"109 | 1-15/16"50 | 9/16"14 | 1-3/16"30 | 2.971.35 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.30 t) | LSR M 8 | $0.00 | ✓ In Stock | ||
| M10 (0.63 t) | LSR M 10 | $0.00 | ✓ In Stock | ||
| M12 (1.00 t) | LSR M 12 | $0.00 | ✓ In Stock | ||
| M16 (1.50 t) | LSR M 16 | $0.00 | ✓ In Stock | ||
| M20 (2.50 t) | LSR M 20 | $0.00 | ✓ In Stock |
