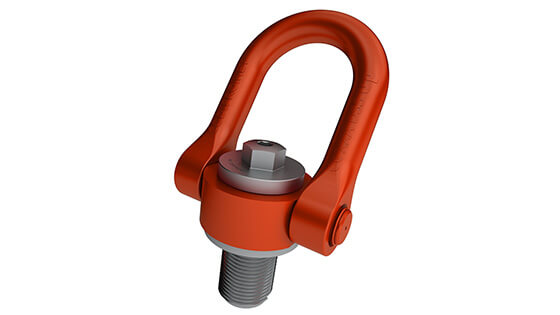

CodiPro GIGA.DSS — Steel Universal Double Swivel Hoist Ring (125 t)
The GIGA.DSS is CodiPro's largest swivel lifting ring — a double-swivel ring for lifting loads up to 125 tons in a single attachment point. Built on the GRADUP alloy steel body; rotates 360°, pivots 180°, self-aligns with the sling, and holds full rated load at any angle (0°–90°). Swivels under load.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 125 t (≈275,000 lb)
- Thread: M150 (male)
- Safety factor: 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Also available as GIGA.DSS+Q. Select the model below.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| GIGA.DSS M 150 UP | M150 x6 | 125.0 t | 2000 Nm | 10-11/16"271 | 4-1/2"115 | 11-7/16"290 | 13-7/8"353 | 11-7/8"302 | 21-7/16"544 | 4-1/16"103 | 1-5/8"41 | 4-1/8"105 | 590.84268 |
| GIGA.DSS+Q M 150 UP | M150 x6 | 125.0 t | 160 Nm | 10-1/2"267 | 4-1/2"115 | 11-7/16"290 | 13-7/8"353 | 11-7/8"302 | 21-7/16"544 | 4-1/16"103 | — | — | 590.84268 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
