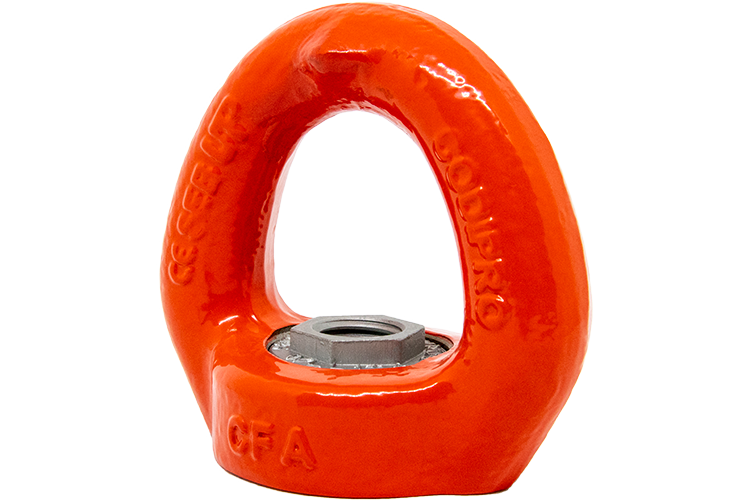

CodiPro FE.SEB — Female Steel Swivel Eye Bolt (GRADUP)
The FE.SEB is the female (tapped) single-swivel eye bolt with a self-orienting system that guides the eye into the sling direction. Built on the GRADUP alloy steel body; the hook moves parallel to the bearing surface when lifting at 90°. Supports lifts with load rotation.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 0.40–11.0 t (1,200–13,800 lb)
- Thread: M8–M36 metric / 3/8″–1-1/2″ UNC (female)
- Safety factor: 4:1 and 5:1
- Movement: single swivel, 360° rotation, self-orienting
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Also available as male (SEB). Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | ||||||||||
| FE.SEB M 8 UP | M8 x1.25 | 0.4 t | 0.5 t | 6 Nm | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB M 10 UP | M10 x1.5 | 0.5 t | 0.7 t | 10 Nm | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB M 12 UP | M12 x1.75 | 0.8 t | 0.9 t | 15 Nm | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB M 16 UP | M16 x2 | 1.4 t | 1.8 t | 50 Nm | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB M 20 UP | M20 x2.5 | 2.0 t | 2.7 t | 100 Nm | 2-3/16"55 | 2-3/4"70 | 4-1/2"115 | 4-3/16"106 | 1-7/16"36 | 5.512.5 |
| FE.SEB M 24 UP | M24 x3 | 3.4 t | 4.2 t | 160 Nm | 3-1/16"77 | 3-11/16"94 | 6-5/8"168 | 6-1/8"155 | 1-9/16"40 | 13.896.3 |
| FE.SEB M 30 UP | M30 x3.5 | 5.5 t | 6.3 t | 250 Nm | 3-1/16"77 | 3-11/16"94 | 6-5/8"168 | 6-1/8"155 | 1-9/16"40 | 13.896.3 |
| FE.SEB M 36 UP | M36 x4 | 9.0 t | 11.0 t | 320 Nm | 3-1/16"77 | 3-11/16"94 | 6-5/8"168 | 6-1/8"155 | 1-9/16"40 | 13.896.3 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | ||||||||||
| FE.SEB U 038 UP | 3/8"-16 | 1200 lb | 1500 lb | 8 ft-lb | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB U 050 UP | 1/2"-13 | 1800 lb | 1950 lb | 12 ft-lb | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB U 058 UP | 5/8"-11 | 3200 lb | 4000 lb | 40 ft-lb | 1-1/2"38 | 1-3/4"45 | 3-7/16"88 | 3-1/8"80 | 13/16"21 | 1.760.8 |
| FE.SEB U 075 UP | 3/4"-10 | 4750 lb | 5900 lb | 80 ft-lb | 2-3/16"55 | 2-3/4"70 | 4-1/2"115 | 4-3/16"106 | 1-7/16"36 | 5.512.5 |
| FE.SEB U 100 UP | 1"-8 | 7500 lb | 9300 lb | 125 ft-lb | 3-1/16"77 | 3-11/16"94 | 6-5/8"168 | 6-1/8"155 | 1-9/16"40 | 13.896.3 |
| FE.SEB U 125 UP | 1-1/4"-7 | 12200 lb | 13800 lb | 200 ft-lb | 3-1/16"77 | 3-11/16"94 | 6-5/8"168 | 6-1/8"155 | 1-9/16"40 | 13.896.3 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 14 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.40 t) | FE.SEB M 8 UP | $0.00 | ✓ In Stock | ||
| M10 (0.50 t) | FE.SEB M 10 UP | $0.00 | ✓ In Stock | ||
| M12 (0.80 t) | FE.SEB M 12 UP | $0.00 | ✓ In Stock | ||
| M16 (1.40 t) | FE.SEB M 16 UP | $0.00 | ✓ In Stock | ||
| M20 (2.00 t) | FE.SEB M 20 UP | $0.00 | ✓ In Stock | ||
| M24 (3.40 t) | FE.SEB M 24 UP | $0.00 | ✓ In Stock | ||
| M30 (5.50 t) | FE.SEB M 30 UP | $0.00 | ✓ In Stock | ||
| M36 (9.00 t) | FE.SEB M 36 UP | $0.00 | ✓ In Stock | ||
| 3/8" UNC (1,200 lb) | FE.SEB U 038 UP | $0.00 | ✓ In Stock | ||
| 1/2" UNC (1,800 lb) | FE.SEB U 050 UP | $0.00 | ✓ In Stock | ||
| 5/8" UNC (3,200 lb) | FE.SEB U 058 UP | $0.00 | ✓ In Stock | ||
| 3/4" UNC (4,750 lb) | FE.SEB U 075 UP | $0.00 | ✓ In Stock | ||
| 1" UNC (7,500 lb) | FE.SEB U 100 UP | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (12,200 lb) | FE.SEB U 125 UP | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
