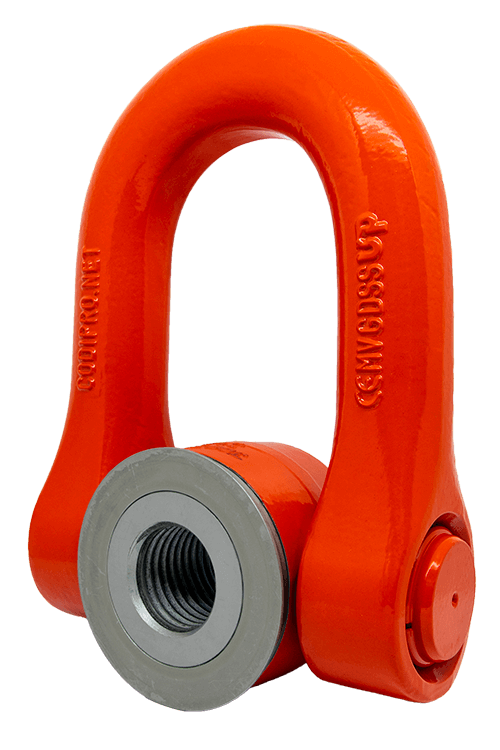

CodiPro FE.DSS — Female Steel Universal Double Swivel Hoist Ring (GRADUP)
The FE.DSS is the female (tapped) version of CodiPro's heavy universal double-swivel ring, threading onto a stud/male thread. GRADUP alloy steel body; rotates 360°, pivots 180°, self-aligns with the sling, holds full rated load at any angle (0°–90°). Swivels under load.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 4.50–21.0 t (10,000–50,000 lb)
- Thread: M24–M52 metric / 1″–2″ UNC (female)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number; 7-year warranty (GRADUP)
- Origin: Made in Luxembourg by CodiPro
Also available as male (DSS) and stainless (SS.FE.DSS). Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| FE.DSS M 24 UP | M24 x3 | 4.5 t | 5.5 t | 160 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS M 27 UP | M27 x3 | 5.2 t | 6.5 t | 200 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS M 30 UP | M30 x3.5 | 7.5 t | 8.5 t | 250 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS M 33 UP | M33 x3.5 | 8.0 t | 10.5 t | 250 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS M 36 UP | M36 x4 | 10.0 t | 12.0 t | 320 Nm | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS M 39 UP | M39 x4 | 12.0 t | 14.0 t | 320 Nm | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| FE.DSS M 42 UP | M42 x4.5 | 13.0 t | 15.0 t | 400 Nm | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| FE.DSS M 45 UP | M45 x4.5 | 14.5 t | 16.0 t | 400 Nm | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| FE.DSS M 48 UP | M48 x5 | 17.0 t | 20.0 t | 600 Nm | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| FE.DSS M 52 UP | M52 x5 | 19.0 t | 21.0 t | 600 Nm | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| FE.DSS U 100 UP | 1"-8 | 10000 lb | 13000 lb | 125 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS U 125 UP | 1-1/4"-7 | 15000 lb | 19000 lb | 200 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS U 138 UP | 1-3/8"-6 | 21000 lb | 22000 lb | 240 ft-lb | 2-5/8"66 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 1-15/16"50 | 11.245.1 |
| FE.DSS U 150 UP | 1-1/2"-6 | 22000 lb | 27000 lb | 240 ft-lb | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
| FE.DSS U 200 UP | 2"-4.5 | 38000 lb | 50000 lb | 450 ft-lb | 3-1/2"89 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 2-3/8"60 | 22.0510.0 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 15 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M24 (4.50 t) | FE.DSS M 24 UP | $0.00 | ✓ In Stock | ||
| M27 (5.20 t) | FE.DSS M 27 UP | $0.00 | ✓ In Stock | ||
| M30 (7.50 t) | FE.DSS M 30 UP | $0.00 | ✓ In Stock | ||
| M33 (8.00 t) | FE.DSS M 33 UP | $0.00 | ✓ In Stock | ||
| M36 (10.00 t) | FE.DSS M 36 UP | $0.00 | ✓ In Stock | ||
| M39 (12.00 t) | FE.DSS M 39 UP | $0.00 | ✓ In Stock | ||
| M42 (13.00 t) | FE.DSS M 42 UP | $0.00 | ✓ In Stock | ||
| M45 (14.50 t) | FE.DSS M 45 UP | $0.00 | ✓ In Stock | ||
| M48 (17.00 t) | FE.DSS M 48 UP | $0.00 | ✓ In Stock | ||
| M52 (19.00 t) | FE.DSS M 52 UP | $0.00 | ✓ In Stock | ||
| 1" UNC (10,000 lb) | FE.DSS U 100 UP | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (15,000 lb) | FE.DSS U 125 UP | $0.00 | ✓ In Stock | ||
| 1-3/8" UNC (21,000 lb) | FE.DSS U 138 UP | $0.00 | ✓ In Stock | ||
| 1-1/2" UNC (22,000 lb) | FE.DSS U 150 UP | $0.00 | ✓ In Stock | ||
| 2" UNC (38,000 lb) | FE.DSS U 200 UP | $0.00 | ✓ In Stock |
