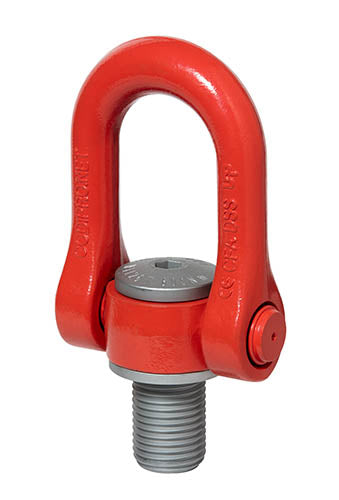

CodiPro DSS — Steel Universal Double Swivel Hoist Ring (GRADUP)
The DSS is CodiPro's heavy-duty universal double-swivel ring on the high-performance GRADUP alloy steel body. It rotates 360° and pivots 180° to self-align with the sling and hold full rated load at any angle (approved 0°–90°). Swivels under load.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 4.50–32.1 t (10,000–55,000 lb)
- Thread: M24–M100 metric / 1″–2-1/2″ UNC (male)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number; 7-year warranty (GRADUP)
- Origin: Made in Luxembourg by CodiPro
Also available in stainless (SS.DSS), female (FE.DSS) and welding versions. Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||
| DSS M 24 UP | M24 x3 | 4.5 t | 5.5 t | 160 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS M 30 UP | M30 x3.5 | 7.7 t | 8.5 t | 250 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.135.5 |
| DSS M 33 UP | M33 x3.5 | 8.5 t | 10.5 t | 250 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.135.5 |
| DSS M 36 UP | M36 x4 | 11.0 t | 12.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.135.5 |
| DSS M 36x3 UP | M36 x3 | 11.0 t | 12.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.135.5 |
| DSS M 39 UP | M39 x4 | 12.0 t | 14.0 t | 320 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.575.7 |
| DSS M 42 UP | M42 x4.5 | 13.0 t | 15.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.795.8 |
| DSS M 42x3 UP | M42 x3 | 13.0 t | 15.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 12.795.8 |
| DSS M 45 UP | M45 x4.5 | 14.5 t | 16.0 t | 400 Nm | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 13.015.9 |
| DSS M 48 UP | M48 x5 | 17.0 t | 20.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.2511.0 |
| DSS M 48x3 UP | M48 x3 | 17.0 t | 20.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.2511.0 |
| DSS M 48x4 UP | M48 x4 | 17.0 t | 20.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.2511.0 |
| DSS M 52 UP | M52 x5 | 19.0 t | 21.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.6911.2 |
| DSS M 56 UP | M56 x5.5 | 22.0 t | 25.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.9111.3 |
| DSS M 56x4 UP | M56 x4 | 22.0 t | 25.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 25.1311.4 |
| DSS M 64 UP | M64 x6 | 25.0 t | 32.1 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 26.912.2 |
| DSS M 64x4 UP | M64 x4 | 25.0 t | 32.1 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 26.912.2 |
| DSS M 72 UP | M72 x6 | 22.0 t | 25.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 30.8614.0 |
| DSS M 72x4 UP | M72 x4 | 22.0 t | 25.0 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 30.8614.0 |
| DSS M 80 UP | M80 x6 | 25.0 t | 32.1 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-15/16"100 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 33.0715.0 |
| DSS M 90 UP | M90 x6 | 25.0 t | 32.1 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 3-15/16"100 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 34.1715.5 |
| DSS M 100 UP | M100 x6 | 25.0 t | 32.1 t | 600 Nm | 3-1/8"79 | 1-1/2"38 | 4-5/16"110 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 36.3816.5 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| DSS U 100 UP | 1"-8 | 10000 lb | 13000 lb | 125 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 125 UP | 1-1/4"-7 | 15000 lb | 19000 lb | 200 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 138 UP | 1-3/8"-6 | 21000 lb | 22000 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 150 UP | 1-1/2"-6 | 22000 lb | 27000 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 175 UP | 1-3/4"-5 | 27000 lb | 33000 lb | 300 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 13.015.9 |
| DSS U 200 UP | 2"-4.5 | 38000 lb | 50000 lb | 450 ft-lb | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.4711.1 |
| DSS U 250 UP | 2-1/2"-4 | 48500 lb | 55000 lb | 450 ft-lb | 3-1/8"79 | 1-1/2"38 | 3-3/4"95 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 26.912.2 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 29 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M24 (4.50 t) | DSS M 24 UP | $0.00 | ✓ In Stock | ||
| M30 (7.70 t) | DSS M 30 UP | $0.00 | ✓ In Stock | ||
| M33 (8.50 t) | DSS M 33 UP | $0.00 | ✓ In Stock | ||
| M36 (11.00 t) | DSS M 36 UP | $0.00 | ✓ In Stock | ||
| M36x3 (11.00 t) | DSS M 36x3 UP | $0.00 | ✓ In Stock | ||
| M39 (12.00 t) | DSS M 39 UP | $0.00 | ✓ In Stock | ||
| M42 (13.00 t) | DSS M 42 UP | $0.00 | ✓ In Stock | ||
| M42x3 (13.00 t) | DSS M 42x3 UP | $0.00 | ✓ In Stock | ||
| M45 (14.50 t) | DSS M 45 UP | $0.00 | ✓ In Stock | ||
| M48 (17.00 t) | DSS M 48 UP | $0.00 | ✓ In Stock | ||
| M48x3 (17.00 t) | DSS M 48x3 UP | $0.00 | ✓ In Stock | ||
| M48x4 (17.00 t) | DSS M 48x4 UP | $0.00 | ✓ In Stock | ||
| M52 (19.00 t) | DSS M 52 UP | $0.00 | ✓ In Stock | ||
| M56 (22.00 t) | DSS M 56 UP | $0.00 | ✓ In Stock | ||
| M56x4 (22.00 t) | DSS M 56x4 UP | $0.00 | ✓ In Stock | ||
| M64 (25.00 t) | DSS M 64 UP | $0.00 | ✓ In Stock | ||
| M64x4 (25.00 t) | DSS M 64x4 UP | $0.00 | ✓ In Stock | ||
| M72 (22.00 t) | DSS M 72 UP | $0.00 | ✓ In Stock | ||
| M72x4 (22.00 t) | DSS M 72x4 UP | $0.00 | ✓ In Stock | ||
| M80 (25.00 t) | DSS M 80 UP | $0.00 | ✓ In Stock | ||
| M90 (25.00 t) | DSS M 90 UP | $0.00 | ✓ In Stock | ||
| M100 (25.00 t) | DSS M 100 UP | $0.00 | ✓ In Stock | ||
| 1" UNC (10,000 lb) | DSS U 100 UP | $0.00 | ✓ In Stock | ||
| 1-1/4" UNC (15,000 lb) | DSS U 125 UP | $0.00 | ✓ In Stock | ||
| 1-3/8" UNC (21,000 lb) | DSS U 138 UP | $0.00 | ✓ In Stock | ||
| 1-1/2" UNC (22,000 lb) | DSS U 150 UP | $0.00 | ✓ In Stock | ||
| 1-3/4" UNC (27,000 lb) | DSS U 175 UP | $0.00 | ✓ In Stock | ||
| 2" UNC (38,000 lb) | DSS U 200 UP | $0.00 | ✓ In Stock | ||
| 2-1/2" UNC (48,500 lb) | DSS U 250 UP | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
