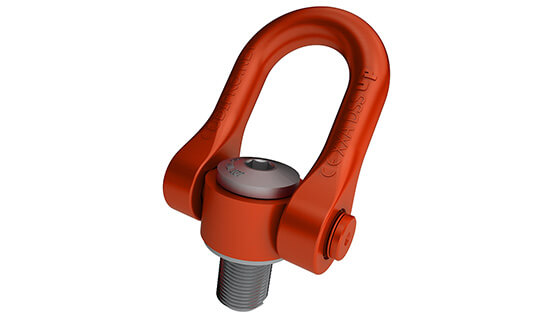

CodiPro DSS 8UN — Steel Universal Double Swivel Hoist Ring (8UN Thread)
The DSS 8UN is CodiPro's universal double-swivel ring supplied with the 8UN thread series common on large US equipment. Built on the GRADUP alloy steel body; rotates 360°, pivots 180°, self-aligns with the sling, holds full rated load at any angle (0°–90°). Swivels under load.
- Material: GRADUP alloy steel with anti-corrosion coating
- WLL: 11,000–50,000 lb (exact WLL confirmed per size at quote)
- Thread: 1-1/8″ to 2″ (8UN)
- Safety factor: 4:1 and 5:1
- Movement: 360° rotation, 180° pivot — swivels under load
- Temperature range: −20 °C to +200 °C
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your 8UN thread size below.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL (5:1) | WLL (4:1) | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||
| DSS U 118 8UN | 1-1/8"-8 | 11000 lb | 11000 lb | 150 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 125 8UN | 1-1/4"-8 | 14000 lb | 14000 lb | 200 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 138 8UN | 1-3/8"-8 | 20000 lb | 20000 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 150 8UN | 1-1/2"-8 | 20000 lb | 20000 lb | 240 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 11.95.4 |
| DSS U 175 8UN | 1-3/4"-8 | 27000 lb | 27000 lb | 300 ft-lb | 2-3/8"61 | 1-1/4"31 | 2-3/4"70 | 3-7/8"98 | 2-7/8"73 | 5-7/8"149 | 1-5/16"33 | 3/4"19 | 13.015.9 |
| DSS U 200 8UN | 2"-8 | 50000 lb | 50000 lb | 450 ft-lb | 3-1/8"79 | 1-1/2"38 | 3-9/16"90 | 4-13/16"123 | 3-9/16"91 | 7-3/16"182 | 1-3/4"45 | 3/4"19 | 24.4711.1 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 1-1/8" 8UN (11,000 lb) | DSS U 118 8UN | $0.00 | ✓ In Stock | ||
| 1-1/4" 8UN | DSS U 125 8UN | $0.00 | ✓ In Stock | ||
| 1-3/8" 8UN | DSS U 138 8UN | $0.00 | ✓ In Stock | ||
| 1-1/2" 8UN | DSS U 150 8UN | $0.00 | ✓ In Stock | ||
| 1-3/4" 8UN | DSS U 175 8UN | $0.00 | ✓ In Stock | ||
| 2" 8UN (50,000 lb) | DSS U 200 8UN | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
