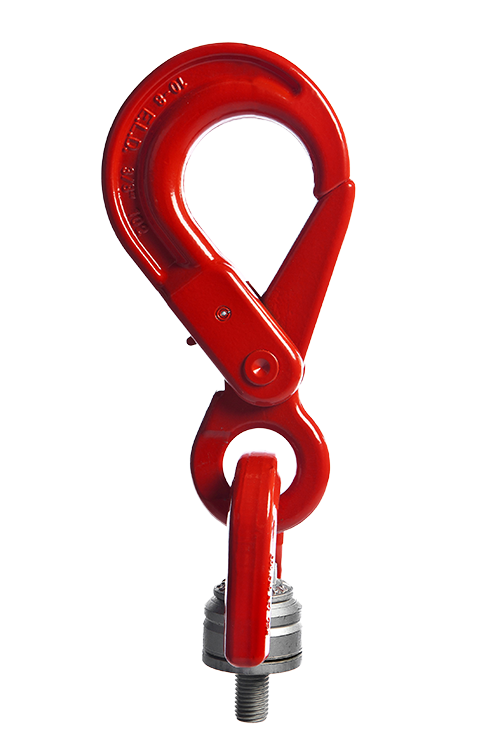

CodiPro DSH — Steel Hook-Type Swivel Lifting Ring
The DSH combines a swivel lifting ring and a hook in one piece. It rotates 360° and carries a self-locking latch for maximum safety. The universal safety hook is compatible with all fastening systems — textile slings, chains, cables, lugs — for fast, flexible hooking.
- Material: alloy steel with anti-corrosion coating
- WLL: 0.40–2.50 t (1,000–5,250 lb)
- Thread: M8–M20 metric / 5/16″–3/4″ UNC (male)
- Safety factor: 5:1
- Movement: 360° rotation; integrated self-locking hook
- Standards: EN 1677-1, Machinery Directive 2006/42/CE, REACH; CE + WLL + torque engraved
- Traceability: individual traceability number
- Origin: Made in Luxembourg by CodiPro
Select your thread size below — WLL shown per size.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Range by Thread Size
| Reference | Thread | WLL | Install torque | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | G (in)(mm) | H (in)(mm) | • | • | • | Weight (lb)(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metric — M thread (WLL in t, torque in Nm) | |||||||||||||||
| DSH M 8 | M8 x1.25 | 0.4 t | 6 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH M 10 | M10 x1.5 | 0.7 t | 10 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH M 12 | M12 x1.75 | 1.05 t | 15 Nm | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH M 14 | M14 x2 | 1.4 t | 30 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.191.9 |
| DSH M 16 | M16 x2 | 2.0 t | 50 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.412.0 |
| DSH M 18 | M18 x2.5 | 2.3 t | 70 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.412.0 |
| DSH M 20 | M20 x2.5 | 2.5 t | 100 Nm | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.412.0 |
| Imperial — UNC thread (WLL in lb, torque in ft-lb) | |||||||||||||||
| DSH U 516 | 5/16"-18 | 1000 lb | 7 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH U 038 | 3/8"-16 | 1300 lb | 8 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH U 050 | 1/2"-13 | 2400 lb | 12 ft-lb | 1-5/16"33 | 2-3/16"56 | 1-3/16"30 | 1-3/4"44 | 1-1/4"32 | 7/8"23 | 2-5/16"58 | 3/8"9.5 | 11/16"18 | 5/16"8 | 5/8"16 | 1.760.8 |
| DSH U 058 | 5/8"-11 | 3900 lb | 40 ft-lb | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.191.9 |
| DSH U 075 | 3/4"-10 | 5250 lb | 80 ft-lb | 1-3/4"45 | 3-3/16"81 | 1-3/4"45 | 2-15/16"75 | 1-15/16"50 | 1-7/16"36 | 3-1/8"79 | 1/2"13 | 15/16"24 | 5/16"8 | 13/16"20 | 4.412.0 |
CodiPro is a metric manufacturer. Dimensions are certified in millimetres, and thread sizes are exact as manufactured (metric M or imperial UNC) — never converted. Inch dimensions shown are approximate conversions for reference only. Dimensions sourced directly from CodiPro (published in mm; inch values are converted for reference) manufacturer sheets (rev. 01.2026). Columns marked • are additional dimensions called out on the CodiPro diagram. SlingCenter does not derive or restate ratings.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| M8 (0.40 t) | DSH M 8 | $0.00 | ✓ In Stock | ||
| M10 (0.70 t) | DSH M 10 | $0.00 | ✓ In Stock | ||
| M12 (1.05 t) | DSH M 12 | $0.00 | ✓ In Stock | ||
| M14 (1.40 t) | DSH M 14 | $0.00 | ✓ In Stock | ||
| M16 (2.00 t) | DSH M 16 | $0.00 | ✓ In Stock | ||
| M18 (2.30 t) | DSH M 18 | $0.00 | ✓ In Stock | ||
| M20 (2.50 t) | DSH M 20 | $0.00 | ✓ In Stock | ||
| 5/16" UNC (1,000 lb) | DSH U 516 | $0.00 | ✓ In Stock | ||
| 3/8" UNC (1,300 lb) | DSH U 038 | $0.00 | ✓ In Stock | ||
| 1/2" UNC (2,400 lb) | DSH U 050 | $0.00 | ✓ In Stock | ||
| 5/8" UNC (3,900 lb) | DSH U 058 | $0.00 | ✓ In Stock | ||
| 3/4" UNC (5,250 lb) | DSH U 075 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
