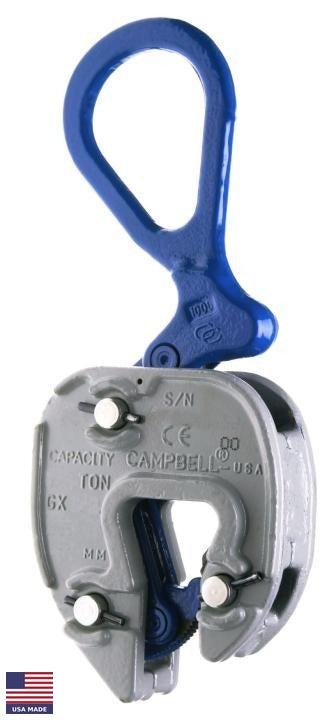

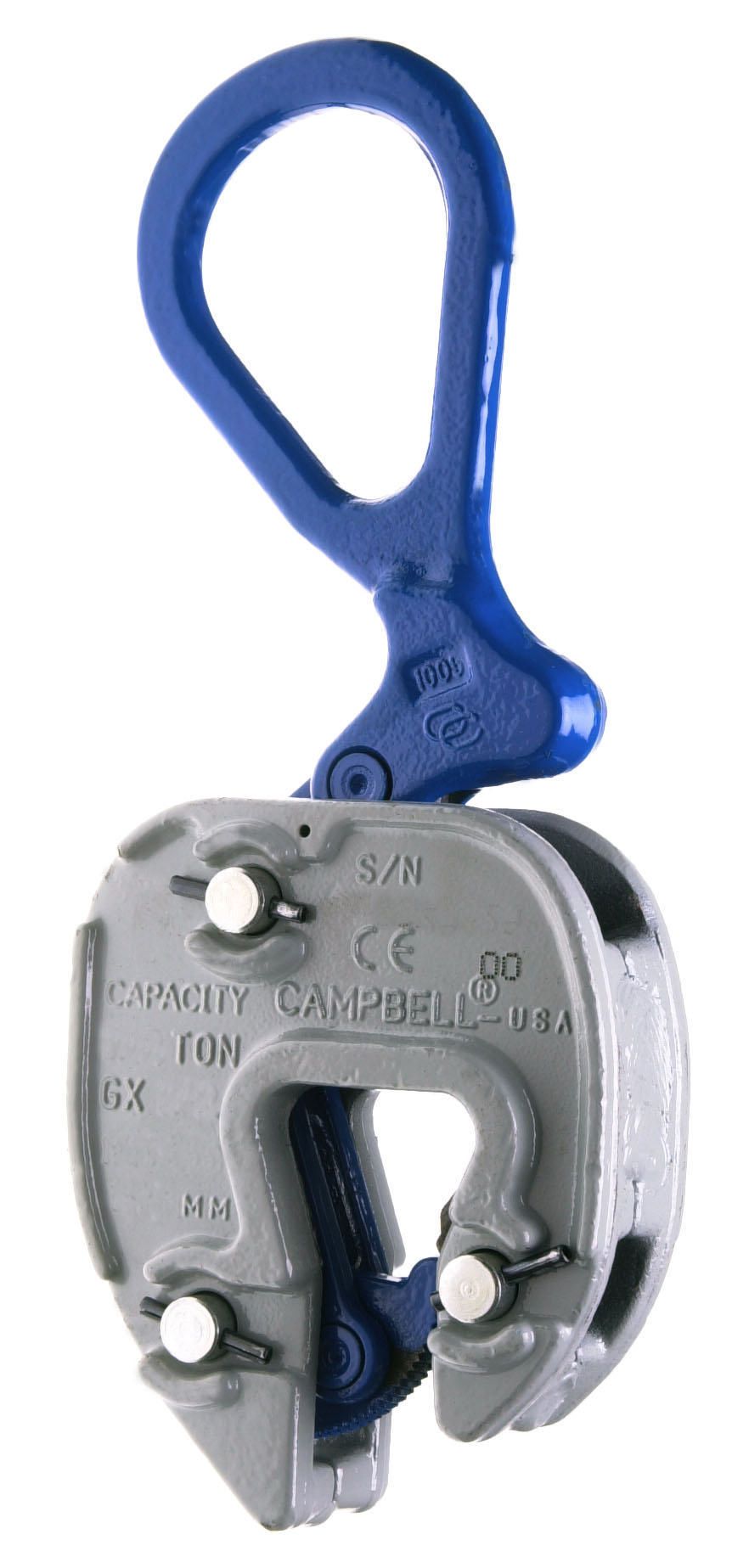

Campbell GX Vertical Plate Lifting Clamp

The Campbell GX Vertical Plate Lifting Clamp is a cam-actuated plate clamp designed for lifting and transporting steel plates in the vertical position. As the load increases, the cam mechanism tightens the grip automatically, providing a secure hold without manual adjustment. The GX series is built for frequent use in steel service centers, fabrication shops, and shipyards.

Key Features

• Automatic cam-locking mechanism — grip tightens as load increases

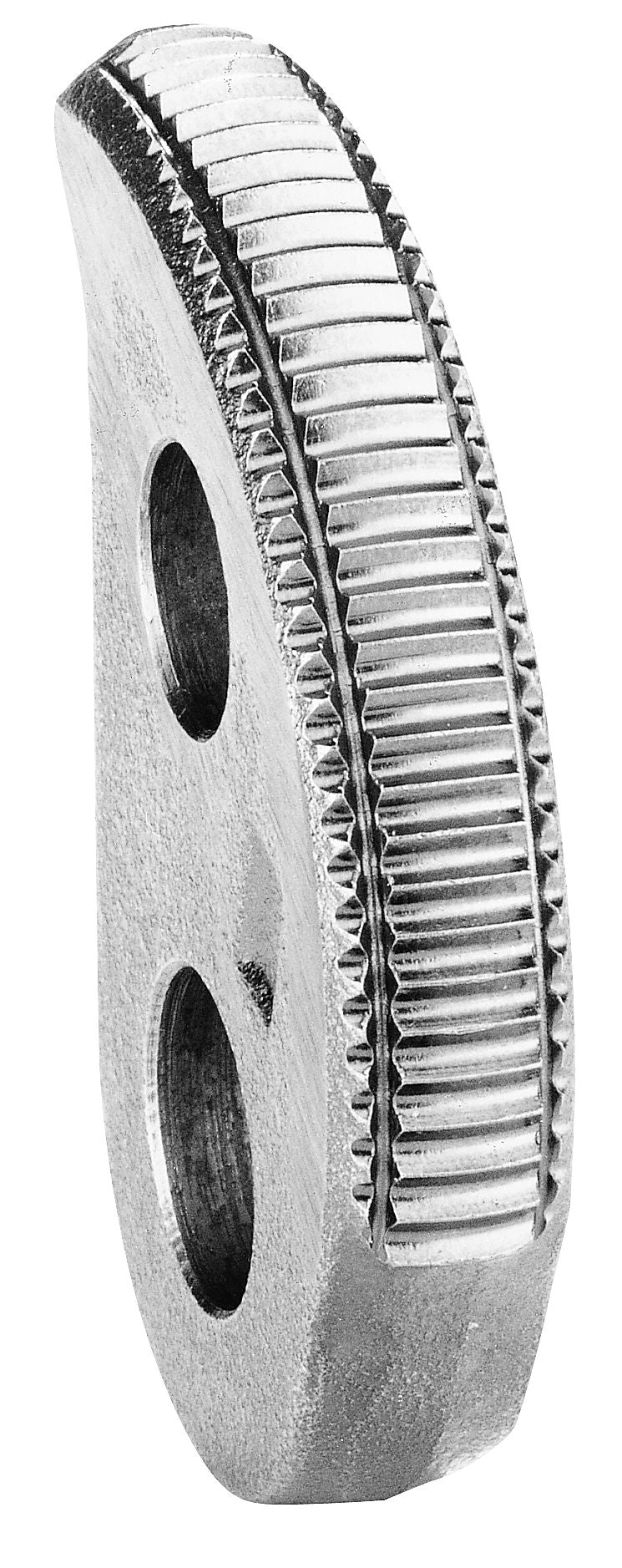

• Hardened steel jaw pads for secure grip on plate surfaces
• Spring-loaded lock prevents opening under load
• Working load limit and jaw opening range clearly marked
• Compact, lightweight design for ease of handling

Common Applications

• Vertical lifting and positioning of steel plates
• Steel service center plate handling and storage
• Fabrication shop material movement
• Shipyard and structural steel construction

Why Campbell?

Campbell GX plate clamps deliver reliable, automatic clamping force that increases with load weight. Designed for high-frequency use in demanding steel handling environments where speed and safety both matter.

Product Specifications

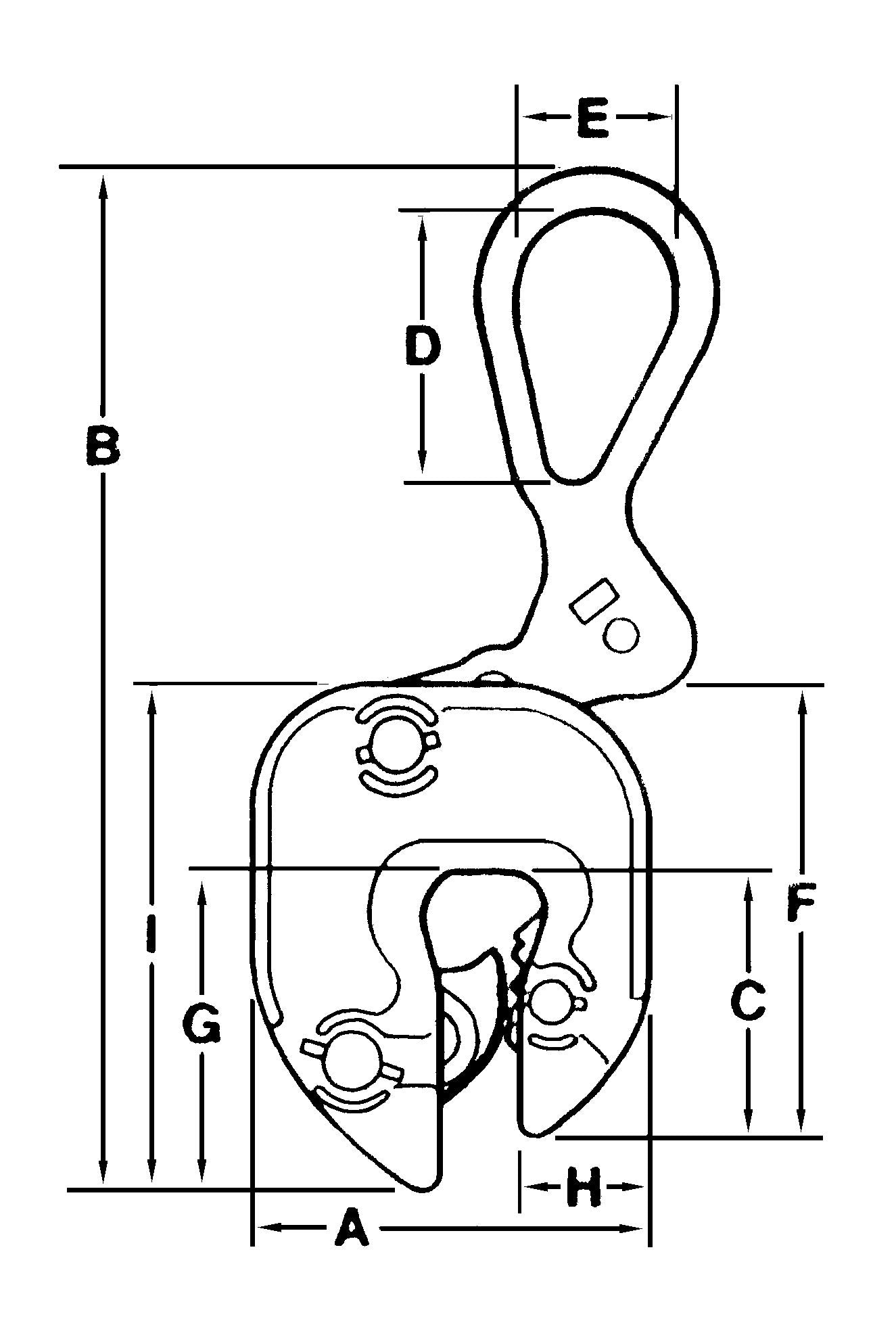

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
