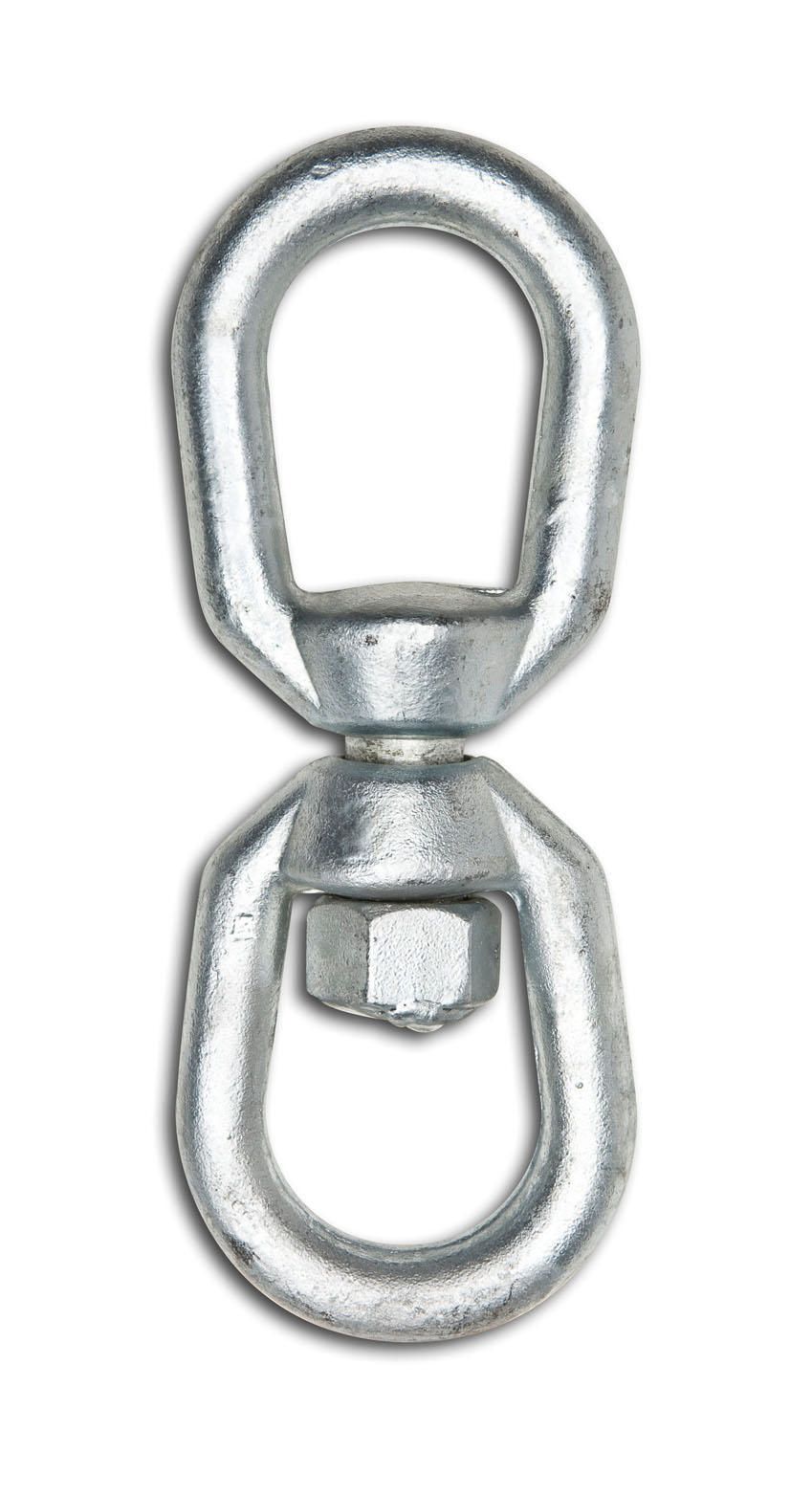

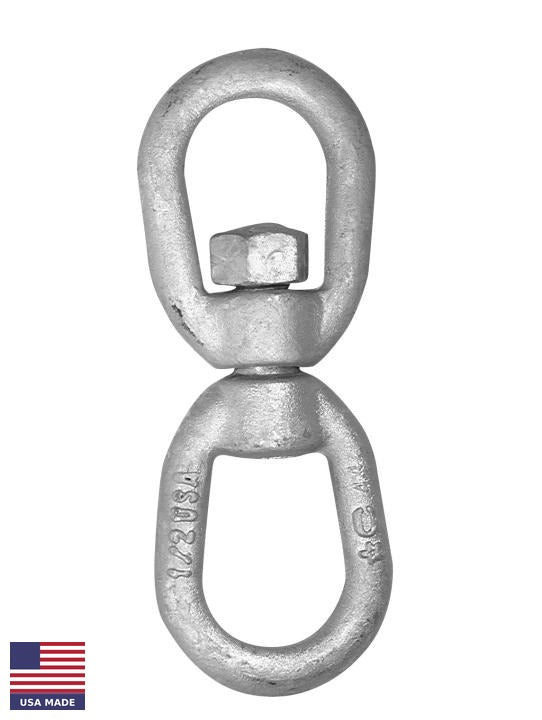

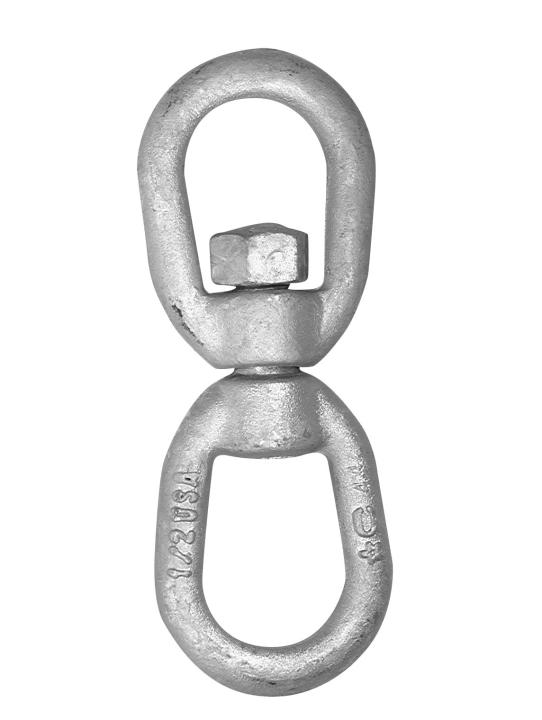

Campbell Eye & Eye Swivel / #T9630435

The Campbell Eye & Eye Swivel (#T9630435) is a forged steel swivel with eye connections on both ends, designed to allow free rotation between connected components. By relieving torsional stress in rigging assemblies, the swivel prevents chain and wire rope from kinking, twisting, and fatiguing under load.

Key Features

• Forged steel construction with smooth bearing surfaces
• Eye-and-eye configuration for versatile connection options
• Free 360° rotation under load relieves torsional stress
• Working load limit permanently marked
• Hot-dip galvanized finish for corrosion resistance

Common Applications

• Overhead lifting where load rotation must be accommodated
• Wire rope and chain assemblies prone to twisting
• Marine rigging and mooring applications
• Towing and anchor chain connections

Why Campbell?

Campbell swivels deliver smooth rotation and reliable load-bearing performance, protecting rigging components from twist-induced wear and fatigue. Built to handle the demands of industrial and marine environments.

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
