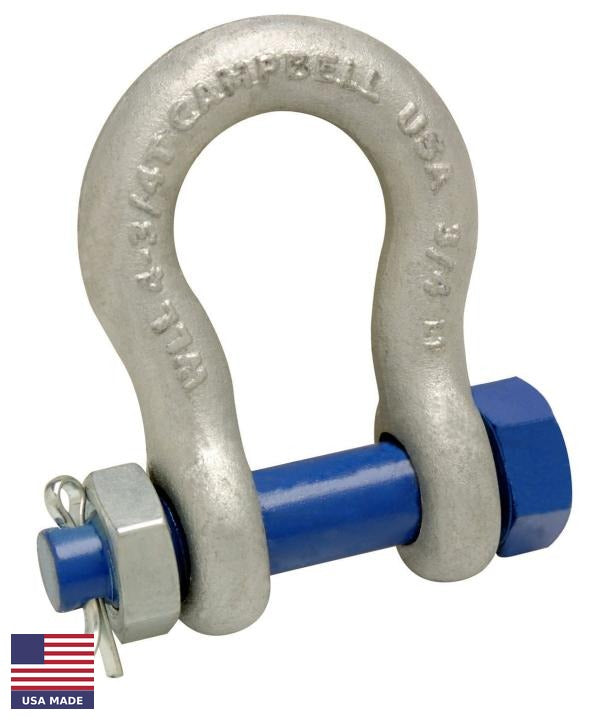

Campbell Bolt Type Anchor Shackle / #5411205

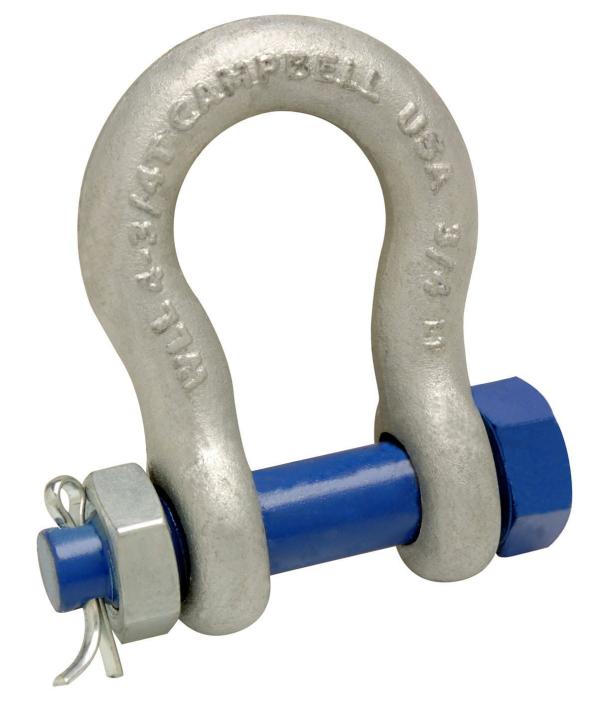

The Campbell Bolt Type Anchor Shackle (#5411205) is a heavy-duty carbon steel shackle featuring a bolt, nut, and cotter pin assembly for secure, permanent connections. The bolt-type design prevents the pin from rotating or backing out under load, making it the preferred choice for applications with multi-directional loading or vibration.

Key Features

• Forged carbon steel body with bolt, nut, and cotter pin closure
• Positive locking prevents pin rotation under load or vibration
• Hot-dip galvanized for corrosion resistance
• Working load limit permanently stamped on shackle body
• Meets ASME B30.26 requirements for below-the-hook lifting

Common Applications

• Permanent or semi-permanent rigging connections
• Multi-directional or side-loaded rigging configurations
• Overhead crane and hoist rigging assemblies
• Applications with vibration where screw pins might loosen

Why Campbell?

When the connection must stay secure under variable loads and vibration, Campbell bolt-type shackles deliver the positive locking security that riggers trust. A proven design backed by 100+ years of manufacturing quality.

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
