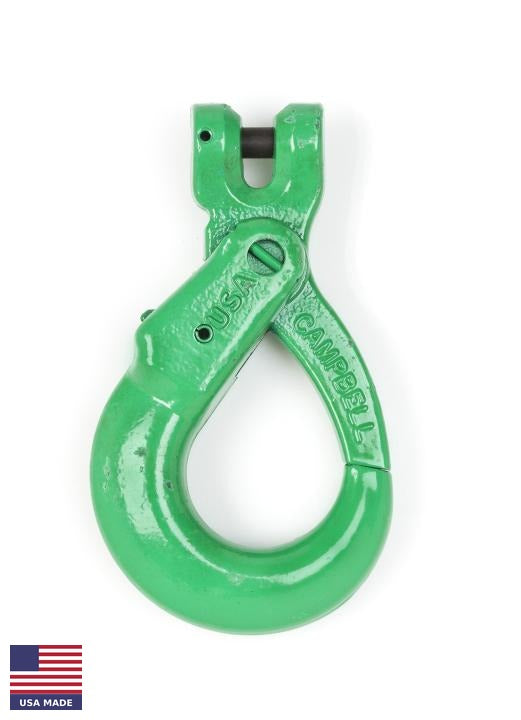

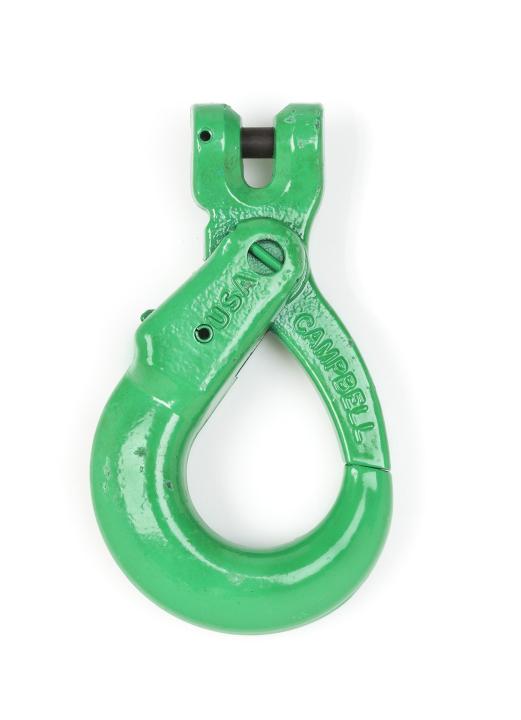

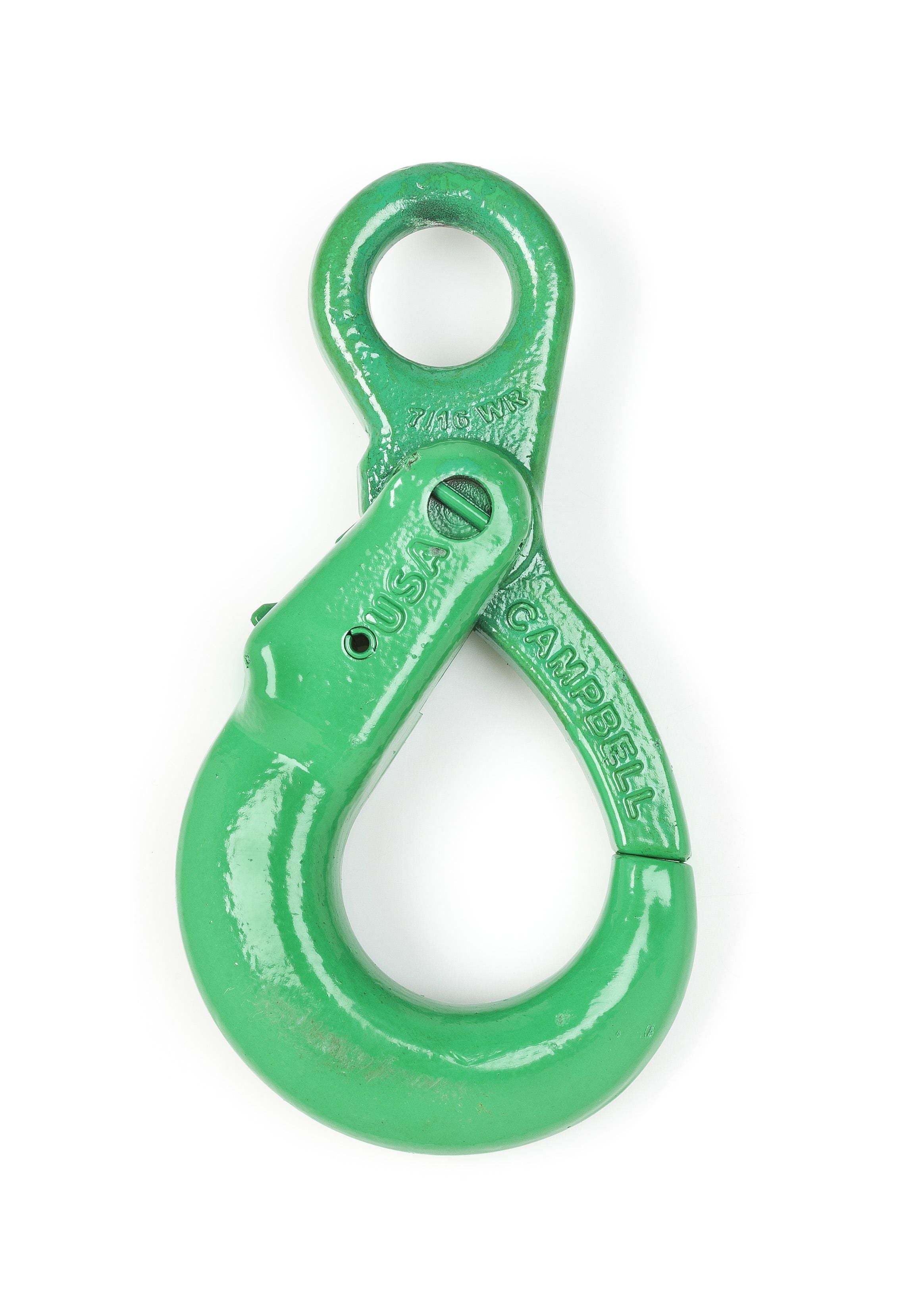

Campbell Alloy Self-Locking Hook / #5648495

The Campbell Alloy Self-Locking Hook (#5648495) is a forged alloy steel hook featuring an automatic locking mechanism that secures the load without manual latch operation. When the sling or fitting is placed in the hook throat, the trigger-style gate locks automatically, preventing accidental disengagement even under slack conditions.

Key Features

• Forged alloy steel, quenched and tempered for maximum strength
• Self-locking trigger mechanism engages automatically on loading
• Positive lock prevents accidental release under slack or side-loading
• Working load limit permanently marked on hook body
• Designed for Grade 80 and Grade 100 chain sling systems

Common Applications

• Chain sling assemblies where automatic locking is required
• Overhead lifting in environments with vibration or dynamic loads
• Applications where manual latch operation is impractical or unsafe
• Steel fabrication, shipbuilding, and heavy construction

Why Campbell?

Self-locking hooks add an extra layer of security in critical lifts. Campbell's automatic engagement mechanism ensures the load stays connected, reducing risk from human error or dynamic conditions.

Product Specifications

Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Related Items tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.

Available on request

• Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
• Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
• DNV / ABS / NORSOK documentation for offshore or subsea applications.
• Custom configurations — non-standard lengths, colors, hardware combinations.

Email sales@slingcenter.com with your SKU or order number.

Standards & Compliance

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

• ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
• ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
• ASME B30.10 — hooks
• OSHA 1910.184 and 1926.251 — general industry and construction sling safety
• WSTDA WS-2 and RS-1 — web and round sling design
• 49 CFR 393.102 to 393.130 — DOT cargo tie-down
• NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
