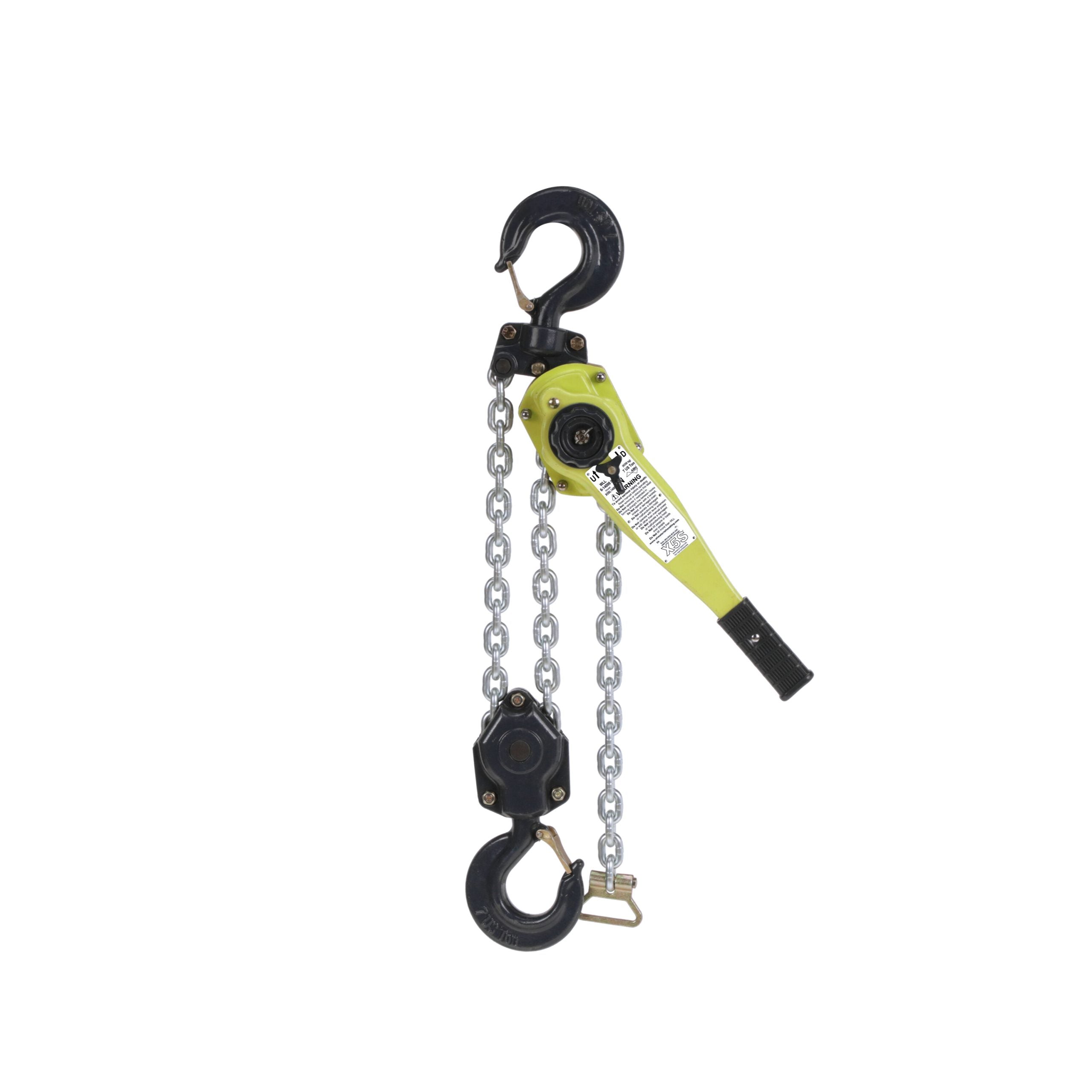

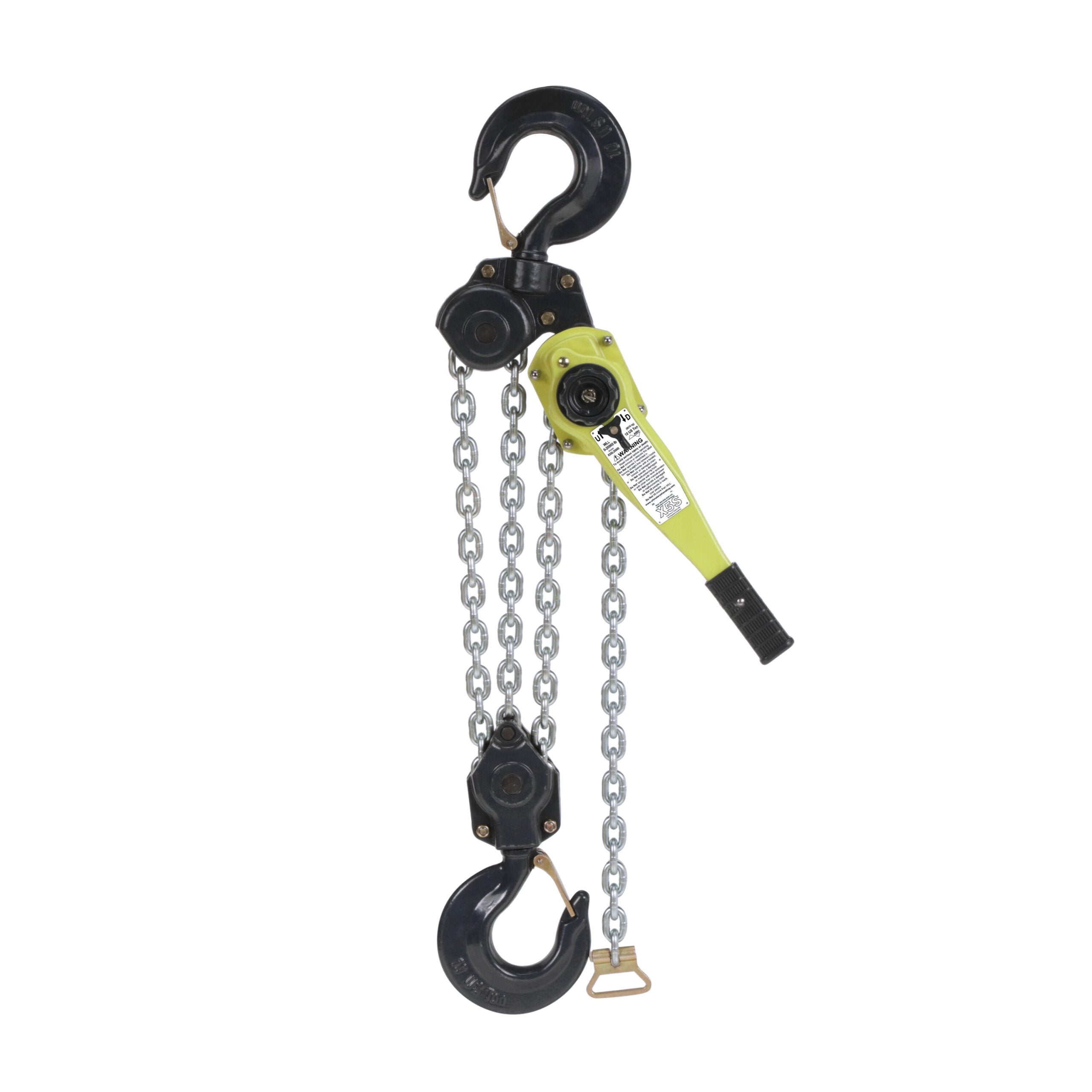

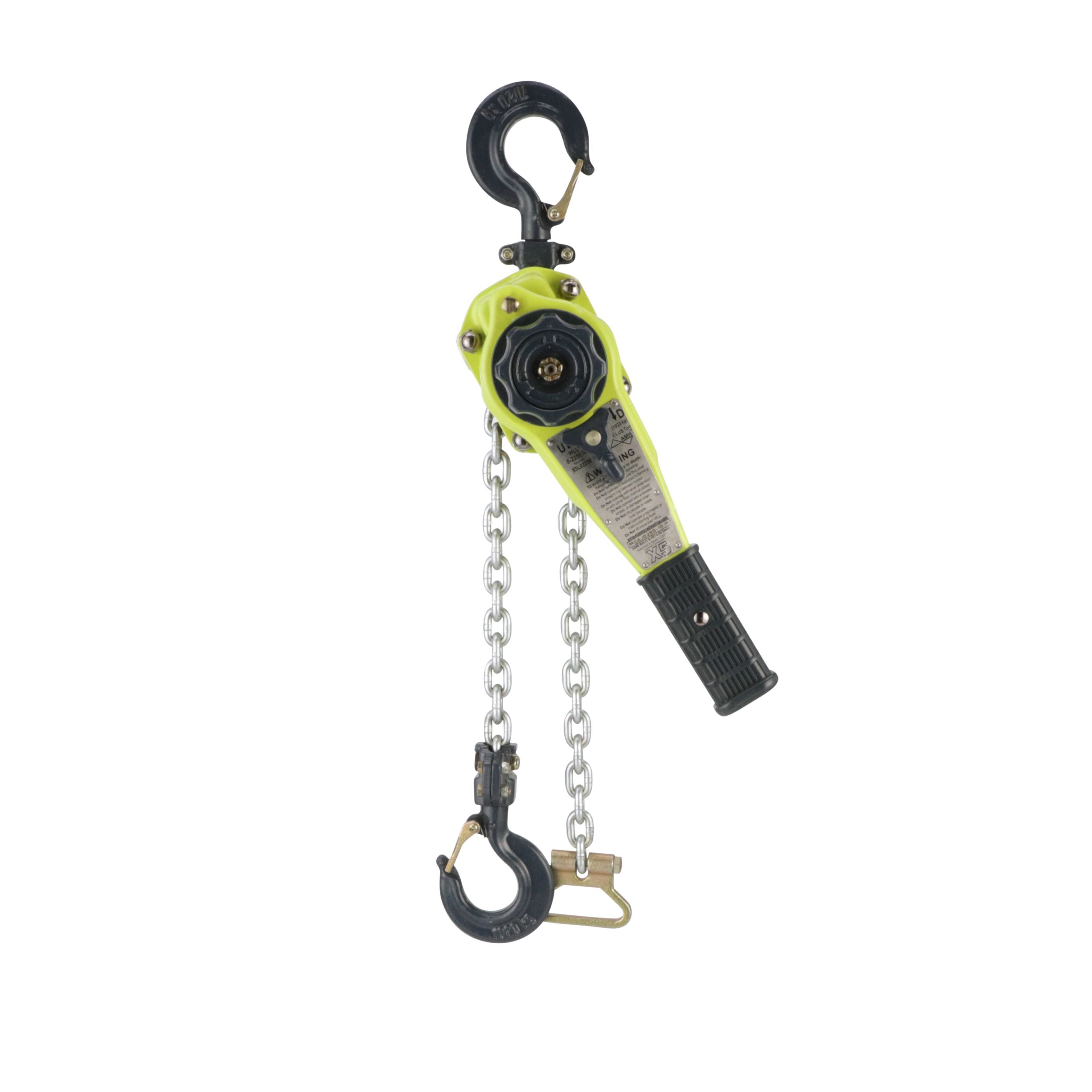

AMH X5-Series SubSea (X5SL) — Sub-Sea Lever Chain Hoist
The X5SL is AMH's SubSea version of the X5 ratchet lever hoist — built for submerged and offshore use. Final assembly and load test in the U.S.A. Ultimate strength is 5× the Working Load Limit, meeting ASME HST-3 Appendix A for marine and U.S. Department of Defense (DOD) applications, and IMCA D028 (UK sub-sea lever hoist standard). Dual rated 3/4 to 10 US ton (3/4 to 9 metric ton).
- Capacity range: 3/4 – 10 US ton (3/4 – 9 t) — dual rated
- Load chain: Precision hoist load chain, strength of G100, made in Japan or EU
- Ultimate strength 5× WLL; brake sets and operates without minimum preload
- SubSea design — brake enclosed in a gasket-sealed area with bolted-in stainless dual springs and pawls; fitted with an adjustable chain stop for underwater codes
- Weston-style self-adjusting mechanical load brake — double pawls, asbestos-free discs; fused disc cannot crack, shatter or absorb moisture
- 100% inspection and hook replacement via bolted hook blocks
- Ambient temperature range –40°F to +140°F (–40°C to +60°C); extensive corrosion-resistant coatings, finishes and materials
- Standards: ASME HST-3 Appendix A (marine/DOD), IMCA D028 (sub-sea)
- Any chain length available
Standard lifts: 5, 10, 15 and 20 ft (custom lifts available). Shipping weight ≈ hanging weight (W) + ~15%. Order by descriptive model number, e.g. X5SL07056-05 (Model-Lift).
Dimensions & specifications (see dimensional drawing)
| Model | US ton | kg | Load chain (G100) | Parts | A″ Min. | B″ | C″ | D″ | E″ w/ latch | G″ | P (lb) | W/ft lift (lb) | W @5ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X5SL02250 | 3/4 to 1-1/8 | 1,020 | C5.6H17Z | 1 | 11.8 | 3.8 | 4.7 | 9.6 | 1.1 | 5.7 | 66 | 0.5 | 13.5 |
| X5SL03528 | 1-1/2 to 1-3/4 | 1,600 | C7.1H20Z | 1 | 13.2 | 3.9 | 5.0 | 10.4 | 1.2 | 6.5 | 68 | 0.7 | 18.0 |
| X5SL07056 | 3 to 3-1/2 | 3,200 | C10H28Z | 1 | 15.6 | 4.5 | 6.3 | 16.3 | 1.4 | 7.7 | 84 | 1.5 | 36.5 |
| X5SL14000 | 6 to 7 | 6,350 | C10H28Z | 2 | 21.3 | 4.5 | 8.6 | 16.3 | 1.8 | 7.7 | 86 | 3.0 | 55.0 |
| X5SL20000 | 9 to 10 | 9,070 | C10H28Z | 3 | 26.8 | 4.5 | 11.7 | 16.3 | 2.1 | 7.7 | 88 | 4.5 | 90.0 |
Dimensions in inches. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH X5-Series SubSea Lever Chain Hoist (X5SL) — Specifications & Dimensions
| Model | US ton | WLL (kg) | Load chain | Grade | Falls | A (in) min – headroom | B (in) | C (in) | D (in) | E w/ latch (in) | G (in) | Hand-chain pull (lb) | Wt / extra ft (lb) | Wt @5 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X5SL02250 | 3/4 to 1-1/8 | 1020 | C5.6H17Z | G100 | 1 | 11.8 | 3.8 | 4.7 | 9.6 | 1.1 | 5.7 | 66 | 0.5 | 13.5 |
| X5SL03528 | 1-1/2 to 1-3/4 | 1600 | C7.1H20Z | G100 | 1 | 13.2 | 3.9 | 5.0 | 10.4 | 1.2 | 6.5 | 68 | 0.7 | 18.0 |
| X5SL07056 | 3 to 3-1/2 | 3200 | C10H28Z | G100 | 1 | 15.6 | 4.5 | 6.3 | 16.3 | 1.4 | 7.7 | 84 | 1.5 | 36.5 |
| X5SL14000 | 6 to 7 | 6350 | C10H28Z | G100 | 2 | 21.3 | 4.5 | 8.6 | 16.3 | 1.8 | 7.7 | 86 | 3 | 55.0 |
| X5SL20000 | 9 to 10 | 9070 | C10H28Z | G100 | 3 | 26.8 | 4.5 | 11.7 | 16.3 | 2.1 | 7.7 | 88 | 4.5 | 90.0 |
Dimension letters (A–) correspond to the AMH X5-Series SubSea Lever Chain Hoist (X5SL) dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Ultimate strength 5× WLL; G100 load chain (Japan/EU); meets ASME HST-3 Appendix A (marine/DOD) & IMCA D028 (sub-sea)
