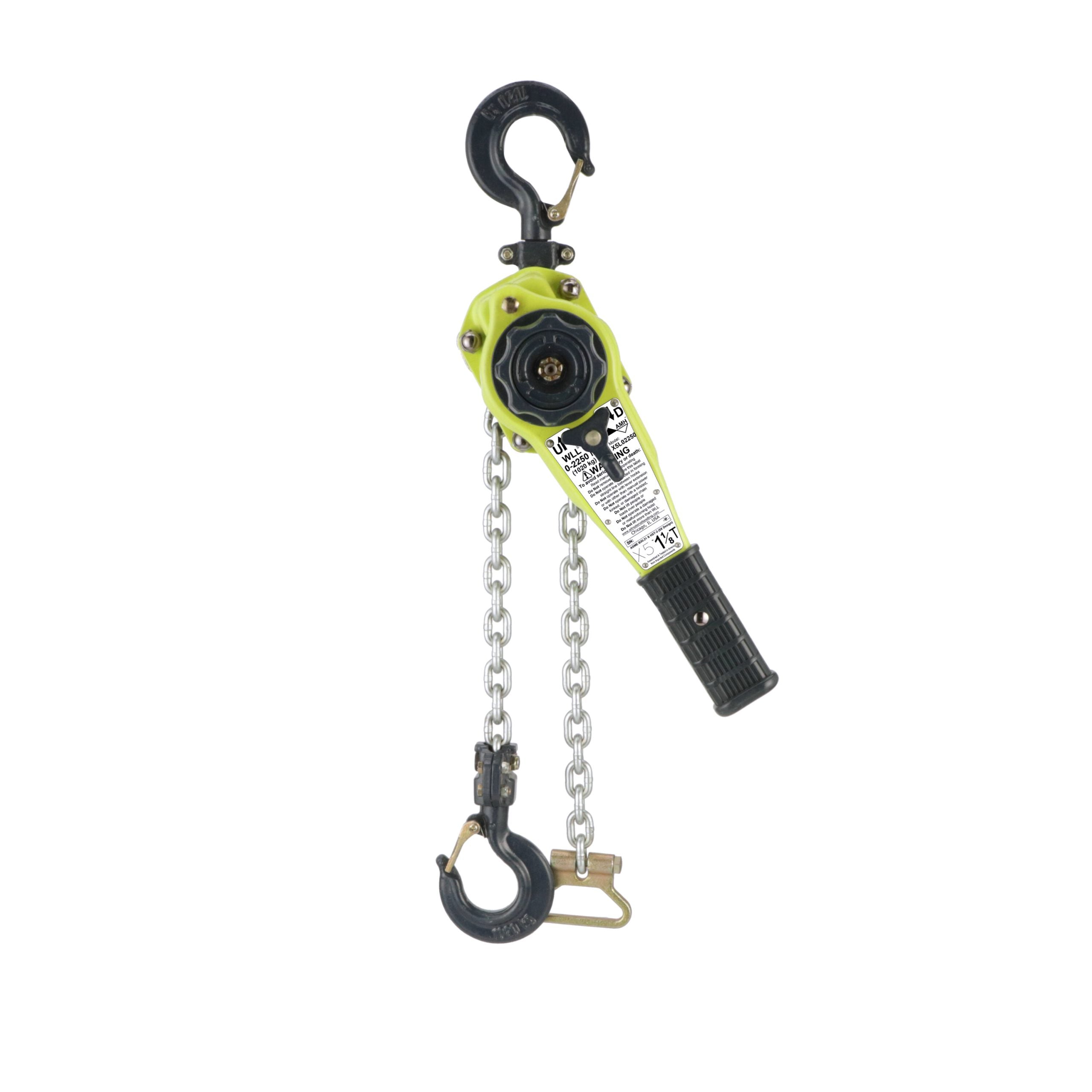

AMH X5-Series — Lever Chain Hoist (Ratchet Lever Hoist)
The X5-Series (X5L) is AMH's heavy-duty ratchet lever hoist with a Grade 100 load chain (made in Japan or EU) and ultimate strength of 5× the Working Load Limit — meeting ASME HST-3 Appendix A for marine and U.S. Department of Defense (DOD) applications. Final assembly and load test in the U.S.A. Capacities from 3/4 to 10 US ton (up to ~9 metric ton).
- Capacity range: 3/4 – 10 US ton (dual/multi-rated)
- Load chain: Precision Grade 100 (G100) chain, made in Japan or EU
- Ultimate strength 5× WLL — meets ASME HST-3 Appendix A (marine / DOD)
- Brake sets and operates without minimum preload
- Weston-style self-adjusting mechanical load brake — double pawls, asbestos-free discs, enclosed; fused disc won't crack, shatter or absorb moisture
- Bolted hook blocks permit 100% inspection and hook replacement
- Ambient temperature range: −40°F to +140°F (−40°C to +60°C)
- Options: V = Overload Protection (one-way slip clutch); L = Self-Locking Hooks (top & bottom, avail. 1-1/8, 1-3/4 & 3-1/2 t); S = Shipyard hooks (avail. 1-3/4 & 3-1/2 t); Top Hook Extender Kit; any chain length
- Origin: Final assembly & load test in the U.S.A.
Standard lifts: 5, 10, 15 and 20 ft (custom lifts available). Shipping weight ≈ hanging weight (W) + ~15%. Order by descriptive model number, e.g. X5L07056-05VS (Model-Lift-Options).
Dimensions & specifications (see dimensional drawing)
| Model | US ton | kg | Load chain (G100) | Chain falls | A″ min | B″ | C″ | D″ | E″ w/ latch | G″ | Effort P (lb) | Wt @5ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X5L02250 | 3/4 to 1-1/8 | 1020 | C5.6H17Z | 1 | 11.8 | 3.8 | 4.7 | 9.6 | 1.1 | 5.7 | 66 | 13.5 |
| X5L03528 | 1-1/2 to 1-3/4 | 1600 | C7.1H20Z | 1 | 13.2 | 3.9 | 5.0 | 10.4 | 1.2 | 6.5 | 68 | 18.0 |
| X5L07056 | 3 to 3-1/2 | 3200 | C10H28Z | 1 | 15.6 | 4.5 | 6.3 | 16.3 | 1.4 | 7.7 | 84 | 36.5 |

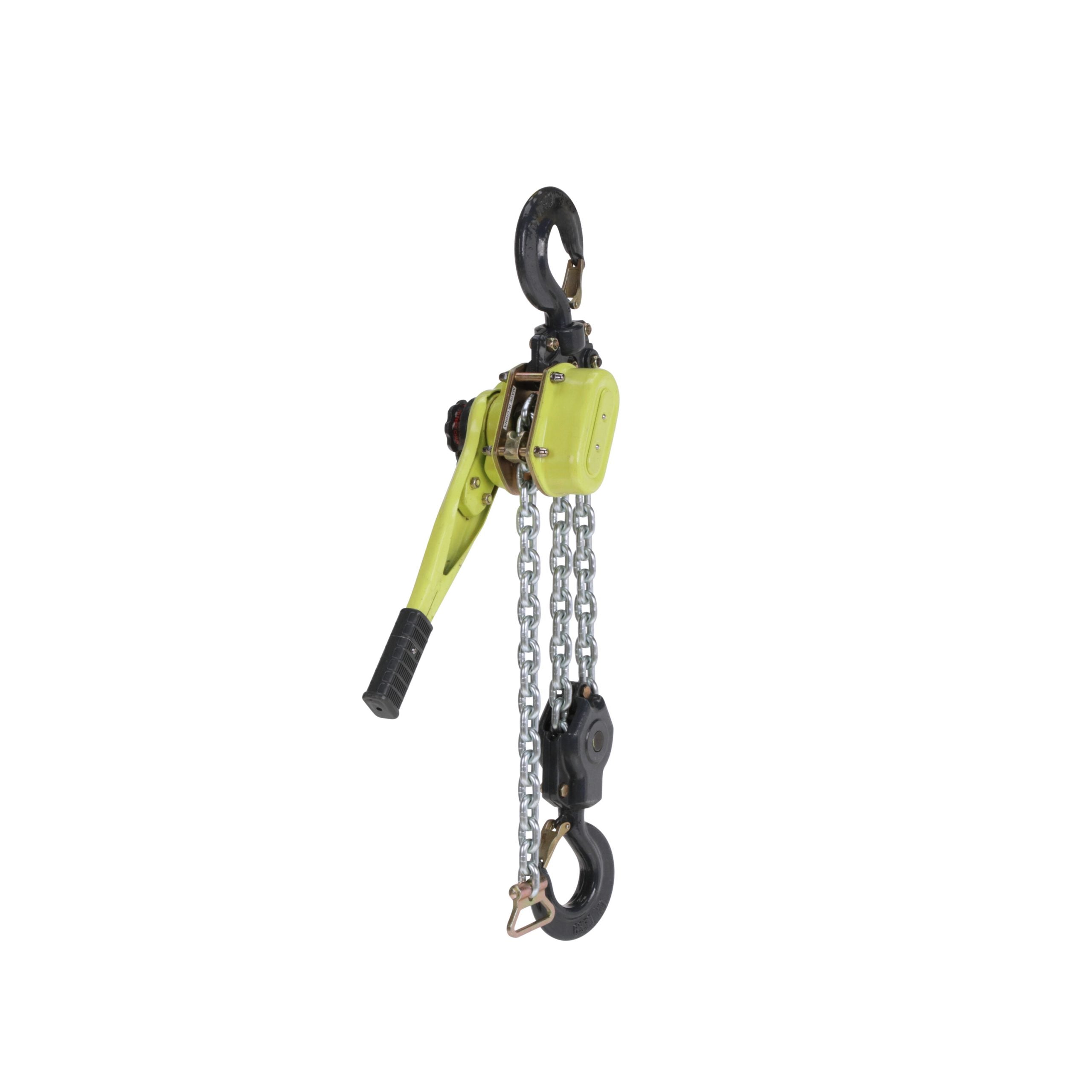

| X5L14000 | 6 to 7 | 6350 | C10H28Z | 2 | 21.3 | 4.5 | 8.6 | 16.3 | 1.8 | 7.7 | 86 | 55.0 |

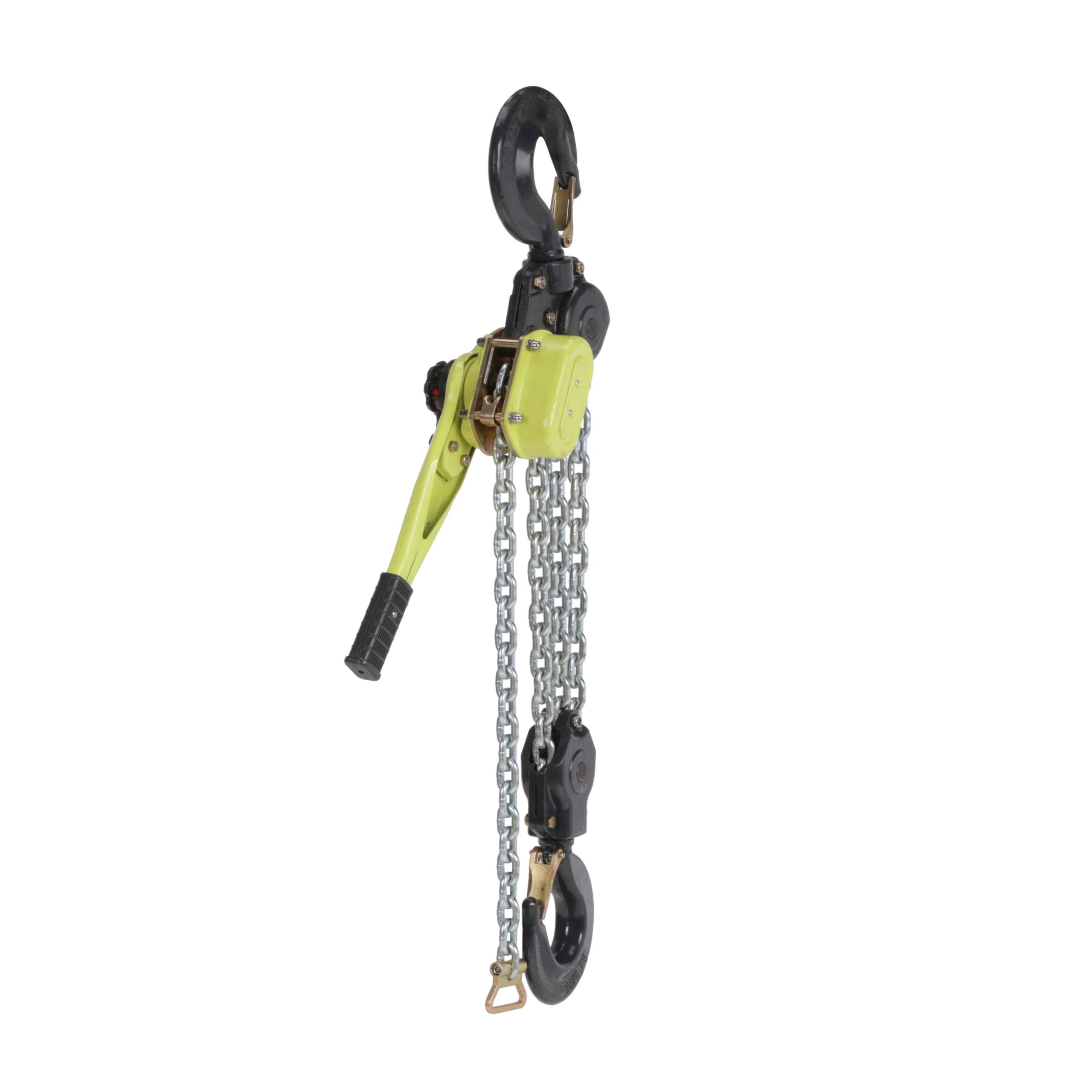

| X5L20000 | 9 to 10 | 9070 | C10H28Z | 3 | 26.8 | 4.5 | 11.7 | 16.3 | 2.1 | 7.7 | 88 | 90.0 |
Dimensions in inches. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH X5-Series Lever Chain Hoist (G100) — Specifications & Dimensions
| Model | US ton | WLL (kg) | Load chain | Grade | Falls | A (in) min – headroom | B (in) | C (in) | D (in) | E w/ latch (in) | G (in) | Hand-chain pull (lb) | Wt / extra ft (lb) | Wt @5 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| X5L02250 | 3/4 to 1-1/8 | 1020 | C5.6H17Z | G100 | 1 | 11.8 | 3.8 | 4.7 | 9.6 | 1.1 | 5.7 | 66 | 0.5 | 13.5 |
| X5L03528 | 1-1/2 to 1-3/4 | 1600 | C7.1H20Z | G100 | 1 | 13.2 | 3.9 | 5.0 | 10.4 | 1.2 | 6.5 | 68 | 0.7 | 18.0 |
| X5L07056 | 3 to 3-1/2 | 3200 | C10H28Z | G100 | 1 | 15.6 | 4.5 | 6.3 | 16.3 | 1.4 | 7.7 | 84 | 1.5 | 36.5 |
| X5L14000 | 6 to 7 | 6350 | C10H28Z | G100 | 2 | 21.3 | 4.5 | 8.6 | 16.3 | 1.8 | 7.7 | 86 | 3.0 | 55.0 |
| X5L20000 | 9 to 10 | 9070 | C10H28Z | G100 | 3 | 26.8 | 4.5 | 11.7 | 16.3 | 2.1 | 7.7 | 88 | 4.5 | 90.0 |
Dimension letters (A–) correspond to the AMH X5-Series Lever Chain Hoist (G100) dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Ultimate strength 5× WLL; G100 load chain; meets ASME HST-3 Appendix A (marine/DOD)
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| X5L02250 – 3/4 to 1-1/8 US ton (1,020 kg) | X5L02250 | $0.00 | ✓ In Stock | ||
| X5L03528 – 1-1/2 to 1-3/4 US ton (1,600 kg) | X5L03528 | $0.00 | ✓ In Stock | ||
| X5L07056 – 3 to 3-1/2 US ton (3,200 kg) | X5L07056 | $0.00 | ✓ In Stock | ||
| X5L14000 – 6 to 7 US ton (6,350 kg) | X5L14000 | $0.00 | ✓ In Stock | ||
| X5L20000 – 9 to 10 US ton (9,070 kg) | X5L20000 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
