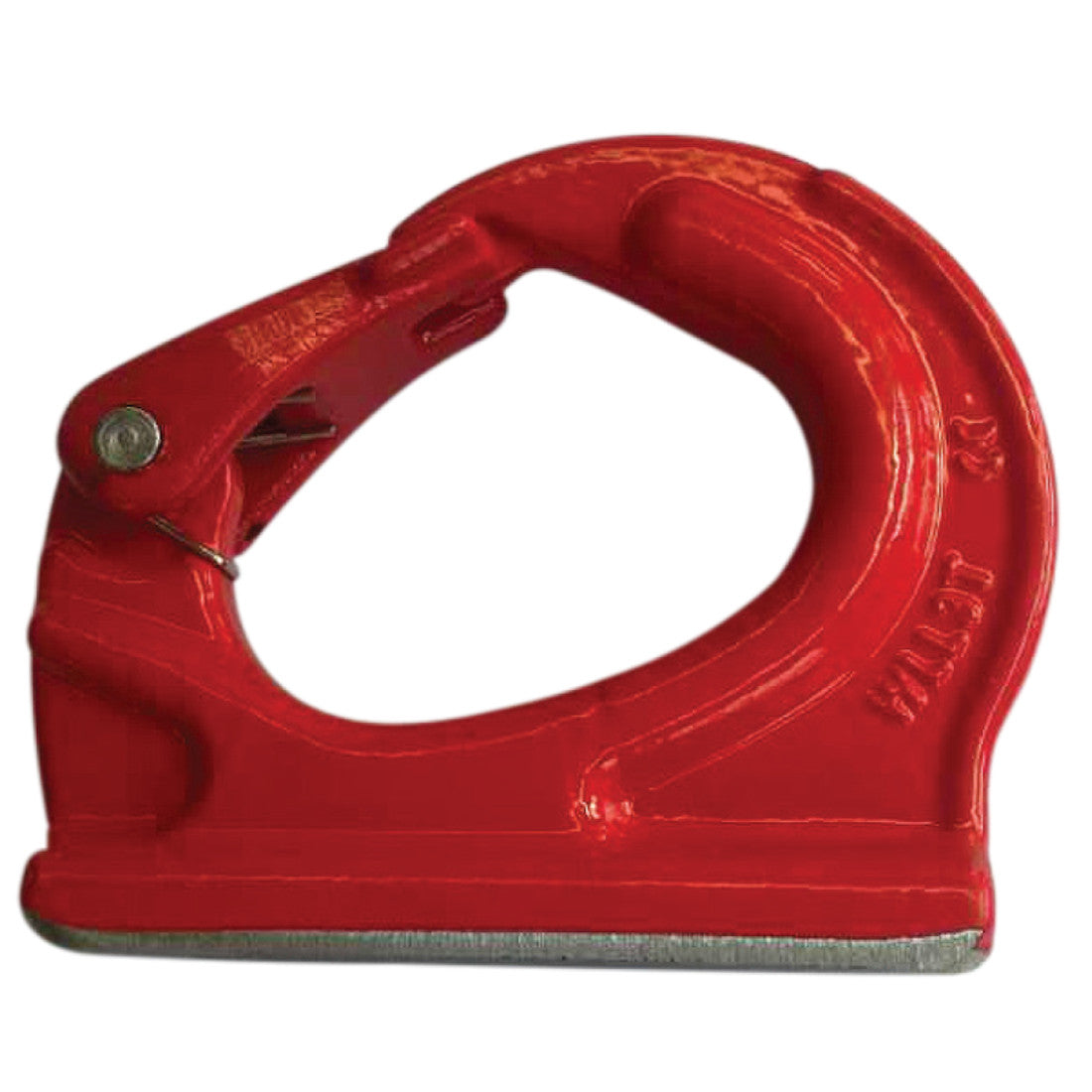

AMH Weld-On Bucket Hooks — Grade 80
Grade 80 alloy-steel weld-on hooks that provide a permanent lifting or pulling point on buckets, frames and equipment for easy attachment of chain, wire rope or web slings. Rated 1 to 20 tons.
- WLL: 1, 2, 3, 5, 8, 10, 16 and 20 tons
- Grade 80 alloy steel, designed for weldable attachment to equipment
- Matching latch kit (LKBH-) available for every size
- Standards: ASTM A952/A952M-2 and ASME B30.10
- Warning: never exceed the Working Load Limit; welding must be performed by a qualified welder per the manufacturer procedure
Specifications & dimensions

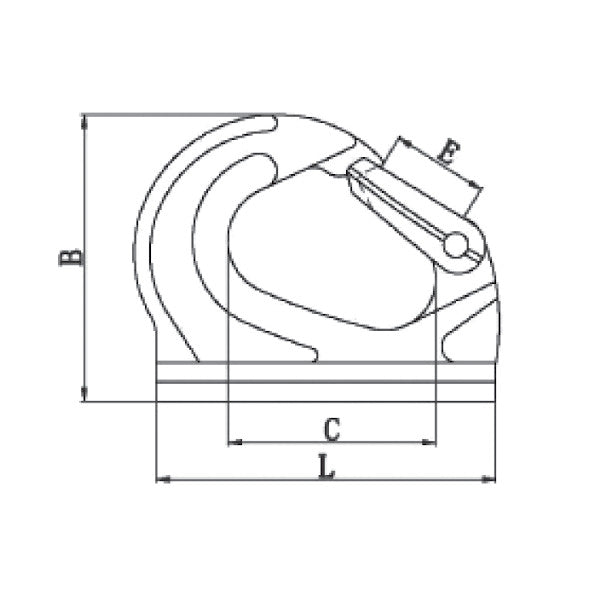

WBH01–WBH10
| Part # | WLL (tons) | B (in) | C (in) | E (in) | L (in) | Weight (lb) | Latch part # |
|---|---|---|---|---|---|---|---|
| WBH01 | 1 | 3.13 | 2.32 | 0.91 | 3.52 | 1.06 | LKBH01 |
| WBH02 | 2 | 3.62 | 2.56 | 1.04 | 3.21 | 1.94 | LKBH02 |
| WBH03 | 3 | 4.17 | 2.93 | 1.22 | 4.53 | 2.65 | LKBH03 |
| WBH05 | 5 | 5.24 | 3.82 | 1.47 | 6.24 | 5.56 | LKBH05 |
| WBH08 | 8 | 5.48 | 3.68 | 1.39 | 6.46 | 7.19 | LKBH08 |
| WBH10 | 10 | 6.51 | 5.44 | 2.00 | 7.97 | 9.68 | LKBH10 |

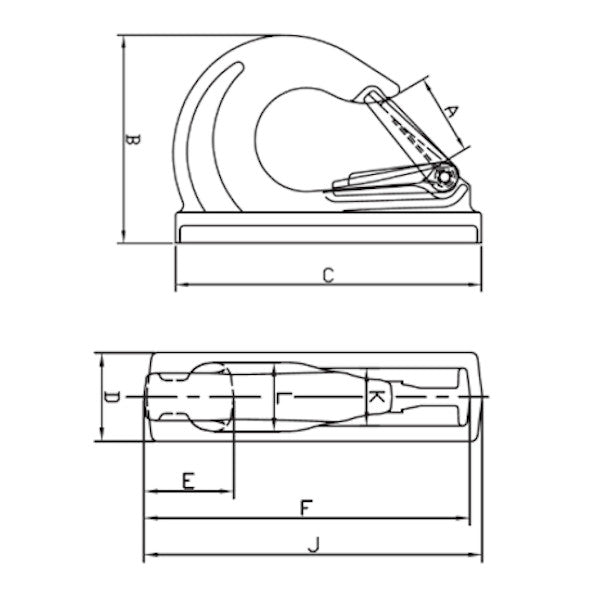

WBH16–WBH20 (large)
| Part # | WLL (tons) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | J (in) | K (in) | L (in) | Weight (lb) | Latch part # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WBH16 | 16 | 2.91 | 7.01 | 10.61 | 2.56 | 2.84 | 10.30 | 10.69 | 1.57 | 2.01 | 19.84 | LKBH16 |
| WBH20 | 20 | 3.15 | 8.07 | 11.94 | 3.15 | 3.19 | 11.59 | 12.03 | 2.05 | 2.44 | 28.66 | LKBH20 |
Dimensions per the AMH weld-on bucket hook drawings (small & large) shown in the gallery. Dimensions in inches. A latch kit is available for each size.
Design factor / material: Grade 80 alloy steel; meets ASTM A952/A952M-2 and ASME B30.10. Never exceed the Working Load Limit.
Select size below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
WBH01–WBH10
| Part # | WLL (tons) | B (in) | C (in) | E (in) | L (in) | Weight (lb) | Latch part # |
|---|---|---|---|---|---|---|---|
| WBH01 | 1 | 3.13 | 2.32 | 0.91 | 3.52 | 1.06 | LKBH01 |
| WBH02 | 2 | 3.62 | 2.56 | 1.04 | 3.21 | 1.94 | LKBH02 |
| WBH03 | 3 | 4.17 | 2.93 | 1.22 | 4.53 | 2.65 | LKBH03 |
| WBH05 | 5 | 5.24 | 3.82 | 1.47 | 6.24 | 5.56 | LKBH05 |
| WBH08 | 8 | 5.48 | 3.68 | 1.39 | 6.46 | 7.19 | LKBH08 |
| WBH10 | 10 | 6.51 | 5.44 | 2.00 | 7.97 | 9.68 | LKBH10 |
WBH16–WBH20 (large)
| Part # | WLL (tons) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | J (in) | K (in) | L (in) | Weight (lb) | Latch part # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WBH16 | 16 | 2.91 | 7.01 | 10.61 | 2.56 | 2.84 | 10.30 | 10.69 | 1.57 | 2.01 | 19.84 | LKBH16 |
| WBH20 | 20 | 3.15 | 8.07 | 11.94 | 3.15 | 3.19 | 11.59 | 12.03 | 2.05 | 2.44 | 28.66 | LKBH20 |
Dimensions per the AMH weld-on bucket hook drawings (small & large) shown in the gallery. Dimensions in inches. A latch kit is available for each size.
Design factor / material: Grade 80 alloy steel; meets ASTM A952/A952M-2 and ASME B30.10. Never exceed the Working Load Limit.
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| WBH01 – 1 t | WBH01 | $0.00 | ✓ In Stock | ||
| WBH02 – 2 t | WBH02 | $0.00 | ✓ In Stock | ||
| WBH03 – 3 t | WBH03 | $0.00 | ✓ In Stock | ||
| WBH05 – 5 t | WBH05 | $0.00 | ✓ In Stock | ||
| WBH08 – 8 t | WBH08 | $0.00 | ✓ In Stock | ||
| WBH10 – 10 t | WBH10 | $0.00 | ✓ In Stock | ||
| WBH16 – 16 t | WBH16 | $0.00 | ✓ In Stock | ||
| WBH20 – 20 t | WBH20 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
