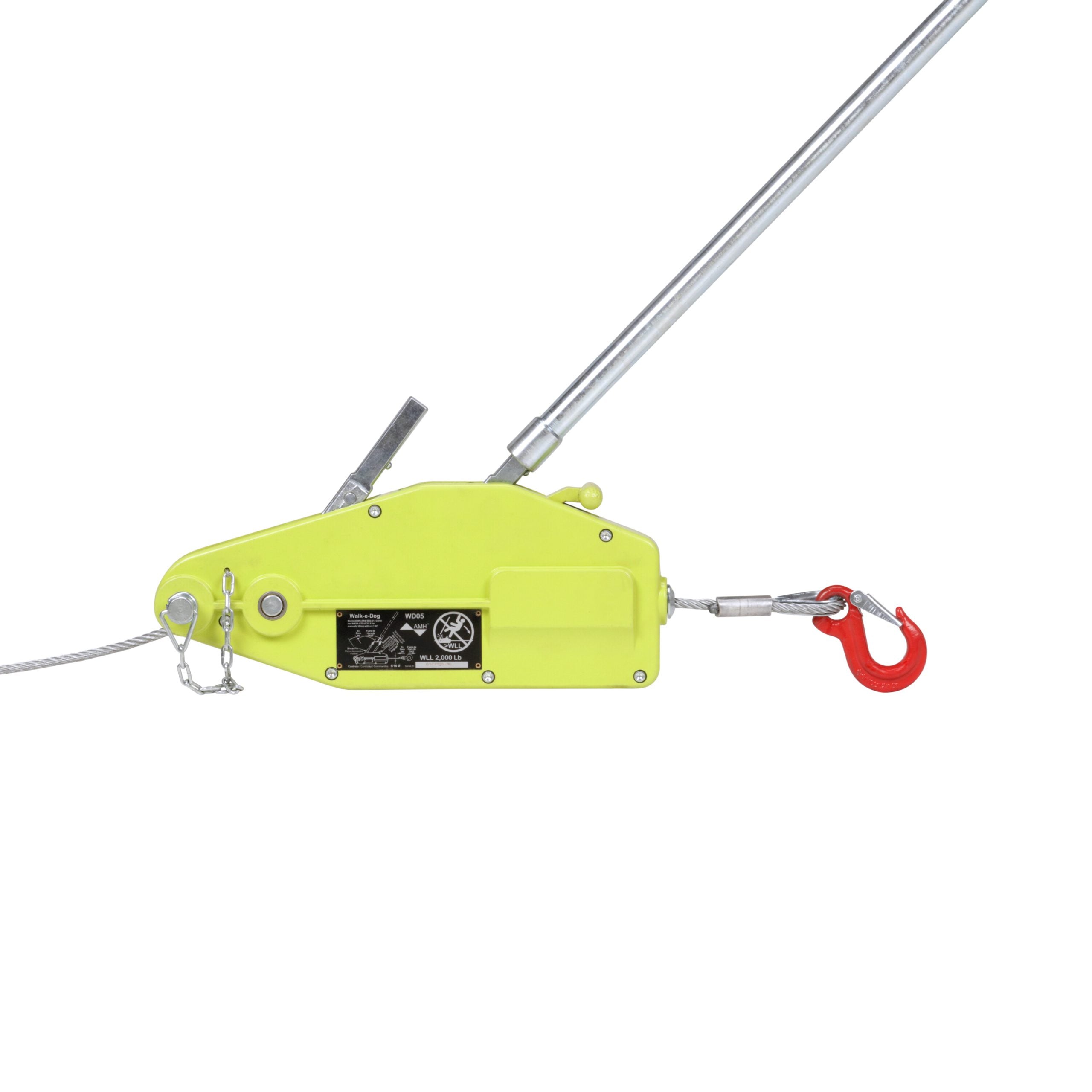

AMH Walk-E-Dog — Wire-Rope Puller / Come-Along
The Walk-E-Dog is a portable, lightweight aluminum wire-rope puller rated 2,000 / 4,000 / 8,000 lb. It feeds any length of commercially available 6×19S IWRC wire rope for virtually unlimited reach, with smooth, precise control and a telescoping handle that lets the operator optimize pull and stroke.
- Capacity: 1 t / 2 t / 4 t (2,000 / 4,000 / 8,000 lb) at 4:1 SF
- Lightweight aluminum construction — durable and corrosion resistant
- Uses any length of 6×19S IWRC wire rope for unlimited reach (66 ft rope assemblies available separately)
- Telescoping handle; shear-pin overload protection (4 spare pins stored in the handle)
- Standards: ASME/ANSI B30.21, OSHA, NASA-STD-8719.9; ATEX II 3 GD c IIB 54°C X
Specifications & dimensions
| Model | Wire rope (in) | WLL @4:1 | Weight (lb) | A (in) | B (in) | C (in) | Shaft Ø (in) | L1 (in) | L2 (in) | Advance/stroke (in) | Hand pull @WLL (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WD05 | 5/16 | 1 t (2,000 lb) | 13.2 | 17.4 | 9.6 | 2.6 | 0.88 | — | 32.7 | 2.1 | 76 |
| WD07 | 7/16 | 2 t (4,000 lb) | 24.2 | 22.2 | 11.4 | 4 | 1 | 32.7 | 49 | 2.3 | 88 |
| WD10 | 5/8 | 4 t (8,000 lb) | 48.4 | 26.9 | 13.3 | 4.7 | 1.2 | 32.7 | 49 | 1.1 | 97 |

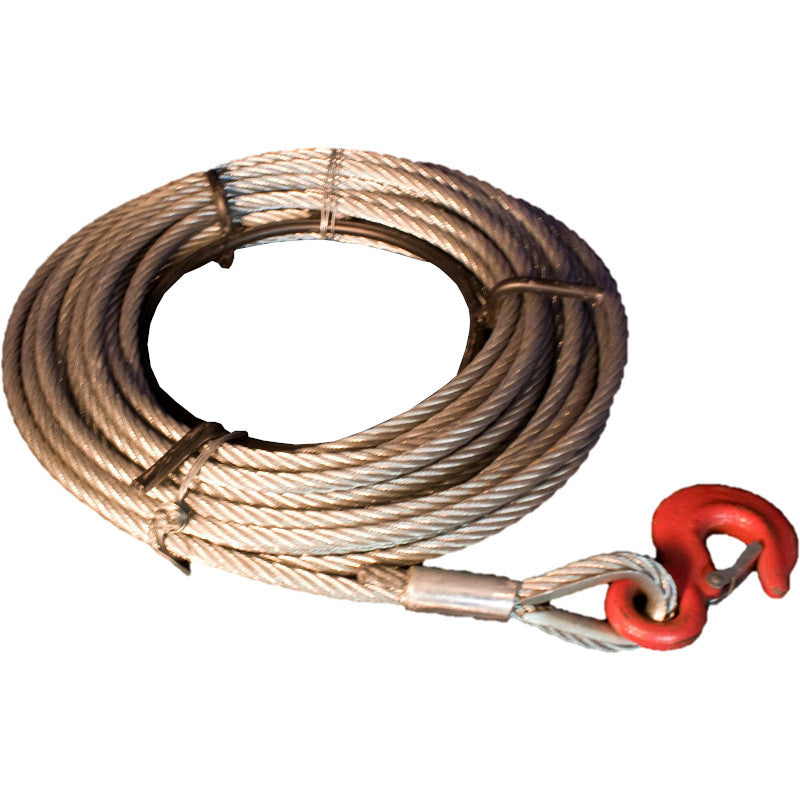

6×19S IWRC Wire-Rope Assembly (ordered separately)
| Part # | Wire rope (in) | Weight (lb) | Length (ft) |
|---|---|---|---|
| WD05RA66 | 5/16 | 15 | 66 |
| WD07RA66 | 7/16 | 28 | 66 |
| WD10RA66 | 5/8 | 41 | 66 |

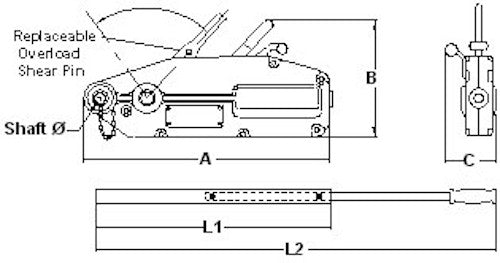

Dimensions per the AMH Walk-E-Dog dimensional drawing shown in the gallery. Dimensions in inches.
Design factor / testing: 4:1 SF; meets ASME/ANSI B30.21, OSHA and NASA-STD-8719.9; ATEX certified II 3 GD c IIB 54°C X.
Select model below; pricing by quote. Wire-rope assemblies must be ordered separately.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
| Model | Wire rope (in) | WLL @4:1 | Weight (lb) | A (in) | B (in) | C (in) | Shaft Ø (in) | L1 (in) | L2 (in) | Advance/stroke (in) | Hand pull @WLL (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WD05 | 5/16 | 1 t (2,000 lb) | 13.2 | 17.4 | 9.6 | 2.6 | 0.88 | — | 32.7 | 2.1 | 76 |
| WD07 | 7/16 | 2 t (4,000 lb) | 24.2 | 22.2 | 11.4 | 4 | 1 | 32.7 | 49 | 2.3 | 88 |
| WD10 | 5/8 | 4 t (8,000 lb) | 48.4 | 26.9 | 13.3 | 4.7 | 1.2 | 32.7 | 49 | 1.1 | 97 |
6×19S IWRC Wire-Rope Assembly (ordered separately)
| Part # | Wire rope (in) | Weight (lb) | Length (ft) |
|---|---|---|---|
| WD05RA66 | 5/16 | 15 | 66 |
| WD07RA66 | 7/16 | 28 | 66 |
| WD10RA66 | 5/8 | 41 | 66 |
Dimensions per the AMH Walk-E-Dog dimensional drawing shown in the gallery. Dimensions in inches.
Design factor / testing: 4:1 SF; meets ASME/ANSI B30.21, OSHA and NASA-STD-8719.9; ATEX certified II 3 GD c IIB 54°C X.
