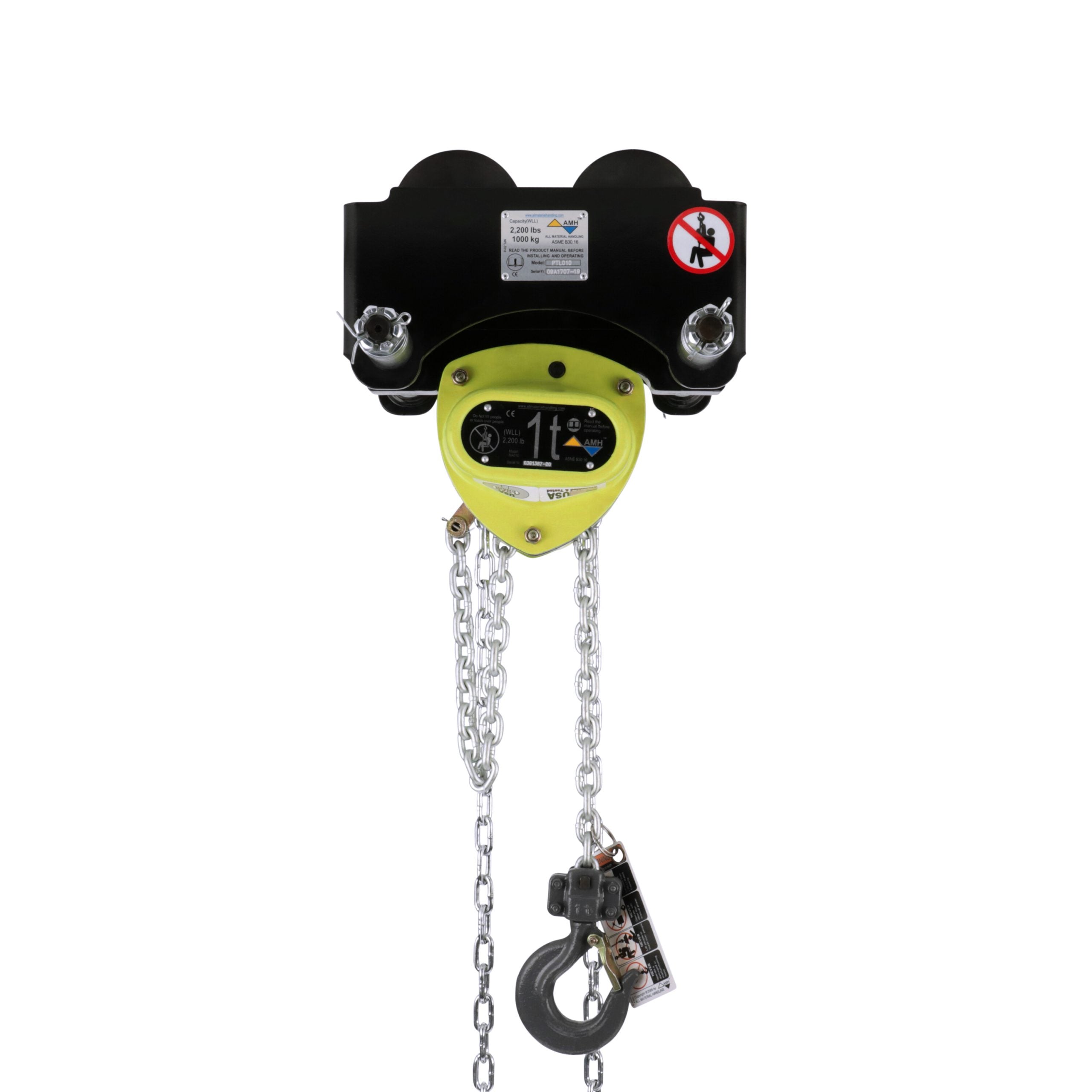

AMH PTL-Series — Low-Headroom Push Trolley
AMH PTL plain push trolleys raise available lift height in low-ceiling areas. They direct-mount to any standard MA-Series AMH hoist by replacing the top-hook assembly with the low-headroom trolley assembly. 1/2 to 10 ton. Machined cast-iron wheels with universal tread fit flat or tapered beam flanges. Moved by pushing the load along the beam — no hand chain.
- Capacity range: 1/2 – 10 ton
- Plain push operation — for hand-geared travel, see the GTL geared trolley
- Low-headroom design increases lift height in low-ceiling areas
- Direct mount to any standard MA-Series AMH hoist (replaces top-hook assembly)
- Machined cast-iron wheels with precision sealed “lubed-for-life” bearings and universal tread for flat or tapered flanges
- Durable all-steel construction
- Standards: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9, EU 98/37/EC
- ATEX rated II 3 GD c IIB 54°C X for limited use in hazardous environments
“Weight incl. hoist” is the trolley weight including the mounted MA hoist. Select capacity below; pricing by quote.
Dimensions & specifications

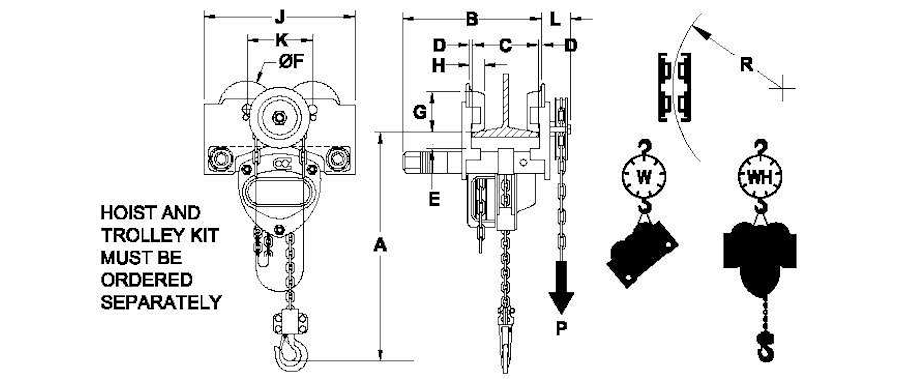

AMH PTL-Series Push Trolley (Low-Headroom) — Specifications & Dimensions
| Model | WLL | A (in) | B (in) | C – flange range (in) | D (in) | E (in) | F (in) | G (in) | H (in) | J (in) | K (in) | L (in) | Min. curve radius (in) | Weight incl. hoist (lb) | Hand-chain pull (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTL005 | 1/2t | 11.6 | 9.8 | 2.0-8.0 | 0.06-0.12 | 1.2 | 3.1 | 2.2 | 0.7 | 10.2 | 3.9 | 3.0 | 31 | 46 | — |
| PTL010 | 1t | 13.0 | 14.0 | 2.5-12.0 | 0.06-0.12 | 1.5 | 3.8 | 2.7 | 0.8 | 11.5 | 5.0 | 3.1 | 35 | 51 | — |
| PTL020 | 2t | 16.1 | 14.3 | 3.5-12.0 | 0.06-0.12 | 1.5 | 4.3 | 3.1 | 0.9 | 14.2 | 5.4 | 3.3 | 39 | 86 | — |
| PTL030 | 3t | 19.0 | 14.7 | 3.9-12.0 | 0.06-0.12 | 1.7 | 5.2 | 3.9 | 1.1 | 16.9 | 6.2 | 3.4 | 47 | 158 | — |
| PTL050 | 5t | 25.2 | 15.0 | 4.5-12.0 | 0.06-0.12 | 1.6 | 5.7 | 4.3 | 1.4 | 17.6 | 6.8 | 3.7 | 51 | 222 | — |
| PTL075 | 7.5t | 26.9 | 15.6 | 4.9-12.0 | 0.08-0.14 | 1.8 | 7.0 | 5.4 | 1.6 | 25.2 | 7.9 | 4.3 | 79 | 324 | — |
| PTL100 | 10t | 30.8 | 15.6 | 4.9-12.0 | 0.08-0.14 | 1.8 | 7.0 | 5.4 | 1.6 | 25.2 | 7.9 | 4.3 | 79 | 342 | — |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH PTL-Series Push Trolley (Low-Headroom) — Specifications & Dimensions
| Model | WLL | A (in) | B (in) | C – flange range (in) | D (in) | E (in) | F (in) | G (in) | H (in) | J (in) | K (in) | L (in) | Min. curve radius (in) | Weight incl. hoist (lb) | Hand-chain pull (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTL005 | 1/2t | 11.6 | 9.8 | 2.0-8.0 | 0.06-0.12 | 1.2 | 3.1 | 2.2 | 0.7 | 10.2 | 3.9 | 3.0 | 31 | 46 | — |
| PTL010 | 1t | 13.0 | 14.0 | 2.5-12.0 | 0.06-0.12 | 1.5 | 3.8 | 2.7 | 0.8 | 11.5 | 5.0 | 3.1 | 35 | 51 | — |
| PTL020 | 2t | 16.1 | 14.3 | 3.5-12.0 | 0.06-0.12 | 1.5 | 4.3 | 3.1 | 0.9 | 14.2 | 5.4 | 3.3 | 39 | 86 | — |
| PTL030 | 3t | 19.0 | 14.7 | 3.9-12.0 | 0.06-0.12 | 1.7 | 5.2 | 3.9 | 1.1 | 16.9 | 6.2 | 3.4 | 47 | 158 | — |
| PTL050 | 5t | 25.2 | 15.0 | 4.5-12.0 | 0.06-0.12 | 1.6 | 5.7 | 4.3 | 1.4 | 17.6 | 6.8 | 3.7 | 51 | 222 | — |
| PTL075 | 7.5t | 26.9 | 15.6 | 4.9-12.0 | 0.08-0.14 | 1.8 | 7.0 | 5.4 | 1.6 | 25.2 | 7.9 | 4.3 | 79 | 324 | — |
| PTL100 | 10t | 30.8 | 15.6 | 4.9-12.0 | 0.08-0.14 | 1.8 | 7.0 | 5.4 | 1.6 | 25.2 | 7.9 | 4.3 | 79 | 342 | — |
