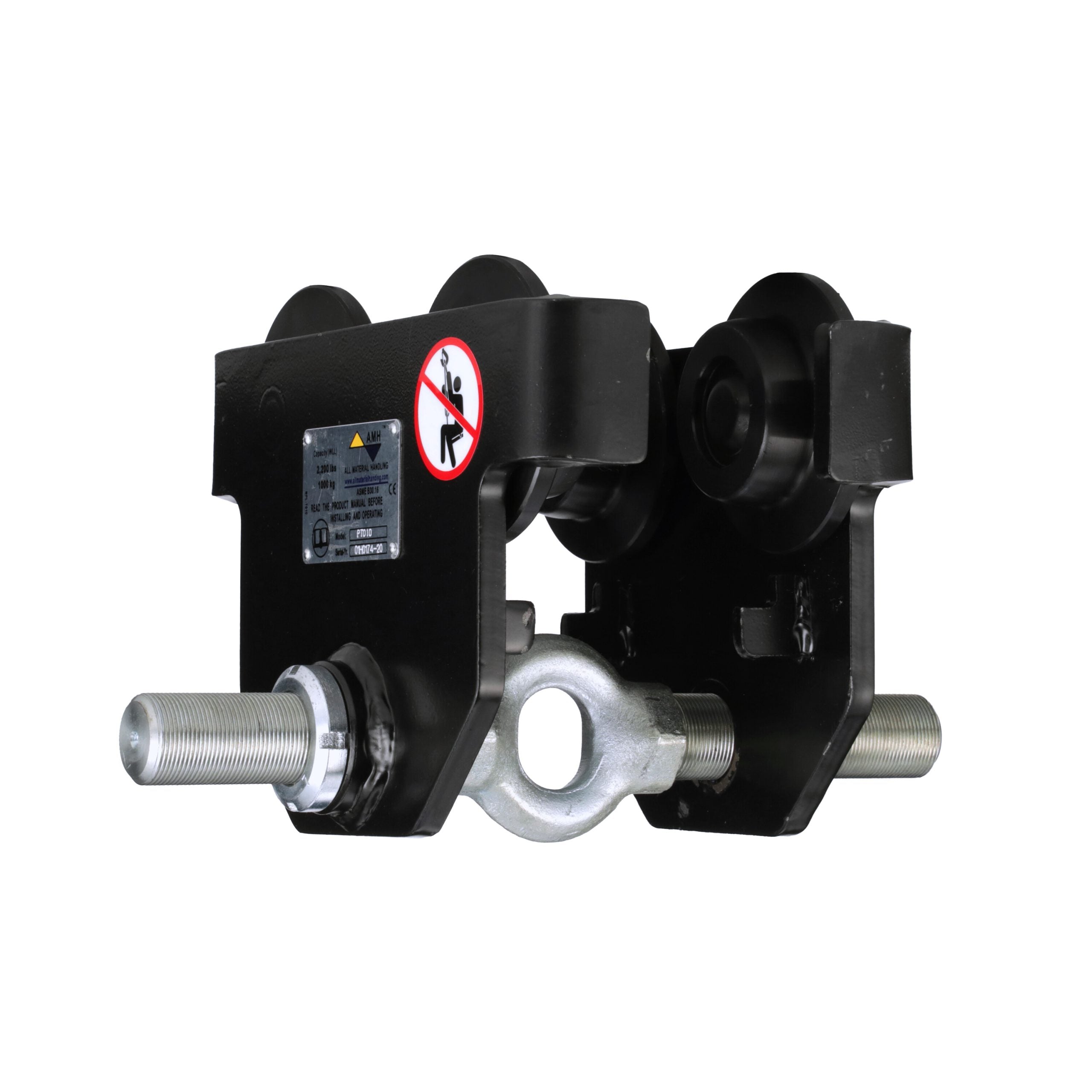

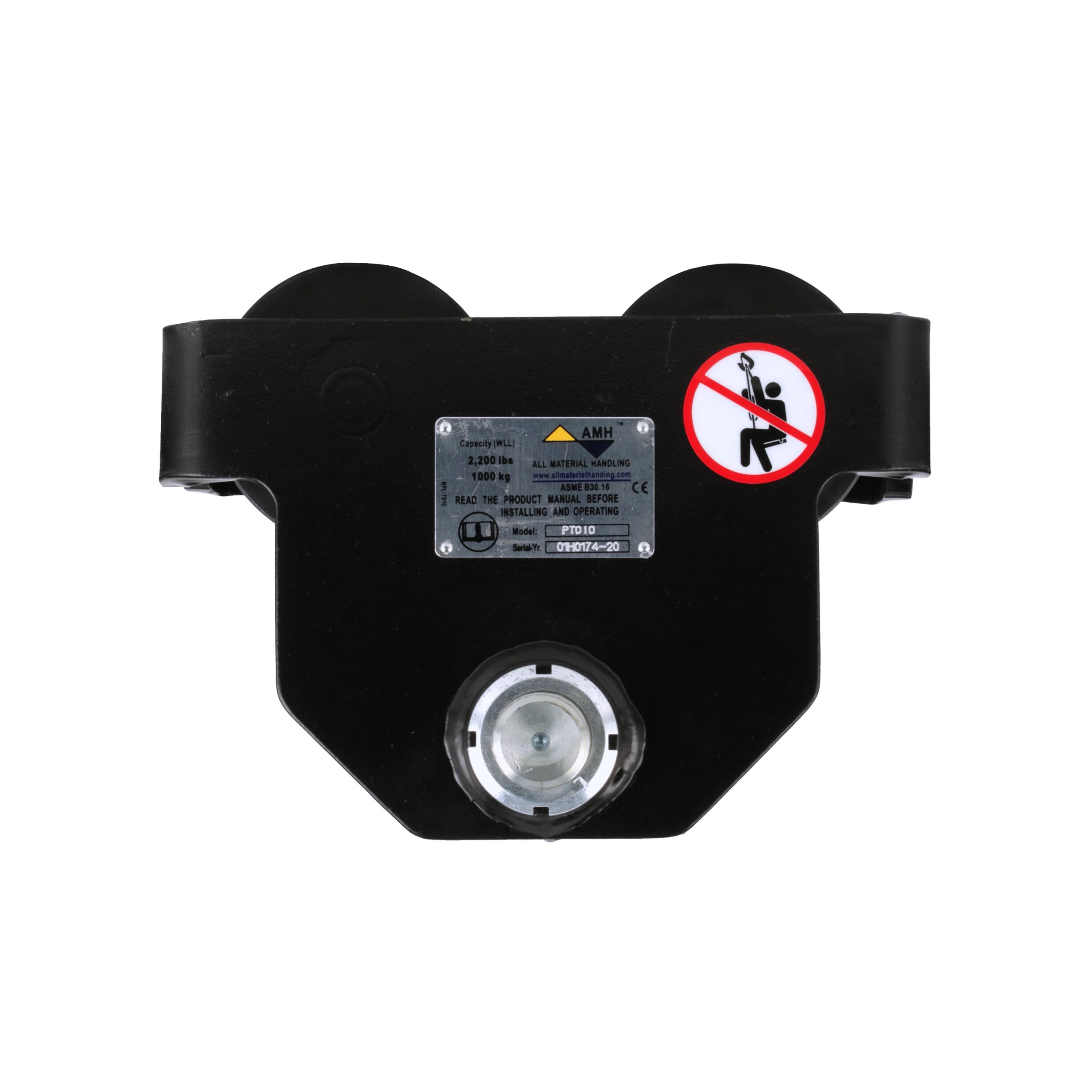

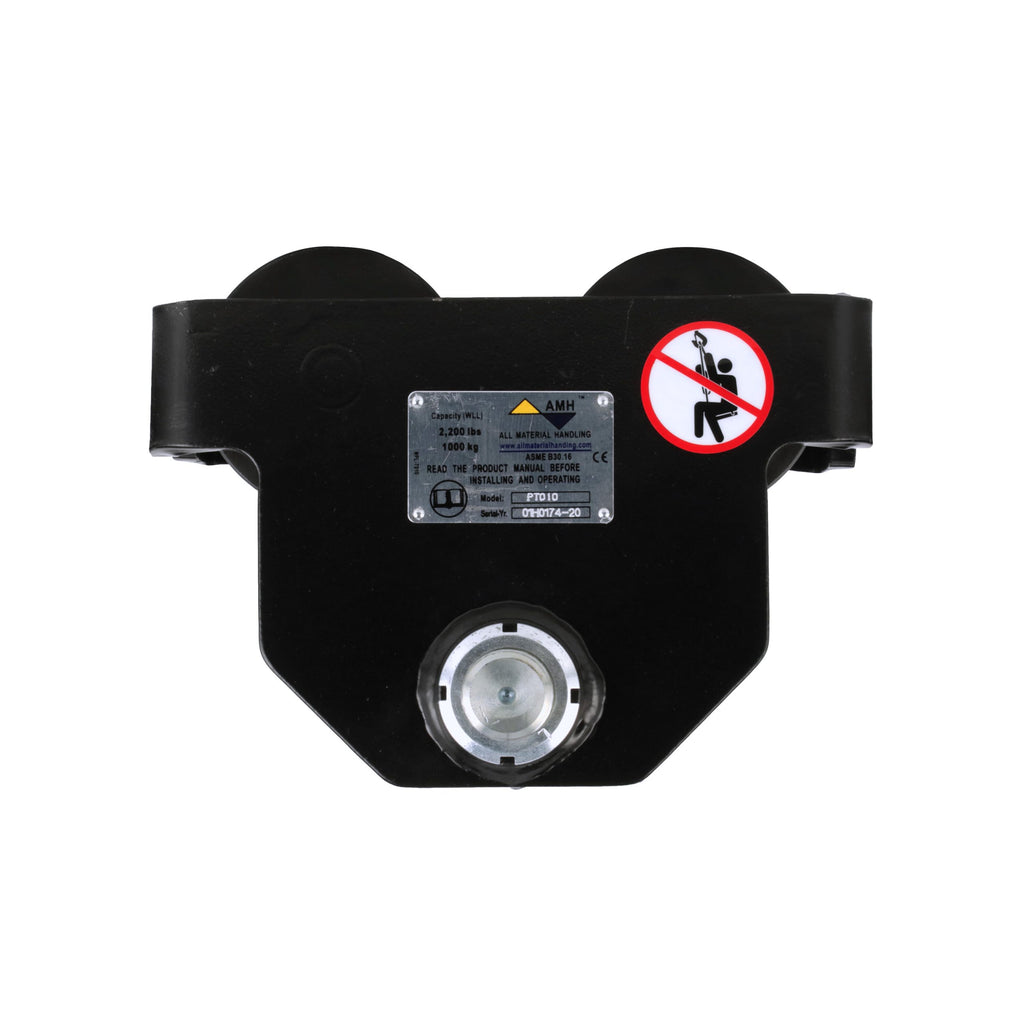

AMH PT-Series — Push Beam Trolley
The PT-Series is AMH's plain push (pushed) beam trolley for mounting a hoist to an I-beam and moving the load by hand. 1/2 to 16 ton capacity. Machined cast-iron wheels with a universal tread fit flat or tapered beam flanges, and the low-headroom design with precision “lubed-for-life” sealed bearings assures smooth rolling.
- Capacity range: 1/2 – 16 ton
- The easiest trolley installation ever — 1/2–5 t install/adjust by rotating the threaded hanger shaft; 10 t+ install from one side (hanger shafts fixed to opposite side plate)
- Design factor: 1/2–5 t = 5:1 (use with powered or manual hoist); 10 t+ = 4:1 (must be de-rated 20% for powered hoists)
- Machined cast-iron wheels with universal tread for flat or tapered flanges
- Low-headroom design; precision sealed “lubed-for-life” bearings; durable all-steel construction with standard safety lugs
- Standards: ASME/ANSI B30.16, OSHA, NASA-STD-8719.9, EU 2006/42/EC
- ATEX rated II 3 GD c IIB 54°C X for limited use in hazardous environments
- Options: Wide-Flange Kits for 1/2–5 t with 12″ flange adjustment (ordered separately)
* Values including Wide-Flange Kit. Select capacity below; pricing by quote.

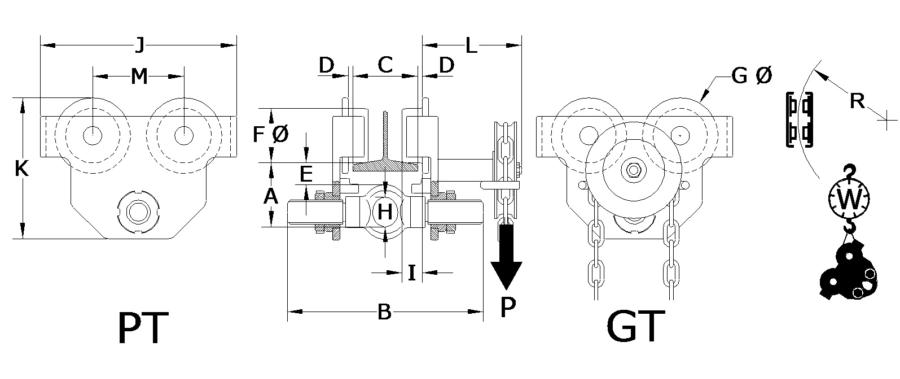

Dimensions & specifications — 1/2 to 5 ton (5:1 design)
| Model | WLL (5:1) | A″ | B″ | B2″* | Standard C″ | Wide-Flg Kit C2″* | D″ | E″ | F″ | G″ | H″ | I″ | J″ | K″ | M″ | R min″ | W1 (lb) | W2 (lb)* |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT005 | 1/2 t | 3.3 | 11.5 | 14.8 | 1.97–8.66 | 6.30–12.01 | 0–0.12 | 1.5 | 2.3 | 3.4 | 1.2 | 0.9 | 8.9 | 6.8 | 4 | 36 | 18 | 19 |
| PT010 | 1 t | 3.7 | 11.8 | 15.2 | 2.28–8.66 | 6.30–12.01 | 0–0.12 | 1.7 | 2.4 | 3.7 | 1.4 | 0.9 | 9.9 | 7.4 | 4.8 | 40 | 24 | 25 |
| PT020 | 2 t | 4.4 | 12.2 | 15.6 | 2.60–8.66 | 6.30–12.01 | 0–0.12 | 1.6 | 3.2 | 4.6 | 1.9 | 1.0 | 11.8 | 8.9 | 5.5 | 48 | 40 | 42 |
| PT030 | 3 t | 5.8 | 12.8 | 16.1 | 2.91–8.66 | 6.30–12.01 | 0–0.12 | 2.5 | 3.9 | 5.5 | 2.3 | 1.3 | 14.2 | 11.4 | 6.3 | 52 | 69 | 72 |
| PT050 | 5 t | 6.3 | 13.0 | 16.3 | 3.54–8.66 | 6.30–12.01 | 0–0.12 | 2.2 | 4.3 | 5.9 | 2.8 | 1.5 | 15.4 | 12.3 | 6.7 | 56 | 94 | 97 |

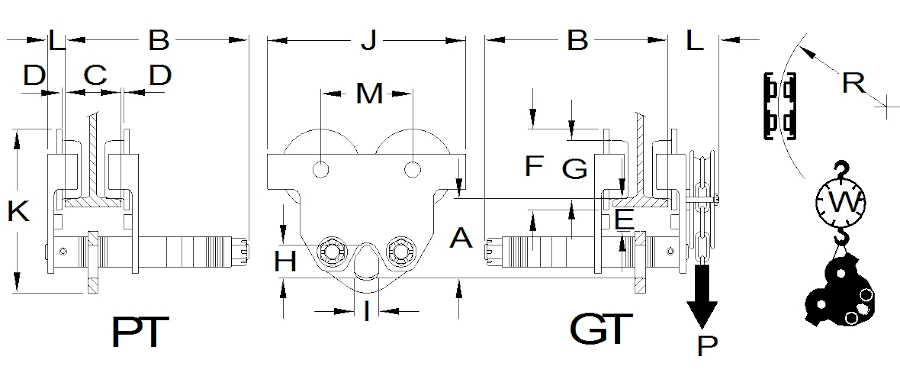

Dimensions & specifications — 10 to 16 ton (4:1 design; de-rate 20% for powered hoists)
| Model | WLL (4:1) | A″ | B″ | C″ | D″ | E″ | F″ | G″ | H″ | I″ | J″ | K″ | M″ | R min″ | W (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT100 | 10 t | 7.5 | 15.5 | 4.9–12.0 | 0.08–0.13 | 1.8 | 7.0 | 5.4 | 4.4 | 2.8 | 18.1 | 15.5 | 7.9 | 79 | 198 |
| PT160 | 16 t | 9.3 | 17.1 | 5.4–12.0 | 0.08–0.13 | 2.4 | 8.9 | 6.6 | 5.4 | 3.7 | 22.6 | 19.6 | 10.7 | 138 | 427 |
Dimensions in inches. Push trolleys have no hand-chain (L) or effort (P) values.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — All Models by Capacity
| Model # | Capacity (tons) | A (in) | B1 (in) | B2 (in) | Standard C1 (in) | Wide Flg Kit C2 (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | J (in) | K (in) | L (in) | M (in) | R Min (in) | Effort to Move/Lift (lb) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PT005 | 1/2 | 3.3 | 11.5 | 14.8 | 1.97-8.66 | 6.30-12.01 | 0-0.12 | 1.5 | 2.3 | 3.4 | 1.2 | 0.9 | 8.9 | 6.8 | 4.0 | 36 | 18 | ||
| PT010 | 1 | 3.7 | 11.8 | 15.2 | 2.28-8.66 | 6.30-12.01 | 0-0.12 | 1.7 | 2.4 | 3.7 | 1.4 | 0.9 | 9.9 | 7.4 | 4.8 | 40 | 24 | ||
| PT020 | 2 | 4.4 | 12.2 | 15.6 | 2.60-8.66 | 6.30-12.01 | 0-0.12 | 1.6 | 3.2 | 4.6 | 1.9 | 1.0 | 11.8 | 8.9 | 5.5 | 48 | 40 | ||
| PT030 | 3 | 5.8 | 12.8 | 16.1 | 2.91-8.66 | 6.30-12.01 | 0-0.12 | 2.5 | 3.9 | 5.5 | 2.3 | 1.3 | 14.2 | 11.4 | 6.3 | 52 | 69 | ||
| PT050 | 5 | 6.3 | 13.0 | 16.3 | 3.54-8.66 | 6.30-12.01 | 0-0.12 | 2.2 | 4.3 | 5.9 | 2.8 | 1.5 | 15.4 | 12.3 | 6.7 | 56 | 94 | ||
| PT100 | 10 | 7.5 | 15.5 | 4.9-12 | 0.08-0.13 | 1.8 | 7.0 | 5.4 | 4.4 | 2.8 | 18.1 | 15.5 | 1.8 | 7.9 | 79 | 198 | |||
| PT160 | 16 | 9.3 | 17.1 | 5.4-12 | 0.08-0.13 | 2.4 | 8.9 | 6.6 | 5.4 | 3.7 | 22.6 | 19.6 | 3.0 | 10.7 | 138 | 427 |
Capacity in tons. Dimensions in inches unless a column notes otherwise. Dimensions and ratings sourced directly from the manufacturer catalog.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| PT005 – 1/2 ton | PT005 | $163.63 | ✓ In Stock | ||
| PT010 – 1 ton | PT010 | $205.11 | ✓ In Stock | ||
| PT020 – 2 ton | PT020 | $328.42 | ✓ In Stock | ||
| PT030 – 3 ton | PT030 | $586.52 | ✓ In Stock | ||
| PT050 – 5 ton | PT050 | $797.40 | ✓ In Stock | ||
| PT100 – 10 ton | PT100 | $1,706.57 | ✓ In Stock | ||
| PT160 – 16 ton | PT160 | $3,781.88 | ✓ In Stock | ||
| PT005-FLG-12 – Flange Kit 1/2 ton (12in) | PT005-FLG-12 | $193.37 | ✓ In Stock | ||
| PT010-FLG-12 – Flange Kit 1 ton (12in) | PT010-FLG-12 | $248.22 | ✓ In Stock | ||
| PT020-FLG-12 – Flange Kit 2 ton (12in) | PT020-FLG-12 | $330.46 | ✓ In Stock | ||
| PT030-FLG-12 – Flange Kit 3 ton (12in) | PT030-FLG-12 | $444.46 | ✓ In Stock | ||
| PT050-FLG-12 – Flange Kit 5 ton (12in) | PT050-FLG-12 | $580.12 | ✓ In Stock |
