AMH Plate Lifting Clamps — PCUA Universal (Vertical)

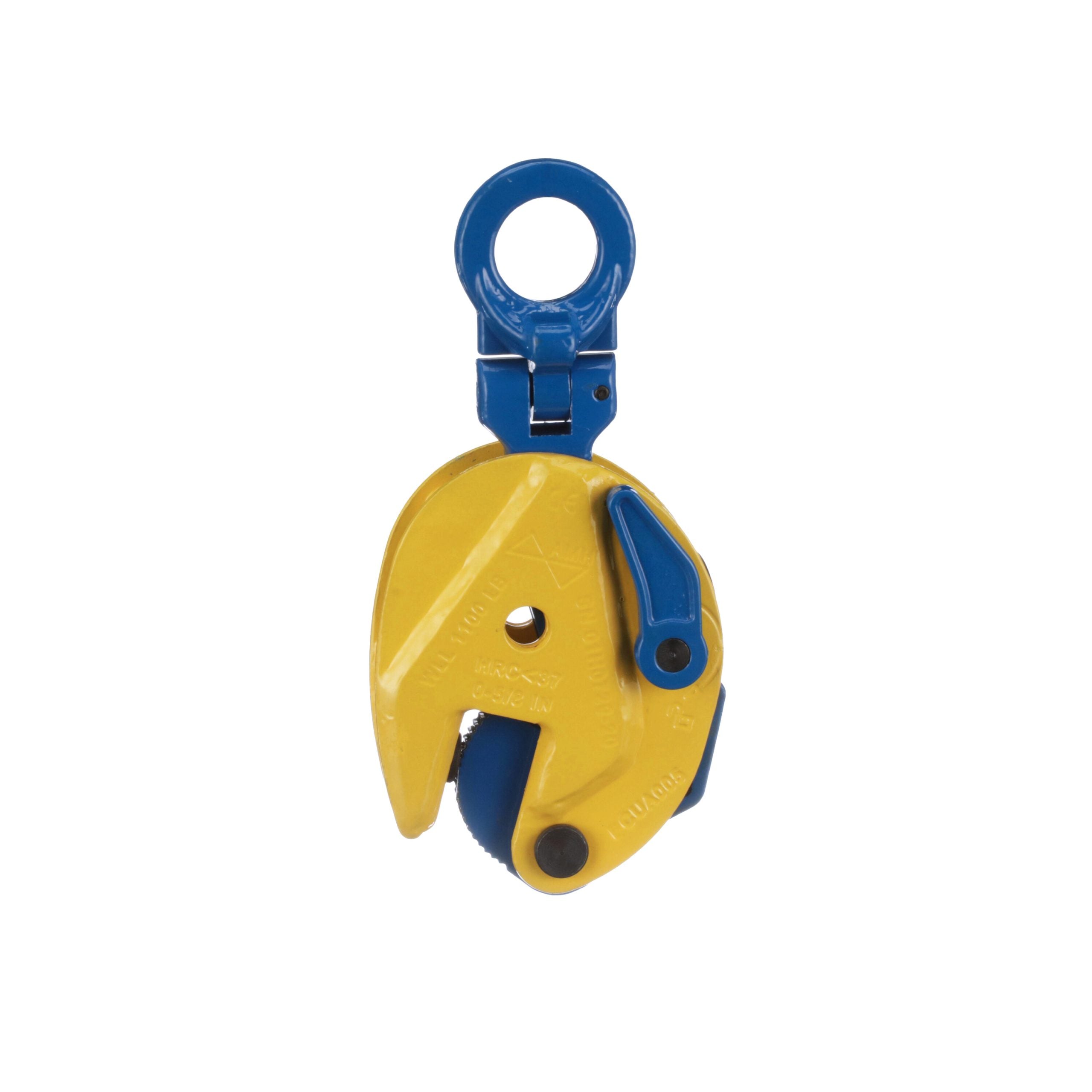

The AMH PCUA universal plate clamp is an all-steel vertical clamp for lifting and transferring steel plate, rated 1/2 to 5 metric ton. It has a 180° turning range and a spring-loaded cam with a lock-open / lock-closed lever for safe, one-hand engagement.
- Capacity: 1/2 t – 5 t
- Universal (vertical) lift with 180° turning range; spring-loaded cam with lock-open/lock-closed lever
- All-steel body; compact and durable; replacement parts kits available
- Individually serialized; proof-tested to 2× WLL with factory certificate
- For material surface hardness < HRC 37; requires minimum 10% of WLL to ensure grip
- Standards: ASME B30.20 (BTH), EU Directive 2006/42/EC
Select model below; pricing by quote. For lifting plate flat, see the PCH horizontal plate clamp.
Specifications & dimensions

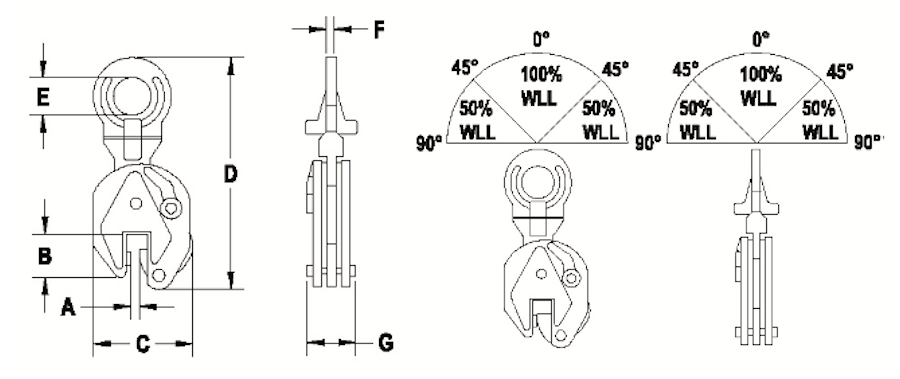

PCUA Universal (Vertical) Plate Lifting Clamp — Specifications & Dimensions
| Model | WLL | Weight (lb) | Jaw opening (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
|---|---|---|---|---|---|---|---|---|---|
| PCUA005 | 0.5 t | 4.4 | 0 – 5/8 | 1.7 | 4.2 | 8.5 | 1.2 | 0.4 | 2.0 |
| PCUA010 | 1.0 t | 9.9 | 0 – 3/4 | 2.5 | 5.7 | 11.5 | 1.9 | 0.5 | 2.6 |
| PCUA020 | 2.0 t | 16.1 | 0 – 1 | 3.1 | 6.9 | 14.5 | 2.7 | 0.6 | 3.0 |
| PCUA030 | 3.0 t | 33.0 | 0 – 1-1/8 | 3.3 | 8.1 | 16.9 | 2.9 | 0.8 | 4.0 |
| PCUA050 | 5.0 t | 47.5 | 0 – 2 | 3.9 | 9.4 | 18.9 | 3.1 | 0.9 | 4.3 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
PCUA Universal (Vertical) Plate Lifting Clamp — Specifications & Dimensions
| Model | WLL | Weight (lb) | Jaw opening (in) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
|---|---|---|---|---|---|---|---|---|---|
| PCUA005 | 0.5 t | 4.4 | 0 – 5/8 | 1.7 | 4.2 | 8.5 | 1.2 | 0.4 | 2.0 |
| PCUA010 | 1.0 t | 9.9 | 0 – 3/4 | 2.5 | 5.7 | 11.5 | 1.9 | 0.5 | 2.6 |
| PCUA020 | 2.0 t | 16.1 | 0 – 1 | 3.1 | 6.9 | 14.5 | 2.7 | 0.6 | 3.0 |
| PCUA030 | 3.0 t | 33.0 | 0 – 1-1/8 | 3.3 | 8.1 | 16.9 | 2.9 | 0.8 | 4.0 |
| PCUA050 | 5.0 t | 47.5 | 0 – 2 | 3.9 | 9.4 | 18.9 | 3.1 | 0.9 | 4.3 |
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| PCUA005 – 0.5 t universal | PCUA005 | $0.00 | ✓ In Stock | ||
| PCUA010 – 1.0 t universal | PCUA010 | $0.00 | ✓ In Stock | ||
| PCUA020 – 2.0 t universal | PCUA020 | $0.00 | ✓ In Stock | ||
| PCUA030 – 3.0 t universal | PCUA030 | $0.00 | ✓ In Stock | ||
| PCUA050 – 5.0 t universal | PCUA050 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
