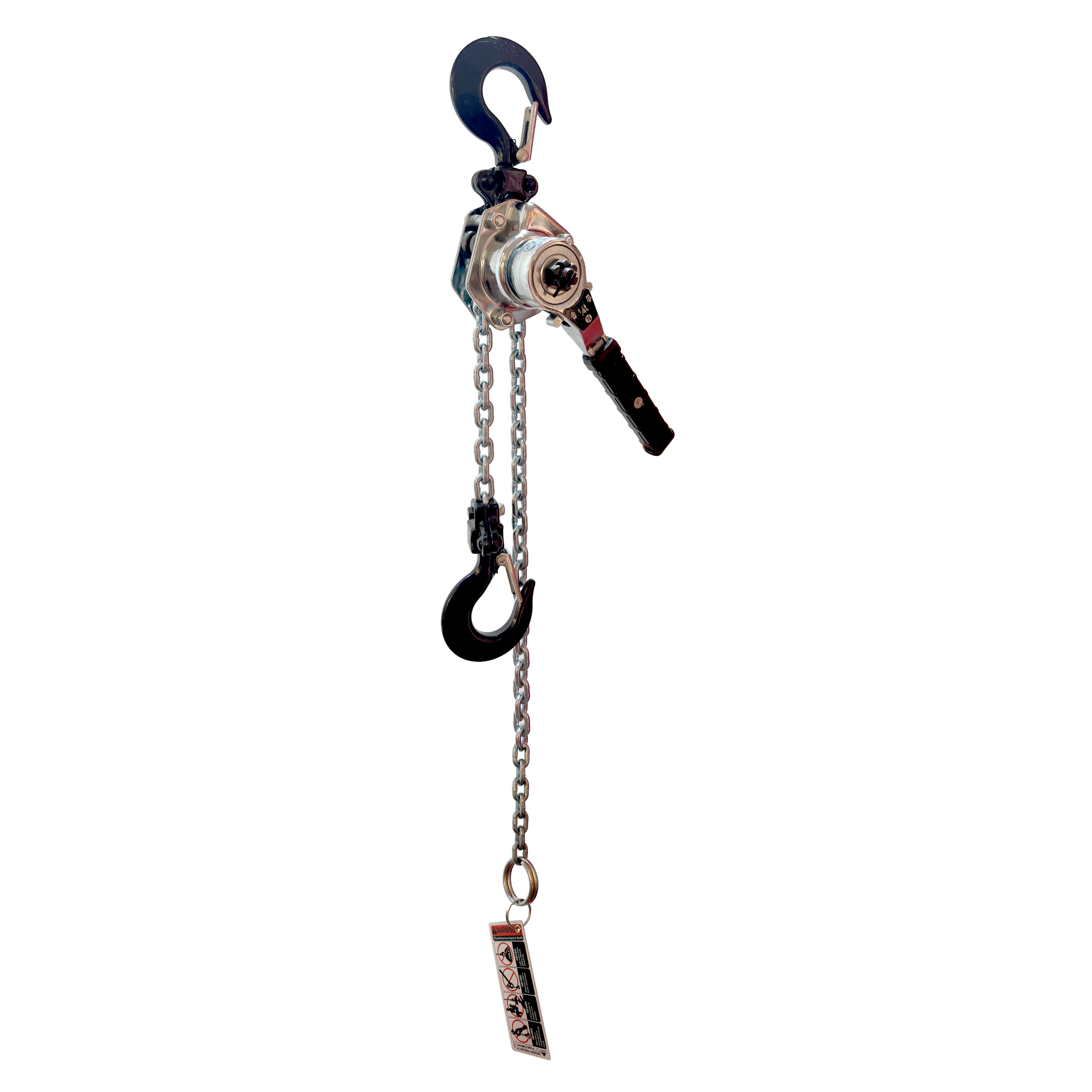

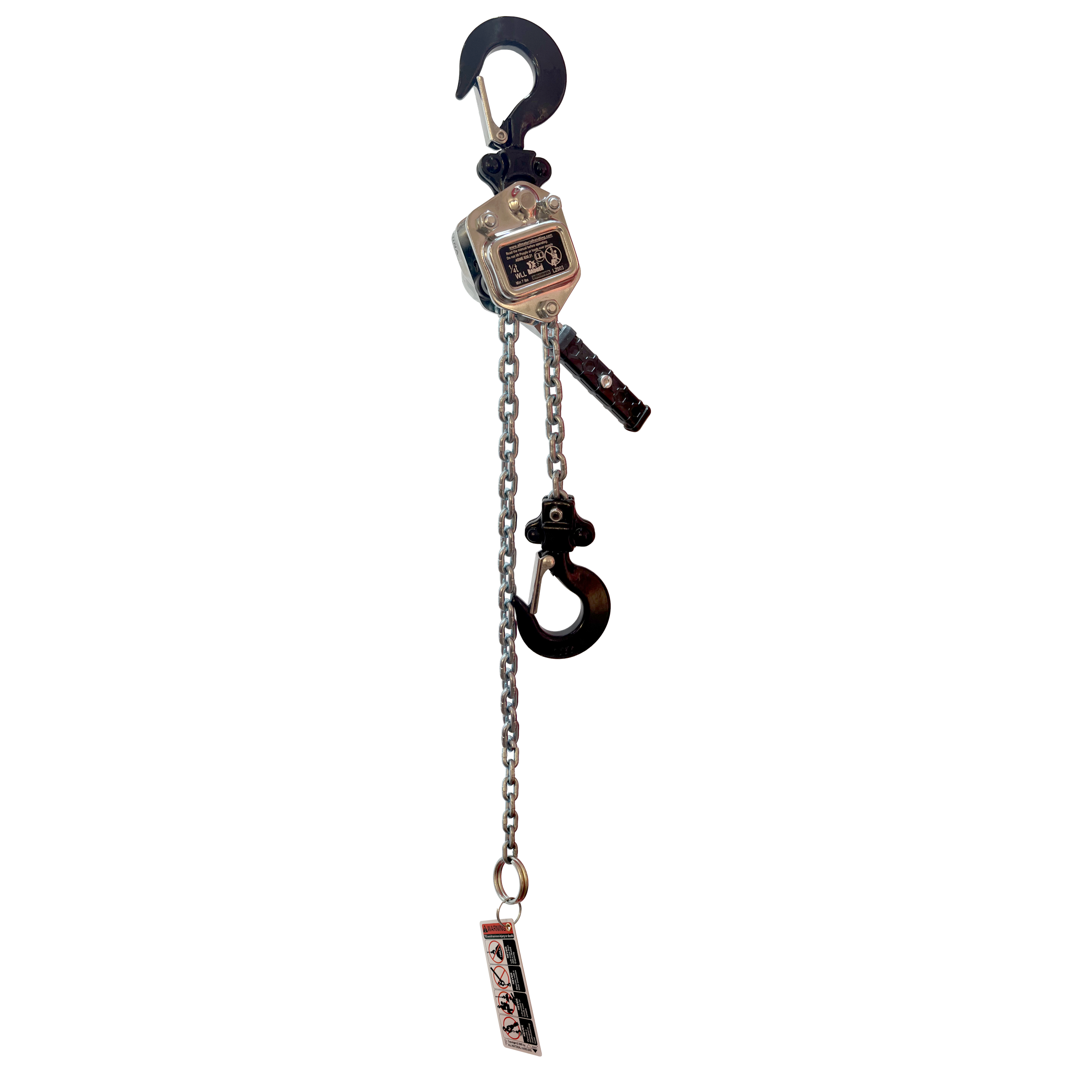

AMH LZ Mini-Series — Compact Low-Headroom Lever Chain Hoist
The LZ Mini is AMH's ultra-compact Badger® ratchet lever hoist (come-along) rated 1/4 US ton (550 lb). Its low-headroom, lightweight formed-steel body operates and stores in tight spaces, using precision load chain with the strength of G80 chain and a self-adjusting Weston-style mechanical load brake.
- Capacity: 1/4 t (550 lb); minimum load to set brake ≈ 15 lb*
- Load chain: Precision hoist load chain, strength of G80 (C4X12Z), 1 fall
- Weston-style self-adjusting mechanical load brake — asbestos-free discs, enclosed to limit contamination
- Low-headroom, lightweight, durable formed-steel enclosure; quick disassembly for maintenance; sleeve bearings for serviceability
- Each hoist proof-tested to min. 1.25× WLL and shipped with a serialized test certificate
- Standards: ASME B30, OSHA, NASA-STD-8719.9
- Ships with a camouflage carry bag and full Badger product-line manual (English / French / Spanish)
Available lifts: 5 and 10 ft. Shipping weight ≈ hanging weight (W) + ~15%. Order by descriptive model number, e.g. LZ003-05 (Model-Lift). *Minimum load is the load required to set the automatic safety brake (reacts like a seatbelt).
Dimensions & specifications (see dimensional drawing)
| Model | WLL Max. | WLL Min. | Falls | Load chain | A″ Min. | B″ | C″ | D″ | H″ min | L″ | K″ | P (lb) Max. | Wt @5ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LZ003 | 1/4 t / 550 lb | 15 lb | 1 | C4X12Z | 3.6 | 2.8 | 2.5 | 1.2 | 9.4 | 6.3 | 1.0 | 56 | 4.4 |
Dimensions in inches. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH LZ Mini-Series Low-Headroom Lever Chain Hoist — Specifications & Dimensions
| Model | WLL | WLL (lb) | Min. load (lb) | Falls | Load chain | A (in) min | B (in) | C (in) | D (in) | H (in) min | L (in) | K (in) | Max. lever effort (lb) | Wt @5 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LZ003 | 1/4t | 550 | 15 | 1 | C4X12Z | 3.6 | 2.8 | 2.5 | 1.2 | 9.4 | 6.3 | 1.0 | 56 | 4.4 |

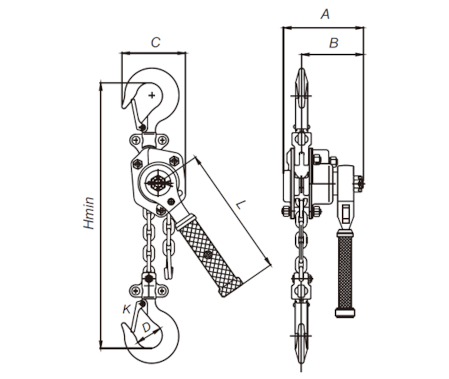

Dimension letters (A–) correspond to the AMH LZ Mini-Series Low-Headroom Lever Chain Hoist dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Load chain = strength of G80; each hoist proof-tested to min. 1.25× WLL (ASME B30)
