AMH LC-Series — Badger® Lever Chain Hoist (Ratchet Lever Hoist)
The LC-Series is AMH's Badger® ratchet lever hoist (come-along) rated 3/4 to 6 metric ton. Easy one-hand operation and setup: with the selector in neutral and no load, the free-chain mode lets the load chain be pulled through by hand for fast rigging. Short ratchet strokes of a non-slip rubber-grip lever with 360° rotation need minimal space — pull force can be 20–30% less than others.
- Capacity range: 3/4 – 6 metric ton (1,650 – 13,200 lb)
- Load chain: Precision hoist load chain, strength of G80
- Operation in any orientation via a fully enclosed horseshoe chain guard keeping the chain on the lift wheel
- Automatic Weston-style mechanical load brake — self-adjusting, double pawls, asbestos-free discs, enclosed; reacts to inertia of a descending load
- Drop-forged alloy hooks with heavy-duty cast-steel safety latch; articulating top-hook mount for straight-line loading
- Light, durable formed-steel enclosure; heat-treated internals; caged roller bearings; powder-coat / plated finishes
- Each hoist proof-tested to min. 1.25× WLL, shipped with a serialized test certificate + manual (English / French / Spanish)
- Standards: ASME B30.21, OSHA, NASA-STD-8719.9
- Options: Z = Zinc-plated chain (standard); S = Shipyard hooks, top & bottom (1.5 & 3 t only)
Available lifts: 5, 10, 15 and 20 ft (unchained units and bulk chain also available). Shipping weight ≈ hanging weight (W) + ~15%. Order by descriptive model number, e.g. LC030-20Z (Model-Lift-Option). Spare parts stocked in the USA.

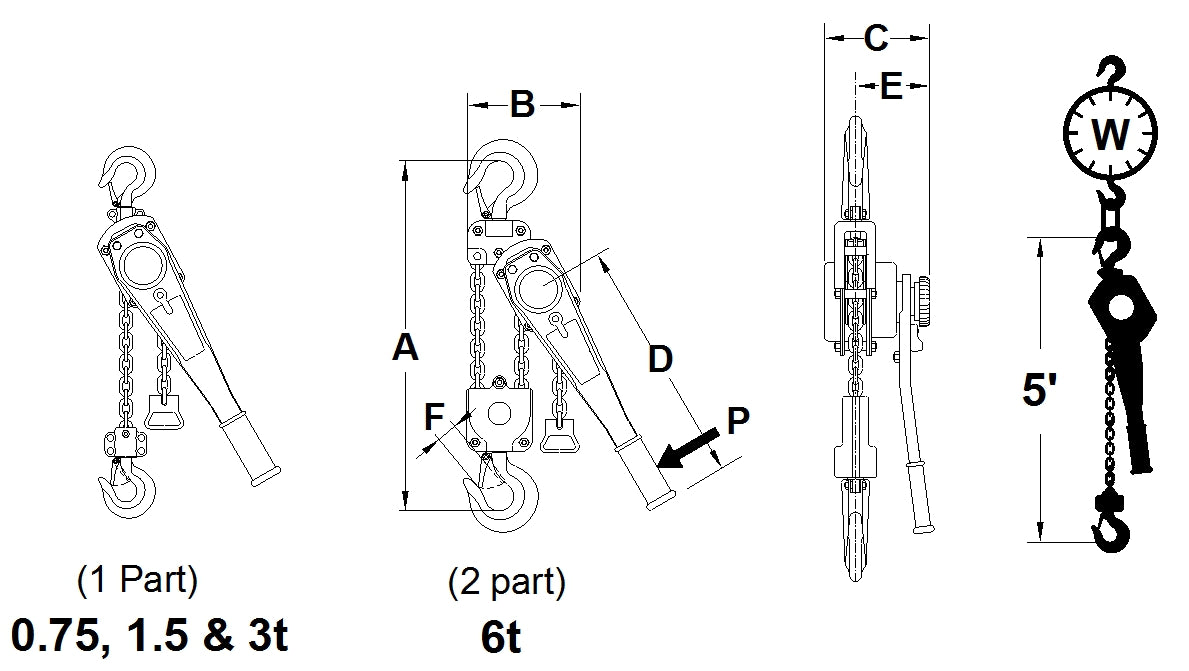

Dimensions & specifications (see dimensional drawing)
| Model | WLL (t) | WLL (lb) | Parts | Load chain | A″ | B″ | C″ | D″ | E″ | F″ w/ latch | Effort P (lb) @WLL | W lb/ft lift | W @5ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

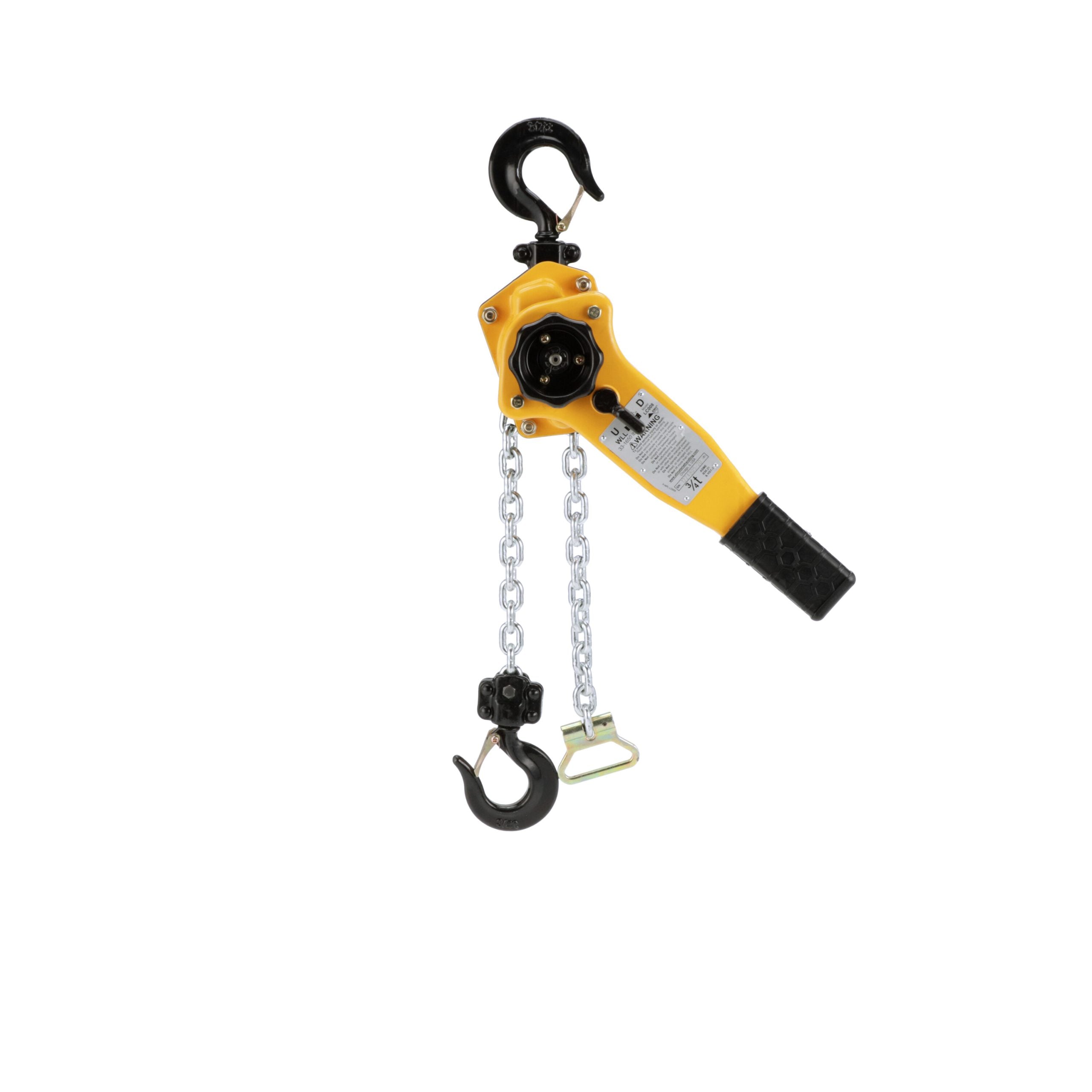

| LC008 | 3/4 t | 1,650 | 1 | C6X18ZC | 12.6 | 5.3 | 5.8 | 11.4 | 3.5 | 0.94 | 31 | 0.54 | 17 |
| LC015 | 1-1/2 t | 3,300 | 1 | C8X24ZC | 15.0 | 6.4 | 6.9 | 16.5 | 4.0 | 1.14 | 54 | 0.92 | 26 |

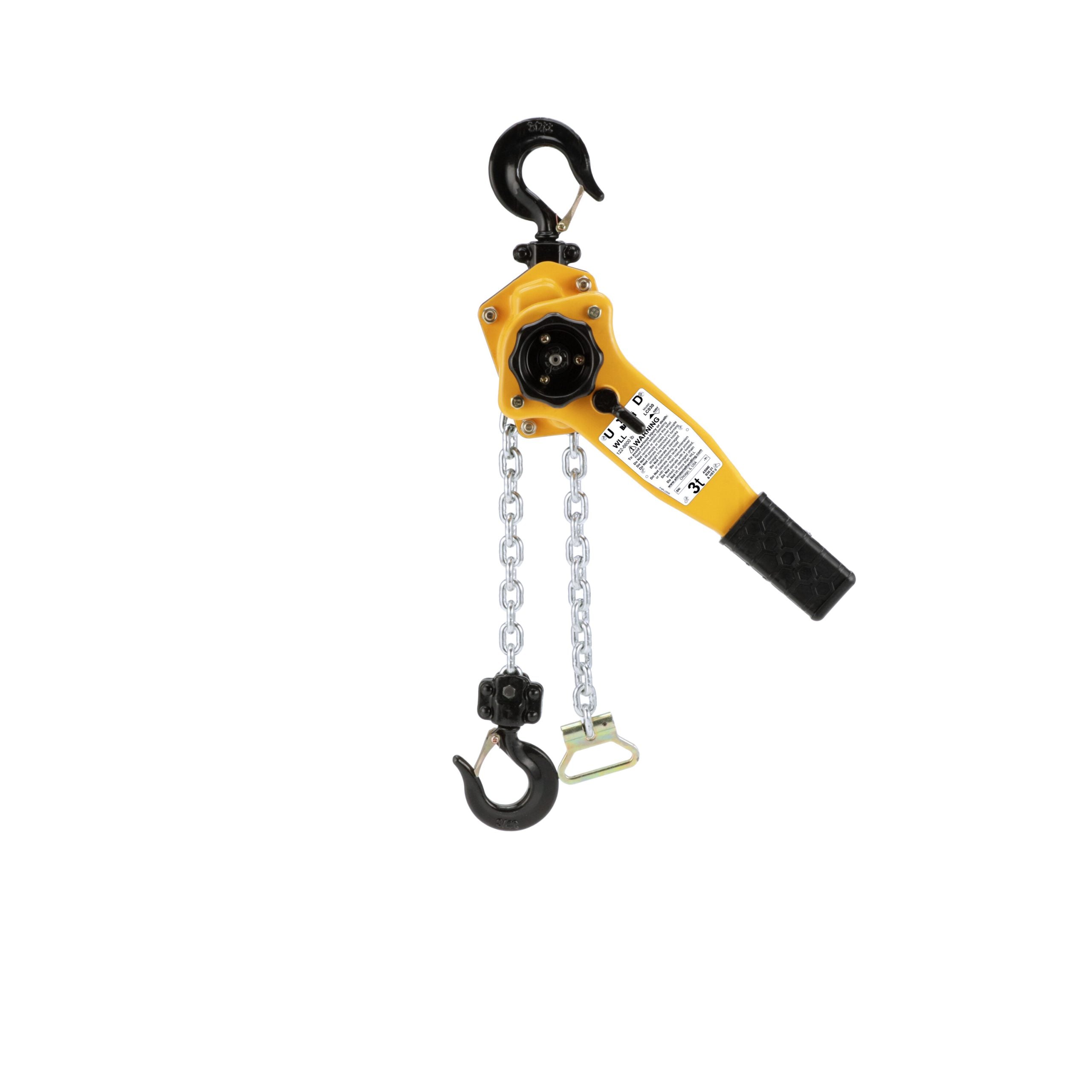

| LC030 | 3 t | 6,600 | 1 | C10X30ZC | 18.9 | 8.3 | 7.7 | 16.5 | 4.3 | 1.42 | 72 | 1.48 | 46 |

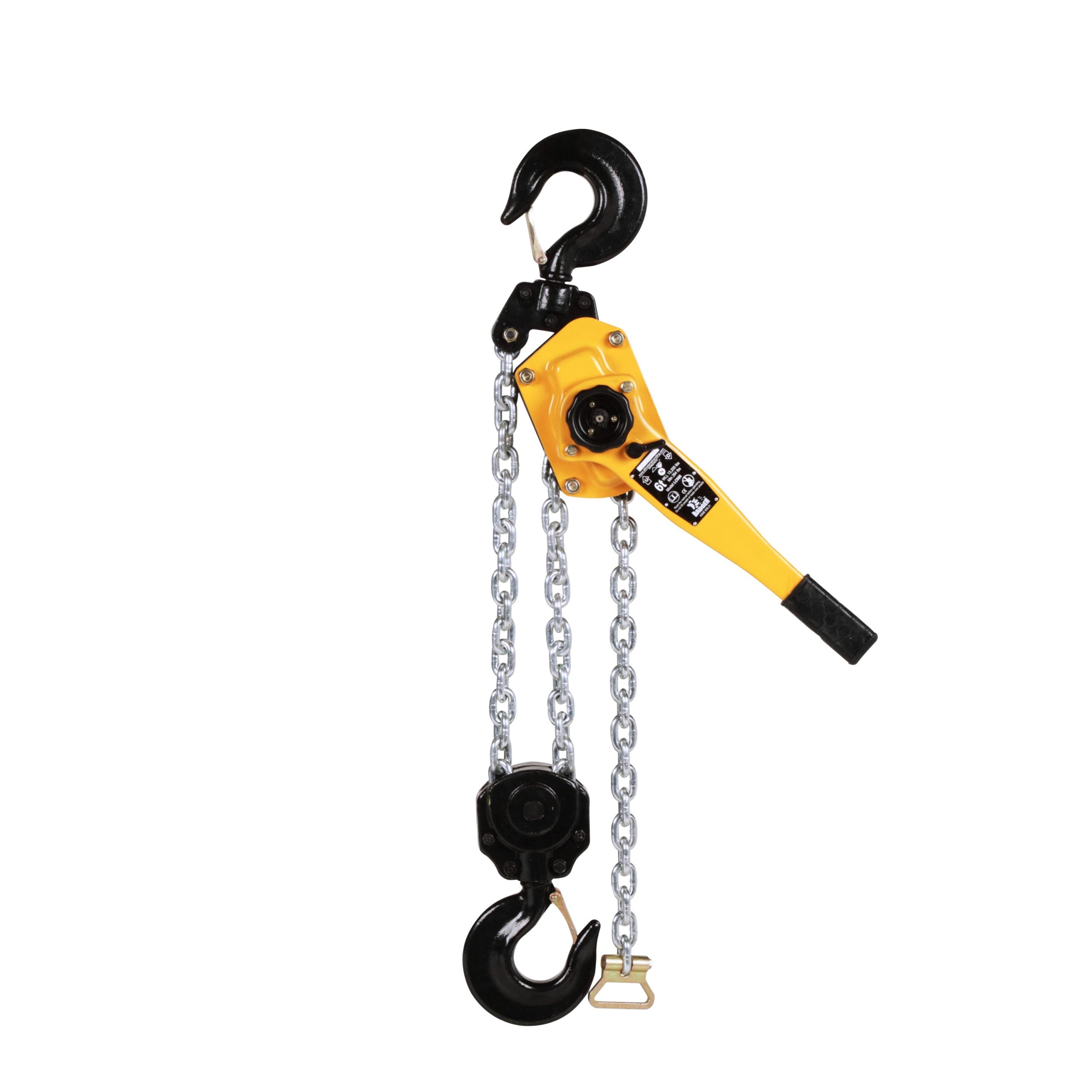

| LC060 | 6 t | 13,200 | 2 | C10X30ZC | 24.4 | 10.0 | 7.7 | 16.5 | 4.3 | 1.81 | 76 | 2.96 | 70 |
Dimensions in inches. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH LC-Series Badger Lever Chain Hoist — Specifications & Dimensions
| Model | WLL | WLL (lb) | Falls | Load chain | A (in) | B (in) | C (in) | D (in) | E (in) | F w/ latch (in) | Hand-chain pull (lb) | Wt / extra ft (lb) | Wt @5 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LC008 | 3/4t | 1650 | 1 | C6X18ZC | 12.6 | 5.3 | 5.8 | 11.4 | 3.5 | 0.94 | 31 | 0.54 | 17 |
| LC015 | 1-1/2t | 3300 | 1 | C8X24ZC | 15 | 6.4 | 6.9 | 16.5 | 4 | 1.14 | 54 | 0.92 | 26 |
| LC030 | 3t | 6600 | 1 | C10X30ZC | 18.9 | 8.3 | 7.7 | 16.5 | 4.3 | 1.42 | 72 | 1.48 | 46 |
| LC060 | 6t | 13200 | 2 | C10X30ZC | 24.4 | 10 | 7.7 | 16.5 | 4.3 | 1.81 | 76 | 2.96 | 70 |
Dimension letters (A–) correspond to the AMH LC-Series Badger Lever Chain Hoist dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Load chain = strength of G80; each hoist proof-tested to min. 1.25× WLL (ASME B30.21)
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| LC008 – 3/4 US ton (1,650 lb) | LC008 | $0.00 | ✓ In Stock | ||
| LC015 – 1-1/2 US ton (3,300 lb) | LC015 | $0.00 | ✓ In Stock | ||
| LC030 – 3 US ton (6,600 lb) | LC030 | $0.00 | ✓ In Stock | ||
| LC060 – 6 US ton (13,200 lb) | LC060 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
