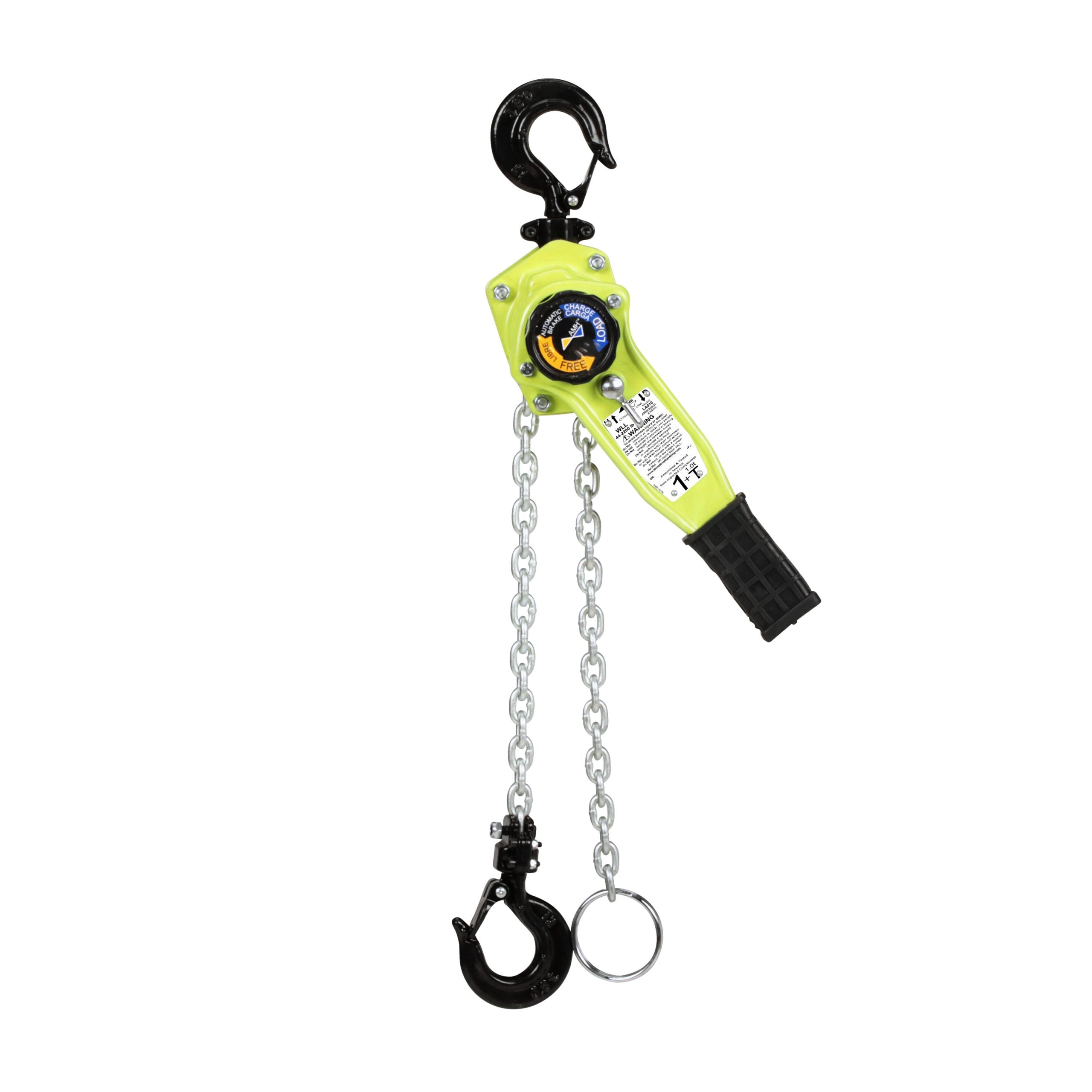

AMH LA-Series — Lever Chain Hoist (Ratchet Lever Hoist)
The LA-Series is AMH's premium ratchet lever hoist (come-along), assembled and tested in the U.S.A. with premium USA-made precision load chain (strength of G80 chain). Dual rated with a wide choice of capacities from 3/4 to 10 US ton (0.8 to 9 metric ton). A horseshoe chain guard allows operation in any orientation.
- Capacity range: 3/4 – 10 US ton (0.8 – 9 t) — dual rated
- Load chain: Premium USA-made precision hoist load chain (strength of G80)
- Weston-style self-adjusting mechanical load brake — double pawls, asbestos-free discs, enclosed; long-life fused friction disk won't crack, shatter or absorb moisture
- Hook blocks are bolted for easy disassembly and complete hook inspection
- Horseshoe chain guard allows operation in any orientation
- Options: V = Overload Protection (one-way clutch); L = Self-Locking Hooks (top & bottom, avail. 1-1/8, 1-3/4 & 3-1/2 t); S = Shipyard hooks (avail. 1.6 & 3.2 t)
- Standards: ASME/ANSI B30.21, OSHA, NASA-STD-8719.9; ATEX rated II 3 GD c IIB 54°C X for limited use in hazardous environments
- Origin: Assembled and tested in the U.S.A.
Standard lifts: 5, 10, 15 and 20 ft (custom lifts available). Shipping weight ≈ hanging weight (W) + ~15%. Order by descriptive model number, e.g. LA032-20UV (Model-Lift-Options). *Minimum load is the load required to activate the automatic load brake (reacts like a seatbelt).
Dimensions & specifications (see dimensional drawing)
| Model | US ton | Metric t | Min load (lb) | Load chain | Chain falls | A″ | B″ | C″ | D″ | E″ | F″ | G″ | Effort P (lb) @WLL | Wt @5ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LA008 | 3/4+ | 0.8 | 44 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 10.5 | 1.02 | 0.98 | 6.2 | 47 | 14.9 |
| LA010 | 1+ | 1.0 | 44 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 12.1 | 1.02 | 0.98 | 6.2 | 51 | 15.3 |
| LA016 | 1-3/4 | 1.6 | 70 | C7X21Z | 1 | 15.7 | 4.4 | 5.7 | 14.0 | 1.14 | 1.18 | 7.2 | 66 | 24.1 |
| LA020 | 2-1/4 | 2.0 | 88 | C8X24Z | 1 | 18.1 | 4.6 | 7.6 | 14.0 | 1.38 | 1.3 | 8.1 | 66 | 36.2 |
| LA025 | 2-3/4 | 2.5 | 110 | C9X27Z | 1 | 19.1 | 4.6 | 7.6 | 14.0 | 1.38 | 1.3 | 8.1 | 74 | 37.9 |
| LA032 | 3-1/2 | 3.2 | 141 | C10X28Z | 1 | 20.5 | 4.8 | 7.8 | 16.5 | 1.46 | 1.42 | 8.3 | 72 | 44.8 |

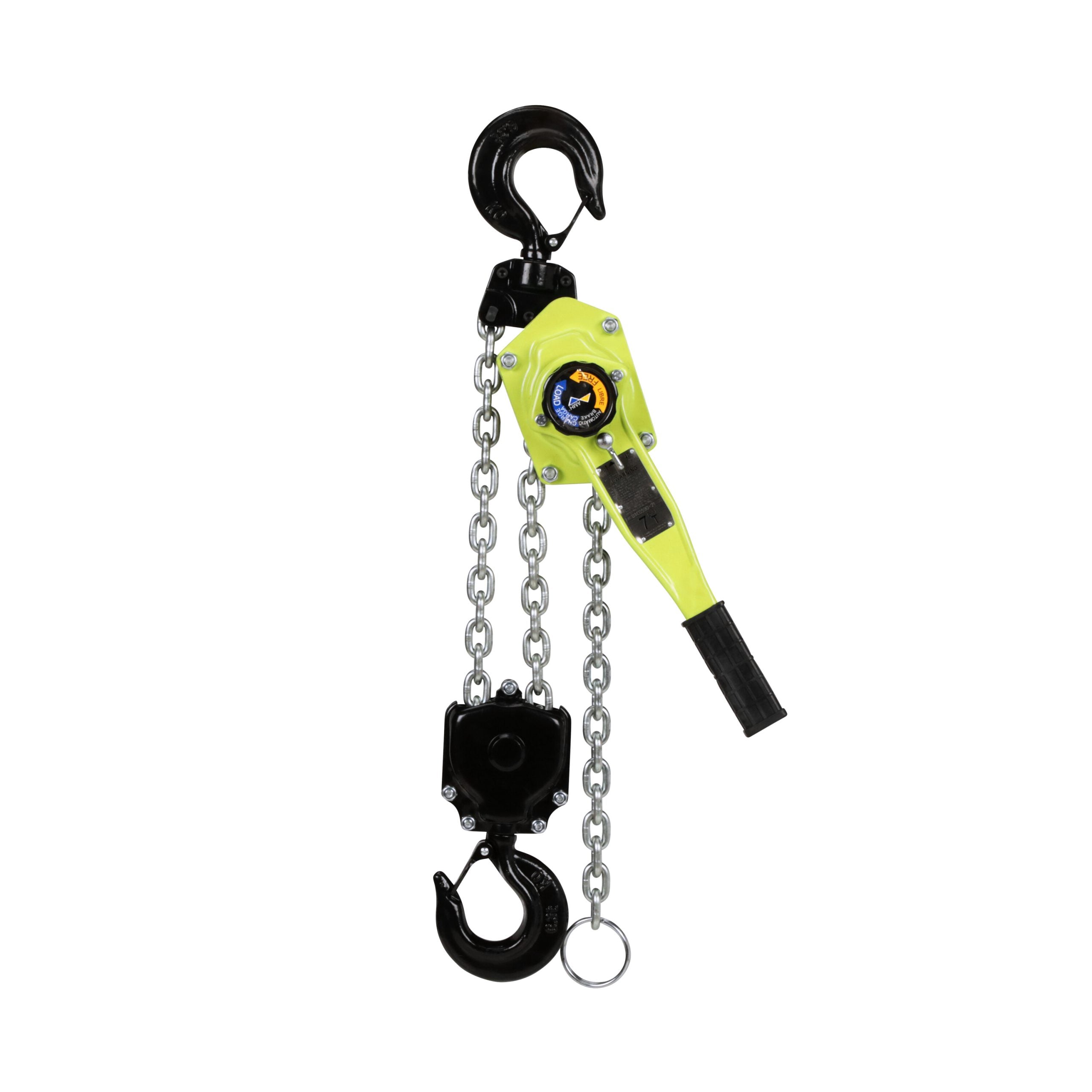

| LA063 | 7 | 6.3 | 278 | C10X28Z | 2 | 25.2 | 4.8 | 9.1 | 16.5 | 1.69 | 1.69 | 8.3 | 74 | 66.3 |

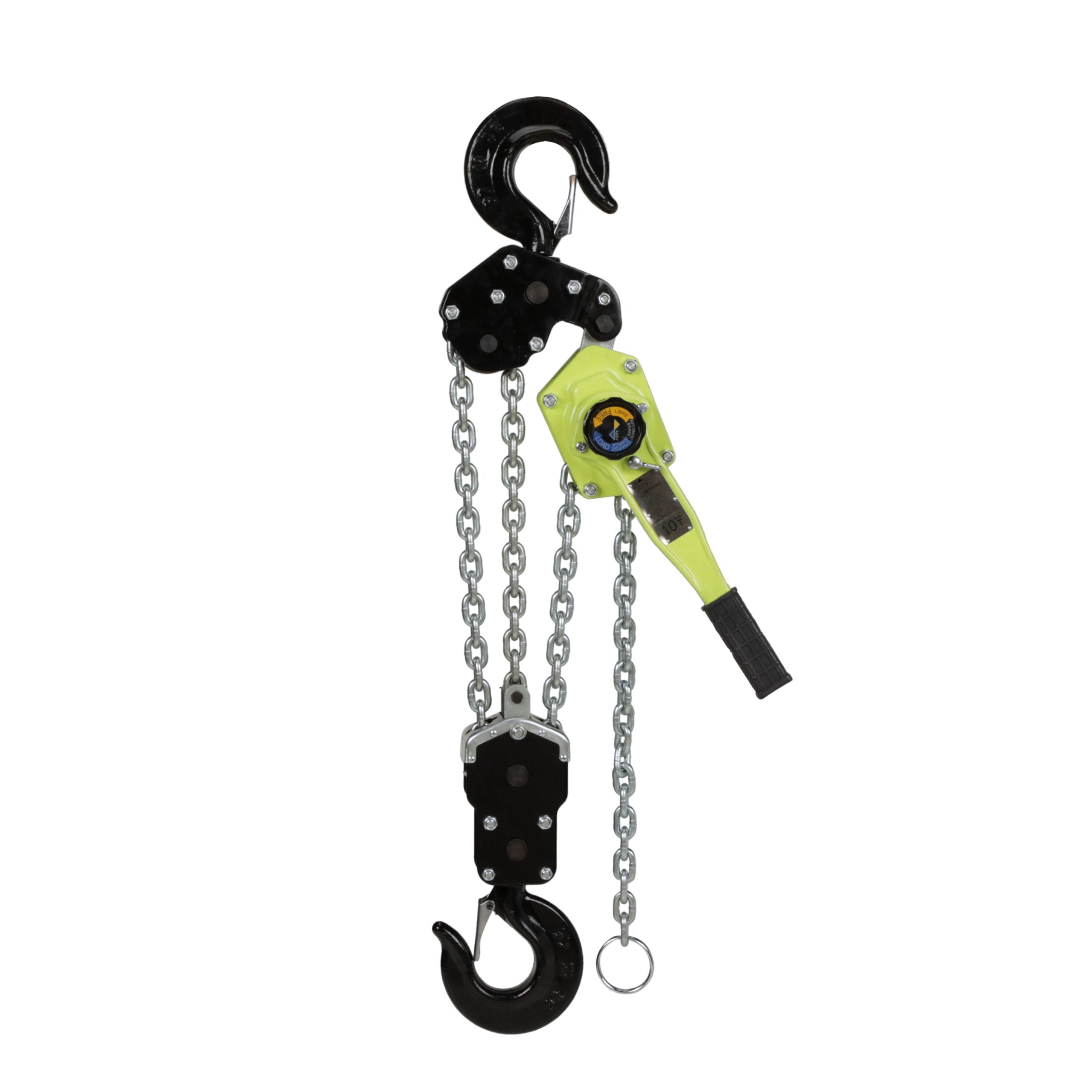

| LA090 | 10 | 9.0 | 396 | C10X28Z | 3 | 28.7 | 4.8 | 13.3 | 16.5 | 1.85 | 1.73 | 8.3 | 76 | 110.6 |
Dimensions in inches. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH LA-Series Lever Chain Hoist — Specifications & Dimensions
| Model | US ton | Metric ton | Min. load (lb) | Load chain | Falls | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | Hand-chain pull (lb) | Wt / extra ft (lb) | Wt @5 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LA008 | 3/4+ | 0.8 | 44 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 10.5 | 1.02 | 0.98 | 6.2 | 47 | 0.54 | 14.9 |
| LA010 | 1+ | 1.0 | 44 | C6X18Z | 1 | 13.4 | 3.9 | 5.2 | 12.1 | 1.02 | 0.98 | 6.2 | 51 | 0.54 | 15.3 |
| LA016 | 1-3/4 | 1.6 | 70 | C7X21Z | 1 | 15.7 | 4.4 | 5.7 | 14.0 | 1.14 | 1.18 | 7.2 | 66 | 0.74 | 24.1 |
| LA020 | 2-1/4 | 2.0 | 88 | C8X24Z | 1 | 18.1 | 4.6 | 7.6 | 14.0 | 1.38 | 1.3 | 8.1 | 66 | 0.92 | 36.2 |
| LA025 | 2-3/4 | 2.5 | 110 | C9X27Z | 1 | 19.1 | 4.6 | 7.6 | 14.0 | 1.38 | 1.3 | 8.1 | 74 | 1.25 | 37.9 |
| LA032 | 3-1/2 | 3.2 | 141 | C10X28Z | 1 | 20.5 | 4.8 | 7.8 | 16.5 | 1.46 | 1.42 | 8.3 | 72 | 1.5 | 44.8 |
| LA063 | 7 | 6.3 | 278 | C10X28Z | 2 | 25.2 | 4.8 | 9.1 | 16.5 | 1.69 | 1.69 | 8.3 | 74 | 3.0 | 66.3 |
| LA090 | 10 | 9.0 | 396 | C10X28Z | 3 | 28.7 | 4.8 | 13.3 | 16.5 | 1.85 | 1.73 | 8.3 | 76 | 4.5 | 110.6 |

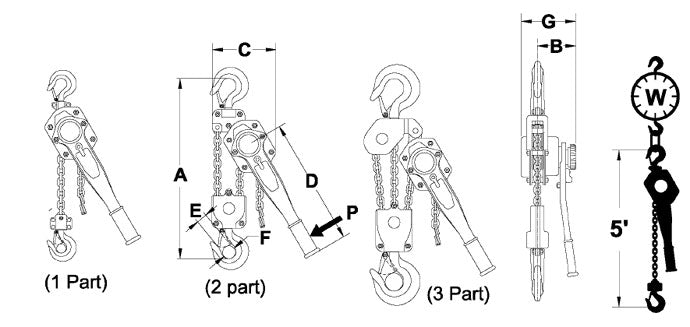

Dimension letters (A–) correspond to the AMH LA-Series Lever Chain Hoist dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Load chain = strength of G80; meets ASME/ANSI B30.21
Order Sheet — 8 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| LA008 – 3/4 US ton (0.8 t) | LA008 | $0.00 | ✓ In Stock | ||
| LA010 – 1 US ton (1.0 t) | LA010 | $0.00 | ✓ In Stock | ||
| LA016 – 1-3/4 US ton (1.6 t) | LA016 | $0.00 | ✓ In Stock | ||
| LA020 – 2-1/4 US ton (2.0 t) | LA020 | $0.00 | ✓ In Stock | ||
| LA025 – 2-3/4 US ton (2.5 t) | LA025 | $0.00 | ✓ In Stock | ||
| LA032 – 3-1/2 US ton (3.2 t) | LA032 | $0.00 | ✓ In Stock | ||
| LA063 – 7 US ton (6.3 t) | LA063 | $0.00 | ✓ In Stock | ||
| LA090 – 10 US ton (9.0 t) | LA090 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
