AMH Hoist Load & Hand Chain
Genuine AMH replacement load chain and hand chain for AMH-branded hoists and trolleys. Zinc-plated Grade 80 for the MA / LA / CB / Mini lines and zinc-plated Grade 100 for the X-5 lines. Sold by the foot; specify hoist model and length required.
- Zinc-plated Grade 80 (4:1 WLL) and Grade 100 (5:1 WLL) precision hoist chain
- Load chain and hand chain by AMH part number, matched to hoist model
- Cut to any length; bulk reel lengths available
- Use only manufacturer-specified chain to preserve the hoist load rating
Chain specifications
| AMH part # | Grade | Dia × pitch | Pitch (in) | WLL (lb) | Design factor | Bulk length (ft) | Weight (lb/ft) | Fits hoist models |
|---|---|---|---|---|---|---|---|---|

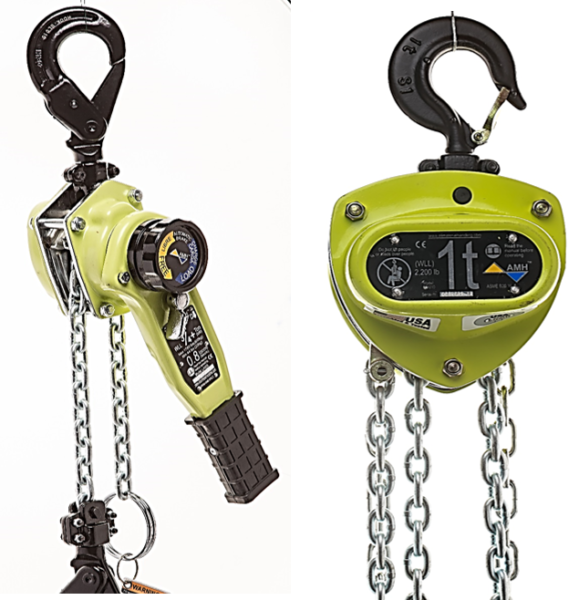

| C4X12Z | G80 | 4 × 12 mm (0.157") | 0.472 | 1,100 | 4:1 | 328 | 0.25 | ML003, MM003 |
| C5X15Z | G80 | 5 × 15 mm (0.197") | 0.591 | 1,750 | 4:1 | 328 | 0.36 | MA005, ML005 |
| C6X18ZUSA | G80 | 6 × 18 mm (0.236") | 0.709 | 2,540 | 4:1 | 400 | 0.54 | MA010, LA008–010 |
| C7X21ZUSA | G80 | 7.1 × 21 mm (0.276") | 0.827 | 3,550 | 4:1 | 400 | 0.74 | MA015, LA016 |
| C8X24ZUSA | G80 | 8 × 24 mm (0.315") | 0.945 | 4,500 | 4:1 | 400 | 0.92 | MA020, LA020 |
| C9X27ZUSA | G80 | 9 × 27 mm (0.354") | 1.063 | 5,720 | 4:1 | 400 | 1.25 | MA050–MA250, LA025 |
| C10X28ZUSA | G80 | 10 × 28 mm (0.394") | 1.102 | 7,050 | 4:1 | 400 | 1.50 | MA300, LA032–090 |
| C5X24Z | G80 | 5 × 23.7 mm (0.197") | 0.933 | Hand chain | — | — | 0.19 | MA-series & trolleys |
| C3X15Z | G80 | 2.7 × 14.5 mm (0.106") | 0.571 | Hand chain | — | — | 0.10 | MM003 |

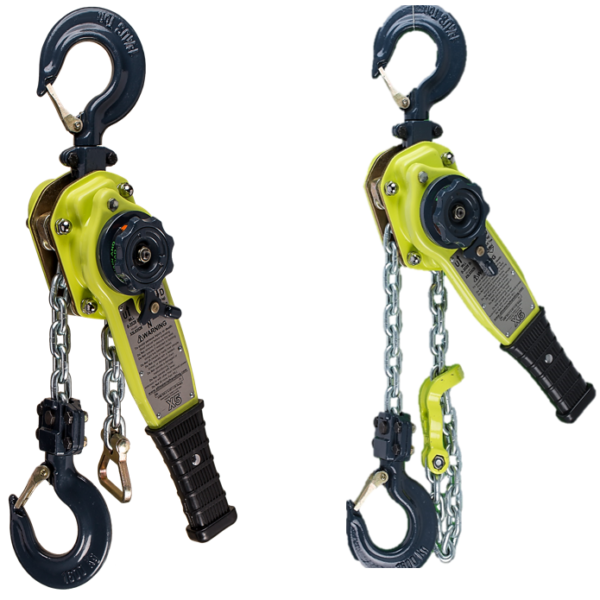

| C5.6H17Z | G100 | 5.6 × 17 mm (0.220") | 0.669 | 2,250 | 5:1 | 400 | 0.46 | X5L02250 |
| C7.1H20Z | G100 | 7.1 × 20 mm (0.280") | 0.787 | 3,528 | 5:1 | 400 | 0.75 | X5L03528 |
| C10H28Z | G100 | 10 × 28 mm (0.394") | 1.102 | 7,056 | 5:1 | 400 | 1.50 | X5L07056 / 14000 / 20000 |
Zinc-plated Grade 80 load & hand chain for AMH-branded MA / LA / CB / Mini hoists and trolleys; zinc-plated Grade 100 load chain for X-5 branded hoists. Sold by the foot (bulk length shown). WLL is per single chain fall.
Design factor: G80 load chain rated 4:1; G100 load chain rated 5:1.
Select the chain part number below; pricing and cut length by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
| AMH part # | Grade | Dia × pitch | Pitch (in) | WLL (lb) | Design factor | Bulk length (ft) | Weight (lb/ft) | Fits hoist models |
|---|---|---|---|---|---|---|---|---|
| C4X12Z | G80 | 4 × 12 mm (0.157") | 0.472 | 1,100 | 4:1 | 328 | 0.25 | ML003, MM003 |
| C5X15Z | G80 | 5 × 15 mm (0.197") | 0.591 | 1,750 | 4:1 | 328 | 0.36 | MA005, ML005 |
| C6X18ZUSA | G80 | 6 × 18 mm (0.236") | 0.709 | 2,540 | 4:1 | 400 | 0.54 | MA010, LA008–010 |
| C7X21ZUSA | G80 | 7.1 × 21 mm (0.276") | 0.827 | 3,550 | 4:1 | 400 | 0.74 | MA015, LA016 |
| C8X24ZUSA | G80 | 8 × 24 mm (0.315") | 0.945 | 4,500 | 4:1 | 400 | 0.92 | MA020, LA020 |
| C9X27ZUSA | G80 | 9 × 27 mm (0.354") | 1.063 | 5,720 | 4:1 | 400 | 1.25 | MA050–MA250, LA025 |
| C10X28ZUSA | G80 | 10 × 28 mm (0.394") | 1.102 | 7,050 | 4:1 | 400 | 1.50 | MA300, LA032–090 |
| C5X24Z | G80 | 5 × 23.7 mm (0.197") | 0.933 | Hand chain | — | — | 0.19 | MA-series & trolleys |
| C3X15Z | G80 | 2.7 × 14.5 mm (0.106") | 0.571 | Hand chain | — | — | 0.10 | MM003 |
| C5.6H17Z | G100 | 5.6 × 17 mm (0.220") | 0.669 | 2,250 | 5:1 | 400 | 0.46 | X5L02250 |
| C7.1H20Z | G100 | 7.1 × 20 mm (0.280") | 0.787 | 3,528 | 5:1 | 400 | 0.75 | X5L03528 |
| C10H28Z | G100 | 10 × 28 mm (0.394") | 1.102 | 7,056 | 5:1 | 400 | 1.50 | X5L07056 / 14000 / 20000 |
Zinc-plated Grade 80 load & hand chain for AMH-branded MA / LA / CB / Mini hoists and trolleys; zinc-plated Grade 100 load chain for X-5 branded hoists. Sold by the foot (bulk length shown). WLL is per single chain fall.
Design factor: G80 load chain rated 4:1; G100 load chain rated 5:1.
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C4X12Z – 4 × 12 mm (0.157") | C4X12Z | $0.00 | ✓ In Stock | ||
| C5X15Z – 5 × 15 mm (0.197") | C5X15Z | $0.00 | ✓ In Stock | ||
| C6X18ZUSA – 6 × 18 mm (0.236") | C6X18ZUSA | $0.00 | ✓ In Stock | ||
| C7X21ZUSA – 7.1 × 21 mm (0.276") | C7X21ZUSA | $0.00 | ✓ In Stock | ||
| C8X24ZUSA – 8 × 24 mm (0.315") | C8X24ZUSA | $0.00 | ✓ In Stock | ||
| C9X27ZUSA – 9 × 27 mm (0.354") | C9X27ZUSA | $0.00 | ✓ In Stock | ||
| C10X28ZUSA – 10 × 28 mm (0.394") | C10X28ZUSA | $0.00 | ✓ In Stock | ||
| C5X24Z – 5 × 23.7 mm (0.197") | C5X24Z | $0.00 | ✓ In Stock | ||
| C3X15Z – 2.7 × 14.5 mm (0.106") | C3X15Z | $0.00 | ✓ In Stock | ||
| C5.6H17Z – 5.6 × 17 mm (0.220") | C5.6H17Z | $0.00 | ✓ In Stock | ||
| C7.1H20Z – 7.1 × 20 mm (0.280") | C7.1H20Z | $0.00 | ✓ In Stock | ||
| C10H28Z – 10 × 28 mm (0.394") | C10H28Z | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
