AMH CB-Series — Badger Hand Chain Hoist
The Badger CB-Series is AMH's low-headroom, lightweight hand chain hoist in a formed-steel enclosure, available from 1/2 ton to 10 metric ton. Standard zinc-plated load chain with the strength of G80 chain. Each hoist is proof-tested to a minimum of 1.25× WLL and ships with an individualized certification of test.
- Capacity range: 1/2 t – 10 t (1,100 – 22,000 lb WLL)
- Low headroom, lightweight formed-steel enclosure — quickly disassembled for fast maintenance; powder-coated and plated finishes for corrosion resistance
- Precision load chain with the strength of G80 chain (standard zinc-plated)
- Weston-style self-adjusting mechanical load brake — double pawls, asbestos-free discs, enclosed
- Drop-forged alloy hooks with heavy-duty cast-steel safety latch; top hook articulates for straight-line loading
- Hand-chain opening formed with a radius — operate from the side or above; lifting or pulling
- Proof tested to min. 1.25× WLL; serialized nameplate + certification of test; manual in English, French and Spanish
- Standards: ASME B30.16, OSHA, NASA-STD-8719.9
- Option: V = Overload Protection set at approx. 175% WLL
Available unchained or with lifts of 10, 20 and 30 ft. Hand-chain drop is 2 ft less than lift. Shipping weight ≈ hanging weight (W) + ~20%. Order by descriptive model number, e.g. CB030-20-18ZV (Model-Lift-Drop-Options: Z = zinc-plated chain (standard), V = overload protection).
Dimensions & specifications (see dimensional drawing)
| Model | WLL | Chain falls | Load chain | A″ min | B″ | C″ | D″ w/ latch | Effort P (lb) @WLL | Load chain lb/ft | Wt @10ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| CB005 | 1/2 t / 1,100 lb | 1 | C6X18ZC | 10.6 | 5.4 | 5.4 | 1.1 | 45 | 0.54 | 22 |

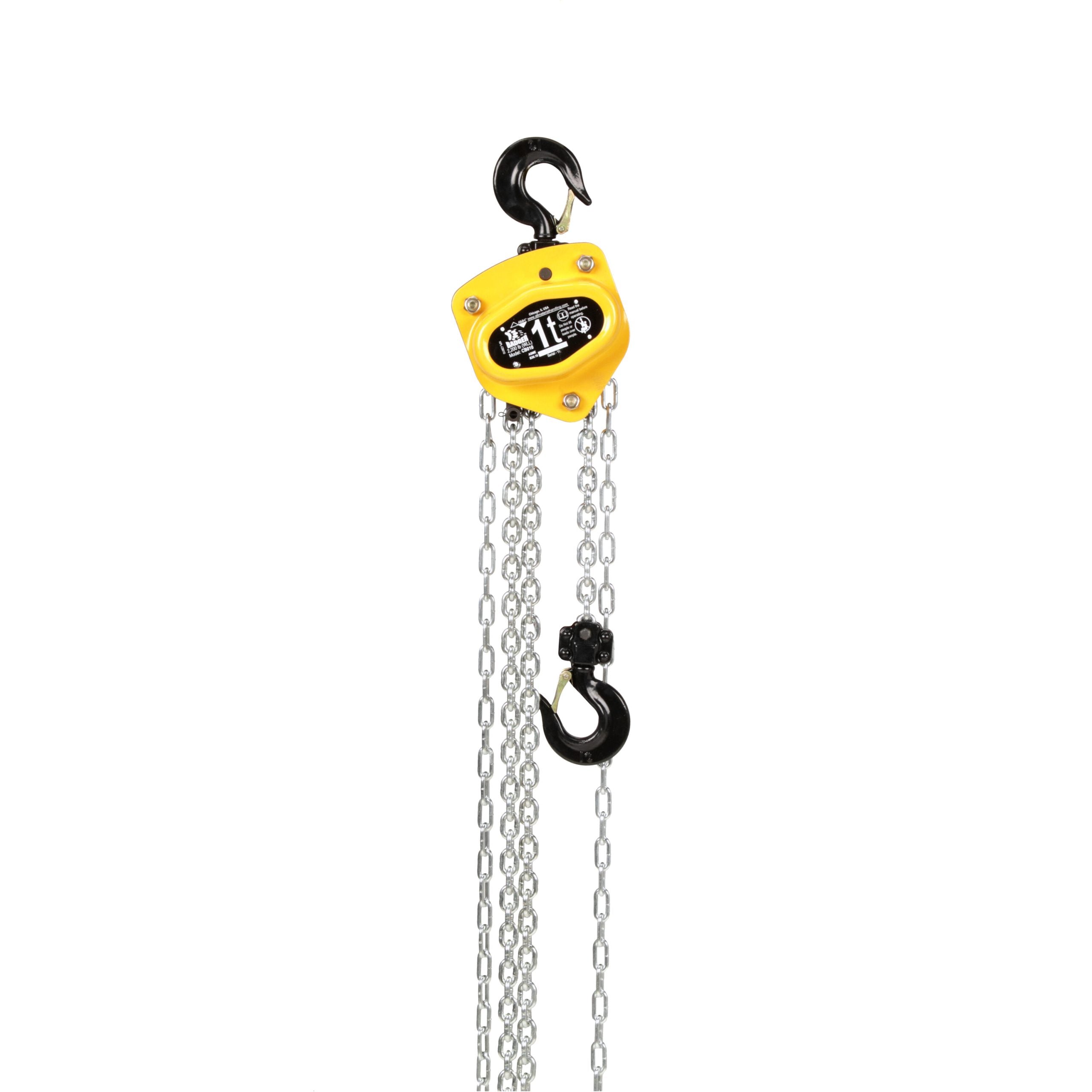

| CB010 | 1 t / 2,200 lb | 1 | C6X18ZC | 13.39 | 6.4 | 5.8 | 1.02 | 72 | 0.54 | 26 |
| CB015 | 1-1/2 t / 3,300 lb | 1 | C8X24ZC | 15.7 | 7.2 | 6.7 | 1.28 | 81 | 0.92 | 42 |
| CB020 | 2 t / 4,400 lb | 1 | C8X24ZC | 16.3 | 7.6 | 6.7 | 1.26 | 82 | 0.92 | 44 |
| CB030 | 3 t / 6,600 lb | 2 | C8X24ZC | 20.9 | 8.7 | 6.7 | 1.46 | 87 | 1.84 | 59 |

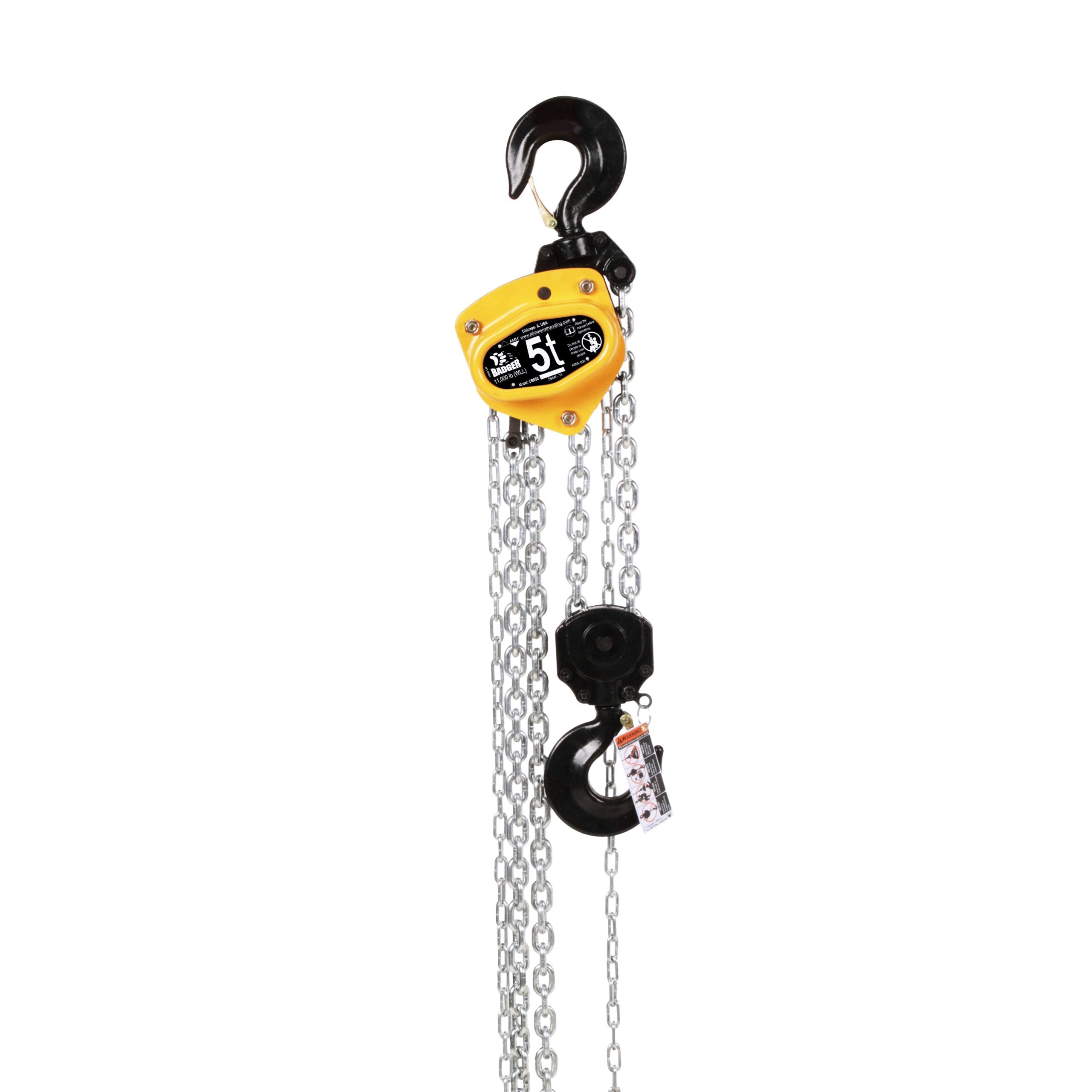

| CB050 | 5 t / 11,000 lb | 2 | C10X30ZC | 25.0 | 11.3 | 7.5 | 1.8 | 98 | 2.96 | 101 |

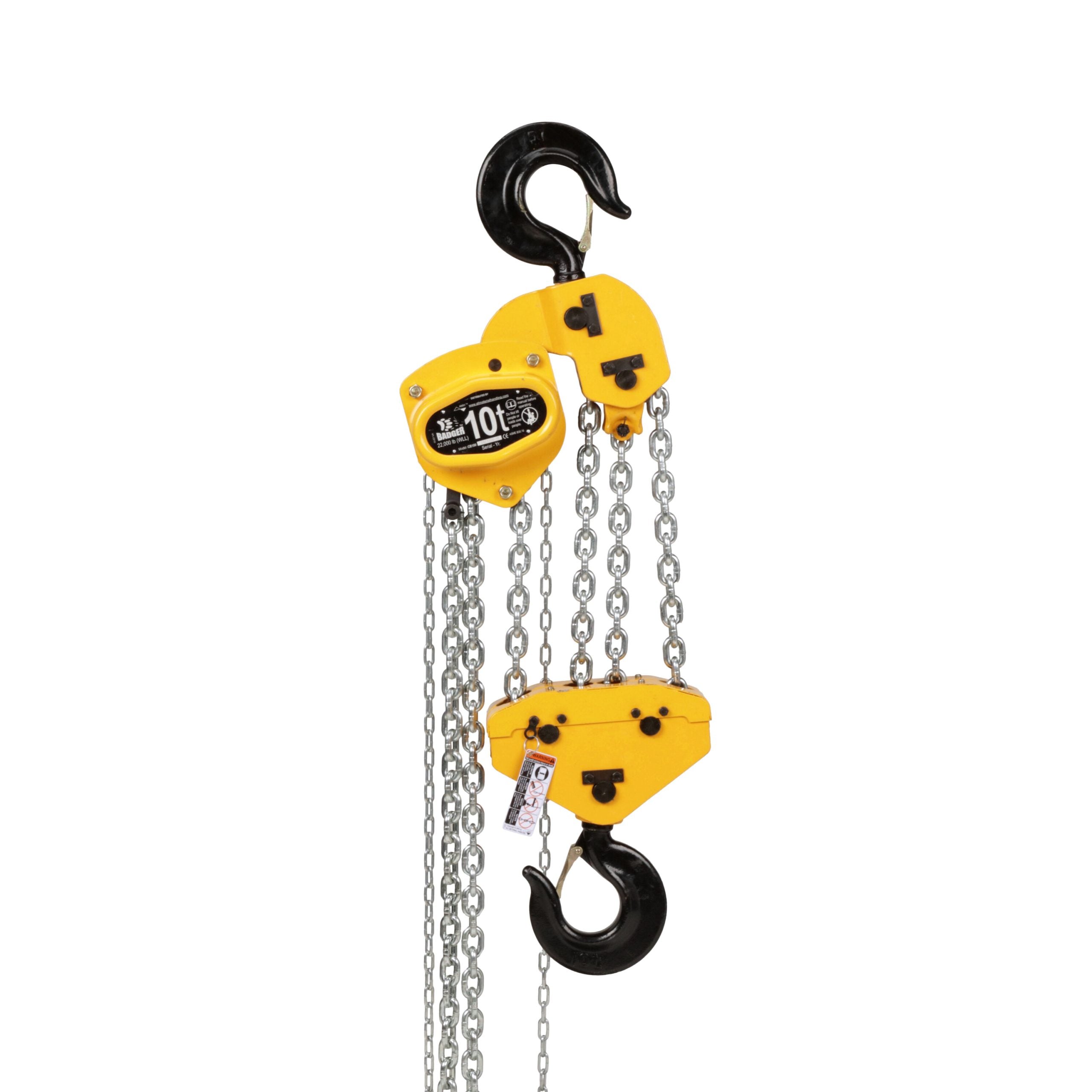

| CB100 | 10 t / 22,000 lb | 4 | C10X30ZC | 29.25 | 15.1 | 7.5 | 1.97 | 98 | 5.92 | 183 |
Dimensions in inches. Hand chain 0.38 lb/ft. Select capacity below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH CB-Series Badger Hand Chain Hoist — Specifications & Dimensions
| Model | WLL | WLL (lb) | Falls | Load chain | A (in) min – headroom | B (in) | C (in) | D w/ latch (in) | Hand-chain pull (lb) | Load chain (lb/ft) | Hand chain (lb/ft) | Wt @10 ft lift (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CB005 | 1/2t | 1100 | 1 | C6X18ZC | 10.6 | 5.4 | 5.4 | 1.1 | 45 | 0.54 | 0.38 | 22 |
| CB010 | 1t | 2200 | 1 | C6X18ZC | 13.39 | 6.4 | 5.8 | 1.02 | 72 | 0.54 | 0.38 | 26 |
| CB015 | 1-1/2t | 3300 | 1 | C8X24ZC | 15.7 | 7.2 | 6.7 | 1.28 | 81 | 0.92 | 0.38 | 42 |
| CB020 | 2t | 4400 | 1 | C8X24ZC | 16.3 | 7.6 | 6.7 | 1.26 | 82 | 0.92 | 0.38 | 44 |
| CB030 | 3t | 6600 | 2 | C8X24ZC | 20.9 | 8.7 | 6.7 | 1.46 | 87 | 1.84 | 0.38 | 59 |
| CB050 | 5t | 11000 | 2 | C10X30ZC | 25.0 | 11.3 | 7.5 | 1.8 | 98 | 2.96 | 0.38 | 101 |
| CB100 | 10t | 22000 | 4 | C10X30ZC | 29.25 | 15.1 | 7.5 | 1.97 | 98 | 5.92 | 0.38 | 183 |

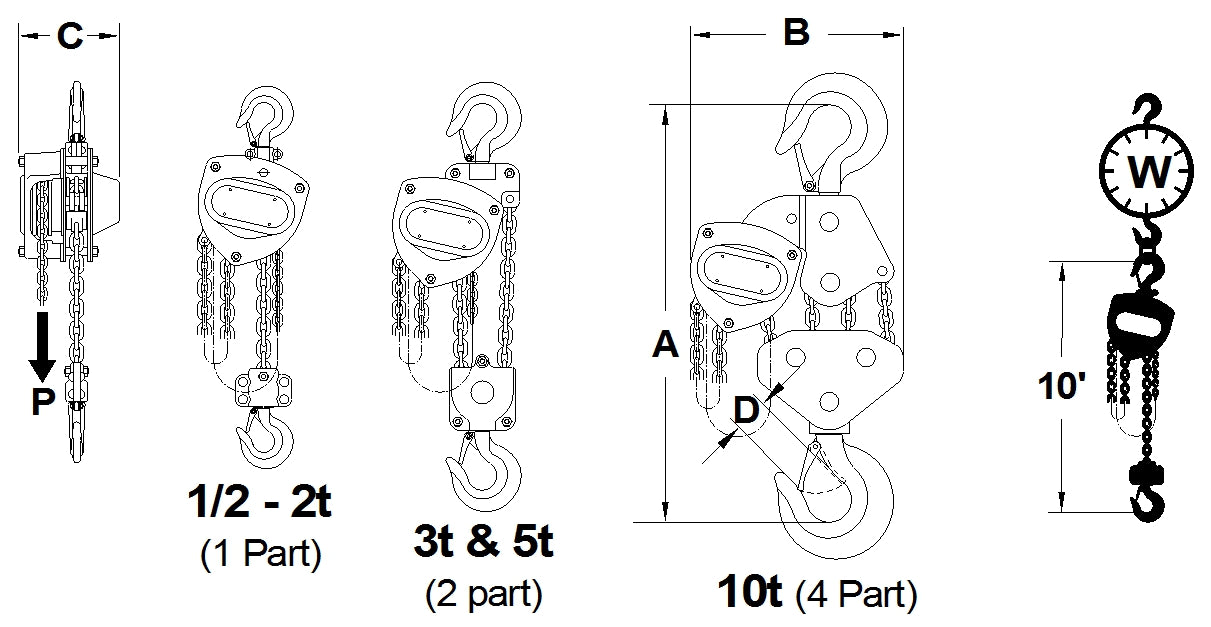

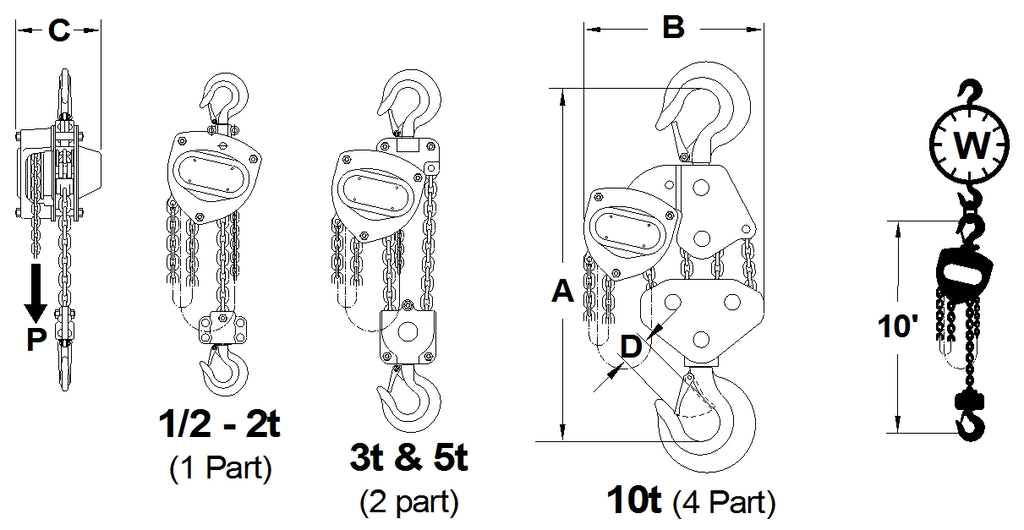

Dimension letters (A–) correspond to the AMH CB-Series Badger Hand Chain Hoist dimensional drawing shown in the gallery. Dimensions in inches unless noted.
Design factor / testing: Load chain = strength of G80; each hoist proof-tested to min. 1.25× WLL (ASME B30.16)
Order Sheet — 7 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| CB005 – 1/2 t (1,100 lb) | CB005 | $0.00 | ✓ In Stock | ||
| CB010 – 1 t (2,200 lb) | CB010 | $0.00 | ✓ In Stock | ||
| CB015 – 1-1/2 t (3,300 lb) | CB015 | $0.00 | ✓ In Stock | ||
| CB020 – 2 t (4,400 lb) | CB020 | $0.00 | ✓ In Stock | ||
| CB030 – 3 t (6,600 lb) | CB030 | $0.00 | ✓ In Stock | ||
| CB050 – 5 t (11,000 lb) | CB050 | $0.00 | ✓ In Stock | ||
| CB100 – 10 t (22,000 lb) | CB100 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
