AMH Cartec Welded Master Links & Sub-Assemblies
Grade 100 and Grade 80 welded master links and master-link assemblies (with sub-links) that form the top gathering point of single- and multi-leg chain slings. WLL shown at both 4:1 and 5:1 design factors.
- Grade 100 (AX/AKX/AWX/AWXO) and Grade 80 (A/AK) welded alloy links
- Master links, master-link assemblies, extra-large and crane-hook sub-link versions
- WLL rated at 4:1 and 5:1; sized by chain and number of legs
- Warning: never exceed the Working Load Limit
Specifications & dimensions

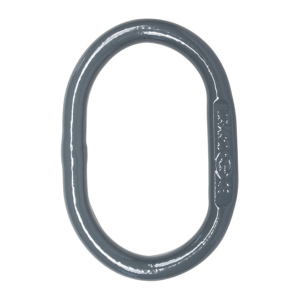

AX Grade 100 Welded Master Link
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | i-length (in) | i-width (in) | dia (in) | Chain 1 leg (in) | Chain 2 leg (in) |
|---|---|---|---|---|---|---|---|---|---|
| AX13 | 1/2 | 6,000 | 4,800 | 0.75 | 4.33 | 2.36 | 0.51 | 7/32 + 9/32 + 5/16 | 7/32 |
| AX16W | 5/8 | 8,750 | 7,000 | 1.47 | 5.51 | 3.15 | 0.63 | 5/16 | 9/32 |
| AX18W | 3/4 | 13,750 | 11,000 | 2.02 | 5.91 | 3.54 | 0.71 | 3/8 | 5/16 |
| AX22 | 7/8 | 17,600 | 14,080 | 3.30 | 6.30 | 3.54 | 0.87 | 1/2 | 3/8 |
| AX26 | 1 | 32,500 | 26,000 | 5.06 | 7.09 | 3.94 | 1.02 | 5/8 | 1/2 |
| AX32 | 1-1/4 | 45,200 | 36,160 | 8.58 | 7.87 | 4.33 | 1.26 | 3/4 | 5/8 |
| AX40 | 1-1/2 | 70,600 | 56,480 | 19.80 | 11.81 | 6.30 | 1.57 | 7/8 | 3/4 |
| AX45 | 1-3/4 | 85,400 | 68,320 | 28.16 | 13.39 | 7.09 | 1.77 | 1 | 7/8 |
| AX51 | 2 | 119,400 | 95,520 | 37.84 | 13.78 | 7.48 | 2.01 | 1-1/4 | 1 |
| AX57 | 2-1/4 | 180,800 | 144,640 | 53.24 | 15.75 | 7.87 | 2.24 | — | 1-1/4 |
| AX63 | 2-1/2 | 200,000 | 160,000 | 73.85 | 16.93 | 8.27 | 2.48 | — | — |
| AX71 | 2-3/4 | 271,000 | 216,800 | 101.41 | 18.11 | 9.84 | 2.80 | — | — |

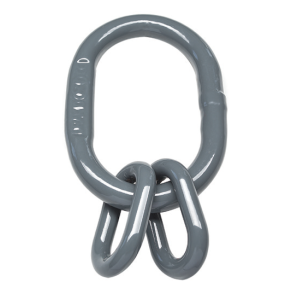

AKX Grade 100 Welded Master Link Assemblies
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | Master i-length (in) | Master i-width (in) | Master dia (in) | Sub i-length (in) | Sub i-width (in) | Sub dia (in) | For Chain (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AKX1813W | 3/4 | 12,900 | 10,320 | 2.9 | 5.91 | 3.54 | 0.71 | 2.13 | 0.98 | 0.51 | 7/32 + 9/32 |
| AKX2216 | 7/8 | 17,100 | 13,680 | 4.88 | 6.30 | 3.54 | 0.87 | 2.76 | 1.34 | 0.63 | 9/32 + 5/16 |
| AKX2618 | 1 | 26,400 | 21,120 | 7.39 | 7.09 | 3.94 | 1.02 | 3.35 | 1.57 | 0.71 | 3/8 |
| AKX3222 | 1-1/4 | 45,000 | 36,000 | 13.24 | 7.87 | 4.33 | 1.26 | 4.53 | 1.97 | 0.87 | 1/2 |
| AKX3626 | 1-1/2 | 67,800 | 54,240 | 21.98 | 10.24 | 5.51 | 1.42 | 5.51 | 2.56 | 1.02 | 5/8 |
| AKX4532 | 1-3/4 | 105,900 | 84,720 | 41.56 | 13.39 | 7.09 | 1.75 | 5.91 | 2.76 | 1.26 | 3/4 |
| AKX5136 | 2 | 128,100 | 102,480 | 56.76 | 13.78 | 7.48 | 2.01 | 6.69 | 2.95 | 1.42 | 7/8 |
| AKX5740 | 2-1/4 | 179,100 | 143,280 | 77.44 | 15.75 | 7.87 | 2.24 | 6.69 | 3.15 | 1.57 | 1 |
| AKX7150 | 2-3/4 | 271,200 | 216,960 | 149.60 | 18.11 | 9.84 | 2.76 | 7.87 | 3.93 | 1.97 | 1-1/4 |

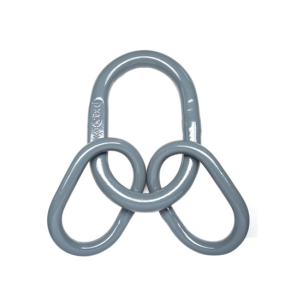

AWX Grade 100 Master Link Assemblies (XL Sub-Links)
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | Master i-length (in) | Master i-width (in) | Master dia (in) | Sub i-length (in) | Sub i-width (in) | Sub dia (in) | For Chain (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AWX1813 | 3/4 | 12,900 | 10,320 | 3.52 | 5.91 | 3.54 | 0.71 | 4.33 | 2.36 | 0.51 | 7/32 + 9/32″ |
| AWX2216 | 7/8 | 17,100 | 13,680 | 5.63 | 6.30 | 3.54 | 0.87 | 4.33 | 2.36 | 0.63 | 9/32″+5/16″ |
| AWX2618 | 1 | 26,400 | 21,120 | 8.58 | 7.09 | 3.94 | 1.02 | 5.31 | 2.95 | 0.71 | 3/8″ |
| AWX3222 | 1-1/4 | 45,000 | 36,000 | 15.18 | 7.87 | 4.33 | 1.26 | 6.30 | 3.55 | 0.87 | 1/2″ |
| AWX3626 | 1-1/2 | 67,800 | 54,240 | 24.09 | 10.24 | 5.51 | 1.42 | 7.09 | 3.94 | 1.02 | 5/8″ |
| AWX4540 | 1-3/4 | 105,900 | 84,720 | 67.24 | 13.39 | 7.09 | 1.75 | 11.81 | 6.3 | 1.63 | 3/4″ |

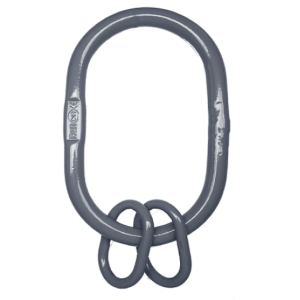

AWXO Grade 100 Master Link Assemblies (Crane Hooks, Large Sub-Links)
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | Master i-length (in) | Master i-width (in) | Master dia (in) | Sub i-length (in) | Sub i-width (in) | Sub dia (in) | For Chain (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AWXO3016 | 1-1/8 | 17,100 | 13,680 | 14.37 | 13.40 | 7.10 | 1.18 | 4.33 | 2.36 | 0.63 | 9/32-5/16 |
| AWXO3018 | 1-1/8 | 26,400 | 21,120 | 15.55 | 13.40 | 7.10 | 1.18 | 5.31 | 2.95 | 0.71 | 3/8 |
| AWXO4022 | 1-1/2 | 45,000 | 36,000 | 28.60 | 13.40 | 7.10 | 1.57 | 6.30 | 3.54 | 0.87 | 1/2 |
| AWXO4026 | 1-1/2 | 67,800 | 54,240 | 32.10 | 13.40 | 7.10 | 1.57 | 7.09 | 3.94 | 1.02 | 5/8 |

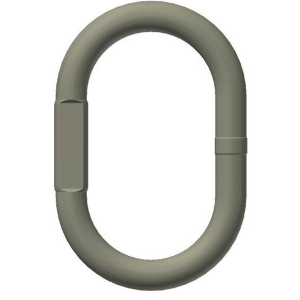

Welded Master Link Grade 80
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | i-length (in) | i-width (in) | dia (in) | Chain 1 leg (in) | Chain 2 leg (in) |
|---|---|---|---|---|---|---|---|---|---|
| A13 | 1/2 | 5,000 | 4,000 | 0.75 | 4.33 | 2.36 | 0.51 | 9/32″+5/16″ | 7/32″ |
| A16W | 5/8 | 7,100 | 5,680 | 1.47 | 5.51 | 3.15 | 0.63 | 5/16″ | 9/32″ |
| A18W | 3/4 (11/16) | 10,500 | 8,400 | 2.02 | 5.91 | 3.54 | 0.71 | 3/8″ | 5/16″ |
| A22 | 7/8 | 15,900 | 12,720 | 3.30 | 6.30 | 3.54 | 0.87 | 1/2″ | 3/8″ |
| A26 | 1 | 24,000 | 19,200 | 5.06 | 7.09 | 3.94 | 1.02 | 5/8″ | 1/2″ |
| A32 | 1-1/4 | 36,000 | 28,800 | 8.58 | 7.87 | 4.33 | 1.26 | 3/4″ | 5/8″ |
| A36 | 1-1/2 | 49,000 | 39,200 | 13.97 | 10.24 | 5.51 | 1.42 | 7/8″ | 3/4″ |
| A40 | 1-5/8 | 59,200 | 47,360 | 19.80 | 11.81 | 6.30 | 1.57 | 1″ | 7/8″ |

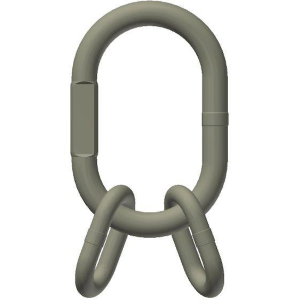

Welded Master Link Assemblies Grade 80
| Part # | Trade Size (in) | WLL 4:1 (lbs) | WLL 5:1 (lbs) | Weight (lbs) | Master i-length (in) | Master i-width (in) | Master dia (in) | Sub i-length (in) | Sub i-width (in) | Sub dia (in) | For Chain (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AK1813W | 3/4 (11/16) | 9,100 | 7,280 | 2.90 | 5.91 | 3.54 | 0.71 | 2.13 | 0.98 | 0.51 | 9/32″ |
| AK2216 | 7/8 | 13,800 | 11,040 | 4.88 | 6.30 | 3.54 | 0.87 | 2.76 | 1.34 | 0.63 | 9/32″+5/16″ |
| AK2618 | 1 | 20,800 | 16,640 | 7.39 | 7.09 | 3.94 | 1.02 | 3.35 | 1.57 | 0.71 | 3/8″ |
| AK3222 | 1-1/4 | 31,200 | 24,960 | 13.24 | 7.87 | 4.33 | 1.26 | 4.53 | 1.97 | 0.87 | 1/2″ |
| AK3626 | 1-1/2 | 47,000 | 37,600 | 21.98 | 10.24 | 5.51 | 1.57 | 5.51 | 2.56 | 1.02 | 5/8″ |
Dimensions per the AMH Cartec drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: Grade 100 & Grade 80 alloy; WLL at 4:1 and 5:1 design factors. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
