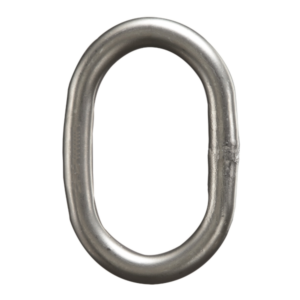

AMH / Cartec Stainless Steel Master Link (AISI 316)
AISI 316 stainless steel — AMH / Cartec master link forming the top gathering point of single- and multi-leg chain slings. For corrosive, food, marine and washdown environments. Grade 60; 4:1 design factor; individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in inches unless noted; WLL in pounds unless noted.
- AISI 316 stainless steel — corrosion resistant
- Grade 60 rating
- Design factor 4:1
- Warning: never exceed the Working Load Limit
Specifications & dimensions
C6XCM Stainless Steel Master Link
| Part # | Trade Size (in) | D (in) | P (in) | L (in) | Weight (lbs) | WLL (lbs) | Chain Size (in) 1 leg | Chain Size (in) 2 leg |
|---|---|---|---|---|---|---|---|---|
| C6XCM0706 | 1/2 | 0.51 | 4.33 | 2.36 | 0.74 | 3,500 | 7/32, 9/32, 5/16 | 7/32 |
| C6XCM1008 | 5/8 | 0.63 | 4.33 | 2.36 | 1.16 | 5,950 | 3/8 | 9/32, 5/16 |
| C6XCM1310 | 3/4 | 0.70 | 5.31 | 2.95 | 1.76 | 9,350 | 1/2 | 3/8 |
| C6XCM1613 | 7/8 | 0.86 | 6.29 | 3.54 | 3.30 | 15,810 | 5/8 | 1/2 |
| C6XCM1816 | 1 | 1.02 | 7.08 | 3.93 | 5.07 | 23,630 | 5/8 | 5/8 |

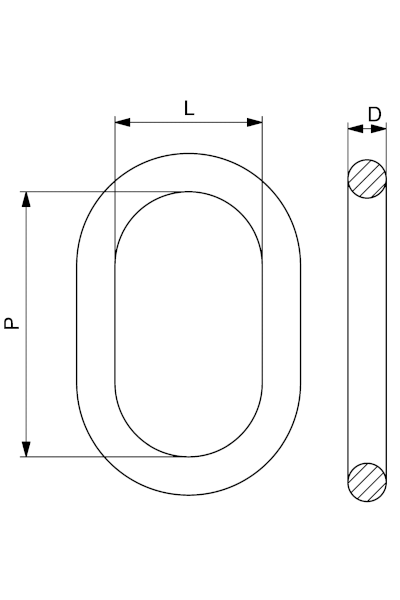

Dimensions per the AMH Cartec G60 stainless drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: AISI 316 stainless; Grade 60; 4:1 design factor. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
C6XCM Stainless Steel Master Link
| Part # | Trade Size (in) | D (in) | P (in) | L (in) | Weight (lbs) | WLL (lbs) | Chain Size (in) 1 leg | Chain Size (in) 2 leg |
|---|---|---|---|---|---|---|---|---|
| C6XCM0706 | 1/2 | 0.51 | 4.33 | 2.36 | 0.74 | 3,500 | 7/32, 9/32, 5/16 | 7/32 |
| C6XCM1008 | 5/8 | 0.63 | 4.33 | 2.36 | 1.16 | 5,950 | 3/8 | 9/32, 5/16 |
| C6XCM1310 | 3/4 | 0.70 | 5.31 | 2.95 | 1.76 | 9,350 | 1/2 | 3/8 |
| C6XCM1613 | 7/8 | 0.86 | 6.29 | 3.54 | 3.30 | 15,810 | 5/8 | 1/2 |
| C6XCM1816 | 1 | 1.02 | 7.08 | 3.93 | 5.07 | 23,630 | 5/8 | 5/8 |
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C6XCM0706 (3,500 WLL) | C6XCM0706 | $0.00 | ✓ In Stock | ||
| C6XCM1008 (5,950 WLL) | C6XCM1008 | $0.00 | ✓ In Stock | ||
| C6XCM1310 (9,350 WLL) | C6XCM1310 | $0.00 | ✓ In Stock | ||
| C6XCM1613 (15,810 WLL) | C6XCM1613 | $0.00 | ✓ In Stock | ||
| C6XCM1816 (23,630 WLL) | C6XCM1816 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
