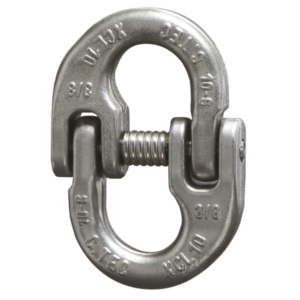

AMH / Cartec Stainless Steel Connecting Link (AISI 316)
AISI 316 stainless steel — AMH / Cartec connecting link for joining chain, hooks and master links. For corrosive, food, marine and washdown environments. Grade 60; 4:1 design factor; individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in inches unless noted; WLL in pounds unless noted.
- AISI 316 stainless steel — corrosion resistant
- Grade 60 rating
- Design factor 4:1
- Warning: never exceed the Working Load Limit
Specifications & dimensions
C6XCL Stainless Steel Connecting Link
| Chain Size (in) | Part # | WLL (lbs) | A (in) | C (in) | O (in) | R (in) | P (in) | S (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 7/32-1/4 | C6XCL06 | 2,000 | 0.55 | 0.70 | 0.70 | 1.77 | 0.31 | 0.29 | 0.17 |
| 9/32 | C6XCL07 | 2,750 | 0.70 | 0.78 | 0.80 | 1.98 | 0.40 | 0.35 | 0.30 |
| 5/16 | C6XCL08 | 3,500 | 0.74 | 1.00 | 0.92 | 2.44 | 0.45 | 0.39 | 0.44 |
| 3/8 | C6XCL10 | 5,500 | 0.94 | 1.18 | 1.08 | 2.83 | 0.49 | 0.49 | 0.77 |
| 1/2 | C6XCL13 | 9,300 | 1.10 | 1.41 | 1.31 | 3.44 | 0.74 | 0.65 | 1.60 |
| 5/8 | C6XCL16 | 13,900 | 1.35 | 1.59 | 1.55 | 4.13 | 0.81 | 0.81 | 3.24 |
Dimensions per the AMH Cartec G60 stainless drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: AISI 316 stainless; Grade 60; 4:1 design factor. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
C6XCL Stainless Steel Connecting Link
| Chain Size (in) | Part # | WLL (lbs) | A (in) | C (in) | O (in) | R (in) | P (in) | S (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 7/32-1/4 | C6XCL06 | 2,000 | 0.55 | 0.70 | 0.70 | 1.77 | 0.31 | 0.29 | 0.17 |
| 9/32 | C6XCL07 | 2,750 | 0.70 | 0.78 | 0.80 | 1.98 | 0.40 | 0.35 | 0.30 |
| 5/16 | C6XCL08 | 3,500 | 0.74 | 1.00 | 0.92 | 2.44 | 0.45 | 0.39 | 0.44 |
| 3/8 | C6XCL10 | 5,500 | 0.94 | 1.18 | 1.08 | 2.83 | 0.49 | 0.49 | 0.77 |
| 1/2 | C6XCL13 | 9,300 | 1.10 | 1.41 | 1.31 | 3.44 | 0.74 | 0.65 | 1.60 |
| 5/8 | C6XCL16 | 13,900 | 1.35 | 1.59 | 1.55 | 4.13 | 0.81 | 0.81 | 3.24 |
