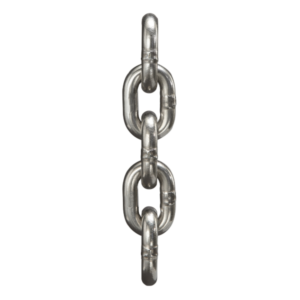

AMH / Cartec Stainless Steel Lifting Chain (AISI 316)
AISI 316 stainless steel — AMH / Cartec AISI 316 stainless lifting chain (sold by the foot / continuous length). For corrosive, food, marine and washdown environments. Grade 60; 4:1 design factor; individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in inches unless noted; WLL in pounds unless noted.
- AISI 316 stainless steel — corrosion resistant
- Grade 60 rating
- Design factor 4:1
- Warning: never exceed the Working Load Limit
Specifications & dimensions
C6XC8182 Stainless Steel Chain
| Part # | Chain Size (in) | Diameter (in) | P (in) | Li min (in) | Le max (in) | Weight (lbs/ft) | WLL (lbs) | Max. Continuous Length (ft) |
|---|---|---|---|---|---|---|---|---|
| C6XC818206 | 7/32 | 0.230 | 0.70 | 0.30 | 0.87 | 0.54 | 2,000 | 656 (200m) |
| C6XC818207 | 9/32 | 0.276 | 0.82 | 0.35 | 1.01 | 0.74 | 2,750 | 656 (200m) |
| C6XC818208 | 5/16 | 0.315 | 0.94 | 0.40 | 1.16 | 0.94 | 3,500 | 656 (200m) |
| C6XC818210 | 3/8 | 0.394 | 1.18 | 0.51 | 1.45 | 1.48 | 5,500 | 492 (150m) |
| C6XC818213 | 1/2 | 0.512 | 1.53 | 0.66 | 1.89 | 2.55 | 9,300 | 328 (100m) |
| C6XC818216 | 5/8 | 0.630 | 1.88 | 0.81 | 2.33 | 3.83 | 13,900 | 164 (50m) |

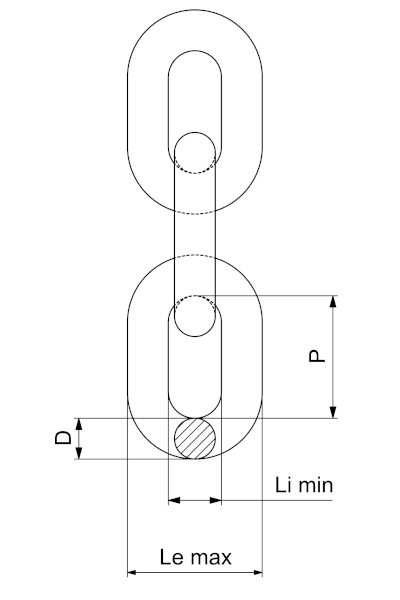

Dimensions per the AMH Cartec G60 stainless drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: AISI 316 stainless; Grade 60; 4:1 design factor. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
C6XC8182 Stainless Steel Chain
| Part # | Chain Size (in) | Diameter (in) | P (in) | Li min (in) | Le max (in) | Weight (lbs/ft) | WLL (lbs) | Max. Continuous Length (ft) |
|---|---|---|---|---|---|---|---|---|
| C6XC818206 | 7/32 | 0.230 | 0.70 | 0.30 | 0.87 | 0.54 | 2,000 | 656 (200m) |
| C6XC818207 | 9/32 | 0.276 | 0.82 | 0.35 | 1.01 | 0.74 | 2,750 | 656 (200m) |
| C6XC818208 | 5/16 | 0.315 | 0.94 | 0.40 | 1.16 | 0.94 | 3,500 | 656 (200m) |
| C6XC818210 | 3/8 | 0.394 | 1.18 | 0.51 | 1.45 | 1.48 | 5,500 | 492 (150m) |
| C6XC818213 | 1/2 | 0.512 | 1.53 | 0.66 | 1.89 | 2.55 | 9,300 | 328 (100m) |
| C6XC818216 | 5/8 | 0.630 | 1.88 | 0.81 | 2.33 | 3.83 | 13,900 | 164 (50m) |
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C6XC818206 (2,000 WLL) | C6XC818206 | $0.00 | ✓ In Stock | ||
| C6XC818207 (2,750 WLL) | C6XC818207 | $0.00 | ✓ In Stock | ||
| C6XC818208 (3,500 WLL) | C6XC818208 | $0.00 | ✓ In Stock | ||
| C6XC818210 (5,500 WLL) | C6XC818210 | $0.00 | ✓ In Stock | ||
| C6XC818213 (9,300 WLL) | C6XC818213 | $0.00 | ✓ In Stock | ||
| C6XC818216 (13,900 WLL) | C6XC818216 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
