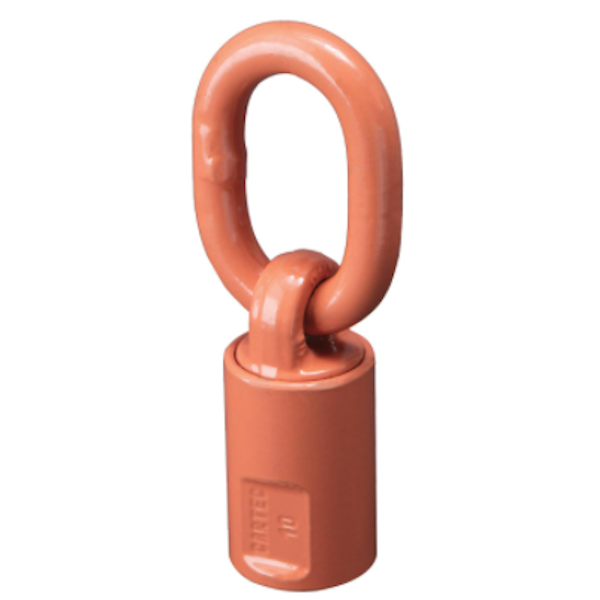

Grade 100 — AMH / Cartec (Carcano, made in Italy) rotating lifting point. Powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog; weights in lb. C816X – Rotating Eyenut with Ring, Grade 100, 4:1 design factor.
C816X – Rotating Eyenut w/Ring (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | SW (mm) | D1 (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C816X0051215 | M12x15 | 0.5 | 30 | 13 | 47 | 69 | 50 | 124 | 34 | 36.5 | 1.34 |
| C816X0101620 | M16x20 | 1 | 30 | 13 | 47 | 76 | 57 | 131 | 34 | 38 | 1.49 |
| C816X0172025 | M20x25 | 1.7 | 34 | 16 | 58 | 93 | 70 | 164 | 46 | 55 | 3.63 |
| C816X0212430 | M24x30 | 2.1 | 42 | 18 | 72 | 107 | 81 | 193 | 50 | 58 | 4.78 |
| C816X0323040 | M30x40 | 3.2 | 45 | 22 | 65 | 126 | 94 | 211 | 65 | 75 | 9.45 |
| C816X0503645 | M36x45 | 5 | 50 | 23 | 92 | 145 | 109.5 | 260 | 75 | 84 | 13.71 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
C816X – Rotating Eyenut w/Ring (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | H (mm) | SW (mm) | D1 (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C816X0051215 | M12x15 | 0.5 | 30 | 13 | 47 | 69 | 50 | 124 | 34 | 36.5 | 1.34 |
| C816X0101620 | M16x20 | 1 | 30 | 13 | 47 | 76 | 57 | 131 | 34 | 38 | 1.49 |
| C816X0172025 | M20x25 | 1.7 | 34 | 16 | 58 | 93 | 70 | 164 | 46 | 55 | 3.63 |
| C816X0212430 | M24x30 | 2.1 | 42 | 18 | 72 | 107 | 81 | 193 | 50 | 58 | 4.78 |
| C816X0323040 | M30x40 | 3.2 | 45 | 22 | 65 | 126 | 94 | 211 | 65 | 75 | 9.45 |
| C816X0503645 | M36x45 | 5 | 50 | 23 | 92 | 145 | 109.5 | 260 | 75 | 84 | 13.71 |
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C816X0051215 – M12x15 (0.5 t) | C816X0051215 | $0.00 | ✓ In Stock | ||
| C816X0101620 – M16x20 (1 t) | C816X0101620 | $0.00 | ✓ In Stock | ||
| C816X0172025 – M20x25 (1.7 t) | C816X0172025 | $0.00 | ✓ In Stock | ||
| C816X0212430 – M24x30 (2.1 t) | C816X0212430 | $0.00 | ✓ In Stock | ||
| C816X0323040 – M30x40 (3.2 t) | C816X0323040 | $0.00 | ✓ In Stock | ||
| C816X0503645 – M36x45 (5 t) | C816X0503645 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
