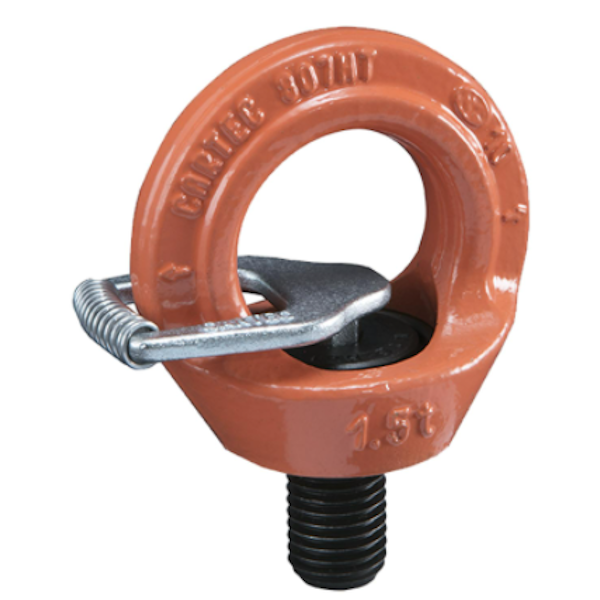

Grade 100 — AMH / Cartec (Carcano, made in Italy) rotating eyebolt lifting point. Powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog unless a UNC (imperial) table is shown; weights in lb. C807X – Rotating Eyebolt with Key, Grade 100, 4:1 design factor. Metric (C807XHT) and UNC (C807XHT-UNC) threads.
C807XHT – Rotating Eyebolt w/Key (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | D (Ømm) | E (Ømm) | F (mm) | K (Ømm) | L (mm) | CH (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C807XCHT06 | M6 | 0.1 | 27 | 9.5 | 7 | 20 | 23 | 28 | 37 | 9 | 6 | 0.17 |
| C807XCHT08 | M8 | 0.3 | 35 | 11 | 9 | 25 | 25.5 | 30 | 46 | 12 | 6 | 0.26 |
| C807XCHT10 | M10 | 0.4 | 33.7 | 10 | 9.8 | 25 | 25.5 | 30 | 46 | 15 | 6 | 0.26 |
| C807XCHT12 | M12 | 0.75 | 41.5 | 12.5 | 11.5 | 30 | 30.6 | 36.5 | 55.5 | 18 | 8 | 0.44 |
| C807XCHT14 | M14 | 0.75 | 41.5 | 12.5 | 11.5 | 30 | 30.6 | 36.5 | 55.5 | 18 | 8 | 0.44 |
| C807XCHT16 | M16 | 1.5 | 49.5 | 14.5 | 15.7 | 35 | 36.5 | 42 | 64.5 | 24 | 10 | 0.77 |
| C807XCHT18 | M18 | 1.5 | 49.5 | 14.5 | 15.7 | 35 | 36.5 | 42 | 64.5 | 24 | 10 | 0.77 |
| C807XCHT20 | M20 | 2.3 | 58 | 16 | 18 | 40 | 42 | 52.5 | 74.5 | 30 | 12 | 1.32 |
| C807XCHT22 | M22 | 2.3 | 58 | 16 | 18 | 40 | 42 | 52.5 | 74.5 | 30 | 12 | 1.32 |
| C807XCHT24 | M24 | 3.2 | 69 | 20.5 | 22 | 49 | 50 | 61 | 90 | 36 | 12 | 2.20 |
| C807XCHT27 | M27 | 3.2 | 69 | 20.5 | 22 | 49 | 50 | 61 | 90 | 36 | 12 | 2.20 |
| C807XCHT30 | M30 | 4.5 | 86 | 25.5 | 28 | 60 | 66 | 75 | 111 | 45 | 17 | 4.40 |
| C807XCHT33 | M33 | 4.5 | 86 | 25.5 | 28 | 60 | 66 | 75 | 111 | 45 | 17 | 4.40 |
| C807XCHT36 | M36 | 7 | 105 | 32 | 30 | 74 | 77 | 96.5 | 135 | 55 | 22 | 7.49 |
| C807XCHT42 | M42 | 9 | 118 | 38 | 37 | 82 | 87 | 110 | 158 | 65 | 24 | 12.56 |
| C807XCHT48 | M48 | 12 | 137 | 43 | 38 | 95 | 102 | 124.5 | 180 | 72 | 27 | 18.73 |
C807XHT-UNC – Rotating Eyebolt w/Key (UNC thread) (Grade 100, 4:1 design factor)
| Part # | Size (UNC) | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | K (in) | L (in) | CH (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C807XCHT08U | 5/16"-18 | 0.3 | 1.37 | 0.43 | 0.35 | 0.98 | 0.98 | 1.18 | 1.85 | 0.47 | 0.23 | 0.26 |
| C807XCHT10U | 3/8"-16 | 0.4 | 1.37 | 0.43 | 0.35 | 0.98 | 0.98 | 1.18 | 1.85 | 0.62 | 0.23 | 0.26 |
| C807XCHT12U | 1/2"-13 | 0.75 | 1.69 | 0.49 | 0.45 | 1.18 | 1.18 | 1.43 | 2.18 | 0.7 | 0.27 | 0.44 |
| C807XCHT16U | 5/8"-11 | 1.5 | 1.94 | 0.57 | 0.61 | 1.37 | 1.37 | 1.64 | 2.53 | 0.94 | 0.31 | 0.77 |
| C807XCHT20U | 3/4"-10 | 2.3 | 2.28 | 0.62 | 0.70 | 1.57 | 1.65 | 2.02 | 2.93 | 1.18 | 0.39 | 1.32 |
| C807XCHT22U | 7/8"-9 | 2.3 | 2.28 | 0.62 | 0.70 | 1.57 | 1.65 | 2.02 | 2.93 | 1.18 | 0.39 | 1.32 |
| C807XCHT24U | 1"-8 | 3.2 | 2.71 | 0.8 | 0.86 | 1.92 | 1.96 | 2.28 | 3.54 | 1.41 | 0.47 | 2.20 |
| C807XCHT30U | 1-1/4"-7 | 4.5 | 3.38 | 1.00 | 1.10 | 2.36 | 2.59 | 2.87 | 4.37 | 1.69 | 0.66 | 4.40 |
| C807XCHT36U | 1-1/2"-6 | 7 | 4.21 | 1.25 | 1.25 | 2.91 | 2.95 | 3.79 | 5.31 | 2.12 | 0.86 | 7.49 |
| C807XCHT42U | 1-3/4"-5 | 9 | 4.72 | 1.49 | 1.59 | 3.22 | 3.34 | 4.33 | 6.22 | 2.51 | 0.94 | 12.56 |
| C807XCHT48U | 2"-4.5 | 12 | 5.47 | 1.69 | 1.73 | 3.74 | 3.93 | 4.90 | 7.04 | 2.83 | 1.06 | 18.73 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Specifications — Full Dimensions by Size
| Size (in)(mm) | WLL (t)(t) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | E (in)(mm) | F (in)(mm) | K (in)(mm) | L (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M6M6 | 0.1 | 4:1 | 0.170.08 | 1.0627 | 0.379.5 | 0.287 | 0.7920 | 0.9123 | 1.128 | 1.4637 | 0.359 | C807XCHT06 |
| M8M8 | 0.3 | 4:1 | 0.260.12 | 1.3835 | 0.4311 | 0.359 | 0.9825 | 1.025.5 | 1.1830 | 1.8146 | 0.4712 | C807XCHT08 |
| M10M10 | 0.4 | 4:1 | 0.260.12 | 1.3333.7 | 0.3910 | 0.399.8 | 0.9825 | 1.025.5 | 1.1830 | 1.8146 | 0.5915 | C807XCHT10 |
| M12M12 | 0.75 | 4:1 | 0.440.2 | 1.6341.5 | 0.4912.5 | 0.4511.5 | 1.1830 | 1.230.6 | 1.4436.5 | 2.1955.5 | 0.7118 | C807XCHT12 |
| M14M14 | 0.75 | 4:1 | 0.440.2 | 1.6341.5 | 0.4912.5 | 0.4511.5 | 1.1830 | 1.230.6 | 1.4436.5 | 2.1955.5 | 0.7118 | C807XCHT14 |
| M16M16 | 1.5 | 4:1 | 0.770.35 | 1.9549.5 | 0.5714.5 | 0.6215.7 | 1.3835 | 1.4436.5 | 1.6542 | 2.5464.5 | 0.9424 | C807XCHT16 |
| M18M18 | 1.5 | 4:1 | 0.770.35 | 1.9549.5 | 0.5714.5 | 0.6215.7 | 1.3835 | 1.4436.5 | 1.6542 | 2.5464.5 | 0.9424 | C807XCHT18 |
| M20M20 | 2.3 | 4:1 | 1.320.6 | 2.2858 | 0.6316 | 0.7118 | 1.5740 | 1.6542 | 2.0752.5 | 2.9374.5 | 1.1830 | C807XCHT20 |
| M22M22 | 2.3 | 4:1 | 1.320.6 | 2.2858 | 0.6316 | 0.7118 | 1.5740 | 1.6542 | 2.0752.5 | 2.9374.5 | 1.1830 | C807XCHT22 |
| M24M24 | 3.2 | 4:1 | 2.21.0 | 2.7269 | 0.8120.5 | 0.8722 | 1.9349 | 1.9750 | 2.461 | 3.5490 | 1.4236 | C807XCHT24 |
| M27M27 | 3.2 | 4:1 | 2.21.0 | 2.7269 | 0.8120.5 | 0.8722 | 1.9349 | 1.9750 | 2.461 | 3.5490 | 1.4236 | C807XCHT27 |
| M30M30 | 4.5 | 4:1 | 4.42.0 | 3.3986 | 1.025.5 | 1.128 | 2.3660 | 2.666 | 2.9575 | 4.37111 | 1.7745 | C807XCHT30 |
| M33M33 | 4.5 | 4:1 | 4.42.0 | 3.3986 | 1.025.5 | 1.128 | 2.3660 | 2.666 | 2.9575 | 4.37111 | 1.7745 | C807XCHT33 |
| M36M36 | 7 | 4:1 | 7.493.4 | 4.13105 | 1.2632 | 1.1830 | 2.9174 | 3.0377 | 3.896.5 | 5.31135 | 2.1755 | C807XCHT36 |
| M42M42 | 9 | 4:1 | 12.565.7 | 4.65118 | 1.538 | 1.4637 | 3.2382 | 3.4387 | 4.33110 | 6.22158 | 2.5665 | C807XCHT42 |
| M48M48 | 12 | 4:1 | 18.738.5 | 5.39137 | 1.6943 | 1.538 | 3.7495 | 4.02102 | 4.9124.5 | 7.09180 | 2.8372 | C807XCHT48 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
Order Sheet — 31 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C807XCHT06 – M6 (0.1 t) | C807XCHT06 | $96.11 | ✓ In Stock | ||
| C807XCHT08 – M8 (0.3 t) | C807XCHT08 | $98.71 | ✓ In Stock | ||
| C807XCHT10 – M10 (0.4 t) | C807XCHT10 | $98.71 | ✓ In Stock | ||
| C807XCHT12 – M12 (0.75 t) | C807XCHT12 | $109.09 | ✓ In Stock | ||
| C807XCHT14 – M14 (0.75 t) | C807XCHT14 | $124.68 | ✓ In Stock | ||
| C807XCHT16 – M16 (1.5 t) | C807XCHT16 | $127.28 | ✓ In Stock | ||
| C807XCHT18 – M18 (1.5 t) | C807XCHT18 | $140.26 | ✓ In Stock | ||
| C807XCHT20 – M20 (2.3 t) | C807XCHT20 | $145.46 | ✓ In Stock | ||
| C807XCHT22 – M22 (2.3 t) | C807XCHT22 | $163.65 | ✓ In Stock | ||
| C807XCHT24 – M24 (3.2 t) | C807XCHT24 | $179.23 | ✓ In Stock | ||
| C807XCHT27 – M27 (3.2 t) | C807XCHT27 | $285.72 | ✓ In Stock | ||
| C807XCHT30 – M30 (4.5 t) | C807XCHT30 | $311.71 | ✓ In Stock | ||
| C807XCHT33 – M33 (4.5 t) | C807XCHT33 | $467.55 | ✓ In Stock | ||
| C807XCHT36 – M36 (7 t) | C807XCHT36 | $493.54 | ✓ In Stock | ||
| C807XCHT42 – M42 (9 t) | C807XCHT42 | $696.14 | ✓ In Stock | ||
| C807XCHT48 – M48 (12 t) | C807XCHT48 | $857.18 | ✓ In Stock | ||
| C807XCHT08U – 5/16"-18 (0.3 t) | C807XCHT08U | $98.71 | ✓ In Stock | ||
| C807XCHT10U – 3/8"-16 (0.4 t) | C807XCHT10U | $98.71 | ✓ In Stock | ||
| C807XCHT12U – 1/2"-13 (0.75 t) | C807XCHT12U | $109.09 | ✓ In Stock | ||
| C807XCHT16U – 5/8"-11 (1.5 t) | C807XCHT16U | $127.28 | ✓ In Stock | ||
| C807XCHT20U – 3/4"-10 (2.3 t) | C807XCHT20U | $145.46 | ✓ In Stock | ||
| C807XCHT22U – 7/8"-9 (2.3 t) | C807XCHT22U | $163.65 | ✓ In Stock | ||
| C807XCHT24U – 1"-8 (3.2 t) | C807XCHT24U | $179.23 | ✓ In Stock | ||
| C807XCHT30U – 1-1/4"-7 (4.5 t) | C807XCHT30U | $311.71 | ✓ In Stock | ||
| C807XCHT36U – 1-1/2"-6 (7 t) | C807XCHT36U | $493.54 | ✓ In Stock | ||
| C807XCHT42U – 1-3/4"-5 (9 t) | C807XCHT42U | $696.14 | ✓ In Stock | ||
| C807XCHT48U – 2"-4.5 (12 t) | C807XCHT48U | $857.18 | ✓ In Stock | ||
| C6X807HT12 – M12 (18mm proj.) | C6X807HT12 | $194.80 | ✓ In Stock | ||
| C6X807HT16 – M16 (24mm proj.) | C6X807HT16 | $232.97 | ✓ In Stock | ||
| C6X807HT20 – M20 (30mm proj.) | C6X807HT20 | $302.78 | ✓ In Stock | ||
| C6X807HT24 – M24 (36mm proj.) | C6X807HT24 | $421.35 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
