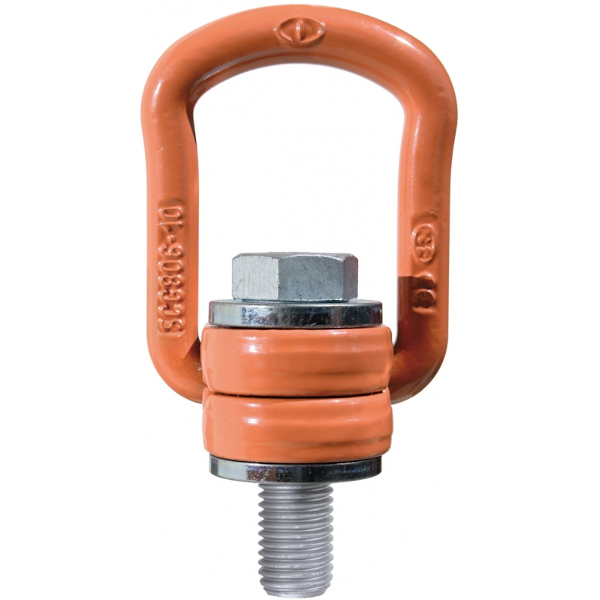

Grade 100 — AMH / Cartec (Carcano, made in Italy) rotating eyebolt lifting point. Powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog unless a UNC (imperial) table is shown; weights in lb. C806X – Rotating Eyebolt with Clamp, Grade 100, 4:1 design factor. Metric (C806XHT) and UNC (C806X-UNC) threads.
C806XHT – Rotating Eyebolt w/Clamp (Grade 100, 4:1 design factor)
| Part # | Bolt Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | L (mm) | W (mm) | J (mm) | K (mm) | Ch (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C806XHT08 | M8 | 0.5 | 57 | 34 | 10 | 78 | 24 | 41 | 30 | 26.5 | 25 | 15 | 43 | 51 | 35 | 13 | 0.59 |
| C806XHT10 | M10 | 0.9 | 57 | 34 | 10 | 78 | 24 | 41 | 30 | 26.5 | 25 | 15 | 42 | 51 | 35 | 17 | 0.63 |
| C806XHT12 | M12 | 1.35 | 66 | 38 | 13.5 | 85 | 30 | 50 | 36 | 33 | 32 | 23 | 40 | 52 | 28 | 19 | 1.10 |
| C806XHT16 | M16 | 2 | 66 | 38 | 13.5 | 85 | 30 | 50 | 36 | 33 | 32 | 24 | 38 | 52 | 28 | 24 | 1.12 |
| C806XHT20 | M20 | 3.5 | 87 | 55 | 16 | 111 | 48 | 68 | 44 | 42.5 | 45 | 31 | 54 | 71 | 36 | 30 | 2.75 |
| C806XHT24 | M24 | 4.5 | 87 | 55 | 16 | 111 | 48 | 68 | 44 | 42.5 | 45 | 37 | 51 | 71 | 36 | 36 | 2.86 |
| C806XHT27 | M27 | 4 | 109 | 66 | 22.5 | 145 | 54 | 91 | 63 | 58.5 | 60 | 37 | 64 | 86 | 47 | 41 | 6.94 |
| C806XHT30 | M30 | 6.7 | 109 | 66 | 22.5 | 145 | 54 | 91 | 65 | 58.5 | 60 | 45 | 62 | 86 | 47 | 46 | 6.7 |
| C806XHT36T07 | M36 | 7 | 109 | 66 | 22.5 | 145 | 54 | 91 | 55 | 58.5 | 60 | 50 | 60 | 86 | 43 | 55 | 7.27 |
| C806XHT36 | M36 | 8 | 136 | 78 | 28 | 190 | 62 | 108 | 81 | 72.5 | 70 | 59 | 88 | 115 | 74 | 55 | 13.00 |
| C806XHT42T10 | M42 | 10 | 136 | 78 | 28 | 190 | 62 | 108 | 75 | 72.5 | 70 | 75 | 86 | 115 | 70 | 65 | 14.33 |
| C806XHT42 | M42 | 15 | 169 | 97 | 36 | 242 | 68 | 131 | 89 | 87.5 | 85 | 63 | 121 | 151 | 97 | 65 | 24.69 |
| C806XHT48 | M48 | 20 | 169 | 97 | 36 | 242 | 68 | 131 | 89 | 87.5 | 95 | 71 | 117 | 151 | 93 | 75 | 25.57 |
C806X-UNC – Rotating Eyebolt w/Clamp (UNC thread) (Grade 100, 4:1 design factor)
| Part # | Bolt Size (UNC) | WLL (t) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | L (in) | W (in) | J (in) | K (in) | Ch (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C806XU38 | 3/8"-16 | 0.63 | 2.24 | 1.33 | 0.39 | 3.07 | 0.94 | 1.61 | 1.18 | 1.04 | 0.98 | 0.59 | 1.65 | 2.00 | 1.37 | 0.66 | 0.63 |
| C806XU12 | 1/2"-13 | 1 | 2.59 | 1.49 | 0.53 | 3.34 | 1.18 | 1.96 | 1.41 | 1.29 | 1.25 | 0.90 | 1.57 | 2.04 | 1.10 | 0.74 | 1.10 |
| C806XU58 | 5/8"-11 | 1.5 | 2.59 | 1.49 | 0.53 | 3.34 | 1.18 | 1.96 | 1.41 | 1.29 | 1.25 | 0.94 | 1.49 | 2.04 | 1.10 | 0.94 | 1.12 |
| C806XU34 | 3/4"-10 | 2.5 | 3.42 | 2.16 | 0.62 | 4.37 | 1.88 | 2.67 | 1.73 | 1.67 | 1.77 | 1.22 | 2.12 | 2.79 | 1.41 | 1.18 | 2.75 |
| C806XU78 | 7/8"-9 | 2.5 | 3.42 | 2.16 | 0.62 | 4.37 | 1.88 | 2.67 | 1.73 | 1.67 | 1.77 | 1.22 | 2.12 | 2.79 | 1.41 | 1.18 | 2.75 |
| C806XU1 | 1"-8 | 4 | 3.42 | 2.16 | 0.62 | 4.37 | 1.88 | 2.67 | 1.73 | 1.67 | 1.77 | 1.45 | 2.00 | 2.79 | 1.41 | 1.41 | 2.86 |
| C806XU114 | 1-1/4"-7 | 5 | 4.29 | 2.59 | 0.88 | 5.70 | 2.12 | 3.58 | 2.55 | 2.30 | 2.36 | 1.77 | 2.44 | 3.38 | 1.85 | 1.81 | 7.1 |
| C806XU112 | 1-1/2"-6 | 8 | 5.35 | 3.07 | 1.10 | 7.48 | 2.44 | 4.25 | 3.18 | 2.85 | 2.75 | 2.32 | 3.46 | 4.52 | 2.91 | 2.16 | 13.00 |
| C806XU2 | 2"-4.5 | 20 | 6.65 | 3.81 | 1.41 | 9.52 | 2.67 | 5.15 | 3.50 | 3.44 | 3.74 | 2.79 | 4.60 | 5.94 | 3.66 | 2.95 | 25.57 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Order Sheet tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
