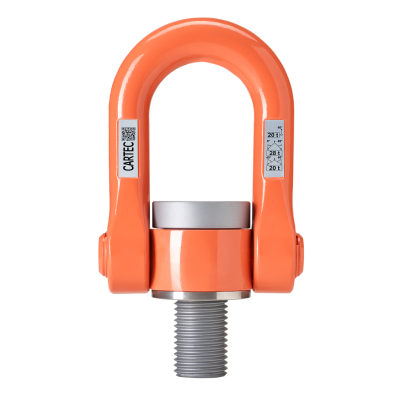

Grade 100 — AMH / Cartec (Carcano, made in Italy) heavy-lift swivel hoist ring. 360° swivel / 180° pivot, powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog; weights in lb. C813X – Performer Heavy Lift Swivel Hoist Ring, Grade 100, 4:1 design factor (M33–M100).
C813X – Performer Heavy Lift Swivel Hoist Ring (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) | P (mm) | T (mm) | Ch (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C813X33 | M33 | 10.5 | 131 | 71 | 30 | 69 | 149 | 30 | 199 | 100 | 49 | 50 | 32.5 | 97 | 17 | 12.34 |
| C813X36 | M36 | 12 | 131 | 71 | 30 | 69 | 149 | 30 | 199 | 100 | 49 | 54 | 32.5 | 97 | 17 | 12.78 |
| C813X39 | M39 | 14 | 131 | 71 | 30 | 69 | 149 | 30 | 199 | 100 | 49 | 58 | 32.5 | 97 | 17 | 13.00 |
| C813X42 | M42 | 15 | 131 | 71 | 30 | 69 | 149 | 30 | 199 | 100 | 49 | 63 | 32.5 | 97 | 17 | 13.22 |
| C813X45 | M45 | 16 | 131 | 71 | 30 | 69 | 149 | 30 | 199 | 100 | 49 | 63 | 32.5 | 97 | 17 | 13.44 |
| C813X48 | M48 | 20 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 68 | 40 | 119 | 19 | 25.57 |
| C813X52 | M52 | 21 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 68 | 40 | 119 | 19 | 26.01 |
| C813X56 | M56 | 25 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 78 | 40 | 119 | 19 | 26.67 |
| C813X64 | M64 | 32.1 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 90 | 40 | 119 | 19 | 28.43 |
| C813X72 | M72 | 25 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 78 | 40 | 119 | 19 | 33.28 |
| C813X80 | M80 | 32.1 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 90 | 40 | 119 | 19 | 35.05 |
| C813X90 | M90 | 32.1 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 90 | 40 | 119 | 19 | 37.25 |
| C813X100 | M100 | 32.1 | 164 | 92 | 40 | 89 | 182 | 40 | 249 | 122 | 63 | 90 | 40 | 119 | 19 | 37.25 |
Available with special bolt lengths and also in UNC thread.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Product Specifications
Every product includes Working Load Limit (WLL), manufacturer traceability code, and country of origin. For per-variant dimensions and detailed spec charts, see the Order Sheet tab (if this product has multiple sizes) or the Spec Sheet PDF linked in the Description tab.
Available on request
- Test certificate — proof-test certificate tied to manufacturer traceability code (rigging hardware, chain, wire rope; slings ship with a capacity tag).
- Mill certificate — raw material chemistry and mechanical properties (hardware / chain / wire rope only).
- DNV / ABS / NORSOK documentation for offshore or subsea applications.
- Custom configurations — non-standard lengths, colors, hardware combinations.
Email sales@slingcenter.com with your SKU or order number.
Order Sheet — 13 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C813X33 – M33 (10.5 t) | C813X33 | $0.00 | ✓ In Stock | ||
| C813X36 – M36 (12 t) | C813X36 | $0.00 | ✓ In Stock | ||
| C813X39 – M39 (14 t) | C813X39 | $0.00 | ✓ In Stock | ||
| C813X42 – M42 (15 t) | C813X42 | $0.00 | ✓ In Stock | ||
| C813X45 – M45 (16 t) | C813X45 | $0.00 | ✓ In Stock | ||
| C813X48 – M48 (20 t) | C813X48 | $0.00 | ✓ In Stock | ||
| C813X52 – M52 (21 t) | C813X52 | $0.00 | ✓ In Stock | ||
| C813X56 – M56 (25 t) | C813X56 | $0.00 | ✓ In Stock | ||
| C813X64 – M64 (32.1 t) | C813X64 | $0.00 | ✓ In Stock | ||
| C813X72 – M72 (25 t) | C813X72 | $0.00 | ✓ In Stock | ||
| C813X80 – M80 (32.1 t) | C813X80 | $0.00 | ✓ In Stock | ||
| C813X90 – M90 (32.1 t) | C813X90 | $0.00 | ✓ In Stock | ||
| C813X100 – M100 (32.1 t) | C813X100 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
