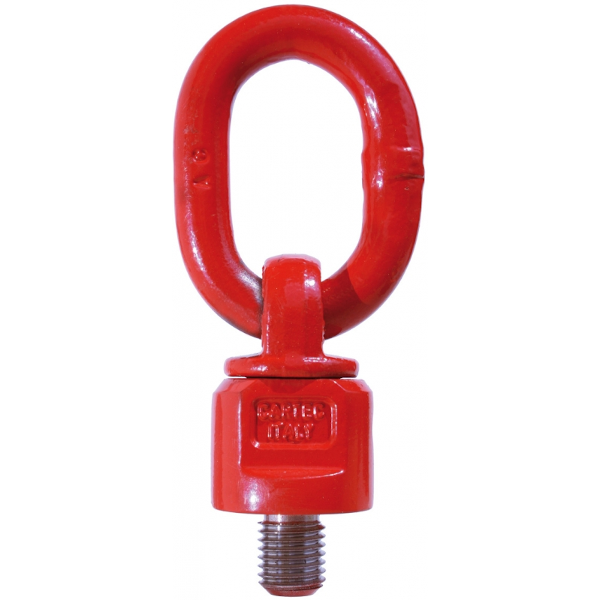

C800 – Rotating Eyebolt w/Ring (Grade 80, 4:1 design factor)

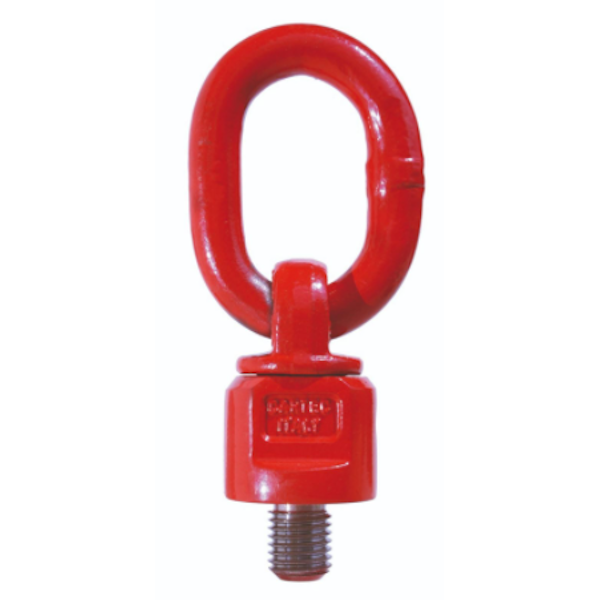

C800-UNC – Rotating Eyebolt w/Ring (UNC thread) (Grade 80, 4:1 design factor)

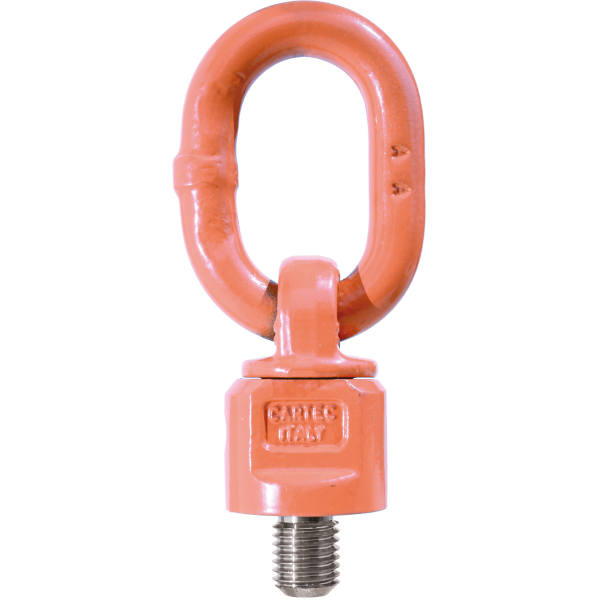

C800X – Rotating Eyebolt w/Ring (Grade 100, 4:1 design factor)

Roll over image to zoom in Click on image to zoom

AMH / Cartec Lifting Points / Rotating Eyebolts w/Ring / Grade 80 & 100

AMH (All Material Handling)SKU: C800

Model: C800 – Rotating Eyebolt w/Ring (Grade 80, 4:1 DF)

Price:

$0.00

Quantity:

🛠️ Ask our AI rigging specialist (bottom-right) OR email sales@slingcenter.com →

Share this product

Description

Grade 80 & 100 — AMH / Cartec (Carcano, made in Italy) rotating lifting points. Powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog unless a UNC (imperial) table is shown; weights in lb. Model C800 (Grade 80) and C800X (Grade 100) rotating eyebolts with ring, in metric and UNC threads.

C800 – Rotating Eyebolt w/Ring (Grade 80, 4:1 design factor)

Part #	Bolt Size (mm DxL)	WLL (t)	A (mm)	B (mm)	C (mm)	E (mm)	H (mm)	SW (mm)	D1 (mm)	Weight (lb)
C8000030816	M8x16	0.3	30	13	46	50	105	30	38	1.05
C8000030818	M8x18	0.3	30	13	46	50	105	30	38	1.05
C8000031018	M10x18	0.3	30	13	46	50	105	30	38	1.05
C8000051218	M12x18	0.5	30	13	46	50	105	30	38	1.10
C8000051225	M12x25	0.5	30	13	46	50	105	30	38	1.10
C8000101620	M16x20	1.12	30	13	46	50	105	30	38	1.10
C8000101630	M16x30	1.12	30	13	46	50	105	30	38	1.16
C8000102030	M20x30	1.12	30	13	46	50	105	30	38	1.16
C8000202030	M20x30	2	34	16	57	61	131	40	50	2.31
C8000302430	M24x30	3.15	40	18	70	68	153	48	58	3.59
C8000503035	M30x35	5.3	45	22	65	80	165	65	75	4.91
C8000503045	M30x45	5.3	45	22	65	80	165	65	75	4.91
C8000803035	M30x35	8	50	23	95	95	205	75	85	11.68
C8000803045	M30x45	8	50	23	95	95	205	75	85	11.68
C8000803654	M36x54	8	50	23	95	95	205	75	85	12.12
C8001004263	M42x63	10	50	23	95	95	205	75	85	22.04
C8001504860	M48x60	15	70	32	120	130	280	95	120	22.04
C8001505678	M56x78	15	70	32	120	130	280	95	120	22.04
C8001506496	M64x96	15	70	32	120	130	280	95	120	22.04
C80025072108	M72x108	25	90	45	130	165	338	140	170	63.93
C80030080120	M80x120	30	90	45	130	165	338	140	170	63.93
C80035090135	M90x135	35	90	45	130	165	338	140	170	63.93

C800-UNC – Rotating Eyebolt w/Ring (UNC thread) (Grade 80, 4:1 design factor)

Part #	Bolt Size (in DxL)	WLL (t)	A (in)	B (in)	C (in)	E (in)	H (in)	SW (in)	D1 (in)	Weight (lb)
C800003UNC51616	5/16"-18 x .63	0.3	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.05
C800003UNC3818	3/8"-16 x .70	0.3	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.05
C800005UNC1225	1/2"-13 x .98	0.5	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.10
C800010UNC5830	5/8"-11 x 1.18	1.12	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.16
C800020UNC3430	3/4"-10 x 1.18	2	1.33	0.62	2.24	2.40	5.15	1.57	1.96	2.31
C800030UNC130	1"-8 x 1.18	3.15	1.57	0.70	2.75	2.67	6.02	1.88	2.28	3.59
C800050UNC11445	1-1/4"-7 x 1.77	5.3	1.77	0.86	2.55	3.14	6.49	2.55	2.95	4.91
C800080UNC11254	1-1/2"-6 x 2.12	8	1.96	0.90	3.74	3.74	8.07	2.95	3.34	11.68
C800100UNC13463	1-3/4"-5 x 2.48	10	1.96	0.90	3.74	3.74	8.07	2.95	3.34	22.04
C80015UNC260	2"-4.5 x 2.36	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80015UNC21478	2-1/4"-4.5 x 3.07	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80015UNC21296	2-1/2"-4 x 3.77	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80016UNC234104	2-3/4"-4 x 4.09	16	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80025UNC3108	3"-4 x 4.25	25	3.54	1.77	5.11	6.49	13.30	5.51	6.69	63.93
C80035UNC3121353	3-1/2"-4 x 5.31	35	3.54	1.77	5.11	6.49	13.30	5.51	6.69	63.93

C800X – Rotating Eyebolt w/Ring (Grade 100, 4:1 design factor)

Part #	Size (mm DxL)	WLL (t)	A (mm)	B (mm)	C (mm)	E (mm)	H (mm)	SW (mm)	D1 (Ømm)	Weight (lb)
C800X0030816	M8x16	0.3	30	13	46	50	105	30	38	1.05
C800X0030818	M8x18	0.3	30	13	46	50	105	30	38	1.05
C800X0051018	M10x18	0.5	30	13	46	50	105	30	38	1.05
C800X0071218	M12x18	0.7	30	13	46	50	105	30	38	1.10
C800X0101420	M14x20	1	30	13	46	50	105	30	38	1.16
C800X0141620	M16x20	1.4	30	13	46	50	105	30	38	1.16
C800X0172030	M20x30	1.7	30	13	46	50	105	30	38	1.16
C800X0172430	M24x30	1.7	30	13	46	50	105	30	38	1.16
C800X0252030	M20x30	2.5	34	16	57	61	131	40	50	2.31
C800X0402430	M24x30	4	40	18	70	68	153	48	58	3.59
C800X0403035	M30x35	4	40	18	70	68	153	48	58	3.59
C800X0673035	M30x35	6.7	45	22	65	71	156	70	80	6.28
C800X0803045	M30x45	8	50	23	91	86	200	80	90	9.70
C800X1003654	M36x54	10	50	23	91	86	200	80	90	10.18
C800X1254263	M42x63	12.5	50	23	91	86	200	80	90	11.46
C800X1254560	M45x60	12.5	50	23	91	86	200	80	90	11.46
C800X1254872	M48x72	12.5	50	23	91	86	200	80	90	11.46
C800X1604560	M45x60	16	70	32	120	112	262	100	120	24.03
C800X1704860	M48x60	17	70	32	120	112	262	100	120	24.03
C800X1805678	M56x78	18	70	32	120	112	262	100	120	24.03
C800X2006496	M64x96	20	70	32	120	112	262	100	120	24.03
C800X2806496	M64x96	28	90	45	124	165	333	140	170	63.93
C800X31572108	M72x108	31.5	90	45	124	165	333	140	170	63.93
C800X35080120	M80x120	35	90	45	124	165	333	140	170	63.93
C800X40090135	M90x135	40	90	45	124	165	333	140	170	63.93

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
ASME B30.10 — hooks
OSHA 1910.184 and 1926.251 — general industry and construction sling safety
WSTDA WS-2 and RS-1 — web and round sling design
49 CFR 393.102 to 393.130 — DOT cargo tie-down
NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).

Technical Specifications

📄 Download the manufacturer spec sheet (PDF)

C800 – Rotating Eyebolt w/Ring (Grade 80, 4:1 design factor)

Part #	Bolt Size (mm DxL)	WLL (t)	A (mm)	B (mm)	C (mm)	E (mm)	H (mm)	SW (mm)	D1 (mm)	Weight (lb)
C8000030816	M8x16	0.3	30	13	46	50	105	30	38	1.05
C8000030818	M8x18	0.3	30	13	46	50	105	30	38	1.05
C8000031018	M10x18	0.3	30	13	46	50	105	30	38	1.05
C8000051218	M12x18	0.5	30	13	46	50	105	30	38	1.10
C8000051225	M12x25	0.5	30	13	46	50	105	30	38	1.10
C8000101620	M16x20	1.12	30	13	46	50	105	30	38	1.10
C8000101630	M16x30	1.12	30	13	46	50	105	30	38	1.16
C8000102030	M20x30	1.12	30	13	46	50	105	30	38	1.16
C8000202030	M20x30	2	34	16	57	61	131	40	50	2.31
C8000302430	M24x30	3.15	40	18	70	68	153	48	58	3.59
C8000503035	M30x35	5.3	45	22	65	80	165	65	75	4.91
C8000503045	M30x45	5.3	45	22	65	80	165	65	75	4.91
C8000803035	M30x35	8	50	23	95	95	205	75	85	11.68
C8000803045	M30x45	8	50	23	95	95	205	75	85	11.68
C8000803654	M36x54	8	50	23	95	95	205	75	85	12.12
C8001004263	M42x63	10	50	23	95	95	205	75	85	22.04
C8001504860	M48x60	15	70	32	120	130	280	95	120	22.04
C8001505678	M56x78	15	70	32	120	130	280	95	120	22.04
C8001506496	M64x96	15	70	32	120	130	280	95	120	22.04
C80025072108	M72x108	25	90	45	130	165	338	140	170	63.93
C80030080120	M80x120	30	90	45	130	165	338	140	170	63.93
C80035090135	M90x135	35	90	45	130	165	338	140	170	63.93

C800-UNC – Rotating Eyebolt w/Ring (UNC thread) (Grade 80, 4:1 design factor)

Part #	Bolt Size (in DxL)	WLL (t)	A (in)	B (in)	C (in)	E (in)	H (in)	SW (in)	D1 (in)	Weight (lb)
C800003UNC51616	5/16"-18 x .63	0.3	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.05
C800003UNC3818	3/8"-16 x .70	0.3	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.05
C800005UNC1225	1/2"-13 x .98	0.5	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.10
C800010UNC5830	5/8"-11 x 1.18	1.12	1.18	0.51	1.81	1.96	4.13	1.18	1.49	1.16
C800020UNC3430	3/4"-10 x 1.18	2	1.33	0.62	2.24	2.40	5.15	1.57	1.96	2.31
C800030UNC130	1"-8 x 1.18	3.15	1.57	0.70	2.75	2.67	6.02	1.88	2.28	3.59
C800050UNC11445	1-1/4"-7 x 1.77	5.3	1.77	0.86	2.55	3.14	6.49	2.55	2.95	4.91
C800080UNC11254	1-1/2"-6 x 2.12	8	1.96	0.90	3.74	3.74	8.07	2.95	3.34	11.68
C800100UNC13463	1-3/4"-5 x 2.48	10	1.96	0.90	3.74	3.74	8.07	2.95	3.34	22.04
C80015UNC260	2"-4.5 x 2.36	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80015UNC21478	2-1/4"-4.5 x 3.07	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80015UNC21296	2-1/2"-4 x 3.77	15	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80016UNC234104	2-3/4"-4 x 4.09	16	2.75	1.25	4.72	5.11	11.02	3.74	4.72	22.04
C80025UNC3108	3"-4 x 4.25	25	3.54	1.77	5.11	6.49	13.30	5.51	6.69	63.93
C80035UNC3121353	3-1/2"-4 x 5.31	35	3.54	1.77	5.11	6.49	13.30	5.51	6.69	63.93

C800X – Rotating Eyebolt w/Ring (Grade 100, 4:1 design factor)

Part #	Size (mm DxL)	WLL (t)	A (mm)	B (mm)	C (mm)	E (mm)	H (mm)	SW (mm)	D1 (Ømm)	Weight (lb)
C800X0030816	M8x16	0.3	30	13	46	50	105	30	38	1.05
C800X0030818	M8x18	0.3	30	13	46	50	105	30	38	1.05
C800X0051018	M10x18	0.5	30	13	46	50	105	30	38	1.05
C800X0071218	M12x18	0.7	30	13	46	50	105	30	38	1.10
C800X0101420	M14x20	1	30	13	46	50	105	30	38	1.16
C800X0141620	M16x20	1.4	30	13	46	50	105	30	38	1.16
C800X0172030	M20x30	1.7	30	13	46	50	105	30	38	1.16
C800X0172430	M24x30	1.7	30	13	46	50	105	30	38	1.16
C800X0252030	M20x30	2.5	34	16	57	61	131	40	50	2.31
C800X0402430	M24x30	4	40	18	70	68	153	48	58	3.59
C800X0403035	M30x35	4	40	18	70	68	153	48	58	3.59
C800X0673035	M30x35	6.7	45	22	65	71	156	70	80	6.28
C800X0803045	M30x45	8	50	23	91	86	200	80	90	9.70
C800X1003654	M36x54	10	50	23	91	86	200	80	90	10.18
C800X1254263	M42x63	12.5	50	23	91	86	200	80	90	11.46
C800X1254560	M45x60	12.5	50	23	91	86	200	80	90	11.46
C800X1254872	M48x72	12.5	50	23	91	86	200	80	90	11.46
C800X1604560	M45x60	16	70	32	120	112	262	100	120	24.03
C800X1704860	M48x60	17	70	32	120	112	262	100	120	24.03
C800X1805678	M56x78	18	70	32	120	112	262	100	120	24.03
C800X2006496	M64x96	20	70	32	120	112	262	100	120	24.03
C800X2806496	M64x96	28	90	45	124	165	333	140	170	63.93
C800X31572108	M72x108	31.5	90	45	124	165	333	140	170	63.93
C800X35080120	M80x120	35	90	45	124	165	333	140	170	63.93
C800X40090135	M90x135	40	90	45	124	165	333	140	170	63.93

Order Sheet — All Sizes

Order Sheet — 3 variants

Search below or click column headers to sort. Add any quantity per row to your cart.

Option ▴▾	SKU ▴▾	Price ▴▾	Stock
C800 – Rotating Eyebolt w/Ring (Grade 80, 4:1 DF)	C800	$0.00	✓ In Stock
C800-UNC – Rotating Eyebolt w/Ring (UNC thread) (Grade 80, 4:1 DF)	C800-UNC	$0.00	✓ In Stock
C800X – Rotating Eyebolt w/Ring (Grade 100, 4:1 DF)	C800X	$0.00	✓ In Stock

Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.

Ask a Rigger

Chat with our AI rigging specialist

Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.

Prefer to email?

Send to: sales@slingcenter.com

Include:

What you are lifting (shape, material, fragility)
Load weight (lb)
Length / reach needed
Pick points — smooth lugs, sharp edges, or a hook?
Environment — indoor, outdoor, heat, saltwater, chemicals?
Quantity and timeline
Your phone number if you want a callback

Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
