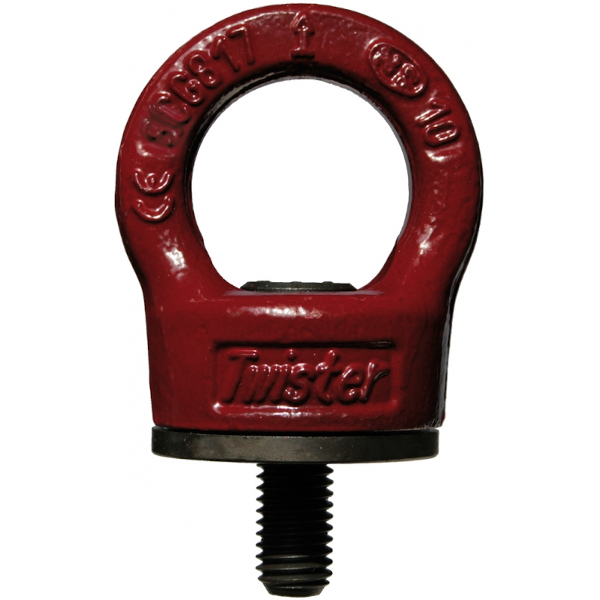

Grade 100 — AMH / Cartec (Carcano, made in Italy) rotating lifting point. Powder-coated, load-rated and individually WLL-marked. Sold quote-only and drop-shipped. Dimensions in mm and WLL in metric tonnes (t) per the Cartec catalog; weights in lb. C817X – Eyebolt "Twister" with Bearing, Grade 100, 4:1 design factor.
C817X – Eyebolt "Twister" w/Bearing (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | D (Ømm) | E (Ømm) | F (mm) | K (Ømm) | L (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C817XC12 | M12 | 0.75 | 53.5 | 11 | 11 | 34 | 44 | 32 | 56 | 18 | 1.01 |
| C817XC16 | M16 | 1.5 | 56.5 | 13 | 14.5 | 39 | 56 | 33 | 65 | 24 | 1.98 |
| C817XC20 | M20 | 2.3 | 67 | 14 | 17 | 42 | 58 | 40 | 70 | 30 | 2.53 |
| C817XC24 | M24 | 3.2 | 80 | 18 | 19 | 52 | 73 | 44.5 | 88 | 38.5 | 4.51 |
| C817XC30 | M30 | 4.5 | 101 | 22 | 27 | 62 | 80 | 53 | 106 | 44 | 8.81 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
C817X – Eyebolt "Twister" w/Bearing (Grade 100, 4:1 design factor)
| Part # | Size (mm) | WLL (t) | A (mm) | B (mm) | C (mm) | D (Ømm) | E (Ømm) | F (mm) | K (Ømm) | L (mm) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C817XC12 | M12 | 0.75 | 53.5 | 11 | 11 | 34 | 44 | 32 | 56 | 18 | 1.01 |
| C817XC16 | M16 | 1.5 | 56.5 | 13 | 14.5 | 39 | 56 | 33 | 65 | 24 | 1.98 |
| C817XC20 | M20 | 2.3 | 67 | 14 | 17 | 42 | 58 | 40 | 70 | 30 | 2.53 |
| C817XC24 | M24 | 3.2 | 80 | 18 | 19 | 52 | 73 | 44.5 | 88 | 38.5 | 4.51 |
| C817XC30 | M30 | 4.5 | 101 | 22 | 27 | 62 | 80 | 53 | 106 | 44 | 8.81 |
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C817XC12 – M12 (0.75 t) | C817XC12 | $0.00 | ✓ In Stock | ||
| C817XC16 – M16 (1.5 t) | C817XC16 | $0.00 | ✓ In Stock | ||
| C817XC20 – M20 (2.3 t) | C817XC20 | $0.00 | ✓ In Stock | ||
| C817XC24 – M24 (3.2 t) | C817XC24 | $0.00 | ✓ In Stock | ||
| C817XC30 – M30 (4.5 t) | C817XC30 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
Chat with our AI rigging specialist
Fastest: click the Ask SlingCenter chat widget in the bottom-right of any page. Our AI specialist is available 24/7 and trained on ASME B30.9, B30.26, OSHA rigging standards, and our full catalog. It can help you size a sling, pick the right shackle, explain inspection criteria, and look up your order.
Prefer to email?
Send to: sales@slingcenter.com
Include:
- What you are lifting (shape, material, fragility)
- Load weight (lb)
- Length / reach needed
- Pick points — smooth lugs, sharp edges, or a hook?
- Environment — indoor, outdoor, heat, saltwater, chemicals?
- Quantity and timeline
- Your phone number if you want a callback
Response: AI chat instant. Email within 1 business day. Urgent orders same-day on standard configurations.
