AMH Grey Classic Grade 100 Fittings — a complete range of Grade 100 alloy chain fittings (connecting links, self-locking hooks with hidden trigger, sling & grab hooks, foundry hooks, in-line shortening clutches and Master Shorty assemblies) built to a 4:1 design factor. Sold quote-only and direct-shipped. All dimensions and working load limits below are per the AMH / Cartec Grey Classic catalog.

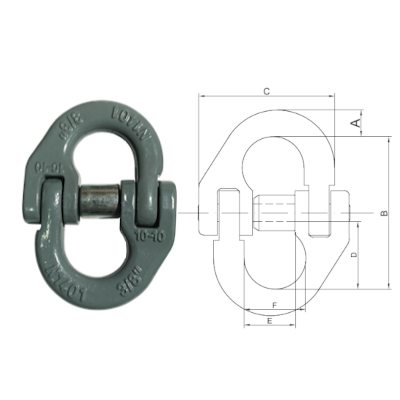

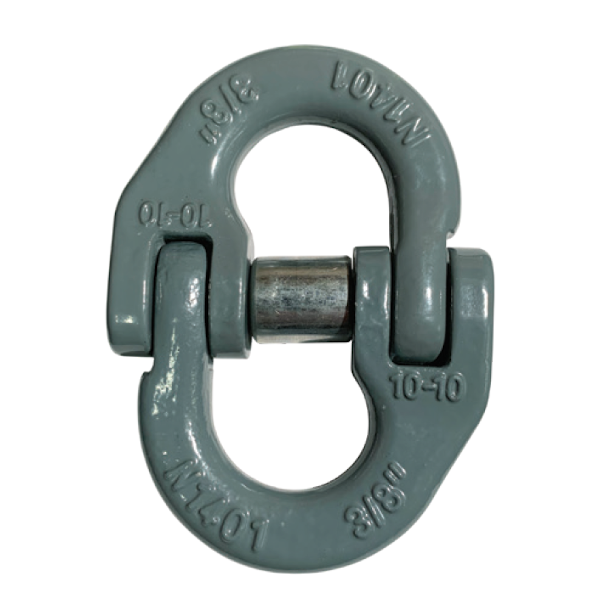

CLM Connecting Link
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) |
|---|---|---|---|---|---|---|---|---|---|
| 10CLM06 | 7/32 | 2,700 | 0.20 | 0.29 | 1.73 | 1.50 | 0.75 | 0.59 | 0.63 |
| 10CLM08 | 9/32-5/16 | 5,700 | 0.40 | 0.45 | 2.20 | 1.97 | 0.98 | 0.79 | 0.91 |
| 10CLM10 | 3/8 | 8,800 | 0.73 | 0.55 | 2.62 | 2.44 | 1.18 | 0.98 | 1.14 |
| 10CLM13 | 1/2 | 15,000 | 1.44 | 0.73 | 3.23 | 3.09 | 1.42 | 1.18 | 1.34 |
| 10CLM16 | 5/8 | 22,600 | 2.71 | 0.91 | 4.13 | 3.82 | 1.85 | 1.42 | 1.61 |
| 10CLM20 | 3/4 | 35,300 | 4.85 | 0.98 | 4.96 | 4.33 | 2.17 | 1.69 | 1.93 |
| 10CLM22 | 7/8 | 42,700 | 7.72 | 1.10 | 5.97 | 5.20 | 2.64 | 1.93 | 2.28 |
| 10CLM26 | 1 | 59,700 | 12.57 | 1.22 | 6.26 | 6.06 | 2.74 | 2.24 | 2.56 |

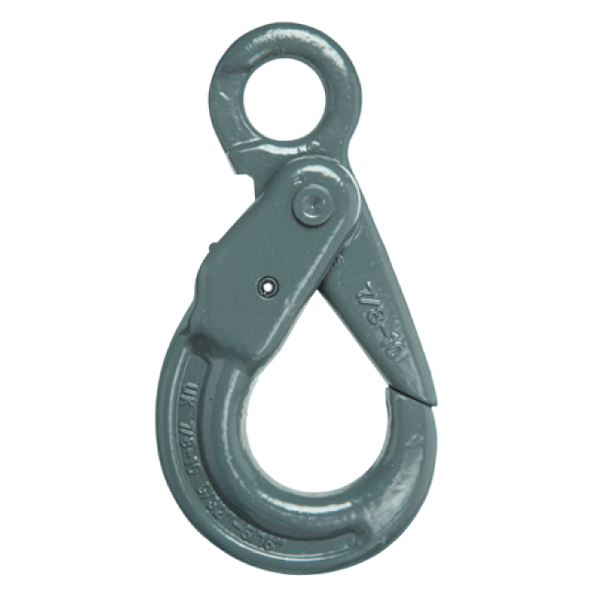

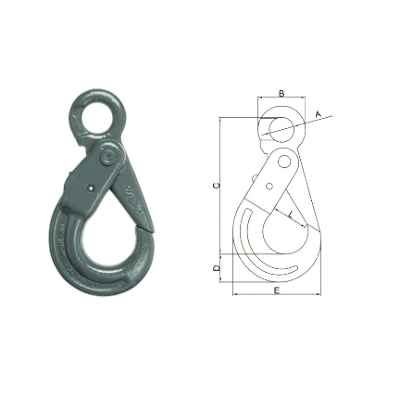

ESLH Eye Self-Locking Hook with Hidden Trigger
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | L (in) |
|---|---|---|---|---|---|---|---|---|---|
| 10ESLH06HT | 7/32 | 2,700 | 1.12 | 0.87 | 1.73 | 4.21 | 0.87 | 2.95 | 1.04 |
| 10ESLH08HT | 9/32-5/16 | 5,700 | 1.94 | 0.94 | 1.81 | 5.24 | 0.98 | 3.39 | 1.30 |
| 10ESLH10HT | 3/8 | 8,800 | 3.57 | 1.26 | 2.48 | 6.57 | 1.34 | 4.37 | 1.77 |
| 10ESLH13HT | 1/2 | 15,000 | 7.05 | 1.54 | 3.19 | 8.07 | 1.69 | 5.55 | 2.05 |
| 10ESLH16HT | 5/8 | 22,600 | 13.93 | 1.93 | 3.82 | 10.31 | 1.97 | 6.81 | 2.52 |
| 10ESLH20HT | 3/4 | 35,300 | 20.44 | 2.32 | 4.57 | 11.10 | 2.08 | 7.87 | 3.03 |
| 10ESLH22HT | 7/8 | 42,700 | 29.98 | 2.76 | 5.51 | 12.40 | 2.48 | 9.02 | 3.15 |

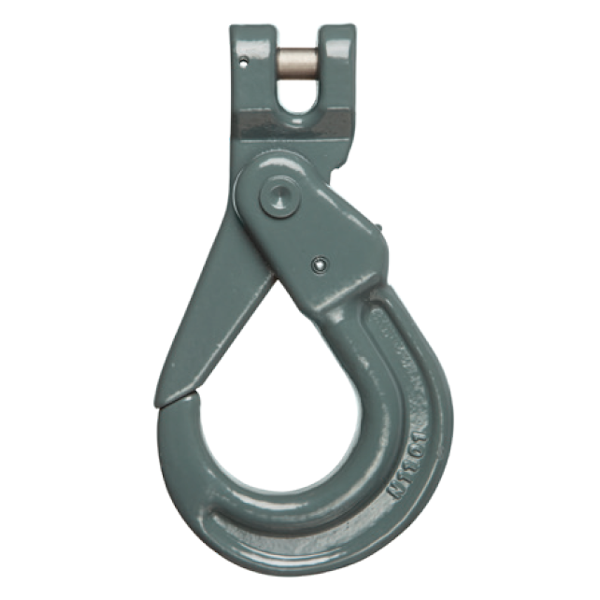

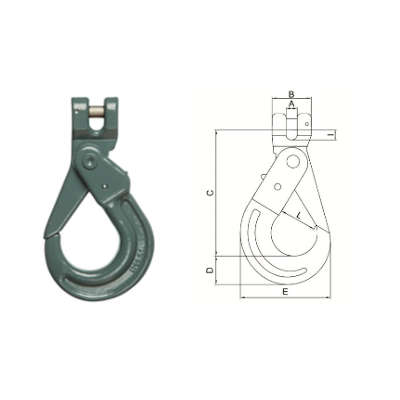

CSLH Clevis Self-Locking Hook with Hidden Trigger
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | L (in) |
|---|---|---|---|---|---|---|---|---|---|
| 10CSLH06HT | 7/32 | 2,700 | 1.28 | 0.28 | 1.30 | 3.86 | 0.87 | 2.95 | 1.04 |
| 10CSLH08HT | 9/32-5/16 | 5,700 | 2.05 | 0.35 | 1.54 | 4.72 | 0.98 | 3.39 | 1.30 |
| 10CSLH10HT | 3/8 | 8,800 | 3.79 | 0.51 | 1.85 | 5.91 | 1.34 | 4.37 | 1.77 |
| 10CSLH13HT | 1/2 | 15,000 | 7.34 | 0.61 | 2.20 | 7.36 | 1.69 | 5.55 | 2.05 |
| 10CSLH16HT | 5/8 | 22,600 | 14.48 | 0.71 | 2.99 | 8.66 | 1.97 | 6.81 | 2.52 |
| 10CSLH20HT | 3/4 | 35,300 | 20.22 | 0.95 | 3.23 | 9.65 | 2.09 | 7.87 | 3.03 |
| 10CSLH22HT | 7/8 | 42,700 | 30.64 | 0.98 | 4.17 | 10.75 | 2.48 | 9.02 | 3.15 |

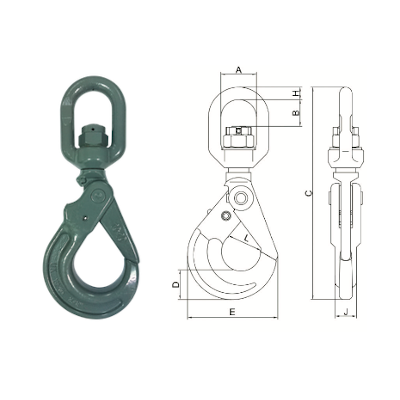

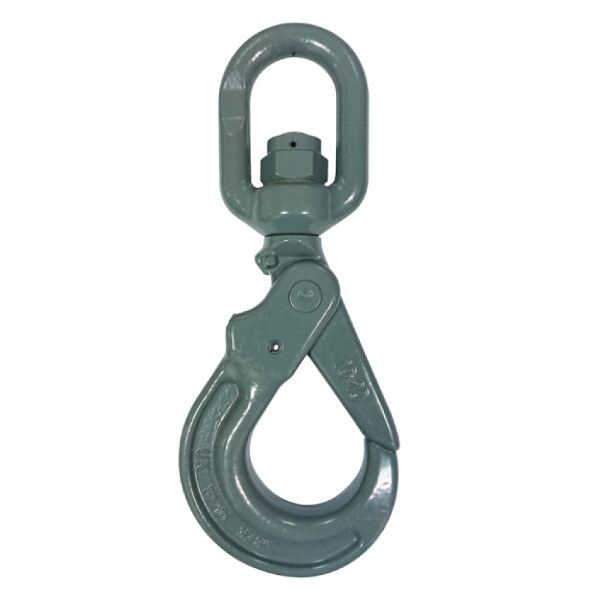

SSLH Swivel Self-Locking Hook with Bronze Bushings & Hidden Trigger
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | H (in) | L (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10SSLH06HT | 7/32 | 2,700 | 1.52 | 1.24 | 0.77 | 7.07 | 0.87 | 2.95 | 0.41 | 1.04 |
| 10SSLH08HT | 9/32-5/16 | 5,700 | 2.87 | 1.42 | 1.22 | 8.98 | 0.98 | 3.39 | 0.55 | 1.30 |
| 10SSLH10HT | 3/8 | 8,800 | 4.83 | 1.97 | 1.85 | 11.22 | 1.34 | 4.37 | 0.63 | 1.77 |
| 10SSLH13HT | 1/2 | 15,000 | 9.44 | 2.20 | 2.24 | 14.39 | 1.69 | 5.55 | 0.81 | 2.05 |
| 10SSLH16HT | 5/8 | 22,600 | 17.26 | 2.48 | 2.05 | 16.46 | 1.97 | 6.81 | 0.91 | 2.52 |
| 10SSLH20HT | 3/4 | 35,300 | 27.01 | 3.19 | 2.83 | 18.58 | 2.09 | 7.87 | 1.06 | 3.03 |
| 10SSLH22HT | 7/8 | 42,700 | 46.30 | 3.90 | 3.94 | 22.56 | 2.48 | 9.01 | 1.30 | 3.15 |

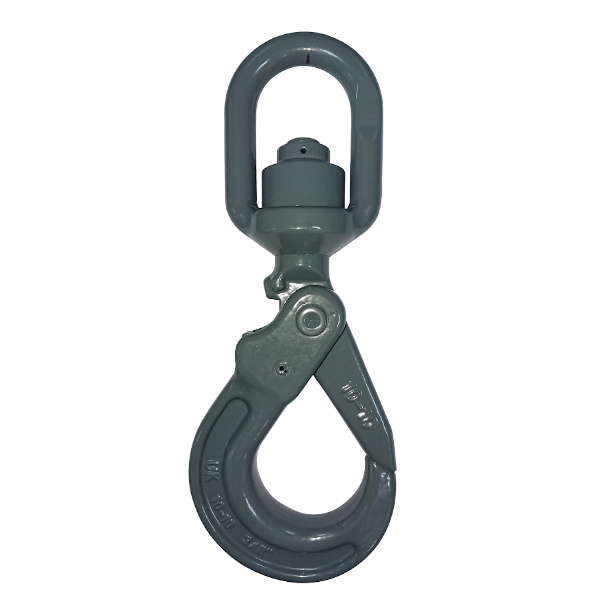

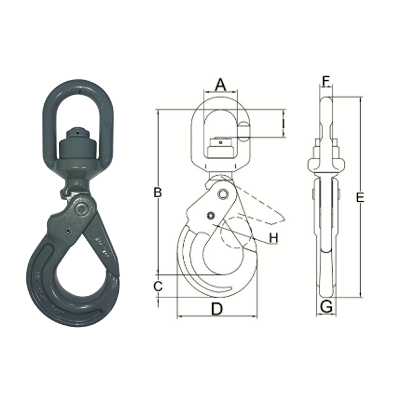

SSLHBB Swivel Self-Locking Hook with Ball Bearings & Hidden Trigger
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | H (in) | I (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10SSLH06HTBB | 7/32 | 2,700 | 1.98 | 1.24 | 5.78 | 0.87 | 2.95 | 7.07 | 0.41 | 1.04 | 0.77 |
| 10SSLH08HTBB | 9/32-5/16 | 5,700 | 3.33 | 1.73 | 7.91 | 0.98 | 3.39 | 9.45 | 0.55 | 1.30 | 1.30 |
| 10SSLH10HTBB | 3/8 | 8,800 | 5.51 | 1.97 | 9.25 | 1.34 | 4.37 | 11.22 | 0.63 | 1.77 | 1.54 |
| 10SSLH13HTBB | 1/2 | 15,000 | 10.30 | 2.20 | 11.89 | 1.69 | 5.55 | 14.39 | 0.79 | 2.05 | 2.00 |
| 10SSLH16HTBB | 5/8 | 22,600 | 18.14 | 2.48 | 13.58 | 1.97 | 6.81 | 16.46 | 0.91 | 2.52 | 2.05 |
| 10SSLH20HTBB | 3/4 | 35,300 | 27.23 | 3.19 | 15.43 | 2.08 | 7.87 | 18.58 | 1.06 | 3.03 | 2.83 |
| 10SSLH22HTBB | 7/8 | 42,700 | 45.64 | 3.90 | 18.77 | 2.48 | 9.01 | 22.56 | 1.30 | 3.15 | 3.90 |

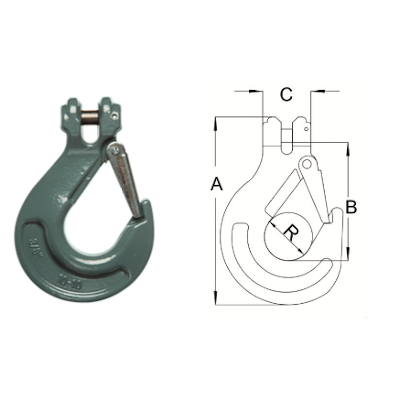

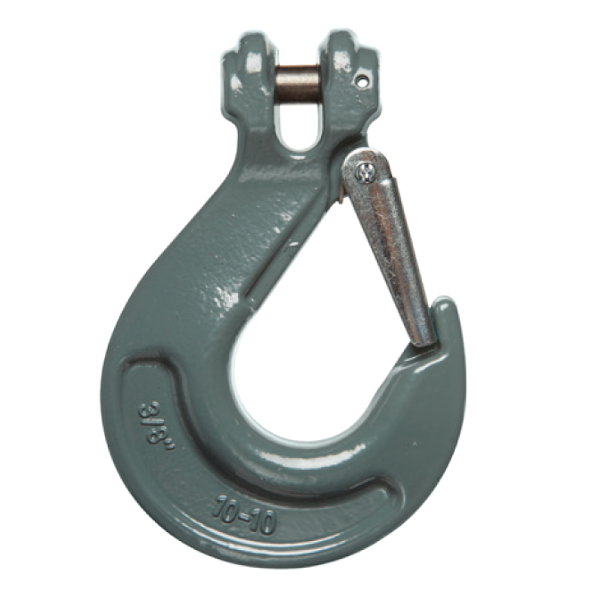

CSH Clevis Sling Hook with Latch
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | R (in) |
|---|---|---|---|---|---|---|---|
| 10CSH08L | 9/32-5/16 | 5,700 | 1.34 | 5.28 | 3.35 | 1.46 | 0.94 |
| 10CSH10L | 3/8 | 8,800 | 2.49 | 6.50 | 3.94 | 1.95 | 1.14 |
| 10CSH13L | 1/2 | 15,000 | 4.59 | 7.74 | 4.96 | 2.24 | 1.46 |
| 10CSH16L | 5/8 | 22,600 | 9.83 | 10.12 | 6.81 | 2.62 | 1.89 |
| 10CSH20L | 3/4 | 35,300 | 19.33 | 12.39 | 8.50 | 3.39 | 2.36 |
| 10CSH22L | 7/8 | 42,700 | 25.35 | 12.91 | 8.27 | 3.54 | 2.44 |

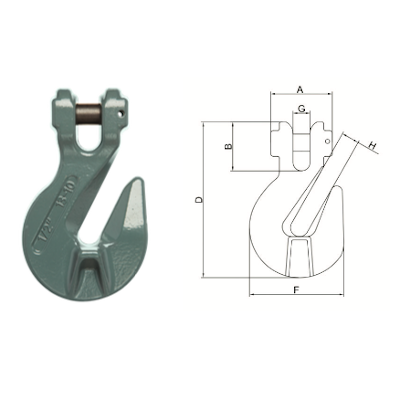

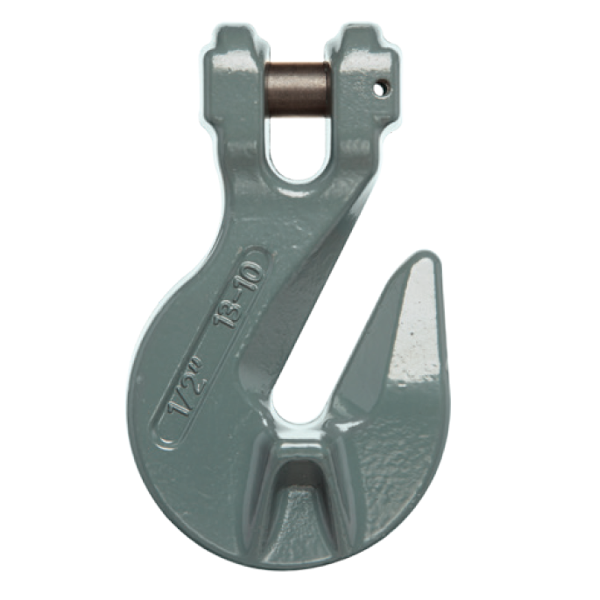

CGH Clevis Grab Hook with Saddle
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | F (in) | G (in) | H (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10CGH08 | 9/32-5/16 | 5,700 | 0.86 | 1.54 | 1.10 | 1.97 | 3.80 | 2.28 | 0.37 | 0.37 |
| 10CGH10 | 3/8 | 8,800 | 1.98 | 1.81 | 1.44 | 2.76 | 5.04 | 2.85 | 0.47 | 0.47 |
| 10CGH13 | 1/2 | 15,000 | 3.49 | 2.26 | 1.73 | 3.39 | 6.22 | 3.66 | 0.59 | 0.59 |
| 10CGH16 | 5/8 | 22,600 | 5.29 | 2.91 | 2.17 | 3.94 | 7.40 | 4.33 | 0.75 | 0.77 |
| 10CGH20 | 3/4 | 35,300 | 9.26 | 3.15 | 2.72 | 4.80 | 8.50 | 5.26 | 0.91 | 0.98 |
| 10CGH22 | 7/8 | 42,700 | 15.43 | 3.54 | 2.81 | 5.45 | 9.84 | 5.91 | 0.98 | 1.02 |

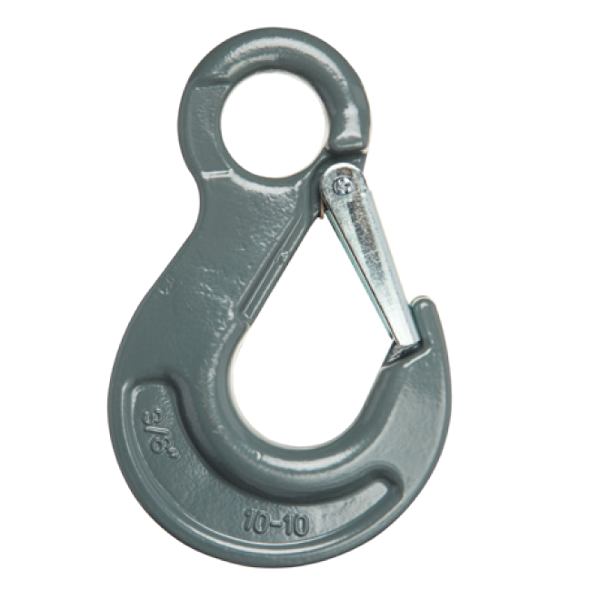

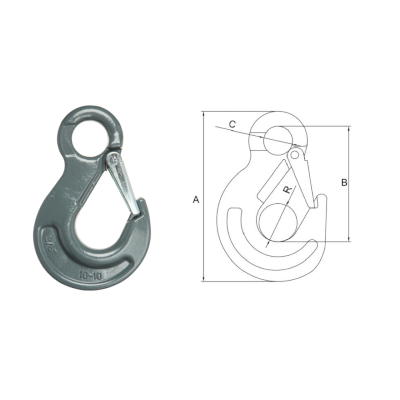

ESH Eye Sling Hook with Latch
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | R (in) |
|---|---|---|---|---|---|---|---|
| 10ESH08L | 9/32-5/16 | 5,700 | 1.12 | 5.31 | 3.70 | 0.96 | 0.94 |
| 10ESH10L | 3/8 | 8,800 | 2.27 | 6.89 | 4.80 | 1.30 | 1.14 |
| 10ESH13L | 1/2 | 15,000 | 4.37 | 8.64 | 5.98 | 1.57 | 1.46 |
| 10ESH16L | 5/8 | 22,600 | 9.74 | 10.78 | 7.99 | 1.97 | 1.89 |
| 10ESH20L | 3/4 | 35,300 | 18.74 | 13.07 | 9.49 | 2.44 | 2.36 |
| 10ESH22L | 7/8 | 42,700 | 20.50 | 14.57 | 10.35 | 2.76 | 2.44 |

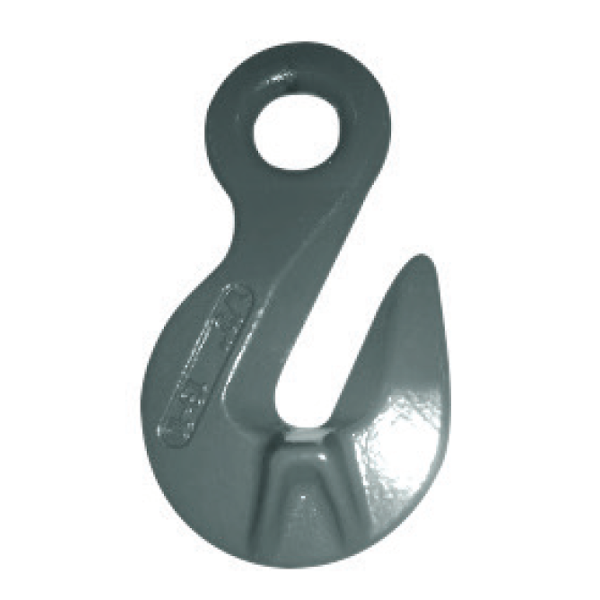

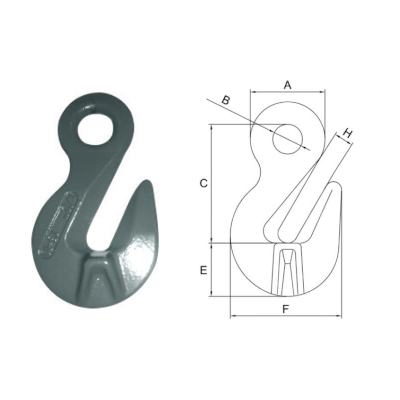

EGH Eye Grab Hook with Saddle
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | E (in) | F (in) | H (in) |
|---|---|---|---|---|---|---|---|---|---|
| 10EGH08 | 9/32-5/16 | 5,700 | 0.73 | 1.40 | 0.59 | 2.28 | 1.02 | 2.22 | 0.39 |
| 10EGH10 | 3/8 | 8,800 | 1.67 | 1.75 | 0.77 | 2.99 | 1.46 | 2.85 | 0.47 |
| 10EGH13 | 1/2 | 15,000 | 3.09 | 2.34 | 0.94 | 4.02 | 1.65 | 3.66 | 0.59 |
| 10EGH16 | 5/8 | 22,600 | 4.85 | 2.76 | 1.18 | 4.45 | 1.81 | 4.20 | 0.87 |
| 10EGH20 | 3/4 | 35,300 | 7.74 | 3.27 | 1.46 | 5.28 | 2.20 | 5.08 | 0.89 |
| 10EGH22 | 7/8 | 42,700 | 13.69 | 3.60 | 1.48 | 6.02 | 2.64 | 5.81 | 1.02 |

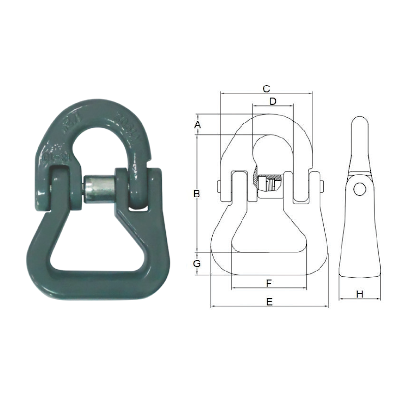

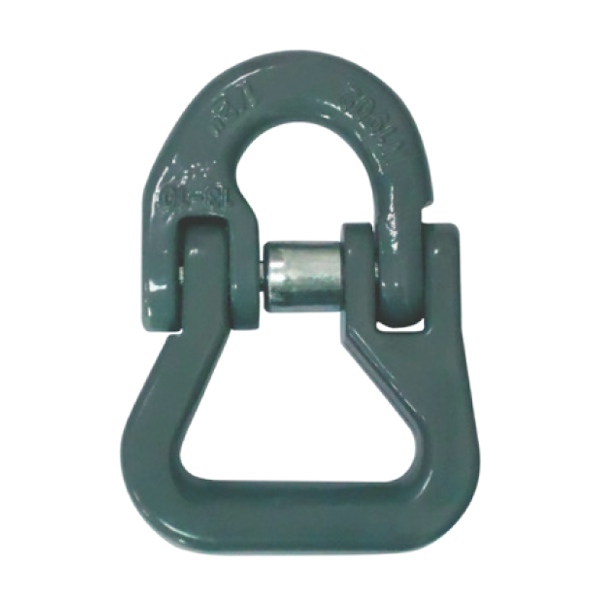

CWC Chain to Web Connecting Link
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10CWC08 | 9/32-5/16 | 5,700 | 0.72 | 0.43 | 2.48 | 1.97 | 0.91 | 2.48 | 1.57 | 0.55 | 0.94 |
| 10CWC10 | 3/8 | 8,800 | 1.31 | 0.55 | 3.15 | 2.40 | 1.14 | 3.03 | 1.97 | 0.59 | 1.10 |
| 10CWC13 | 1/2 | 15,000 | 2.45 | 0.67 | 3.74 | 2.99 | 1.34 | 3.66 | 2.36 | 0.75 | 1.30 |
| 10CWC16 | 5/8 | 22,600 | 4.65 | 0.83 | 4.65 | 3.66 | 1.61 | 4.65 | 2.95 | 0.90 | 1.65 |

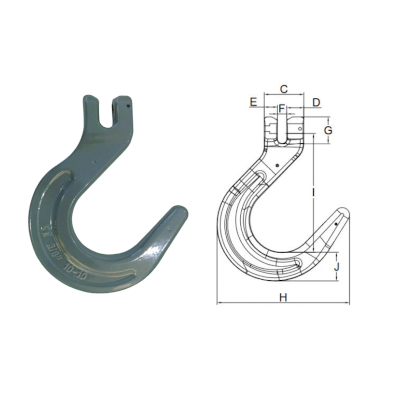

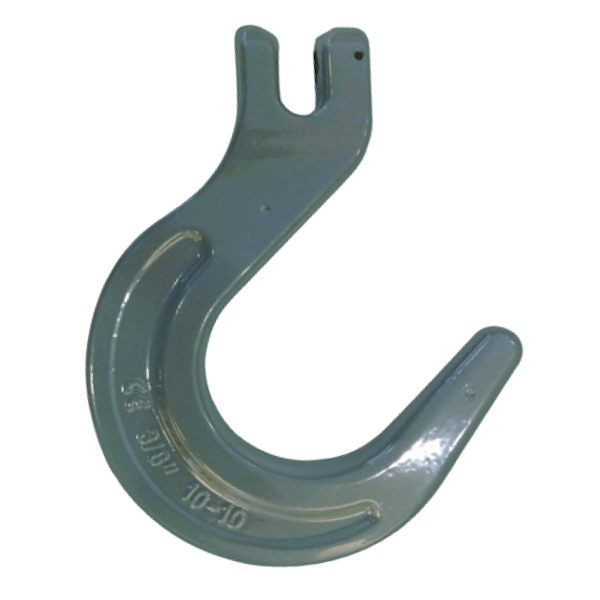

CFH Clevis Foundry Hook
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | J (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10CFH08 | 9/32-5/16 | 5,700 | 2.11 | 1.59 | 0.69 | 0.53 | 0.37 | 1.07 | 5.33 | 1.16 |
| 10CFH10 | 3/8 | 8,800 | 4.24 | 1.85 | 0.75 | 0.61 | 0.49 | 1.32 | 6.19 | 1.42 |
| 10CFH13 | 1/2 | 15,000 | 6.94 | 2.03 | 0.79 | 0.63 | 0.61 | 1.75 | 7.60 | 1.57 |
| 10CFH16 | 5/8 | 22,600 | 11.61 | 2.97 | 1.18 | 1.06 | 0.73 | 2.20 | 8.73 | 1.85 |

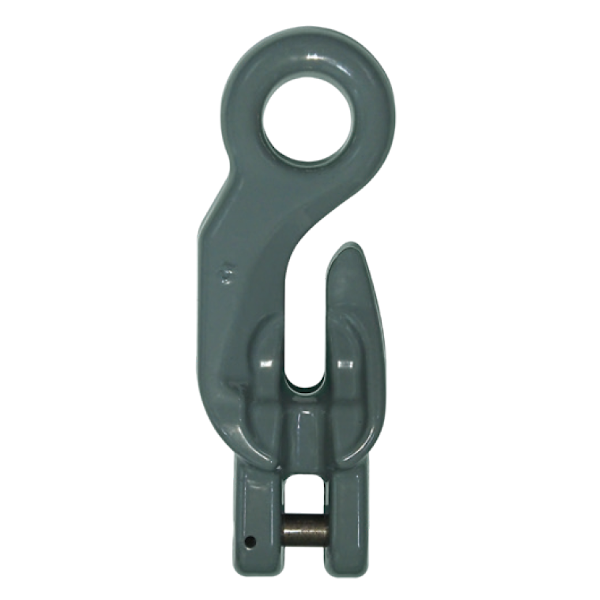

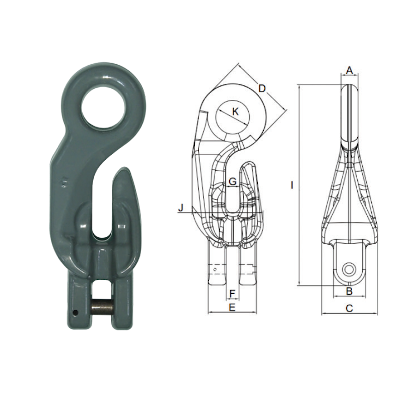

ISC In-Line Shortening Clutch
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | K (in) | I (in) | J (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10ISC07 | 9/32 | 4,300 | 1.49 | 0.48 | 0.94 | 1.54 | 1.91 | 1.48 | 0.43 | 0.45 | 0.95 | 5.93 | 2.09 |
| 10ISC08 | 5/16 | 5,700 | 1.49 | 0.48 | 0.94 | 1.54 | 1.91 | 1.48 | 0.43 | 0.45 | 0.95 | 5.93 | 2.09 |
| 10ISC10 | 3/8 | 8,800 | 3.32 | 0.57 | 1.14 | 1.97 | 2.31 | 1.83 | 0.53 | 0.55 | 1.22 | 7.71 | 2.73 |
| 10ISC13 | 1/2 | 15,000 | 6.55 | 0.71 | 1.46 | 2.52 | 2.87 | 1.99 | 0.59 | 0.61 | 1.46 | 9.73 | 3.61 |
| 10ISC16 | 5/8 | 22,600 | 11.60 | 0.96 | 1.83 | 3.15 | 3.82 | 2.74 | 0.73 | 0.81 | 1.91 | 11.44 | 4.03 |

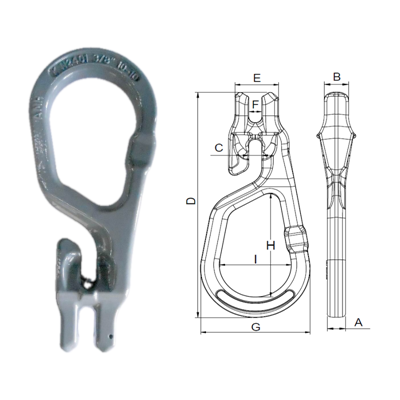

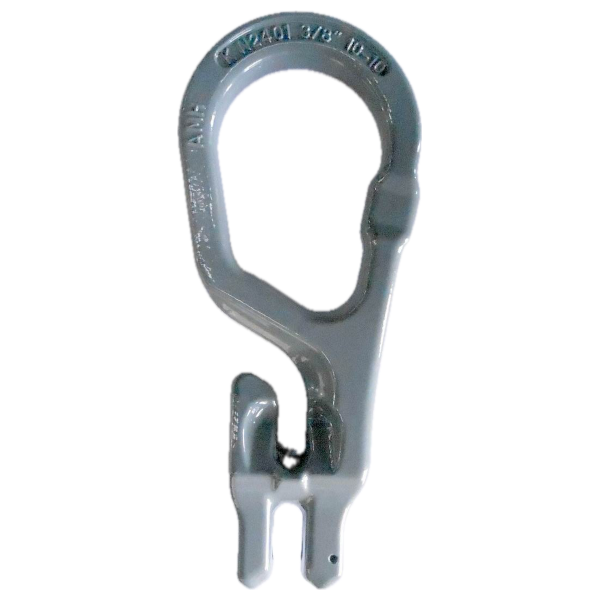

Master Shorty
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10MS08 | 5/16 | 5,700 | 1.97 | 0.59 | 0.79 | 0.41 | 8.15 | 1.42 | 0.41 | 3.55 | 3.75 | 2.31 |
| 10MS10 | 3/8 | 8,800 | 3.97 | 0.71 | 1.06 | 0.47 | 10.02 | 1.83 | 0.47 | 4.34 | 4.47 | 2.93 |
| 10MS13 | 1/2 | 15,000 | 7.79 | 0.87 | 1.34 | 0.65 | 12.46 | 2.32 | 0.63 | 5.26 | 5.39 | 3.60 |

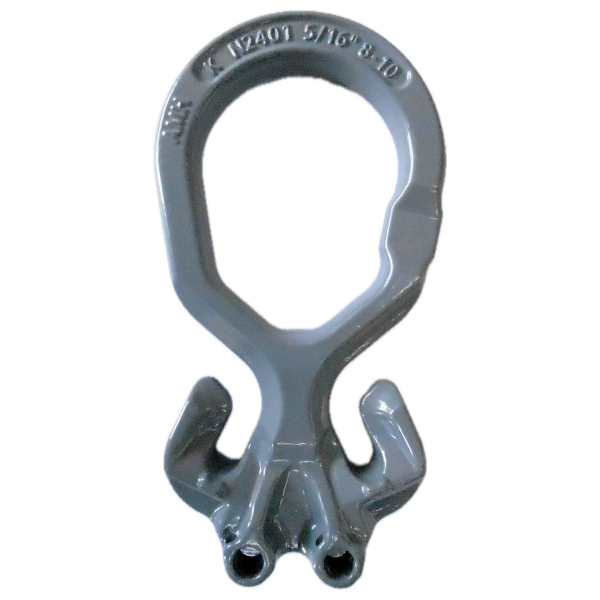

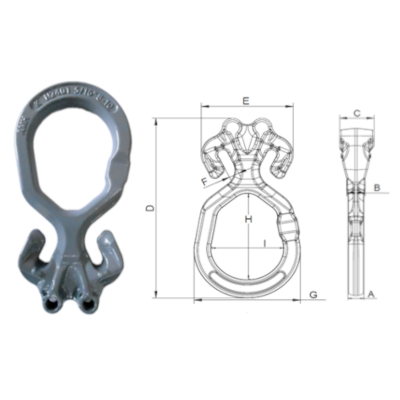

Master Shorty Dual
| Part # | Trade Size | WLL (lbs) | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10MSD08 | 5/16 | 9,900 | 3.0 | 0.69 | 0.79 | 1.48 | 8.09 | 3.68 | 0.41 | 4.27 | 3.88 | 2.90 |
| 10MSD10 | 3/8 | 15,200 | 5.69 | 0.79 | 1.06 | 1.89 | 9.94 | 4.69 | 0.48 | 5.11 | 4.84 | 3.49 |
| 10MSD13 | 1/2 | 26,000 | 10.91 | 0.94 | 1.32 | 2.39 | 12.52 | 6.06 | 0.61 | 6.02 | 5.88 | 4.09 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
