Cartec G60 stainless-steel (AISI 316) chain fittings for corrosive, food, marine and washdown environments: connecting links, eye and clevis sling hooks, shortening clutch, rotating eyebolt, master links, sub-assembly and stainless chain. Rated 2,000+ lbs WLL.
AISI 316 stainless steel — corrosion resistant
Grade 60 rating; clevis and eye styles
Design factor 4:1
Warning: never exceed the Working Load Limit
Specifications & dimensions

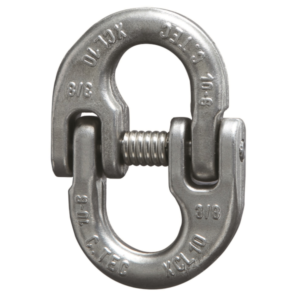

C6XCL Stainless Steel Connecting Link
Chain Size (in)
Part #
WLL (lbs)
A (in)
C (in)
O (in)
R (in)
P (in)
S (in)
Weight (lbs)
7/32-1/4
C6XCL06
2,000
0.55
0.70
0.70
1.77
0.31
0.29
0.17
9/32
C6XCL07
2,750
0.70
0.78
0.80
1.98
0.40
0.35
0.30
5/16
C6XCL08
3,500
0.74
1.00
0.92
2.44
0.45
0.39
0.44
3/8
C6XCL10
5,500
0.94
1.18
1.08
2.83
0.49
0.49
0.77
1/2
C6XCL13
9,300
1.10
1.41
1.31
3.44
0.74
0.65
1.60
5/8
C6XCL16
13,900
1.35
1.59
1.55
4.13
0.81
0.81
3.24

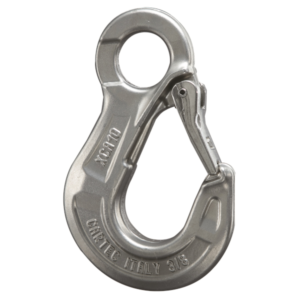

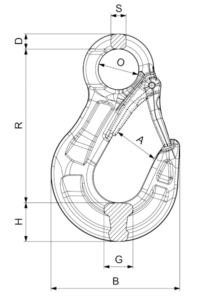

C6XCA Stainless Steel Eye Sling Hook
Chain Size (in)
Part #
WLL (lbs)
A (in)
B (in)
D (in)
G (in)
H (in)
O (in)
R (in)
S (in)
Weight (lbs)
7/32-1/4
C6XCA06SF
2,000
0.90
2.83
0.31
0.53
0.82
0.82
3.54
0.31
0.68
9/32-5/16
C6XCA08SF
3,500
1.25
4.05
0.51
0.76
1.14
1.06
4.64
0.51
1.78
3/8
C6XCA10SF
5,500
1.53
4.72
0.59
1.06
1.29
1.45
5.51
0.59
3.46
1/2
C6XCA13SF
9,300
2.00
6.10
0.70
1.37
1.81
1.88
7.16
0.70
6.81
5/8
C6XCA16SF
13,900
2.59
7.20
0.94
1.73
2.00
2.16
8.38
0.94
11.81

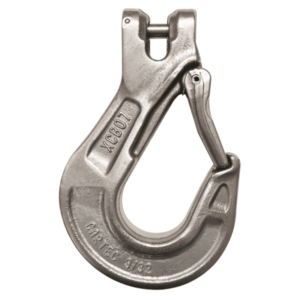

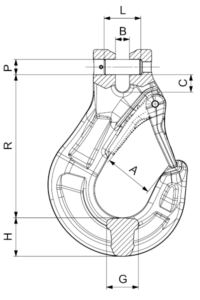

C6XCB Stainless Steel Clevis Sling Hook
Chain Size (in)
Part #
WLL (lbs)
A (in)
B (in)
C (in)
G (in)
H (in)
R (in)
PxL
Weight (lbs)
7/32-1/4
C6XCB06SF
2,000
0.90
0.28
0.33
0.53
0.82
3.18
0.31 X 0.76
0.72
9/32
C6XCB07SF
2,750
1.25
0.37
0.47
0.76
1.14
4.40
0.31 X 0.88
1.74
5/16
C6XCB08SF
3,500
1.25
0.37
0.43
0.76
1.14
4.37
0.39 X 0.88
1.85
3/8
C6XCB10SF
5,500
1.53
0.47
0.59
1.06
1.29
4.82
0.51 X 1.24
3.15

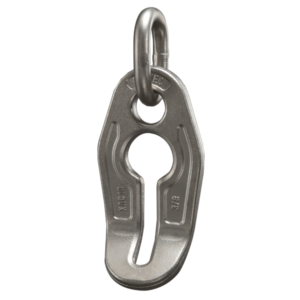

C6XAC Stainless Steel Shortening Clutch
Chain Size (in)
Part #
WLL (lbs)
A (in)
B (in)
C (in)
D (in)
E (in)
S (in)
Weight (lbs)
7/32-1/4
C6XAC06
2,000
2.16
0.31
3.18
1.02
0.62
0.33
0.55
9/32-5/16
C6XAC08
3,500
2.79
0.43
4.33
1.33
0.86
0.41
1.30
3/8
C6XAC10
5,500
3.54
0.47
5.31
1.57
1.02
0.51
2.49
1/2
C6XAC13
9,300
4.40
0.66
6.69
2.04
1.25
0.64
5.22
5/8
C6XAC16
13,900
5.31
0.80
7.95
2.51
1.49
0.78
9.08

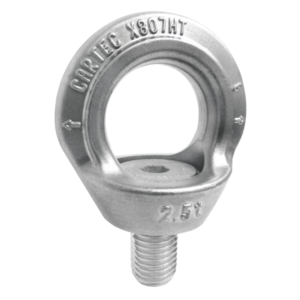

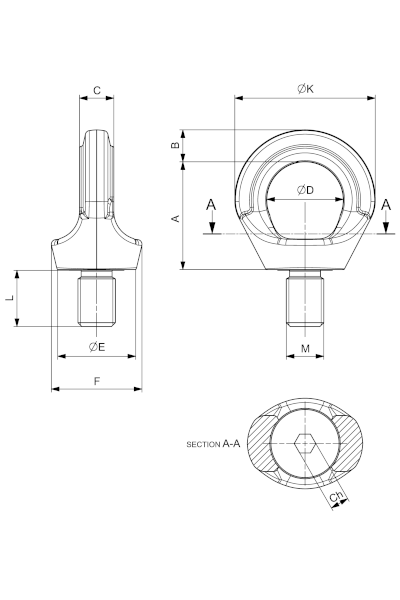

C6X807HT Stainless Steel Rotating Eyebolt
Part #
Size
WLL (t)
A (in)
B (in)
C (in)
D (in)
E (in)
F (in)
K (in)
L (in)
CH
Weight (lbs)
C6X807HT12
M12
0.5
1.69
0.49
0.45
1.18
1.18
1.43
2.18
0.70
0.31
0.44
C6X807HT16
M16
1
1.94
0.57
0.61
1.37
1.37
1.64
2.53
0.94
0.39
0.77
C6X807HT20
M20
2
2.28
0.62
0.70
1.57
1.65
2.02
2.93
1.18
0.47
1.32
C6X807HT24
M24
2.5
2.71
0.80
0.86
1.92
1.96
2.28
3.54
1.41
0.47
2.20

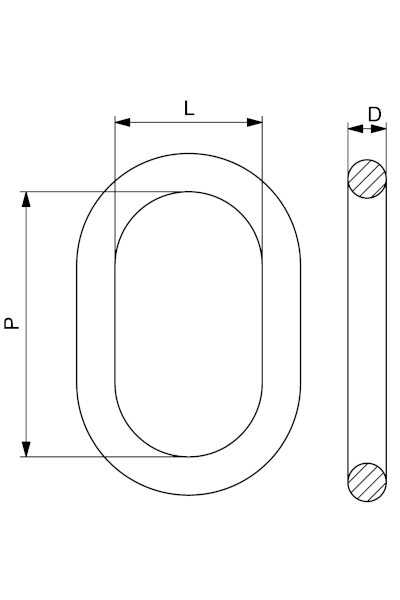

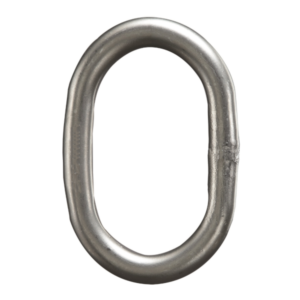

C6XCM Stainless Steel Master Link
Part #
Trade Size (in)
D (in)
P (in)
L (in)
Weight (lbs)
WLL (lbs)
Chain Size (in) 1 leg
Chain Size (in) 2 leg
C6XCM0706
1/2
0.51
4.33
2.36
0.74
3,500
7/32, 9/32, 5/16
7/32
C6XCM1008
5/8
0.63
4.33
2.36
1.16
5,950
3/8
9/32, 5/16
C6XCM1310
3/4
0.70
5.31
2.95
1.76
9,350
1/2
3/8
C6XCM1613
7/8
0.86
6.29
3.54
3.30
15,810
5/8
1/2
C6XCM1816
1
1.02
7.08
3.93
5.07
23,630
5/8
5/8

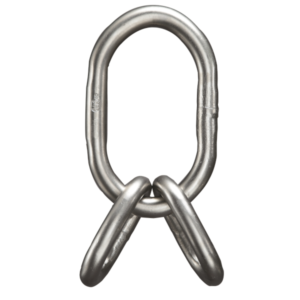

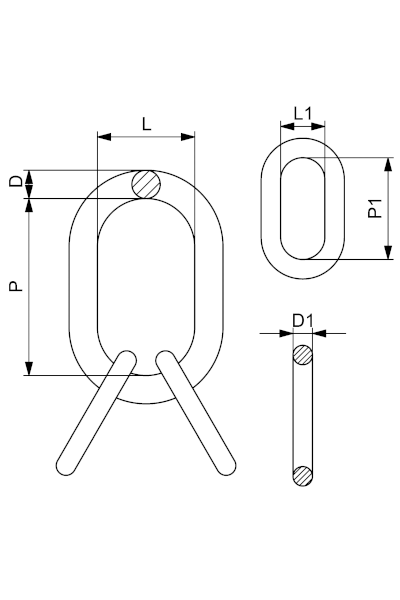

C6XCMC Stainless Steel Master Link Sub Assembly
Part #
Trade Size (in)
D (in)
P (in)
L (in)
D1 (in)
P1 (in)
L1 (in)
Weight (lbs)
WLL (lbs)
Chain Size (in)
C6XCMC06
1/2
0.51
4.33
2.36
0.39
1.73
0.78
1.14
4,330
7/32
C6XCMC07
5/8
0.63
4.33
2.36
0.51
2.12
0.98
2.13
7,150
9/32
C6XCMC08
3/4
0.70
5.31
2.95
0.63
2.75
1.33
3.52
9,100
5/16
C6XCMC10
7/8
0.86
6.29
3.54
0.70
3.34
1.57
6.08
14,300
3/8
C6XCMC13
1
1.02
7.08
3.93
0.86
4.52
1.96
9.81
24,180
1/2
C6XCMC16
1 1/4
1.26
7.87
4.33
1.02
5.51
2.55
16.64
36,140
5/8

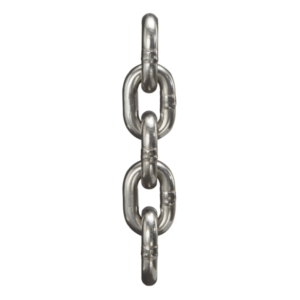

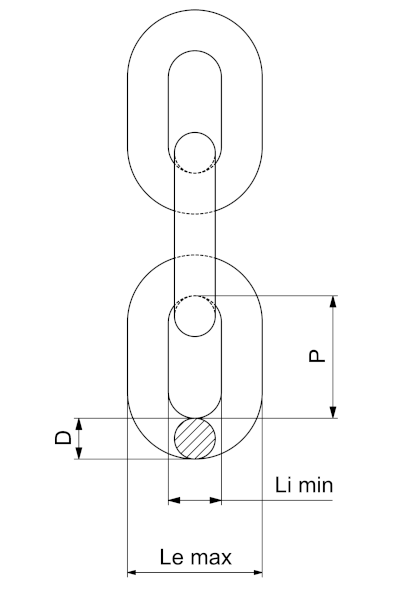

C6XC8182 Stainless Steel Chain
Part #
Chain Size (in)
Diameter (in)
P (in)
Li min (in)
Le max (in)
Weight (lbs/ft)
WLL (lbs)
Max. Continuous Length (ft)
C6XC818206
7/32
0.230
0.70
0.30
0.87
0.54
2,000
656 (200m)
C6XC818207
9/32
0.276
0.82
0.35
1.01
0.74
2,750
656 (200m)
C6XC818208
5/16
0.315
0.94
0.40
1.16
0.94
3,500
656 (200m)
C6XC818210
3/8
0.394
1.18
0.51
1.45
1.48
5,500
492 (150m)
C6XC818213
1/2
0.512
1.53
0.66
1.89
2.55
9,300
328 (100m)
C6XC818216
5/8
0.630
1.88
0.81
2.33
3.83
13,900
164 (50m)
Dimensions per the AMH Cartec drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: AISI 316 stainless; Grade 60; 4:1 design factor. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
OSHA 1910.184 and 1926.251 — general industry and construction sling safety
WSTDA WS-2 and RS-1 — web and round sling design
49 CFR 393.102 to 393.130 — DOT cargo tie-down
NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
