AMH / Cartec Grade 100 / Links, Clutches, Shortening Hooks & Weld-On F

Description

AMH Cartec Grade 100 Links, Clutches, Shortening Hooks & Weld-On Fittings

Grade 100 alloy connecting components and accessories: CLX connecting links, alloy hooks for synthetic slings, weld-on bucket hooks and lifting rings, shortening clutches (with safety and semi-connecting link), CDFX clevis shortening hooks and CDFXA clevis master sets. Rated 2,600 lbs WLL and up.

Grade 100 alloy steel; weld-on items require qualified welding
Connecting, shortening and weld-on styles
Design factor 4:1
Warning: never exceed the Working Load Limit

Specifications & dimensions

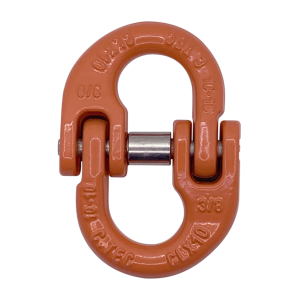

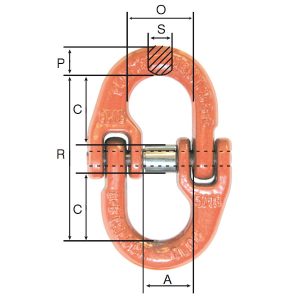

CLX Grade 100 Connecting Link

Part #	Chain Size (in)	WLL (lbs)	A (in)	C (in)	O (in)	R (in)	P (in)	S (in)	Weight (lbs)
CLX06	7/32-1/4	3,000	0.55	0.71	0.71	1.77	0.31	0.30	0.15
CLX07	9/32	4,300	0.70	0.79	0.81	1.99	0.40	0.35	0.31
CLX08	5/16	5,700	0.75	1.00	0.93	2.44	0.45	0.39	0.44
CLX10	3/8	8,800	0.94	1.18	1.08	2.83	0.50	0.50	0.77
CLX13	1/2	15,000	1.10	1.42	1.31	3.44	0.75	0.66	1.63
CLX16	5/8	22,600	1.35	1.59	1.56	4.13	0.81	0.81	2.56
CLX20	3/4	35,300	1.65	1.81	1.81	4.45	1.10	0.98	5.51
CLX22	7/8	42,700	1.93	2.17	2.28	5.24	1.14	1.10	6.83
CLX26	1	59,700	2.24	3.35	2.76	7.56	1.57	1.18	14.99
CLX32	1-1/4	90,400	3.15	3.33	3.70	8.11	1.85	1.38	25.35

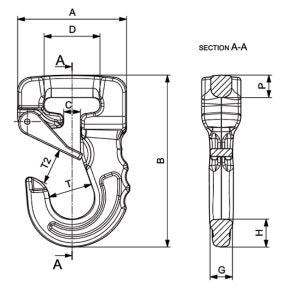

Alloy Hooks for Synthetic Slings

Part #	Color	WLL (lbs)	A (in)	B (in)	C (in)	D (in)	G (in)	H (in)	P (in)	T (in)	Weight (lbs)
CJ026	Purple	2,600	3.07	4.84	0.47	1.61	0.67	0.79	0.63	1.22	1.54
CJ053	Green	5,300	3.58	5.83	0.75	2.17	0.83	1.02	0.67	1.57	2.65
CJ084	Yellow	8,400	4.45	6.89	0.83	2.17	0.98	1.26	0.98	1.97	4.85
CJ132	Red	13,200	5.24	8.78	1,57	2.76	1.42	1.57	1.42	2.34	9.92

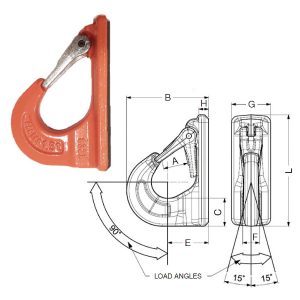

832X Weld-On Bucket Hooks

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C832X015	1.5	0.98	3.11	1.10	1.57	0.59	1.58	0.39	4.61	1.54
C832X025	2.5	1.18	3.98	1.38	1.85	0.83	1.97	0.39	5.79	3.09
C832X040	4	1.46	4.96	1.69	2.48	1.02	2.36	0.59	6.73	5.95
C832X067	6.7	1.89	6.22	2.13	2.80	1.30	2.76	0.59	8.19	10.58

820X Weld-On Lifting Ring Double Base

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C820X04	4	0.55	2.56	1.89	1.14	5.28	0.55	2.36	3.11	1.61
C820X067	6.7	0.79	3.27	2.36	1.54	6.65	0.63	3.46	4.06	3.97
C820X10	10	0.87	3.78	2.56	1.89	7.72	0.77	3.86	4.65	6.61
C820X16	16	1.22	4.96	3.54	2.17	10.39	1.14	5.00	6.10	12.68
C820X30	30	1.65	6.89	5.12	3.11	14.61	1.77	6.18	8.54	35.27

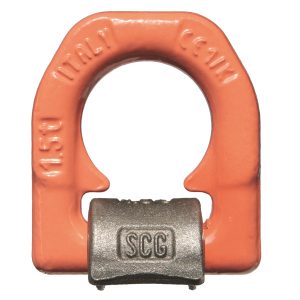

830XM Weld-On Lifting Ring Single-Base w/Spring

Part #	WLL metric tons	A (in)	B (in)	C (in)	D (in)	E (in)	F (in)	G (in)	H (in)	Weight (lbs)
C830X015M	1.5	0.55	2.56	1.50	0.98	2.60	0.63	1.22	3.11	0.86
C830X025M	2.5	0.63	2.95	1.77	1.06	3.03	0.71	1.36	3.58	1.30
C830X040M	4	0.71	3.31	2.01	1.26	3.43	0.79	1.57	4.02	1.92
C830X067M	6.7	0.98	4.61	2.65	1.73	4.53	1.02	2.30	5.55	4.92
C830X010M	10	1.22	4.96	2.64	2.17	5.08	1.12	2.78	6.18	7.34
C830X016M	16	1.77	6.85	3.94	2.72	7.48	1.65	3.43	8.62	20.46

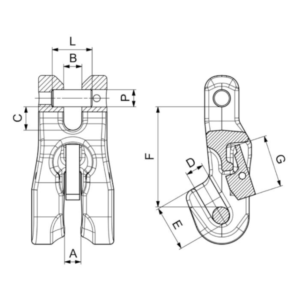

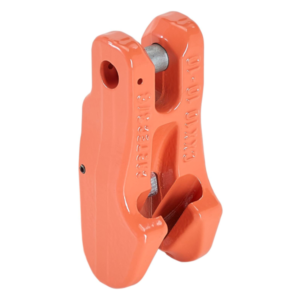

Shortening Clutch with Safety

Part #	For Chain Size	WLL (lbs)	A	B	C	D	E	F	G	PxL	Weight (lbs)
CXX 06	7/32-1/4	3,000	0.31	0.31	0.39	0.31	0.75	1.77	0.91	0.30 x 0.69	0.46
CXX 07	9/32	4,300	0.37	0.37	0.39	0.37	0.93	2.20	1.14	0.35 x 0.89	1.06
CXX 08	5/16	5,700	0.37	0.37	0.39	0.37	0.93	2.20	1.14	0.39 x 0.89	1.06
CXX 10	3/8	8,800	0.47	0.47	0.57	0.47	1.28	3.07	1.42	0.51 x 1.24	2.47
CXX 13	1/2	15,000	0.61	0.61	0.71	0.61	1.73	3.54	1.38	0.63 x 1.65	4.03
CXX 16	5/8	22,600	0.75	0.83	0.83	0.75	1.97	4.17	1.50	0.83 x 2.03	6.24
CXX 20	3/4	35,300	0.94	0.93	0.94	0.94	2.66	5.24	1.73	0.94 x 2.42	14.88

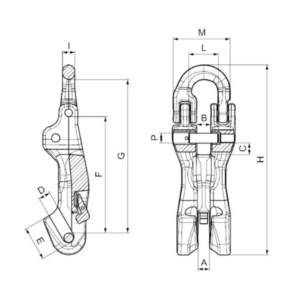

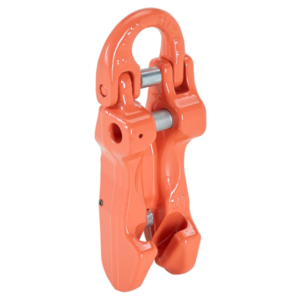

Shortening Clutch with Semi-Connecting Link

Part #	For Chain Size	WLL (lbs)	A	B	C	D	E	F	G	H	I	M	PxL	Weight (lbs)
CXXL 07S	9/32	4,300	0.37	0.37	0.39	0.37	0.93	2.20	1.14	6.22	0.33	1.75	0.35 x 1.34	1.81
CXXL 08S	5/16	5,700	0.37	0.37	0.39	0.37	0.93	2.20	1.14	6.46	0.39	1.97	0.39 x 1.34	1.87
CXXL 10S	3/8	8,800	0.47	0.47	0.57	0.47	1.28	3.07	1.42	7.60	0.49	2.38	0.51 x 1.54	3.55
CXXL 13S	1/2	15,000	0.61	0.61	0.71	0.61	1.73	3.54	1.38	9.82	0.63	2.99	0.63 x 2.09	7.21
CXXL 16S	5/8	22,600	0.75	0.83	0.83	0.75	1.97	4.17	1.50	11.93	0.79	3.82	0.83 x 2.76	12.68

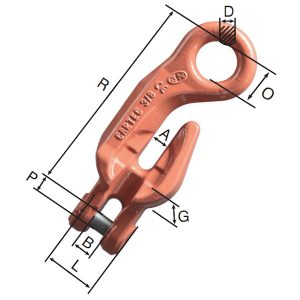

CDFX Clevis Shortening Hook

Part #	For Chain Size	A”	B”	D”	G”	H”	O”	R”	PxL	Weight (lbs)	WLL (lbs)
CDFX06	7/32-1/4	0.31	0.30	0.35	1.14	1.46	0.71	3.35	0.30 x 0.69	0.66	3,000
CDFX07	9/32	0.37	0.39	0.47	1.54	2.13	0.94	4.82	0.35 x 0.89	1.48	4,300
CDFX08	5/16	0.37	0.39	0.47	1.54	2.13	0.94	4.80	0.39 x 0.89	1.48	5,700
CDFX10	3/8	0.51	0.47	0.57	1.97	2.76	1.22	6.30	0.51 x 1.24	2.87	8,800
CDFX13	1/2	0.63	0.61	0.71	2.52	3.62	1.46	8.03	0.63 x 1.65	6.61	15,000
CDFX16	5/8	0.79	0.73	0.94	3.15	4.01	1.89	9.13	0.83 x 2.03	11.46	22,600

CDFXA1 Clevis Master Set 1-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA107	9/32	0.51	2.36	4.33	9.13	2.65	4,300
CDFXA108	5/16	0.63	2.36	4.33	9.13	2.95	5,700
CDFXA110	3/8	0.71	2.95	5.31	11.61	4.89	8,800
CDFXA113	1/2	0.87	3.54	6.30	14.33	9.91	15,000
CDFXA116	5/8	1.02	3.94	7.09	16.22	16.52	22,600

CDFXA2 Clevis Master Set 2-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA207	9/32	0.63	2.36	4.33	9.06	4.43	7,400
CDFXA208	5/16	0.71	2.95	5.31	10.04	4.98	9,900
CDFXA210	3/8	0.87	3.54	6.30	12.59	8.82	15,200
CDFXA213	1/2	1.02	3.94	7.09	15.03	16.98	26,000
CDFXA216	5/8	1.26	4.33	7.87	16.92	29.76	39,100

CDFXA4 Clevis Master Set 4-Leg

Part #	For Chain Size	D”	W”	P”	R”	Weight (lbs)	WLL (lbs)
CDFXA407	9/32	0.87	3.54	6.30	13.78	10.36	11,200
CDFXA408	5/16	0.87	3.54	6.30	13.78	10.36	14,800
CDFXA410	3/8	1.02	3.94	7.09	16.73	18.96	22,900
CDFXA413	1/2	1.26	4.33	7.87	20.47	37.48	39,000
CDFXA416	5/8	1.42	5.51	10.24	25.00	63.93	58,700

Dimensions per the AMH Cartec drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.

Design factor / material: Grade 100 alloy; 4:1 design factor; EN 1677 / NACM G100. Never exceed the Working Load Limit.

Select model below; pricing by quote.

Safety & Standards

Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.

Governing Standards

ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
ASME B30.10 — hooks
OSHA 1910.184 and 1926.251 — general industry and construction sling safety
WSTDA WS-2 and RS-1 — web and round sling design
49 CFR 393.102 to 393.130 — DOT cargo tie-down
NACM — welded steel chain grade specs

Inspection & Safety

Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.

WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
