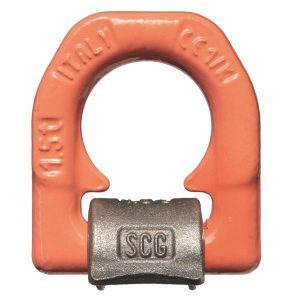

AMH / Cartec Weld-On Lifting Ring, Single Base with Spring (830XM)
Grade 100 — AMH / Cartec (Carcano, made in Italy) weld-on lifting ring with single base and spring return (830XM). 4:1 design factor, individually WLL-marked. Sold quote-only and drop-shipped. WLL in metric tons; dimensions in inches per the Cartec catalog.
Warning: never exceed the Working Load Limit. Weld-on components require qualified welding per the manufacturer’s procedure.
Specifications & dimensions
830XM Weld-On Lifting Ring Single-Base w/Spring
| Part # | WLL metric tons | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| C830X015M | 1.5 | 0.55 | 2.56 | 1.50 | 0.98 | 2.60 | 0.63 | 1.22 | 3.11 | 0.86 |
| C830X025M | 2.5 | 0.63 | 2.95 | 1.77 | 1.06 | 3.03 | 0.71 | 1.36 | 3.58 | 1.30 |
| C830X040M | 4 | 0.71 | 3.31 | 2.01 | 1.26 | 3.43 | 0.79 | 1.57 | 4.02 | 1.92 |
| C830X067M | 6.7 | 0.98 | 4.61 | 2.65 | 1.73 | 4.53 | 1.02 | 2.30 | 5.55 | 4.92 |
| C830X010M | 10 | 1.22 | 4.96 | 2.64 | 2.17 | 5.08 | 1.12 | 2.78 | 6.18 | 7.34 |
| C830X016M | 16 | 1.77 | 6.85 | 3.94 | 2.72 | 7.48 | 1.65 | 3.43 | 8.62 | 20.46 |
Design factor / material: Grade 100 alloy; 4:1 design factor; EN 1677 / NACM G100. Never exceed the Working Load Limit.
Select size below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
830XM Weld-On Lifting Ring Single-Base w/Spring
| Part # | WLL metric tons | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | G (in) | H (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| C830X015M | 1.5 | 0.55 | 2.56 | 1.50 | 0.98 | 2.60 | 0.63 | 1.22 | 3.11 | 0.86 |
| C830X025M | 2.5 | 0.63 | 2.95 | 1.77 | 1.06 | 3.03 | 0.71 | 1.36 | 3.58 | 1.30 |
| C830X040M | 4 | 0.71 | 3.31 | 2.01 | 1.26 | 3.43 | 0.79 | 1.57 | 4.02 | 1.92 |
| C830X067M | 6.7 | 0.98 | 4.61 | 2.65 | 1.73 | 4.53 | 1.02 | 2.30 | 5.55 | 4.92 |
| C830X010M | 10 | 1.22 | 4.96 | 2.64 | 2.17 | 5.08 | 1.12 | 2.78 | 6.18 | 7.34 |
| C830X016M | 16 | 1.77 | 6.85 | 3.94 | 2.72 | 7.48 | 1.65 | 3.43 | 8.62 | 20.46 |
Order Sheet — 6 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| C830X015M (1.5 WLL) | C830X015M | $0.00 | ✓ In Stock | ||
| C830X025M (2.5 WLL) | C830X025M | $0.00 | ✓ In Stock | ||
| C830X040M (4 WLL) | C830X040M | $0.00 | ✓ In Stock | ||
| C830X067M (6.7 WLL) | C830X067M | $0.00 | ✓ In Stock | ||
| C830X010M (10 WLL) | C830X010M | $0.00 | ✓ In Stock | ||
| C830X016M (16 WLL) | C830X016M | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
