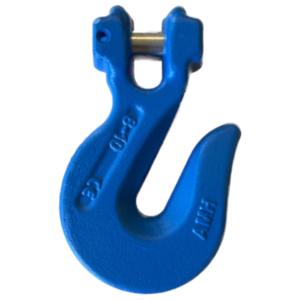

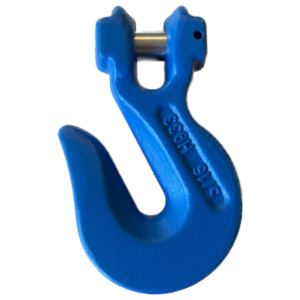

AMH Cartec G100 Transport Clevis Grab Hook — No Saddle
Grade 100 alloy clevis grab hook (no saddle) for shortening or connecting Grade 100 transport chain in load-securement and lifting service. Rated 5,700 to 15,000 lbs WLL.
- Grade 100 alloy steel; clevis connection with pin & cotter
- Trade sizes 5/16", 3/8", 1/2"
- Design factor 4:1
- Warning: never exceed the Working Load Limit; inspect before each use
Specifications & dimensions
Alloy Transport Clevis Grab Hook w/ no Saddle G100
| Part # | Trade Size (in) | WLL (lbs) | Weight (lbs) | A (in) | E (in) | H (in) | L (in) |
|---|---|---|---|---|---|---|---|
| 10CGH08NSC | 5/16 | 5,700 | 0.92 | 0.37 | 0.40 | 0.94 | 3.74 |
| 10CGH10NSC | 3/8 | 8,800 | 1.85 | 0.47 | 0.51 | 1.14 | 4.99 |
| 10CGH13NSC | 1/2 | 15,000 | 3.75 | 0.61 | 0.67 | 1.50 | 6.10 |
Dimensions per the AMH Cartec drawings shown in the gallery. Dimensions in inches unless noted.
Design factor / material: Grade 100 alloy; 4:1 design factor; clevis grab hook. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Alloy Transport Clevis Grab Hook w/ no Saddle G100
| Part # | Trade Size (in) | WLL (lbs) | Weight (lbs) | A (in) | E (in) | H (in) | L (in) |
|---|---|---|---|---|---|---|---|
| 10CGH08NSC | 5/16 | 5,700 | 0.92 | 0.37 | 0.40 | 0.94 | 3.74 |
| 10CGH10NSC | 3/8 | 8,800 | 1.85 | 0.47 | 0.51 | 1.14 | 4.99 |
| 10CGH13NSC | 1/2 | 15,000 | 3.75 | 0.61 | 0.67 | 1.50 | 6.10 |
Order Sheet — 3 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| 10CGH08NSC – 5/16" (5,700 lb WLL) | 10CGH08NSC | $0.00 | ✓ In Stock | ||
| 10CGH10NSC – 3/8" (8,800 lb WLL) | 10CGH10NSC | $0.00 | ✓ In Stock | ||
| 10CGH13NSC – 1/2" (15,000 lb WLL) | 10CGH13NSC | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
