Manufacturer Documents
Documents are hosted by the manufacturer and open in a new tab. Test and mill certificates for your specific order are available on request — email sales@slingcenter.com with your order number.
Specifications — Full Dimensions by Size
Manufacturer’s full wording: “Grade 100 alloy; 5:1 design factor; for synthetic round and web slings”
| WLL (lb) | Design Factor | Weight (lb)(kg) | A (in)(mm) | B (in)(mm) | C (in)(mm) | D (in)(mm) | G (in)(mm) | H (in)(mm) | P (in)(mm) | T (in)(mm) | Stock # |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2,600 | 5:1 | 1.540.7 | 3.0778.0 | 4.84122.9 | 0.4711.9 | 1.6140.9 | 0.6717.0 | 0.7920.1 | 0.6316.0 | 1.2231.0 | CJ026 |
| 5,300 | 5:1 | 2.651.2 | 3.5890.9 | 5.83148.1 | 0.7519.0 | 2.1755.1 | 0.8321.1 | 1.0225.9 | 0.6717.0 | 1.5739.9 | CJ053 |
| 8,400 | 5:1 | 4.852.2 | 4.45113.0 | 6.89175.0 | 0.8321.1 | 2.1755.1 | 0.9824.9 | 1.2632.0 | 0.9824.9 | 1.9750.0 | CJ084 |
| 13,200 | 5:1 | 9.924.5 | 5.24133.1 | 8.78223.0 | 1.5739.9 | 2.7670.1 | 1.4236.1 | 1.5739.9 | 1.4236.1 | 2.3459.4 | CJ132 |
Dimensions and ratings sourced directly from manufacturer catalog pages. SlingCenter does not derive or restate ratings.
AMH / Cartec Grade 100 Synthetic Sling Hook (CJ)
Grade 100 alloy sling hook made to seat a synthetic round sling or web sling directly in its flat bearing saddle, with a forged safety latch. Each hook is color-coded to match the round sling of the same color, so the right hook goes on the right sling at a glance:
- Purple CJ026 (2,600 lb) - matches purple round slings (RoundUp ENR1)
- Green CJ053 (5,300 lb) - matches green round slings (RoundUp ENR2)
- Yellow CJ084 (8,400 lb) - matches yellow round slings (RoundUp ENR3). Also fits a 2" 2-ply eye & eye or 2" 1-ply endless web sling: Liftex EE292, TE292 or EN192
- Red CJ132 (13,200 lb) - matches red round slings (RoundUp ENR5)
WLL is rated at a 5:1 design factor. Never exceed the Working Load Limit of the hook or the sling, whichever is lower.
Specifications

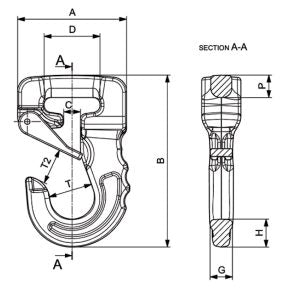

| Part # | Color | WLL (lbs) | A (in) | B (in) | C (in) | D (in) | G (in) | H (in) | P (in) | T (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJ026 | Purple | 2,600 | 3.07 | 4.84 | 0.47 | 1.61 | 0.67 | 0.79 | 0.63 | 1.22 | 1.54 |
| CJ053 | Green | 5,300 | 3.58 | 5.83 | 0.75 | 2.17 | 0.83 | 1.02 | 0.67 | 1.57 | 2.65 |
| CJ084* | Yellow | 8,400 | 4.45 | 6.89 | 0.83 | 2.17 | 0.98 | 1.26 | 0.98 | 1.97 | 4.85 |
| CJ132 | Red | 13,200 | 5.24 | 8.78 | 1.57 | 2.76 | 1.42 | 1.57 | 1.42 | 2.34 | 9.92 |
*CJ084 also fits a 2" 2-ply eye & eye or 2" 1-ply endless web sling (Liftex EE292, TE292 or EN192). Grade 100 alloy, 5:1 design factor. Dimensions per AMH (All Material Handling) published chart.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 4 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Weight ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|---|
| Purple - CJ026 (2,600 lb WLL) | CJ026 | $91.26 | 1.54 lb | ✓ In Stock | ||
| Green - CJ053 (5,300 lb WLL) | CJ053 | $120.98 | 2.65 lb | ✓ In Stock | ||
| Yellow - CJ084 (8,400 lb WLL) | CJ084 | $141.32 | 4.85 lb | ✓ In Stock | ||
| Red - CJ132 (13,200 lb WLL) | CJ132 | $266.12 | 9.92 lb | ✓ In Stock |
Weights are approximate shipping weights.
