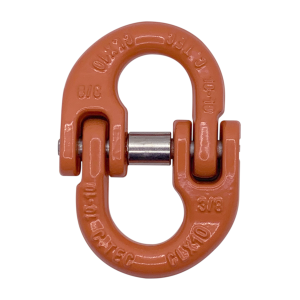

AMH / Cartec Connecting Link (CLX)
Grade 100 — AMH / Cartec (Carcano, made in Italy) coupling / connecting link for joining chain-sling components (CLX). 4:1 design factor, individually WLL-marked. Sold quote-only and drop-shipped. WLL in pounds; dimensions in inches per the Cartec catalog.
Warning: never exceed the Working Load Limit.

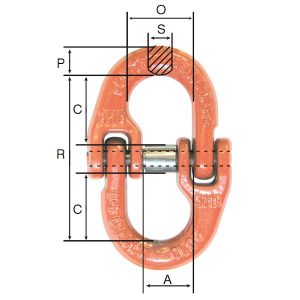

Specifications & dimensions
CLX Grade 100 Connecting Link
| Part # | Chain Size (in) | WLL (lbs) | A (in) | C (in) | O (in) | R (in) | P (in) | S (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| CLX06 | 7/32-1/4 | 3,000 | 0.55 | 0.71 | 0.71 | 1.77 | 0.31 | 0.30 | 0.15 |
| CLX07 | 9/32 | 4,300 | 0.70 | 0.79 | 0.81 | 1.99 | 0.40 | 0.35 | 0.31 |
| CLX08 | 5/16 | 5,700 | 0.75 | 1.00 | 0.93 | 2.44 | 0.45 | 0.39 | 0.44 |
| CLX10 | 3/8 | 8,800 | 0.94 | 1.18 | 1.08 | 2.83 | 0.50 | 0.50 | 0.77 |
| CLX13 | 1/2 | 15,000 | 1.10 | 1.42 | 1.31 | 3.44 | 0.75 | 0.66 | 1.63 |
| CLX16 | 5/8 | 22,600 | 1.35 | 1.59 | 1.56 | 4.13 | 0.81 | 0.81 | 2.56 |
| CLX20 | 3/4 | 35,300 | 1.65 | 1.81 | 1.81 | 4.45 | 1.10 | 0.98 | 5.51 |
| CLX22 | 7/8 | 42,700 | 1.93 | 2.17 | 2.28 | 5.24 | 1.14 | 1.10 | 6.83 |
| CLX26 | 1 | 59,700 | 2.24 | 3.35 | 2.76 | 7.56 | 1.57 | 1.18 | 14.99 |
| CLX32 | 1-1/4 | 90,400 | 3.15 | 3.33 | 3.70 | 8.11 | 1.85 | 1.38 | 25.35 |
Design factor / material: Grade 100 alloy; 4:1 design factor; EN 1677 / NACM G100. Never exceed the Working Load Limit.
Select size below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
CLX Grade 100 Connecting Link
| Part # | Chain Size (in) | WLL (lbs) | A (in) | C (in) | O (in) | R (in) | P (in) | S (in) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| CLX06 | 7/32-1/4 | 3,000 | 0.55 | 0.71 | 0.71 | 1.77 | 0.31 | 0.30 | 0.15 |
| CLX07 | 9/32 | 4,300 | 0.70 | 0.79 | 0.81 | 1.99 | 0.40 | 0.35 | 0.31 |
| CLX08 | 5/16 | 5,700 | 0.75 | 1.00 | 0.93 | 2.44 | 0.45 | 0.39 | 0.44 |
| CLX10 | 3/8 | 8,800 | 0.94 | 1.18 | 1.08 | 2.83 | 0.50 | 0.50 | 0.77 |
| CLX13 | 1/2 | 15,000 | 1.10 | 1.42 | 1.31 | 3.44 | 0.75 | 0.66 | 1.63 |
| CLX16 | 5/8 | 22,600 | 1.35 | 1.59 | 1.56 | 4.13 | 0.81 | 0.81 | 2.56 |
| CLX20 | 3/4 | 35,300 | 1.65 | 1.81 | 1.81 | 4.45 | 1.10 | 0.98 | 5.51 |
| CLX22 | 7/8 | 42,700 | 1.93 | 2.17 | 2.28 | 5.24 | 1.14 | 1.10 | 6.83 |
| CLX26 | 1 | 59,700 | 2.24 | 3.35 | 2.76 | 7.56 | 1.57 | 1.18 | 14.99 |
| CLX32 | 1-1/4 | 90,400 | 3.15 | 3.33 | 3.70 | 8.11 | 1.85 | 1.38 | 25.35 |
Order Sheet — 10 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| CLX06 (3,000 WLL) | CLX06 | $0.00 | ✓ In Stock | ||
| CLX07 (4,300 WLL) | CLX07 | $0.00 | ✓ In Stock | ||
| CLX08 (5,700 WLL) | CLX08 | $0.00 | ✓ In Stock | ||
| CLX10 (8,800 WLL) | CLX10 | $0.00 | ✓ In Stock | ||
| CLX13 (15,000 WLL) | CLX13 | $0.00 | ✓ In Stock | ||
| CLX16 (22,600 WLL) | CLX16 | $0.00 | ✓ In Stock | ||
| CLX20 (35,300 WLL) | CLX20 | $0.00 | ✓ In Stock | ||
| CLX22 (42,700 WLL) | CLX22 | $0.00 | ✓ In Stock | ||
| CLX26 (59,700 WLL) | CLX26 | $0.00 | ✓ In Stock | ||
| CLX32 (90,400 WLL) | CLX32 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
