AMH Cartec Blue Classic Wire-Rope Hooks — Alloy
Blue Classic alloy hooks for wire-rope and chain sling assemblies: swivel hooks with latch, eye hooks with latch, and swivel hooks with ball-bearing swivel. Trade sizes 1t through larger.
- Alloy steel, blue-finish; forged latch
- Swivel, ball-bearing swivel, and eye styles
- Design factor 4:1 (5:1 available)
- Warning: never exceed the Working Load Limit
Specifications & dimensions

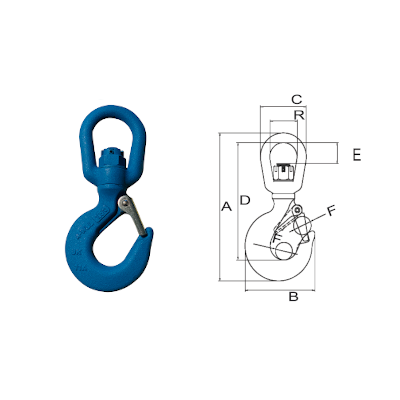

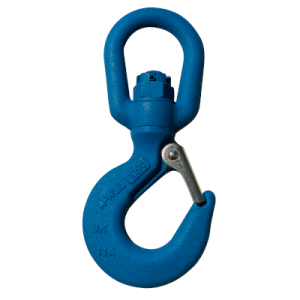

Blue Classic Alloy Swivel Hook w/ Latch
| Part # | Trade Size | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | R (in) |
|---|---|---|---|---|---|---|---|---|---|
| ASH0100A | 1t | 0.99 | 5.81 | 2.86 | 2.02 | 4.57 | 0.85 | 0.63 | 1.24 |
| ASH0150A | 1-1/2t | 1.50 | 6.81 | 3.06 | 2.52 | 5.43 | 1.26 | 0.79 | 1.50 |
| ASH0200A | 2t | 2.96 | 8.58 | 3.84 | 3.27 | 6.81 | 1.69 | 0.91 | 1.97 |
| ASH0300A | 3t | 3.66 | 8.84 | 4.23 | 3.27 | 7.01 | 1.50 | 0.98 | 1.97 |
| ASH0500A | 5t | 6.76 | 10.98 | 5.20 | 4.21 | 8.74 | 2.05 | 1.34 | 2.76 |
| ASH0700A | 7t | 11.11 | 13.23 | 6.46 | 4.72 | 10.55 | 2.09 | 1.97 | 2.99 |
| ASH1100A | 11t | 21.38 | 16.46 | 7.60 | 5.47 | 13.27 | 2.87 | 2.36 | 3.15 |

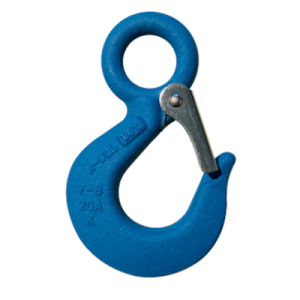

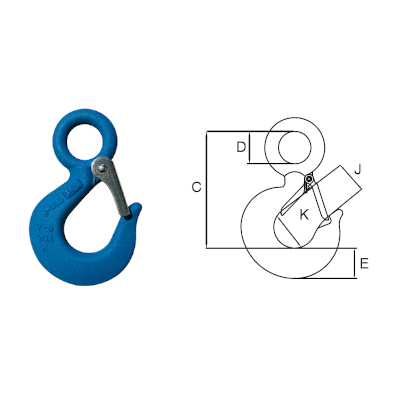

Blue Classic Alloy Eye Hook w/ Latch
| Part # | Trade Size | Weight (lbs) | C (in) | D (in) | E (in) | J (in) | K (in) |
|---|---|---|---|---|---|---|---|
| 0120SA | 1.25t | 0.73 | 3.23 | 0.77 | 0.83 | 0.79 | 1.26 |
| 0160SA | 1.6t | 1.04 | 3.66 | 0.98 | 0.91 | 0.87 | 1.38 |
| 0250SA | 2.5t | 1.68 | 4.16 | 1.06 | 1.05 | 0.91 | 1.52 |
| 0320SA | 3.2t | 2.20 | 4.79 | 1.28 | 1.22 | 1.06 | 1.68 |
| 0540SA | 5.4t | 4.10 | 5.75 | 1.50 | 1.47 | 1.26 | 2.00 |

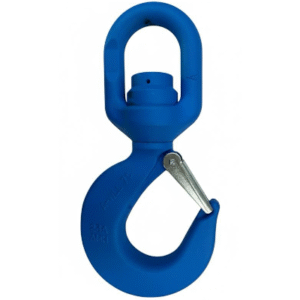

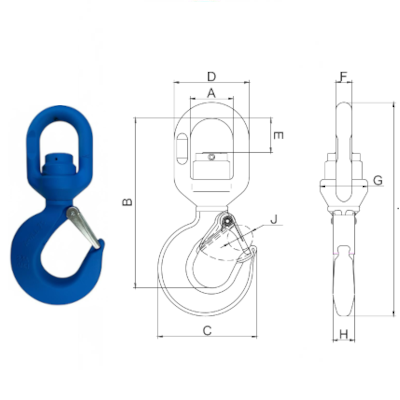

Blue Classic Alloy Swivel Hook w/ Ball-Bearing & Latch
| Part # | Trade Size | Weight (lbs) | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | J (in) |
|---|---|---|---|---|---|---|---|---|---|
| ASH0200BB | 2t | 2.98 | 1.63 | 6.65 | 3.84 | 2.76 | 1.26 | 0.55 | 0.91 |
| ASH0300BB | 3t | 4.03 | 1.89 | 7.32 | 4.25 | 3.23 | 1.81 | 0.65 | 0.98 |
| ASH0500BB | 5t | 7.54 | 2.17 | 8.98 | 5.20 | 3.78 | 2.17 | 0.81 | 1.34 |
| ASH0700BB | 7t | 11.46 | 2.44 | 10.59 | 6.46 | 4.29 | 2.13 | 0.93 | 1.97 |
| ASH1100BB | 11t | 21.72 | 3.15 | 13.19 | 7.68 | 5.51 | 2.83 | 1.08 | 2.36 |
Dimensions per the AMH Cartec drawings shown in the gallery. Dimensions in inches unless noted; WLL in pounds unless noted.
Design factor / material: Alloy steel; 4:1 design factor (5:1 available); Blue Classic. Never exceed the Working Load Limit.
Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
