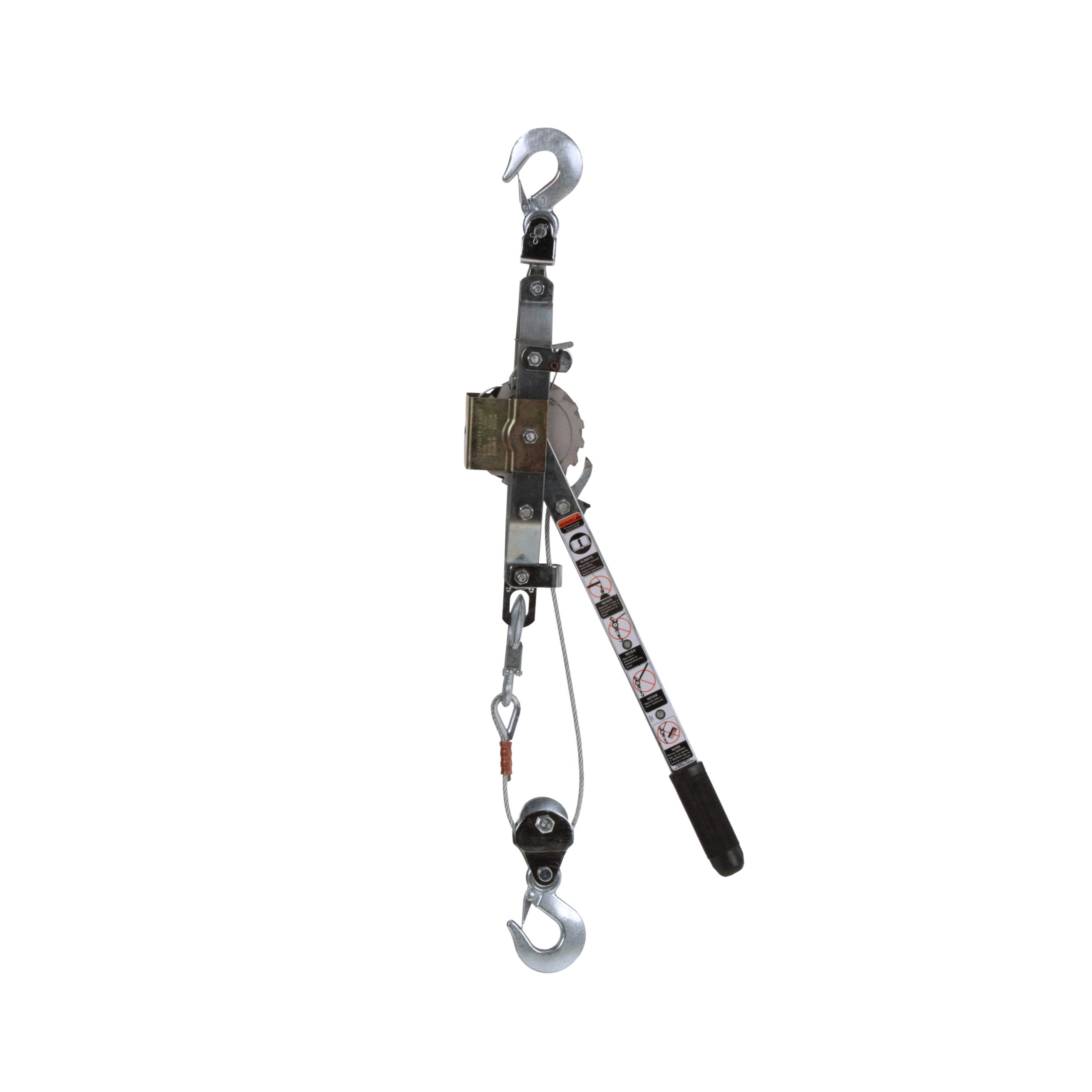

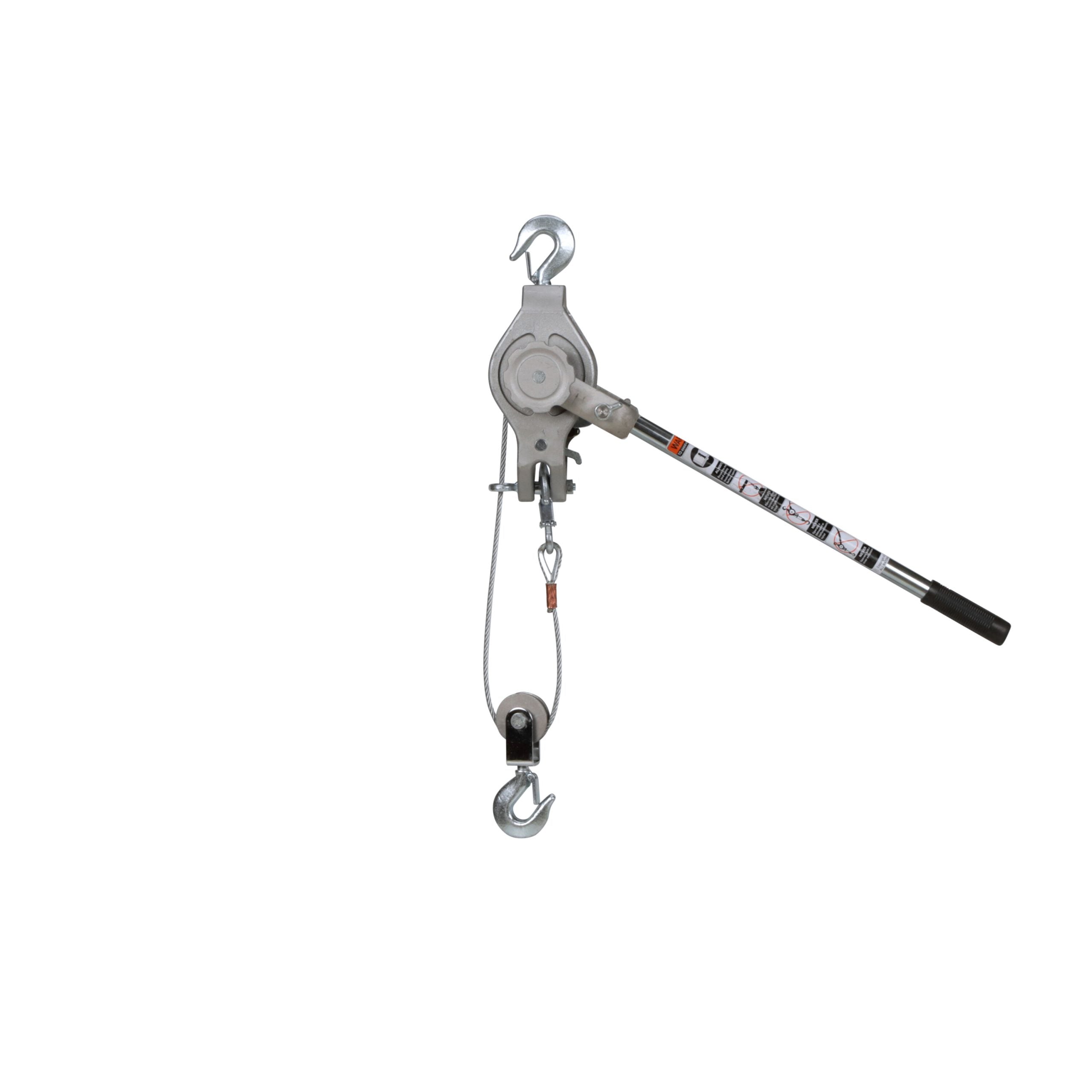

AMH Cable Pullers — 3-Hook Wire-Rope Puller (Come-Along)
AMH cable pullers are galvanized aircraft-quality wire-rope come-alongs rated 1/2 to 1-1/2 metric ton. The 3-hook design allows 1-part or 2-part rigging for a choice of capacity and lift. “One notch at a time” ratchet-and-pawl lowering gives precise load control, and safety latches secure the alloy-steel load hooks.
- 3-hook design — 1-part or 2-part rigging for a choice of capacity and lift
- Galvanized aircraft-quality wire rope, stainless springs, and plated external parts for corrosion resistance
- C3400 — lightweight aluminum frame with an overload-indicating reversible handle (bends noticeably when overloaded; repositions so pull is always in the right direction). P2000 — formed-steel frame. Both use a one-piece cast-aluminum drum.
- Safety latches on alloy-steel load hooks; buttress tooth with solid-steel drive and holding dog (not laminated plates); spring-steel drum shield spools cable evenly
- Standards: ASME/ANSI B30.21 (4:1 design factor), OSHA, NASA-STD-8719.9
- ATEX rated II 3 GD c IIB 54°C X for limited use in hazardous environments
Select model below; pricing by quote.
Capacity & specifications
| Model | Rigging | WLL (ASME B30.21, 4:1) | A″ min between hooks | Ave. pull @max load | Cable size | Hook opening w/ latch | Lever length | Weight |
|---|---|---|---|---|---|---|---|---|
| P2000-3H | 1 fall | 1,000 lb @ 15 ft lift | 21.0″ | 60 lb | 3/16″ | 0.91″ | 18″ | 10 lb |
| P2000-3H | 2 falls | 2,000 lb @ 7.5 ft lift | 27.5″ | 60 lb | 3/16″ | 0.91″ | 18″ | 10 lb |
| C3400-3H | 1 fall | 1,700 lb @ 20 ft lift | 17.0″ | 80 lb | 1/4″ | 0.94″ | 25″ | 16 lb |
| C3400-3H | 2 falls | 3,400 lb @ 10 ft lift | 23.8″ | 80 lb | 1/4″ | 0.94″ | 25″ | 16 lb |
Dimensions in inches. Select model below; pricing by quote.
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH Cable Pullers — 3-Hook Wire-Rope Puller — Specifications & Dimensions
| Model | Frame | Cable (in) | Hook opening (in) | Lever length (in) | Avg. pull (lb) | Weight (lb) | Falls | WLL (lb) | Std. lift (ft) | A min. between hooks (in) |
|---|---|---|---|---|---|---|---|---|---|---|
| P2000-3H | formed steel | 3/16 | 0.91 | 18 | 60 | 10 | 1 | 1000 | 15 | 21.0 |
| P2000-3H | formed steel | 3/16 | 0.91 | 18 | 60 | 10 | 2 | 2000 | 7.5 | 27.5 |
| C3400-3H | aluminum, overload-indicating handle | 1/4 | 0.94 | 25 | 80 | 16 | 1 | 1700 | 20 | 17.0 |
| C3400-3H | aluminum, overload-indicating handle | 1/4 | 0.94 | 25 | 80 | 16 | 2 | 3400 | 10 | 23.8 |

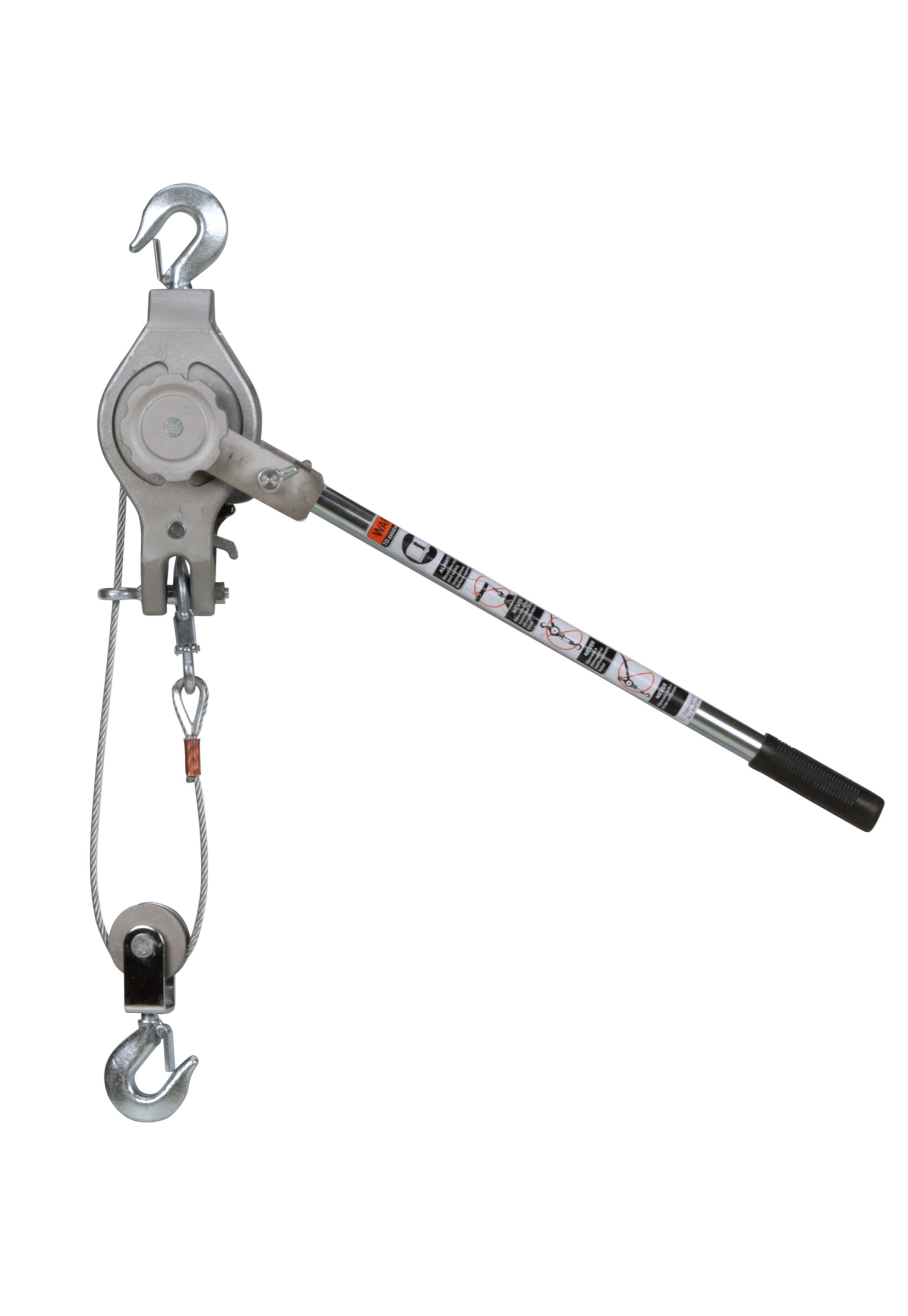

Ratings shown per reeving (1-fall / 2-fall). A = minimum distance between hooks fully closed. See the C3400 schematic in the gallery.
Design factor / testing: ASME/ANSI B30.21, 4:1 design factor; ATEX rated II 3 GD c IIB 54°C X
Order Sheet — 2 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| P2000-3H – 1,000 / 2,000 lb (3-hook) | P2000-3H | $0.00 | ✓ In Stock | ||
| C3400-3H – 1,700 / 3,400 lb (3-hook) | C3400-3H | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
