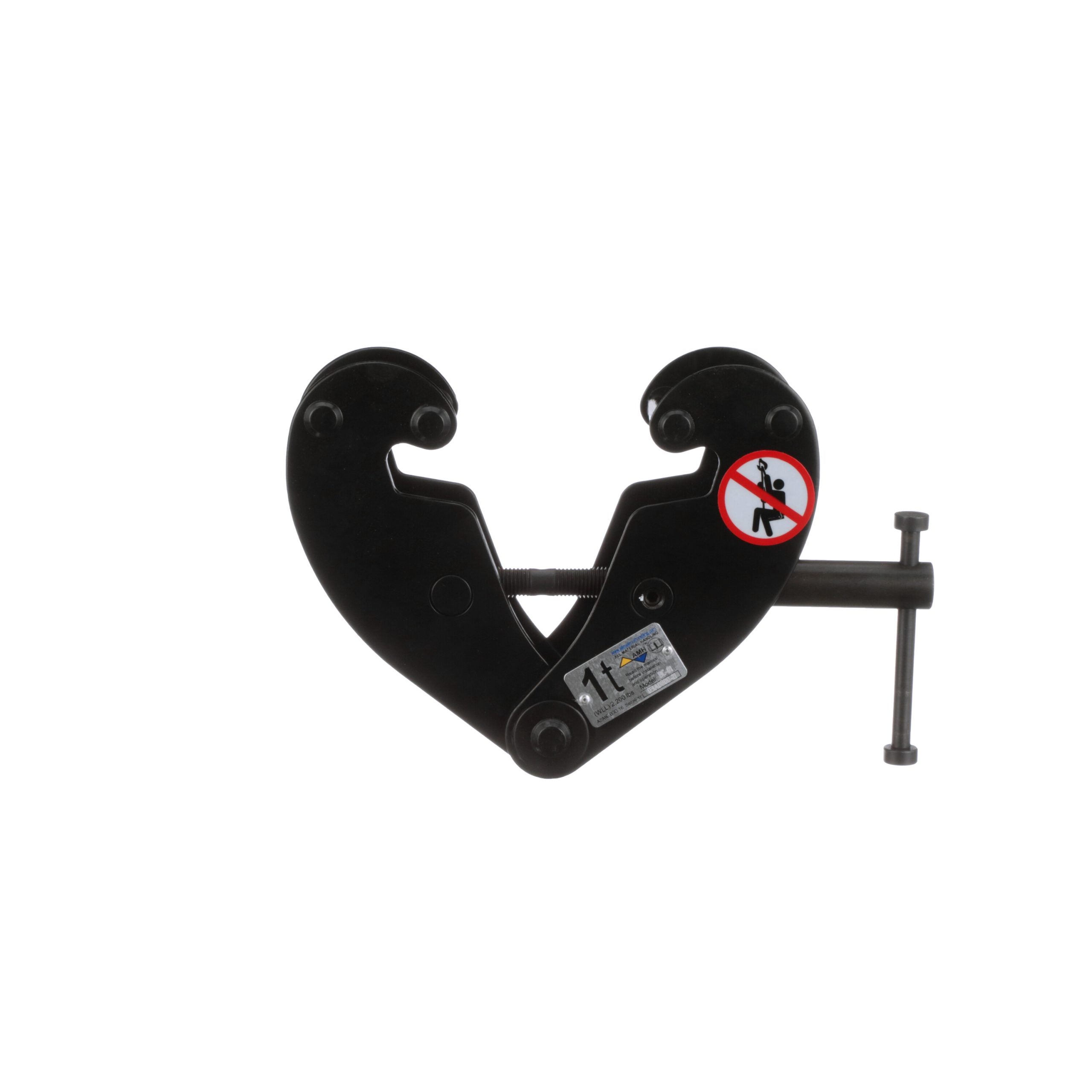

AMH BC-Series — Fixed Beam Clamp
The AMH BC fixed beam clamp is the easy way to install a fixed hoist mount or rigging point on a structural beam — simple hand installation, no tools required. 1 to 10 ton capacity for straight vertical loading. Compact, portable, low-headroom “Theatrical Black” matte finish.
- Capacity range: 1 – 10 ton
- 5:1 design factor for use with powered or manual hoists
- The easy way to install a fixed hoist mount or rigging point — simple installation by hand, no tools required
- Compact and portable low-headroom design
- Fixed (no shackle) — vertical loading only. For angled loading, see the BCD beam clamp with movable shackle.
- “Theatrical Black” — all parts matte black
- Standards: OSHA, ASME B30, NASA-STD-8719.9, EU 2006/42/EC
Select capacity below; pricing by quote.

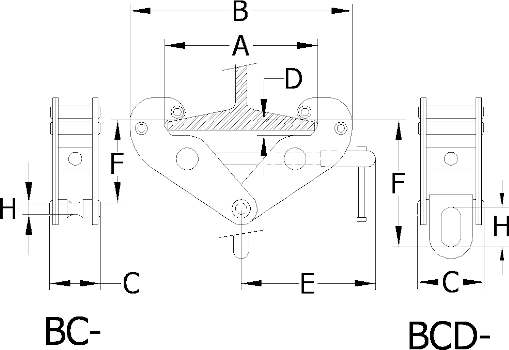

Capacity & dimensions
AMH BC-Series Fixed Beam Clamp — Specifications & Dimensions
| Model | Capacity | WLL @0° (lb) | A – flange range (in) | B max (in) | C (in) | D (in) | E (in) | F max (in) | H (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC-01 | 1t | 2200 | 3.1-9.4 | 14.6 | 3.7 | 0.75 | 7.8 | 5.7 | 0.8 | 7.7 |
| BC-02 | 2t | 4400 | 3.1-9.4 | 14.6 | 4.0 | 0.75 | 7.8 | 5.7 | 0.8 | 9.9 |
| BC-03 | 3t | 6600 | 3.5-13.0 | 19.7 | 5.2 | 1.12 | 10.4 | 8.2 | 0.9 | 20.9 |
| BC-05 | 5t | 11000 | 3.5-13.0 | 19.7 | 5.6 | 1.41 | 10.4 | 8.2 | 0.9 | 24.2 |
| BC-10 | 10t | 22000 | 3.5-13.4 | 20.6 | 7.1 | 1.5 | 11.2 | 8.7 | 1.5 | 35.2 |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
AMH BC-Series Fixed Beam Clamp — Specifications & Dimensions
| Model | Capacity | WLL @0° (lb) | A – flange range (in) | B max (in) | C (in) | D (in) | E (in) | F max (in) | H (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| BC-01 | 1t | 2200 | 3.1-9.4 | 14.6 | 3.7 | 0.75 | 7.8 | 5.7 | 0.8 | 7.7 |
| BC-02 | 2t | 4400 | 3.1-9.4 | 14.6 | 4.0 | 0.75 | 7.8 | 5.7 | 0.8 | 9.9 |
| BC-03 | 3t | 6600 | 3.5-13.0 | 19.7 | 5.2 | 1.12 | 10.4 | 8.2 | 0.9 | 20.9 |
| BC-05 | 5t | 11000 | 3.5-13.0 | 19.7 | 5.6 | 1.41 | 10.4 | 8.2 | 0.9 | 24.2 |
| BC-10 | 10t | 22000 | 3.5-13.4 | 20.6 | 7.1 | 1.5 | 11.2 | 8.7 | 1.5 | 35.2 |
Order Sheet — 5 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|
| BC-01 – 1t (2,200 lb) fixed | BC-01 | $0.00 | ✓ In Stock | ||
| BC-02 – 2t (4,400 lb) fixed | BC-02 | $0.00 | ✓ In Stock | ||
| BC-03 – 3t (6,600 lb) fixed | BC-03 | $0.00 | ✓ In Stock | ||
| BC-05 – 5t (11,000 lb) fixed | BC-05 | $0.00 | ✓ In Stock | ||
| BC-10 – 10t (22,000 lb) fixed | BC-10 | $0.00 | ✓ In Stock |
Bulk order? Email sales@slingcenter.com with your list — we'll build a single quote.
