Specifications
| Brand | Liftex® |
|---|---|
| Part number | EE291 |
| Type | Flat Eye & Eye |
| Material | Polyester |
| Ply | 2 Ply |
| Width | 1” |
| Vertical WLL | 3,200 lbs. |
| Choker WLL | 2,560 lbs. |
| Vertical basket WLL | 6,400 lbs. |
| Design factor | 5:1 |
| Standards | ASME B30.9, ASME B30.26, WSTDA |
| Country of origin | U.S.A |
Capacities are for a single sling at the stated design factor. Basket ratings assume vertical legs; reduce for sling angle. Inspect before every use per ASME B30.9. Weights are approximate shipping weights.
Sizes & part numbers
| Part number | Size / length | WLL | Weight |
|---|---|---|---|
| AS-EE291X08PD | Standard Pro-Edge / 8 ft | 3,200 lb | 1.05 lb |
| AS-EE291X102IN-PD | Standard Pro-Edge / 8 ft 6 in | 3,200 lb | 1.05 lb |
| AS-EE291X10PD | Standard Pro-Edge / 10 ft | 3,200 lb | 1.31 lb |
| AS-EE291X12PD | Standard Pro-Edge / 12 ft | 3,200 lb | 1.57 lb |
| AS-FWE291X08PD | Reinforced Eyes / 8 ft | 3,200 lb | 0.4 lb |
| AS-FWE291X102IN-PD | Reinforced Eyes / 8 ft 6 in | 3,200 lb | 1.05 lb |
| AS-FWE291X10PD | Reinforced Eyes / 10 ft | 3,200 lb | 0.4 lb |
| AS-FWE291X12PD | Reinforced Eyes / 12 ft | 3,200 lb | 0.4 lb |
| AS-FWE291X08PD-BW | Reinforced Eyes & Body / 8 ft | 3,200 lb | 0.4 lb |
| AS-FWE291X102IN-PD-BW | Reinforced Eyes & Body / 8 ft 6 in | 3,200 lb | 1.05 lb |
| AS-FWE291X10PD-BW | Reinforced Eyes & Body / 10 ft | 3,200 lb | 0.4 lb |
| AS-FWE291X12PD-BW | Reinforced Eyes & Body / 12 ft | 3,200 lb | 0.4 lb |

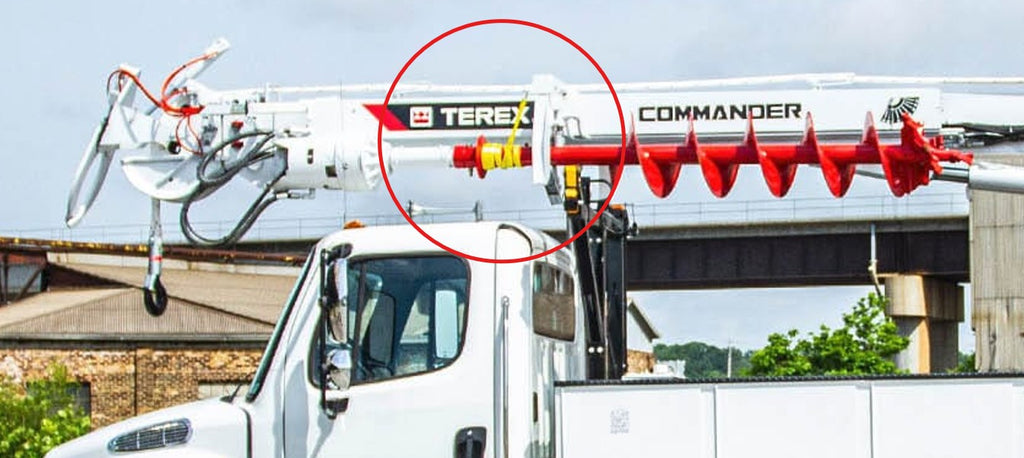

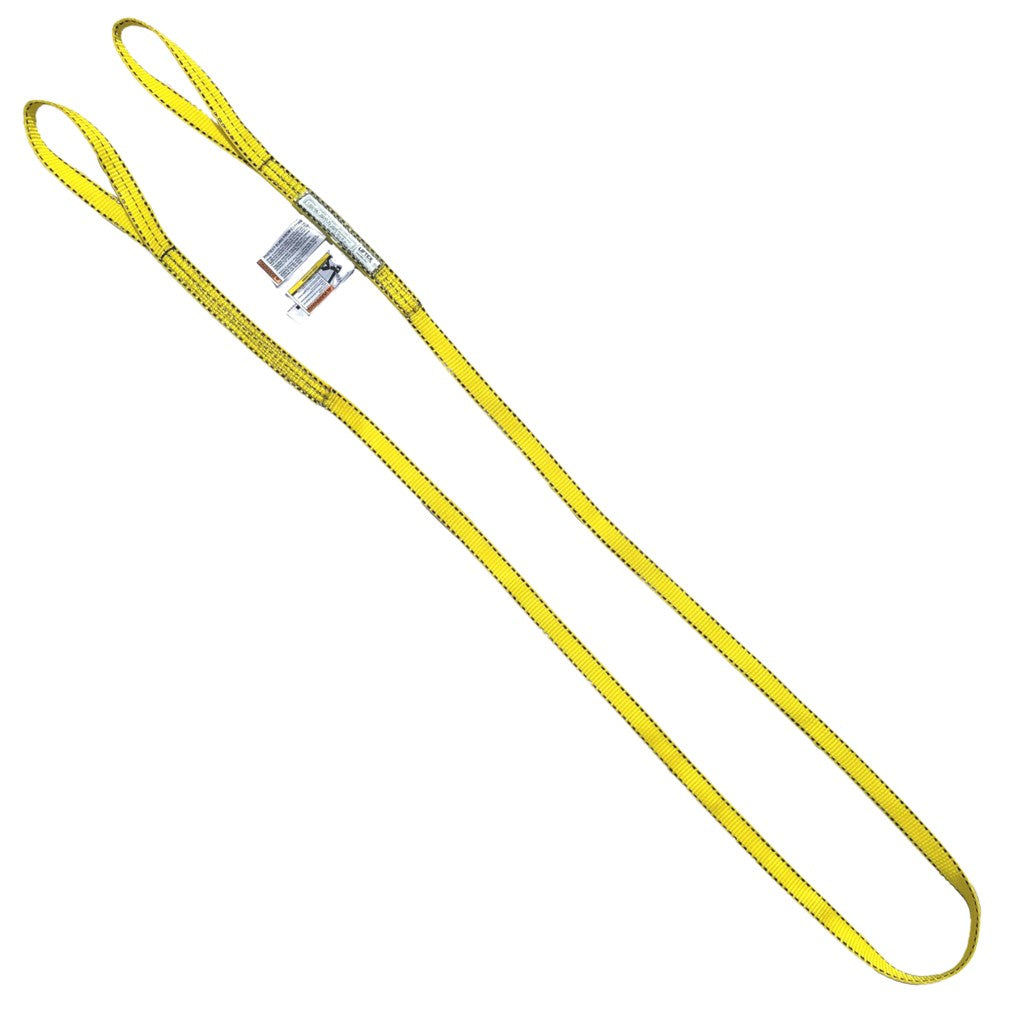

Liftex® Pro-Edge Auger Sling (Wind-Up Sling for Auger Trucks) Keep your auger secure, controlled, and transport-ready. The Liftex Pro-Edge Auger Sling is designed specifically for auger/digger derrick trucks to safely secure the auger tight against the boom during transport. Operators simply wrap and tension the sling to snug the auger to the crane neck, preventing movement, vibration, and equipment damage while driving. When it’s time to work, just unwind and unhook—fast, simple, and efficient. Built with abrasion-resistant Pro-Edge webbing, this sling delivers longer service life in tough utility environments compared to standard web slings.
Key Features:
- ✔ Designed for auger trucks & digger derricks
- ✔ Keeps auger tight to boom during transport
- ✔ Wind-up style for quick securement and release
- ✔ Liftex Pro-Edge webbing for enhanced cut resistance
- ✔ Lightweight and easy to handle in the field
- ✔ Made in the USA
Available Options:
- Standard Pro-Edge – Cost-effective, Pro-Edge proven performance for general use
- Reinforced Eyes (Optional) – Sewn on added durability in the eyes that are high-wear contact areas
- Reinforced Eyes & Body (Optional) - Sewn on added durability on the entirety of the Auger Sling - both eyes and body of the sling.
- Typical Applications Utility line work Pole setting operations Digger derrick trucks Construction auger transport Fleet safety compliance
- **NOTE** Wear protection is non-load bearing, this means that the capacity for all protection types remains the same.
▼ Product Details
Specifications
Material: Liftex Pro-Edge synthetic webbing Width: 1" (typical) Construction: 2-ply web sling Configuration: Eye & Eye (wind-up use) Working Load Limit: ~3,200 lbs (vertical) (varies by configuration) Length Options: Multiple lengths available Color: Yellow (standard)How It Works
Attach sling to designated connection point of unsecured auger, and on the boom. Wrap sling around auger shaft Wind/tension sling until auger is snug against boom Secure for transport To deploy: Unwind sling Disconnect Auger is ready for useWhy Pro-Edge?
Traditional web slings can fail prematurely when exposed to abrasion and edge contact. Liftex Pro-Edge webbing is engineered to: Increase abrasion resistance, Extend sling life, Reduce replacement frequency, Improve safety in rugged environments. Ideal for utility crews where equipment sees daily wear.Reinforced vs. Standard Eyes
Standard Eye: Lightweight Flexible Best for lower wear applications Reinforced Eye (Recommended): Added protection at connection points Better for steel contact surfaces Extends sling life in heavy-use fleetsSafety & Compliance
Always follow ASME B30.9 sling guidelines Inspect sling before each use Do not use if cuts, abrasion, or damage are present Never exceed rated capacityWhy Buy From SlingCenter.com? Fast shipping on in-stock items. Premium-grade quality from only trusted Manufacturers. Competitive pricing without sacrificing quality. Built for those who want to trust what they buy is made to meet or exceed Industry requirements.
Product Specifications
| Product Specifications | |
|---|---|
| Brand | Liftex® |
| Manufacturer Part Number | EE291 |
| Rated Capacity (WLL) | 3,200 lbs WLL |
| Country of Origin | USA 🇺🇸 |
| Compliance | ASME B30.9 / B30.26 (where applicable) |
| Overhead Lifting Rated | Yes |
| Proof-Test Certificate | Provided on request |
Safety & Standards
Every product we carry is individually marked with Working Load Limit (WLL), manufacturer traceability code, and country of origin. Inspection and mill certificates are available on request — email sales@slingcenter.com with your order number.
Governing Standards
- ASME B30.9 — slings (web, round, wire rope, chain) inspection and use
- ASME B30.26 — rigging hardware (shackles, eye bolts, links, turnbuckles)
- ASME B30.10 — hooks
- OSHA 1910.184 and 1926.251 — general industry and construction sling safety
- WSTDA WS-2 and RS-1 — web and round sling design
- 49 CFR 393.102 to 393.130 — DOT cargo tie-down
- NACM — welded steel chain grade specs
Inspection & Safety
Before every use: visual check for cracks, corrosion, distortion, wear, and illegible markings. Annually (minimum): documented periodic inspection by a trained inspector. Remove from service at first sign of damage. Never repair rigging hardware by welding, heating, or bending.
WARNING: Improper use of rigging can cause death or serious injury. Never exceed the rated Working Load Limit. Apply derating for side-loading, elevated temperature, or chemical exposure. Final application decisions must be made by a Qualified Person per OSHA 1926.32(m).
Order Sheet — 12 variants
Search below or click column headers to sort. Add any quantity per row to your cart.
| Option ▴▾ | SKU ▴▾ | Price ▴▾ | Weight ▴▾ | Stock | Qty | Add |
|---|---|---|---|---|---|---|
| Standard Pro-Edge / 8 ft | AS-EE291X08PD | $20.00 | 1.05 lb | ✓ In Stock | ||
| Standard Pro-Edge / 8 ft 6 in | AS-EE291X102IN-PD | $21.50 | 1.05 lb | ✓ In Stock | ||
| Standard Pro-Edge / 10 ft | AS-EE291X10PD | $23.00 | 1.31 lb | ✓ In Stock | ||
| Standard Pro-Edge / 12 ft | AS-EE291X12PD | $26.00 | 1.57 lb | ✓ In Stock | ||
| Reinforced Eyes / 8 ft | AS-FWE291X08PD | $30.00 | 0.4 lb | ✓ In Stock | ||
| Reinforced Eyes / 8 ft 6 in | AS-FWE291X102IN-PD | $31.50 | 1.05 lb | ✓ In Stock | ||
| Reinforced Eyes / 10 ft | AS-FWE291X10PD | $33.00 | 0.4 lb | ✓ In Stock | ||
| Reinforced Eyes / 12 ft | AS-FWE291X12PD | $36.00 | 0.4 lb | ✓ In Stock | ||
| Reinforced Eyes & Body / 8 ft | AS-FWE291X08PD-BW | $49.00 | 0.4 lb | ✓ In Stock | ||
| Reinforced Eyes & Body / 8 ft 6 in | AS-FWE291X102IN-PD-BW | $55.00 | 1.05 lb | ✓ In Stock | ||
| Reinforced Eyes & Body / 10 ft | AS-FWE291X10PD-BW | $58.00 | 0.4 lb | ✓ In Stock | ||
| Reinforced Eyes & Body / 12 ft | AS-FWE291X12PD-BW | $67.00 | 0.4 lb | ✓ In Stock |
Weights are approximate shipping weights.
